Description

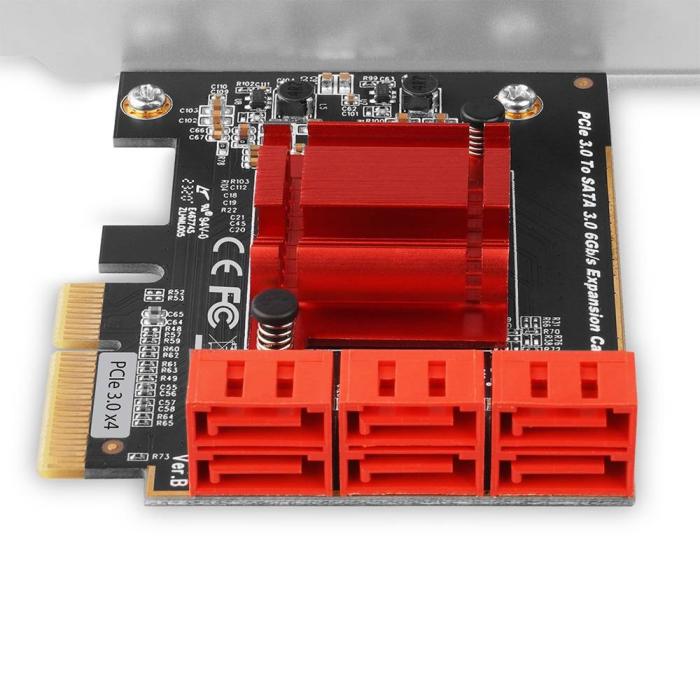

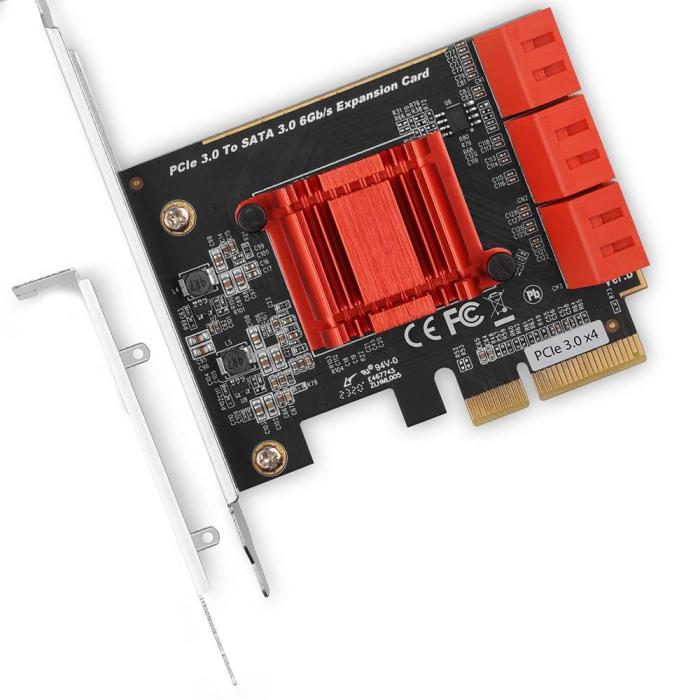

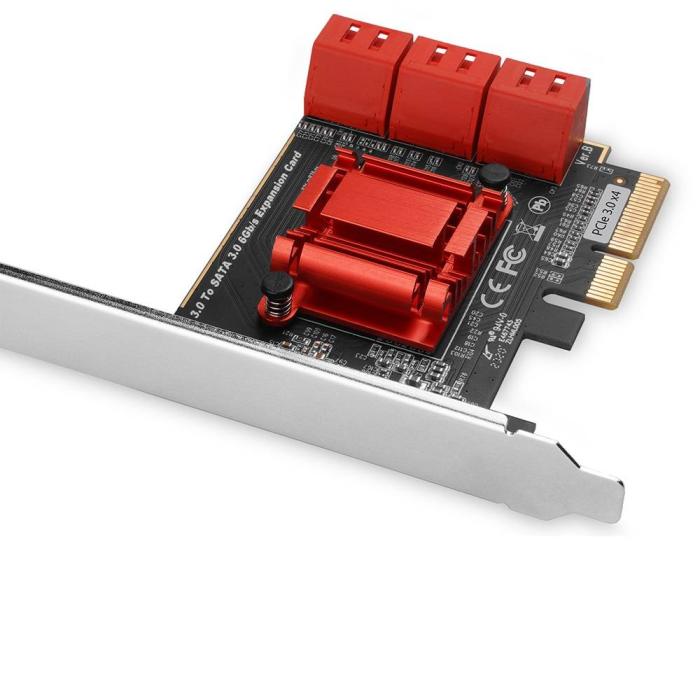

The Axagon PCES-SA6 adapter expands your PC's internal storage with six SATA 3.0 ports, all hot-plug compatible for swapping drives on the fly. Its PCIe 3.0 interface, with full-height and low-profile form factors, fits in any tower case, while the ASMedia ASM1166 chip manages the port multiplier without requiring additional configuration. Passive cooling and a low-power integrated circuit keep operation silent inside the chassis, with a red and silver finish that integrates into standard builds. This expansion card turns your system into a flexible drive station, ideal for expanding internal bays with six SATA drives directly and stably.
Specifications
Ports & interfaces
- Host interface: PCIe
- Host interface gender: Male
- Output interface: SATA
- Expansion card form factor: Full-height / Low-profile
- Expansion card standard: PCIe 3.0
- NVMe: No
- SATA revision: 3.0
- Internal SATA ports quantity: 6
- Port multiplier: Yes
Design
- Internal: Yes
- Product colour: Red, Silver
- Purpose: PC
- Cooling type: Passive
- Hot-Plug support: Yes
- Easy to install: Yes
- Country of origin: China
- Certification: CE
Features
- Chipset: ASMedia ASM1166
- Data transfer rate (max): 6 Gbit/s
- TRIM support: Yes
- Native Command Queuing (NCQ): Yes
- Plug and Play: Yes
System requirements
- Windows operating systems supported: Windows 10, Windows 11, Windows 7, Windows 8, Windows 8.1
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008, Windows Server 2012, Windows Server 2016, Windows Server 2019
Technical details
- Compliance certificates: RoHS
Weight & dimensions
- Width: 145 mm
- Depth: 112 mm
- Height: 25 mm
- Weight: 94 g
Packaging data
- Quantity per pack: 1 pc(s)
- Manual: Yes
- Package width: 145 mm
- Package depth: 112 mm
- Package height: 25 mm
- Package weight: 94 g
- Package type: Box
