Description

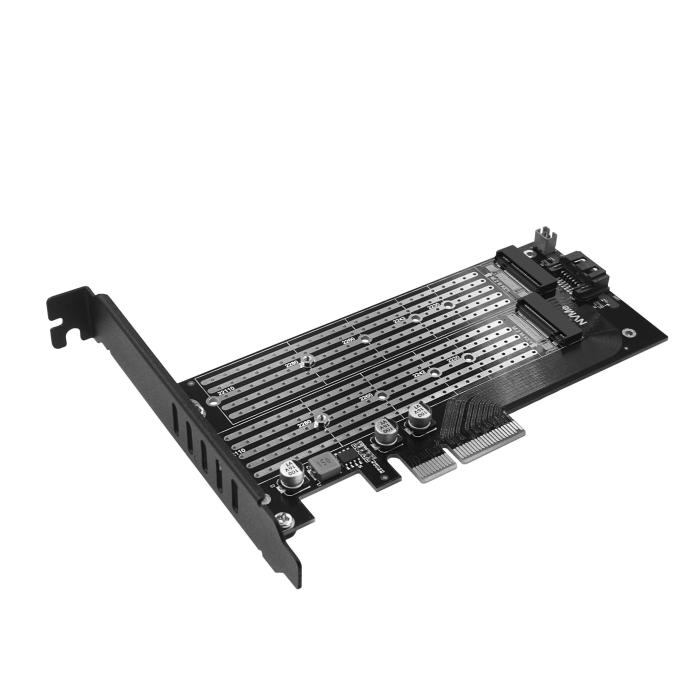

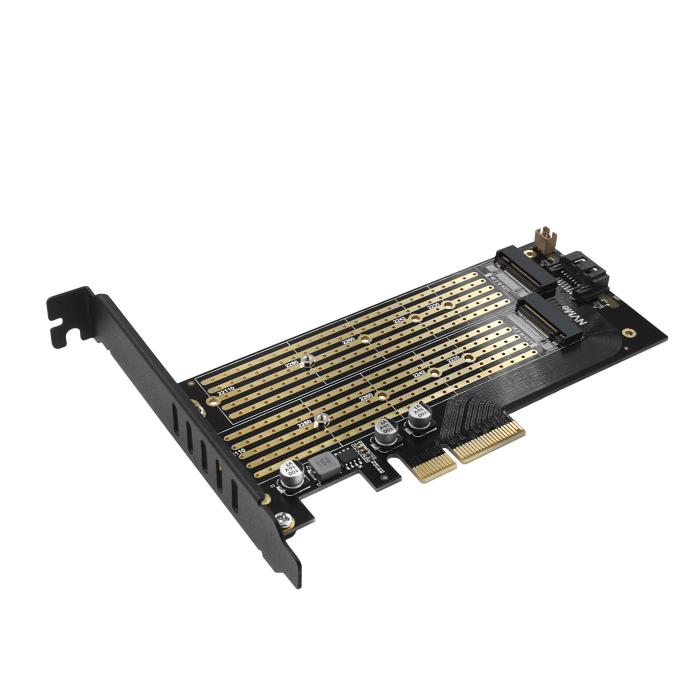

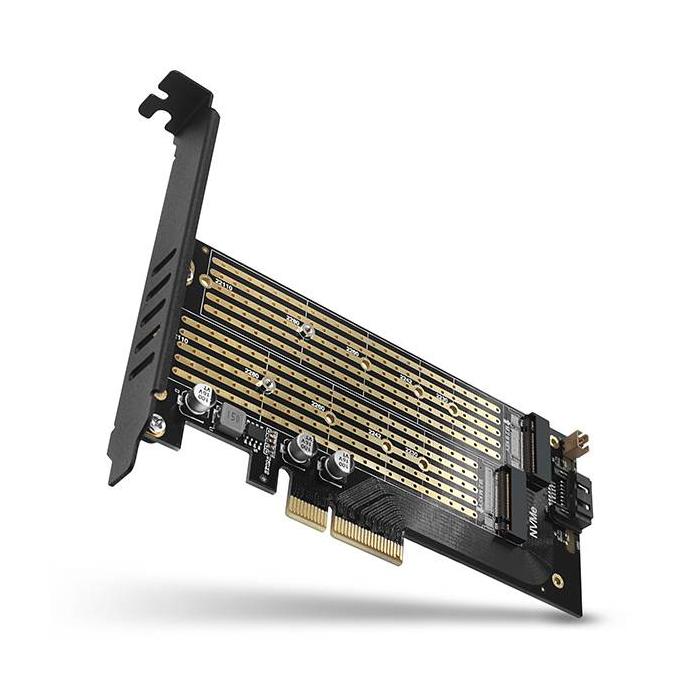

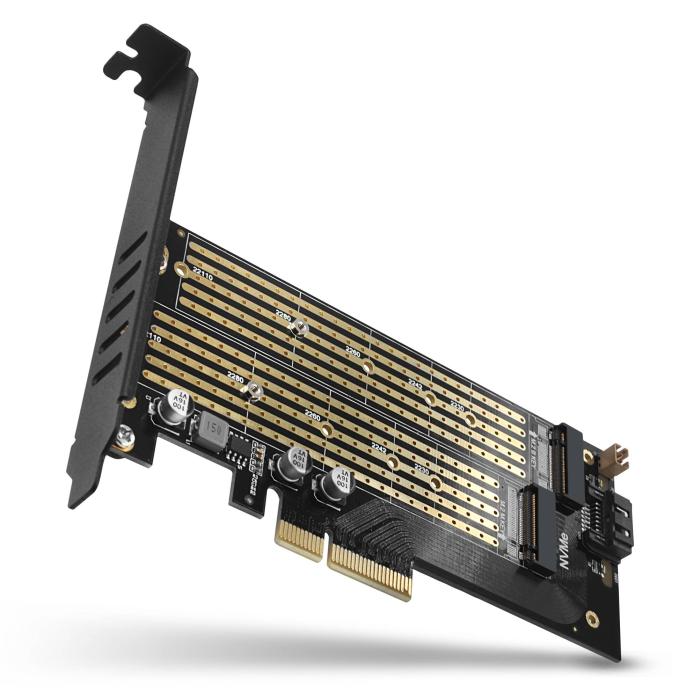

AXAGON PCEM2-D adapter card with internal PCIe interface and M.2 and SATA output, which adds an M.2 (B) slot and an M.2 (M) slot with NVMe support to a PC. Its PCIe 4.0 standard and data transfer rate of up to 8 Gbit/s allow M.2 and SATA drives to be connected from the motherboard. Installation is simplified and it supports plug and play, as well as featuring TRIM support, LED indicators and a full-height and low-profile card format. It comes in black and gold, with dimensions of 142 x 12 x 64 mm and a weight of 46 g. It is designed for use in PCs and is compatible with Windows Server 2008 R2, Windows Server 2012 and Windows Server 2016, and has CE certification.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: M.2, SATA
- Expansion card form factor: Full-height / Low-profile
- Expansion card standard: PCIe 4.0
- NVMe: Yes
- Number of M.2 (M) slots: 1
- Number of M.2 (B) slots: 1
Design
- Internal: Yes
- Product colour: Black, Gold
- Purpose: PC
- LED indicators: Yes
- Easy to install: Yes
- Country of origin: China
- Certification: CE
Features
- Data transfer rate (max): 8 Gbit/s
- TRIM support: Yes
- Plug and Play: Yes
System requirements
- Windows operating systems supported: Windows 10, Windows 7, Windows 8, Windows 8.1
- Mac operating systems supported: Yes
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2016
Technical details
- Compliance certificates: RoHS
Weight & dimensions
- Width: 142 mm
- Depth: 64 mm
- Height: 12 mm
- Weight: 46 g
Packaging data
- Quantity per pack: 1 pc(s)
- Manual: Yes
- Package width: 175 mm
- Package depth: 130 mm
- Package height: 30 mm
- Package weight: 128 g
- Package type: Box
