StarTech.com 2 Port PCI Express (PCIe) SuperSpeed USB 3.0 Card Adapter with UASP - SATA Power
More info
Brand: STARTECH.COM
31.36 €
25.92 €
without VAT
incl. 21 % VAT
Stock available: 2 units.
Get it
on the
October 16
/
October 19
SKU:
75029
PRC:
75126
EAN:
65030855587
PN:
PEXUSB3S24
Description

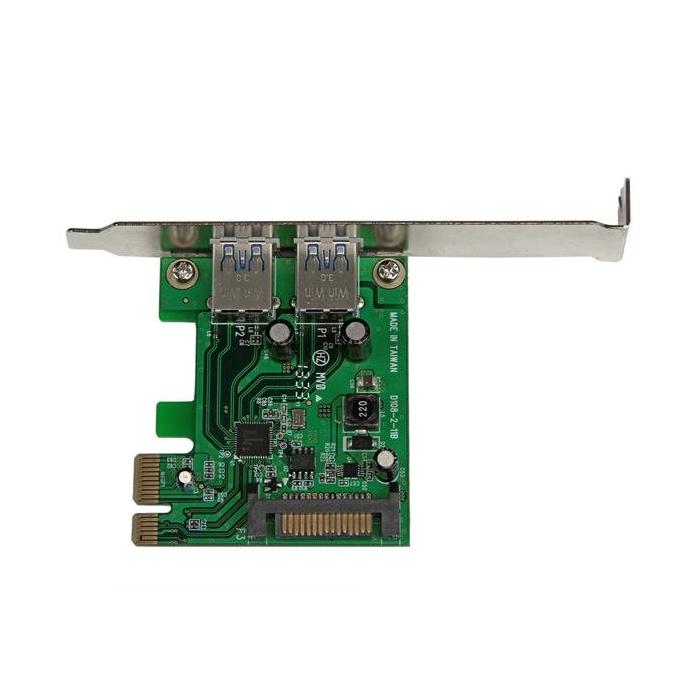

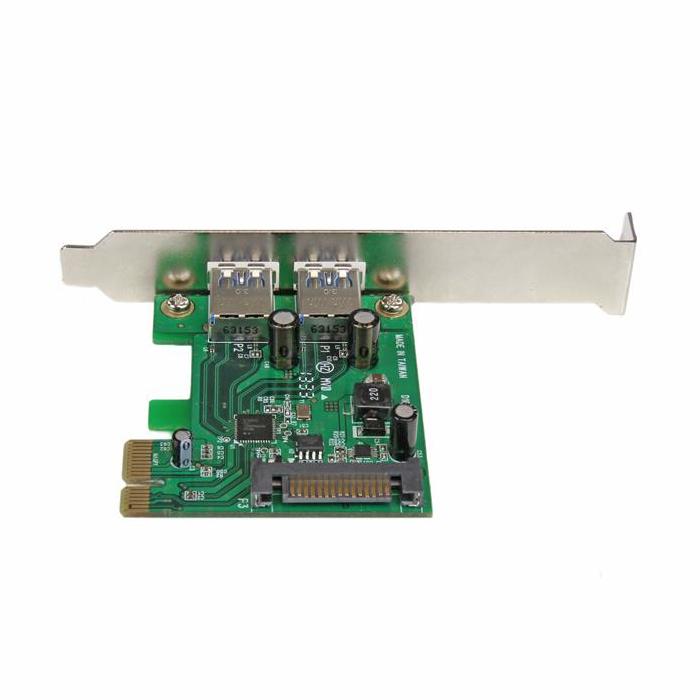

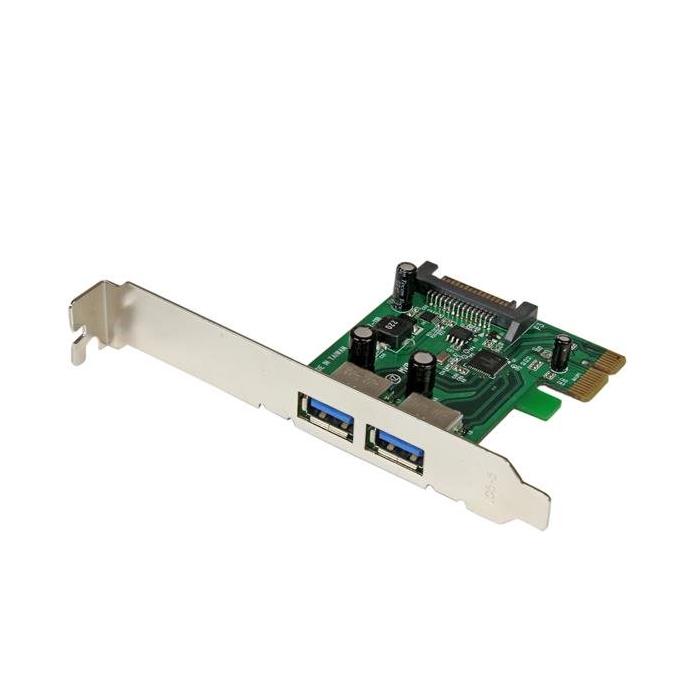

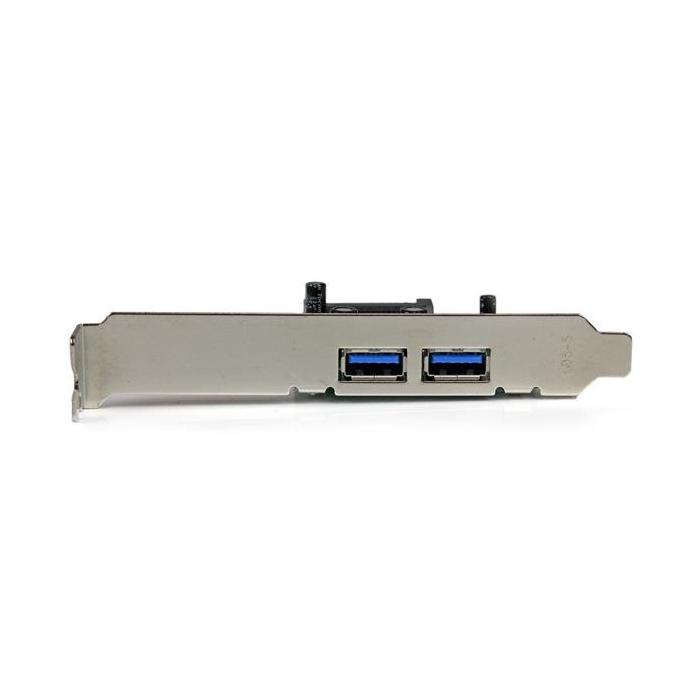

Expand your system with the STARTECH.COM PCI Express card, an internal adapter that adds two USB 3.2 Gen 1 Type-A ports with a maximum data transfer rate of 5 Gbit/s. It installs in a PCIe slot via a PCIe 2.0 host interface and its low-profile form factor allows it to be integrated into compact cases. It features the Renesas/NEC µPD720202 chipset and offers UASP support to optimise performance with compatible devices. Its dimensions are 18 x 120 x 65 mm (width x height x depth) and its weight is 40 g, with a green and metallic colour. It operates within an operating temperature range of 5 to 50 °C and supports a relative humidity of between 20 and 80%. It is compatible with Windows Server 2008 R2, 2012, 2012 R2, 2016 and 2019, as well as with Linux, and holds CE, FCC, TAA and REACH certification.
Specifications
Ports & interfaces
- Host interface: PCIe
- Output interface: USB 3.2 Gen 1 (3.1 Gen 1)
- Expansion card form factor: Low-profile
- Expansion card standard: PCIe 2.0
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Design
- Internal: Yes
- Product colour: Green, Metallic
- Certification: CE, FCC, TAA, REACH
Features
- Chipset: Renesas/NEC - µPD720202
- Data transfer rate (max): 5 Gbit/s
- UASP support: Yes
Operational conditions
- Operating temperature (T-T): 5 - 50 °C
- Storage temperature (T-T): -25 - 70 °C
- Operating relative humidity (H-H): 20 - 80%
System requirements
- Windows operating systems supported: Windows 10, Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, W
- Linux operating systems supported: Yes
- Server operating systems supported: Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019
Weight & dimensions
- Width: 18 mm
- Depth: 65 mm
- Height: 120 mm
- Weight: 40 g
Packaging data

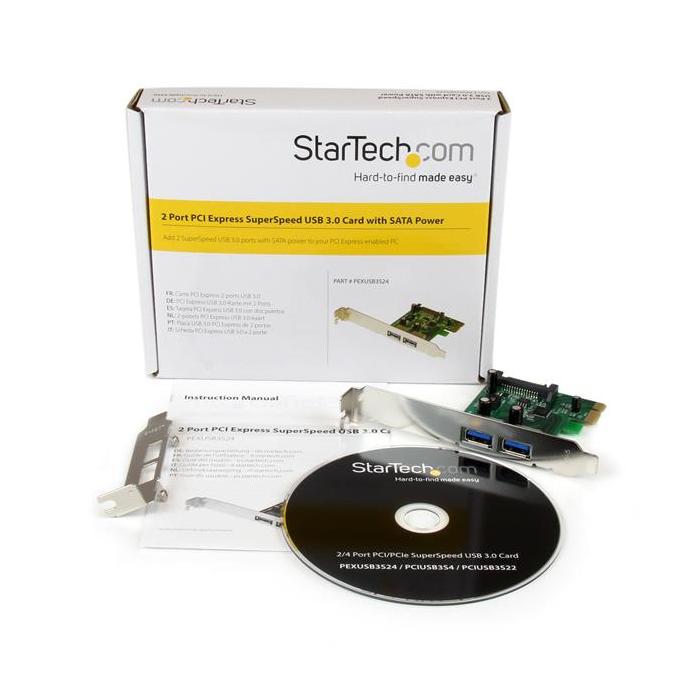

- Mounting brackets included: Yes
- Drivers included: Yes
- Manual: Yes
- Package width: 174 mm
- Package depth: 145 mm
- Package height: 32 mm
- Package weight: 130 g
Logistics data
- Harmonized System (HS) code: 84733020
