Description

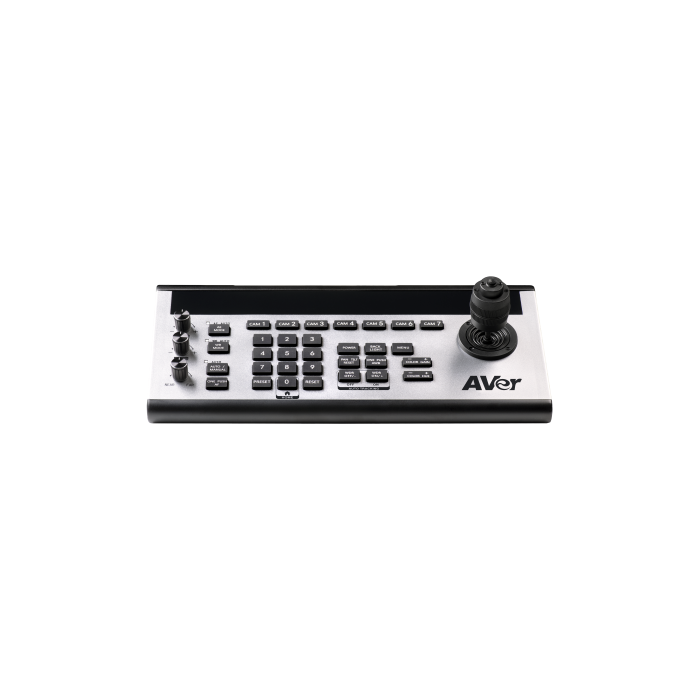

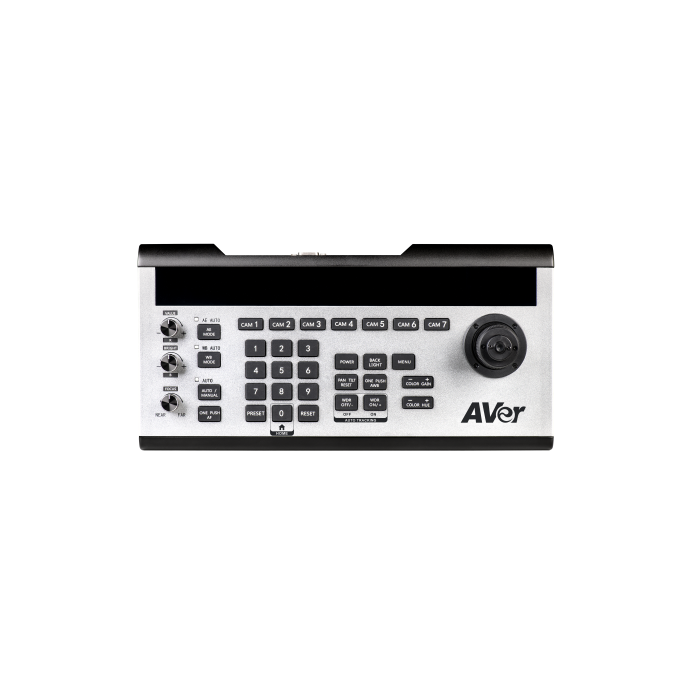

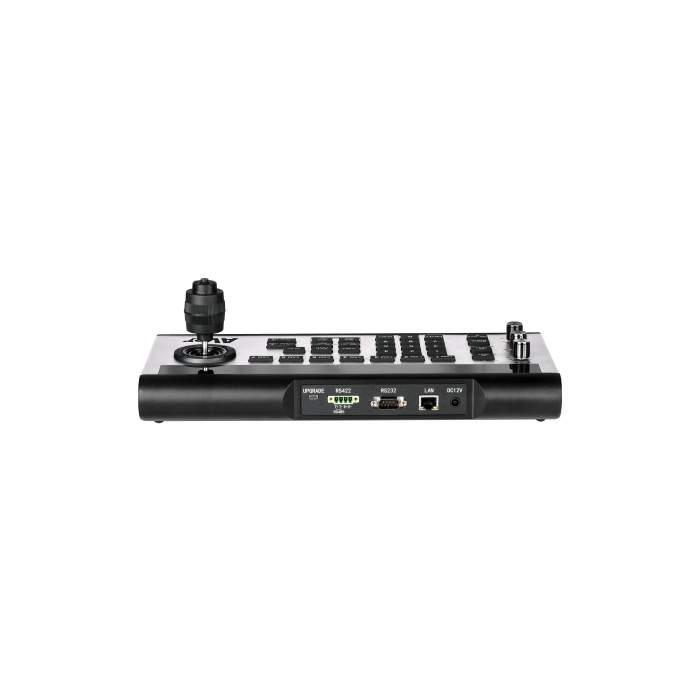

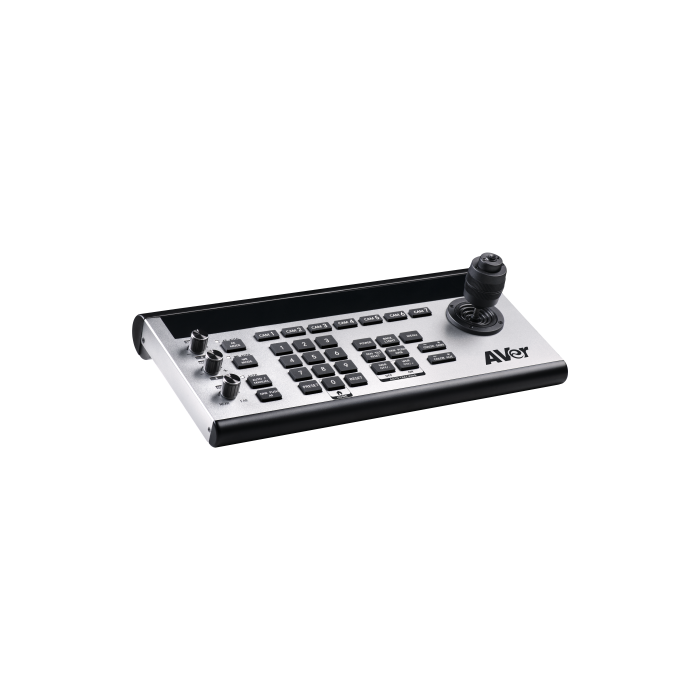

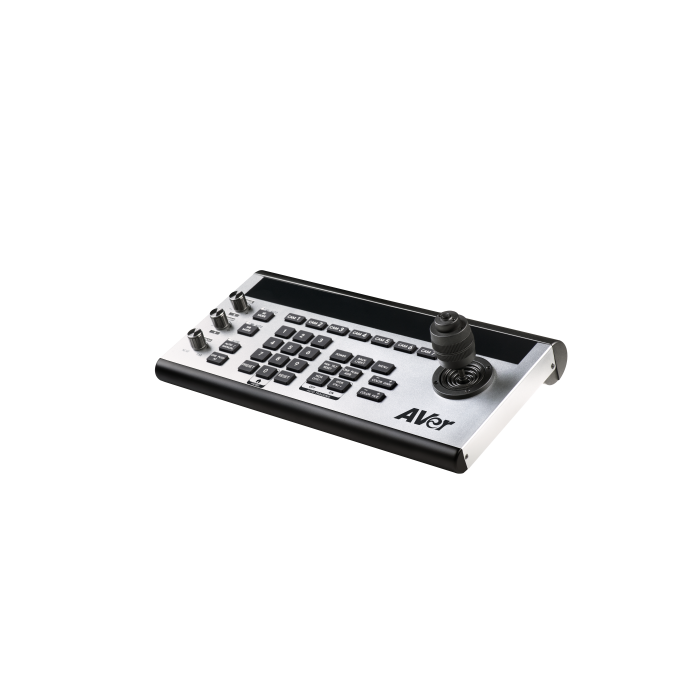

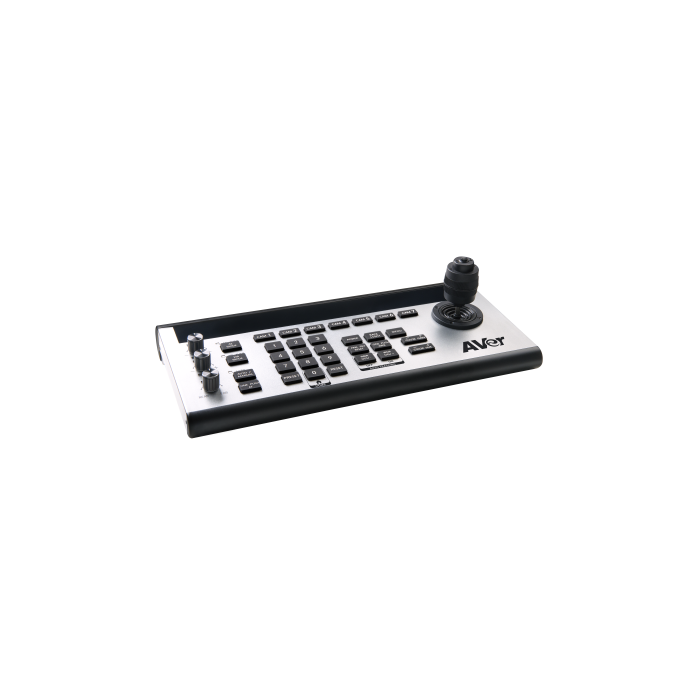

AVer CL01 data controller in black and silver with integrated OLED display, designed to manage up to seven cameras from a single point. Its control combines buttons, joystick and rotary dial, with RJ-45 Ethernet connection and RS-422/485, RS-232 and Micro-USB ports for integration into professional setups. It offers baud rates of 384000 Bd and updatable firmware to maintain operability. With 12 V DC input and maximum power consumption of 24 W, this device centralises the management of video equipment without complications.
Specifications
Performance
- Maximum number of cameras supported: 7
Display
- Built-in display: Yes
- Display type: OLED
Design
- Product colour: Black, Silver
- Control type: Buttons, Joystick, Rotary
Network
- Ethernet LAN: Yes
Logistics data
- Country of origin: China
- Products per master (outer) case: 1 pc(s)
Features
- Baud rates: 384000 Bd
- Firmware upgradeable: Yes
Ports & interfaces
- RJ-45 ports quantity: 1
- RS-232 ports: 1
- Micro-USB ports quantity: 1
- DC-in jack: Yes
- RS-422/485 ports: 1
Power
- Power source type: DC
- Power consumption (max): 24 W
- DC input voltage: 12 V
- Input current (max): 2 A
Weight & dimensions
- Width: 350 mm
- Depth: 180 mm
- Height: 130 mm
- Weight: 2.45 kg
Packaging data
- Package width: 210 mm
- Package depth: 175 mm
- Package height: 385 mm
- Package weight: 2.82 kg
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Packaging content
- Cables included: RS-485
- AC adapter included: Yes
- Manual: Yes
