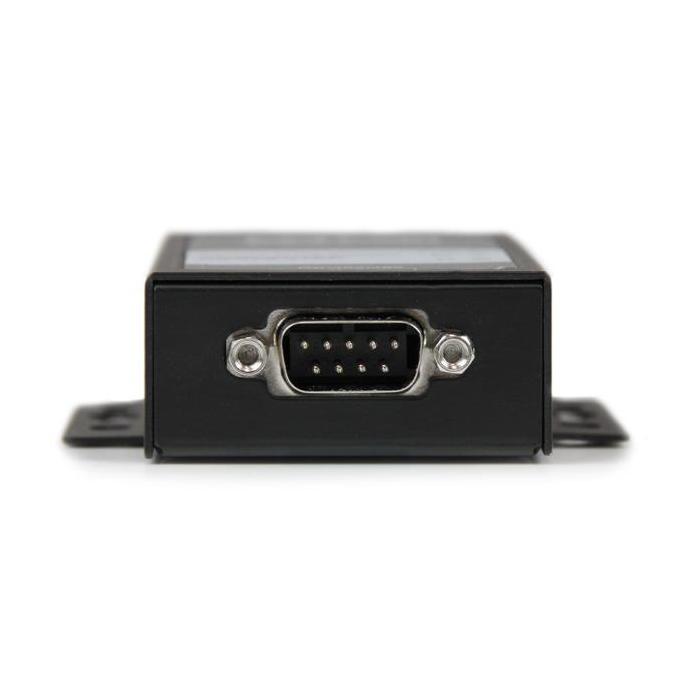

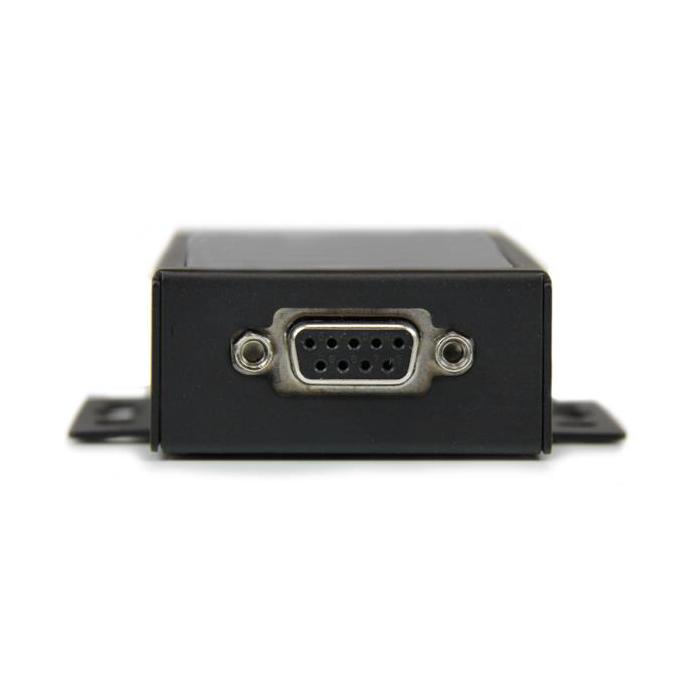

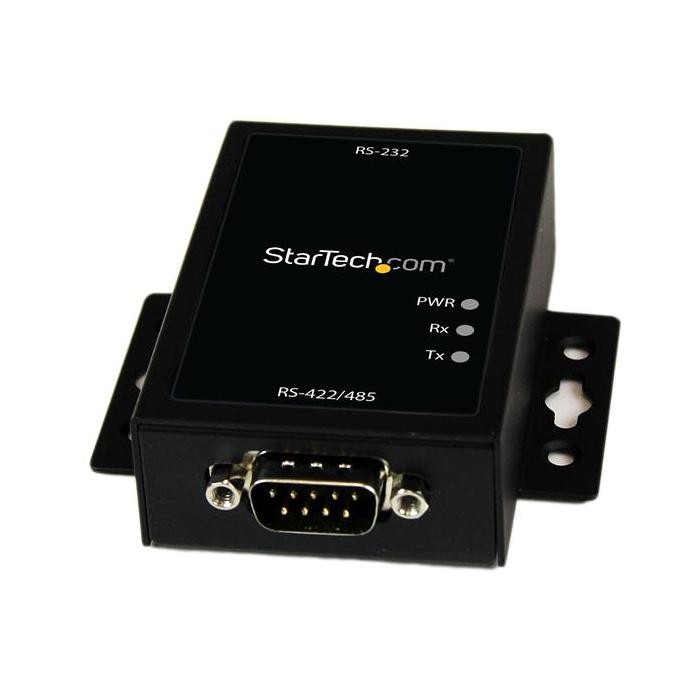

StarTech.com Industrial RS232 to RS422/485 Serial Port Converter with 15KV ESD Protection
More info
Brand: STARTECH.COM
84.28 €Stock available: 0 units.
Unavailable
SKU:
73370
PRC:
48589
EAN:
650308525554
PN:
IC232485S
Description
Converts RS-232 signals to RS-422 and RS-485 with this DB-9 serial port adapter from StarTech.com, available in black with male/female connectors for simplified connection. Includes 15KV electrostatic discharge protection that safeguards equipment against surges, while its host interface and RS-232 output allow linking legacy devices. Achieves a maximum cable length of 1200 metres, facilitating large installations, and operates in a temperature range of 0 to 50 °C with relative humidity from 5% to 85%. With dimensions of 117 mm depth, 59 mm width, and 22 mm height, and a weight of 143 g, it complies with RoHS certification to ensure environmental conformity.
Specifications
Technical details
- Host interface: RS-232
- Output interface: RS-232
- Connector 1: DB-9
- Connector 2: DB-9
- Connector gender: Male/Female
- Product colour: Black
- Maximum cable length: 1200 m
- Compliance certificates: RoHS
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 5 - 85%
Weight & dimensions
- Width: 59 mm
- Depth: 117 mm
- Height: 22 mm
- Weight: 143 g
- Package width: 208 mm
- Package depth: 146 mm
- Package height: 41 mm
- Package weight: 351 g
Power
- Input voltage: 110 - 240 V
- Input current: 0.3 A
Material
- Housing material: Steel
Certificates
- Certification: CE, FCC, REACH
Packaging data

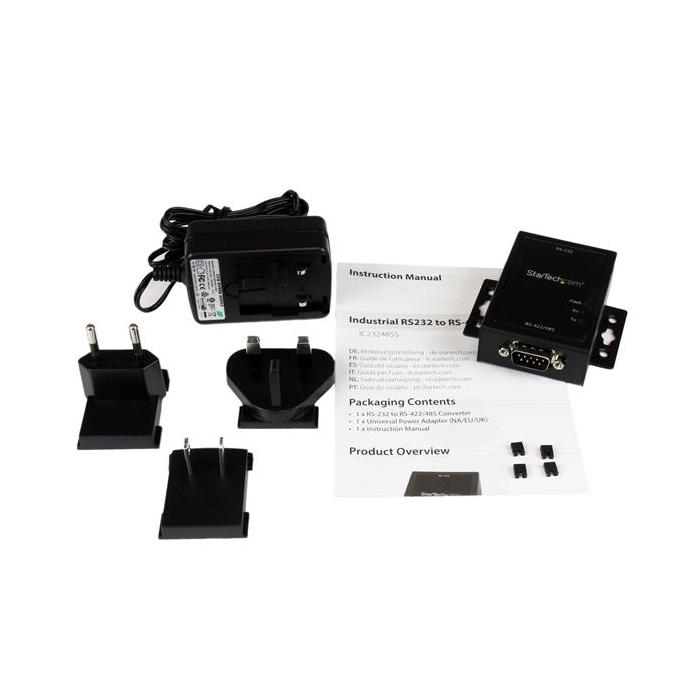

- Manual: Yes
