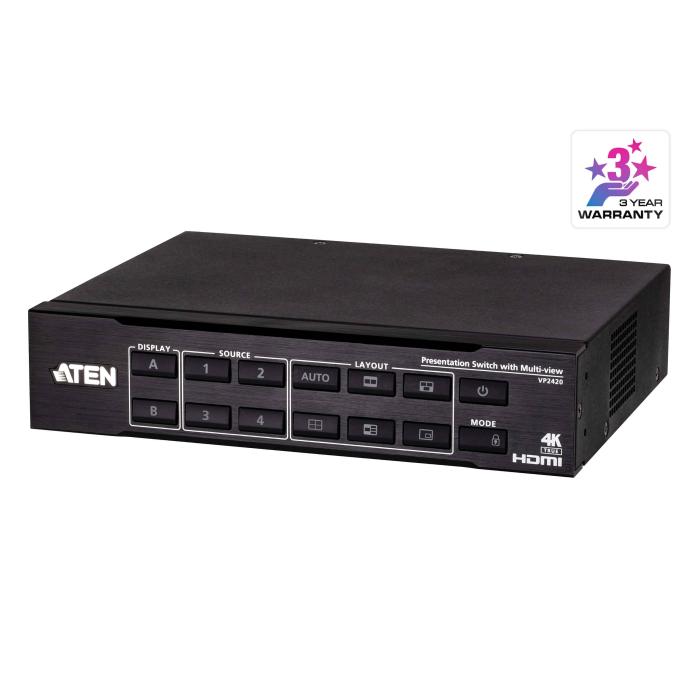

ATEN VP2420 matrix switcher Media presentation matrix switcher

Not avaliable

More info

Brand: ATEN
SKU: 110588 PRC: 597423 EAN: 4710469348907 PN: VP2420

Description

ATEN VP2420, Media presentation matrix switcher, 4096 x 2160 pixels, 4096 x 2160 pixels, 4096 x 2160, 3840 x 2160, Black, Metal

Specifications

Features

  • Product type: Media presentation matrix switcher
  • Maximum resolution: 4096 x 2160 pixels
  • Maximum resolution (HDMI): 4096 x 2160 pixels
  • HDCP: Yes
  • HDCP version: 2.2
  • 3D: Yes
  • Extended display identification data (EDID): Yes
  • Supported resolutions: 4096 x 2160, 3840 x 2160

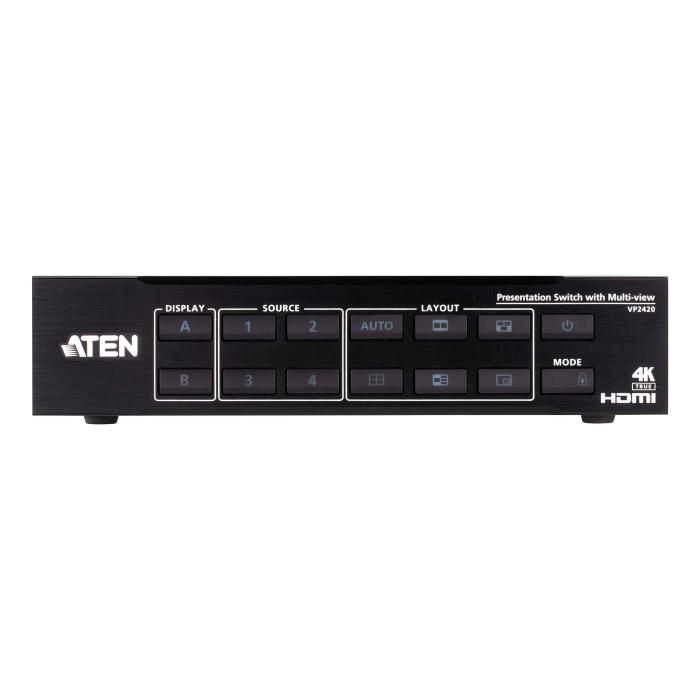

Design

  • Housing colour: Black
  • Housing material: Metal
  • Control type: Buttons
  • On/off switch: Yes
  • LED indicators: Yes
  • Remote control included: Yes

Display

  • Built-in display: No

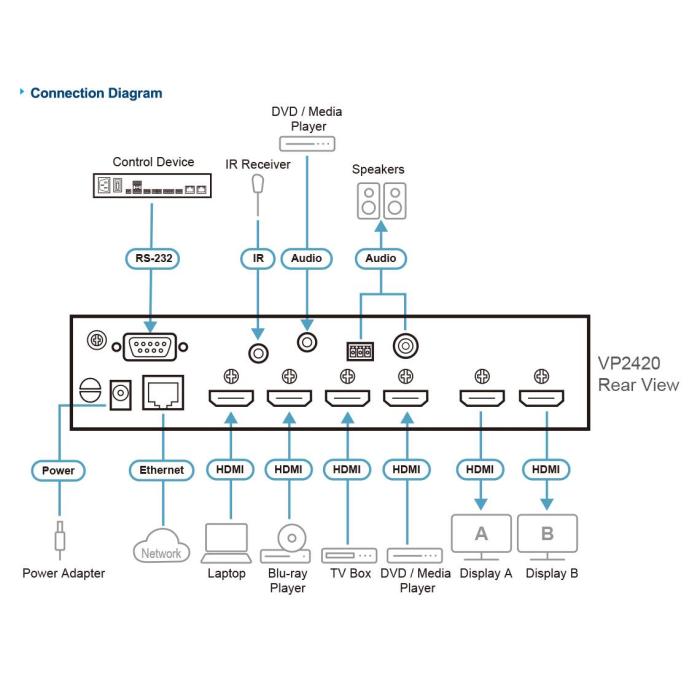

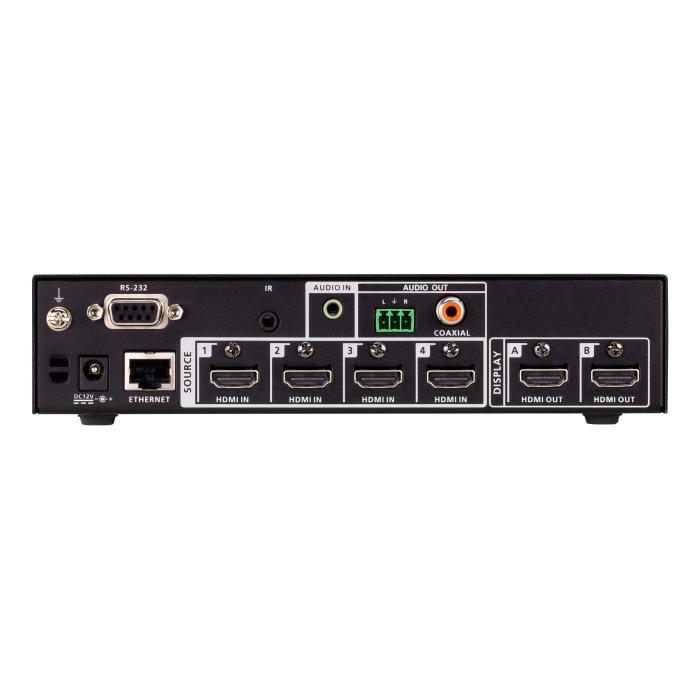

Ports & interfaces

  • HDMI input ports quantity: 4
  • HDMI output ports quantity: 2
  • RJ-45 input ports: 1
  • Ethernet LAN (RJ-45) ports: 1
  • RS-232 ports: 1
  • Remote (IR) input: 1
  • DC-in jack: Yes

Power

  • Power consumption (typical): 17.1 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 60 °C
  • Operating relative humidity (H-H): 0 - 80%

Weight & dimensions

  • Width: 160.5 mm
  • Depth: 200 mm
  • Height: 44 mm
  • Weight: 1.08 kg
  • Package width: 207 mm
  • Package depth: 414 mm
  • Package height: 117 mm
  • Package weight: 1.85 kg

Packaging content

  • Quick start guide: Yes
  • AC adapter included: Yes
  • IR receiver included: Yes
