Description

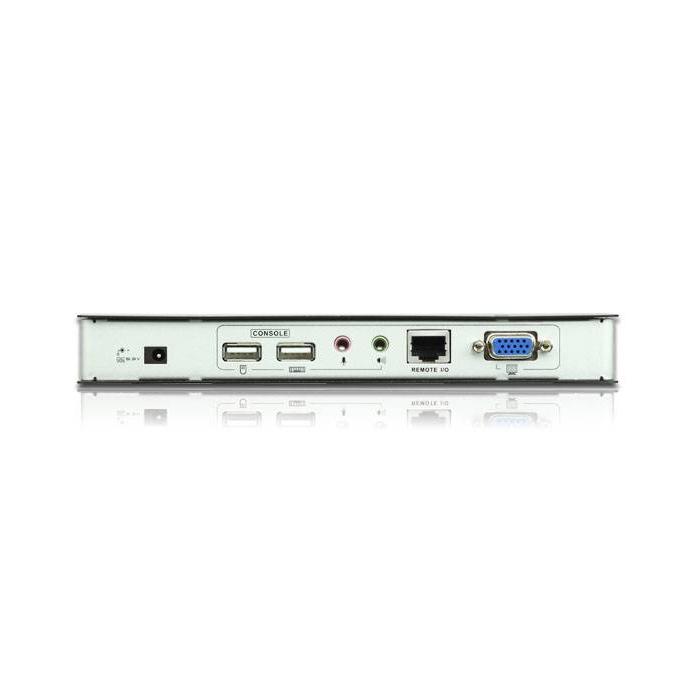

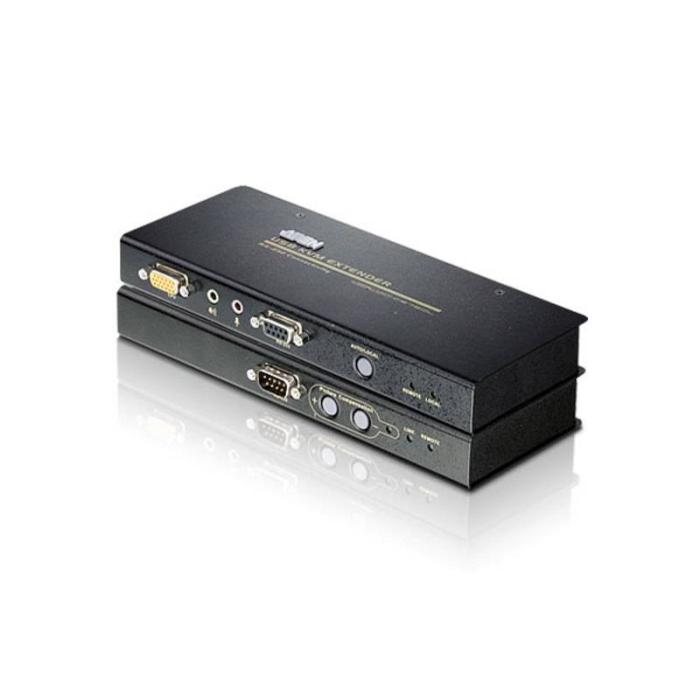

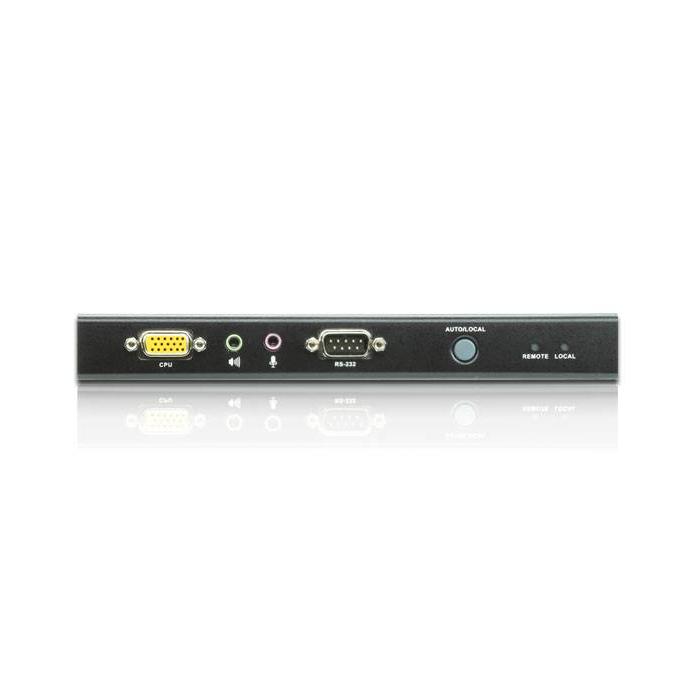

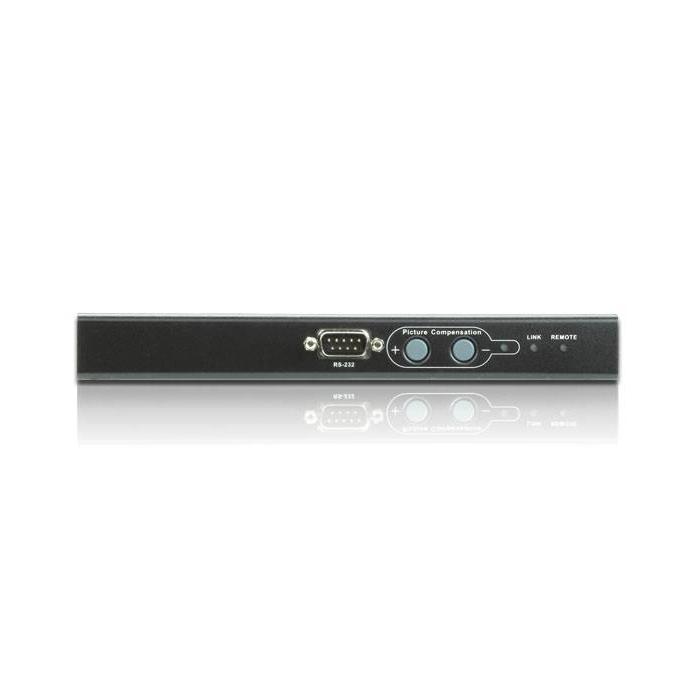

The ATEN CE750A KVM extender, in black, combines transmitter and receiver to control equipment remotely. It works with a wired connection and transmits the VGA video signal from the transmitter's local port to the receiver, also VGA. Both the transmitter and receiver feature USB ports for connecting the keyboard and mouse. It supports Cat5 cables, allowing a maximum transfer distance of 200 m to be covered. The maximum digital resolution it handles is 1920 x 1200 pixels. KVM port selection is done via buttons. Its metal construction gives it robustness, and it has RoHS certification. The receiver weighs 470 g and measures 8.51 cm wide and 2.5 cm high, while the transmitter has a depth of 20.2 cm and a height of 2.5 cm.
Specifications
Features
- Type: Transmitter & receiver
- Connectivity technology: Wired
- Maximum transfer distance: 200 m
- Cable types supported: Cat5
- Maximum digital resolution: 1920 x 1200 pixels
- KVM port selection: Push-buttons
- Product colour: Black
- Material: Metal
- Certification: RoHS
Transmitter
- Transmitter local video port type: VGA
- Transmitter local keyboard/mouse port type: USB
Receiver
- Receiver local video port type: VGA
- Receiver local keyboard/mouse port type: USB
Weight & dimensions
- Transmitter width: 8.63 cm
- Transmitter depth: 20.2 cm
- Transmitter height: 2.5 cm
- Transmitter weight: 470 g
- Receiver width: 8.51 cm
- Receiver depth: 20.2 cm
- Receiver height: 2.5 cm
- Receiver weight: 470 g
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
