Description

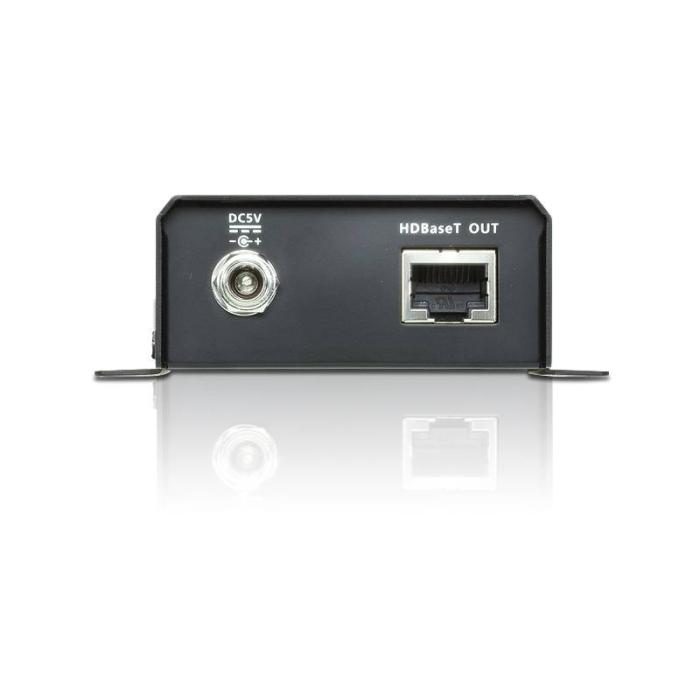

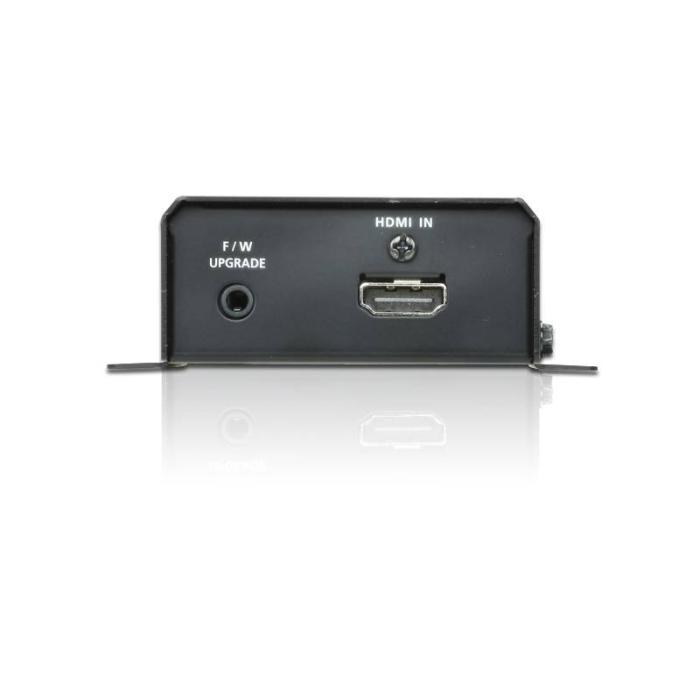

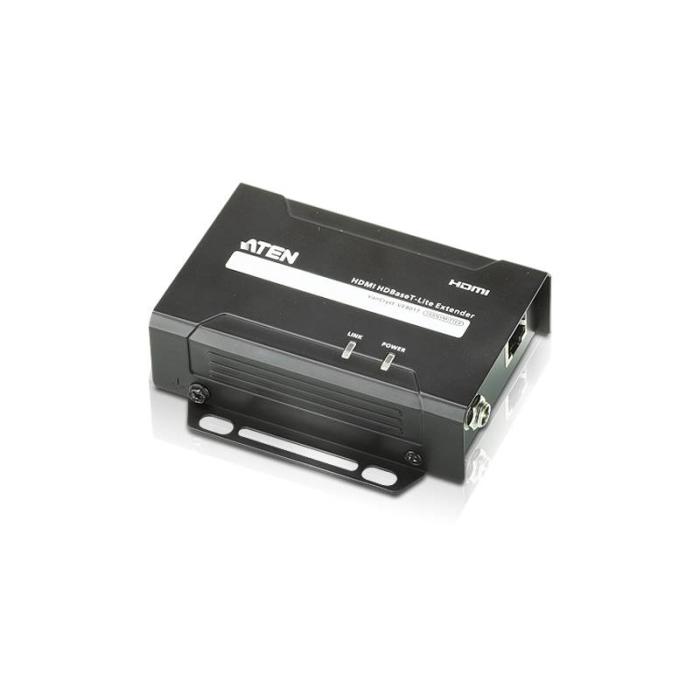

Black ATEN AV signal transmitter, model VE801T, designed to send audio and video over a single Cat5e, Cat6 or Cat6a network cable up to a maximum distance of 70 metres. Its HDMI input accepts resolutions up to 3840 x 2160 pixels, with a 340 MHz bandwidth and support for 1080p video modes and HDCP. The metal housing incorporates LED indicators and an active Ethernet connection, with a power consumption of 1.85 W and an RJ-45 output port for professional, reliable installation. It operates in a temperature range of 0 to 50 °C and a relative humidity of 0 to 80 %, adapting to continuous-use environments.
Specifications
Features
- Type: AV transmitter
- Maximum resolution: 3840 x 2160 pixels
- Cable types supported: Cat5e, Cat6, Cat6a
- Maximum transfer distance: 70 m
- LED indicators: Yes
- Supported video modes: 1080p
- Bandwidth: 340 MHz
- HDCP: Yes
- Material: Metal
- Product colour: Black
Ports & interfaces
- Ethernet LAN: Yes
- RJ-45 output ports: 1
- HDMI in: 1
- DC-in jack: Yes
Power
- Power consumption (typical): 1.85 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Dimensions (WxDxH): 87 x 103 x 30 mm
- Weight: 240 g
Packaging content
- AC adapter included: Yes
Technical details
- Compliance certificates: RoHS
