Description

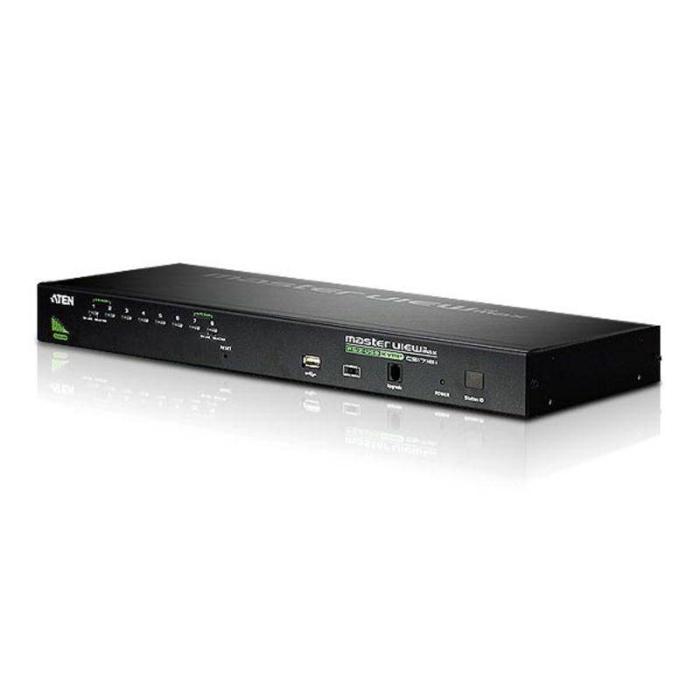

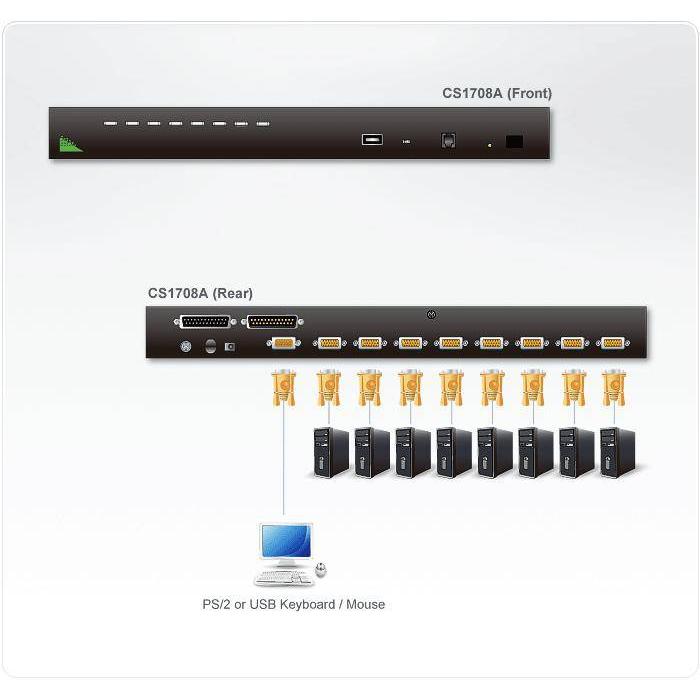

ATEN CS1708A KVM switch, 1U rack mountable, black finish, designed to manage up to 256 computers from a single console with USB Type-A and VGA ports, plus support for USB or PS/2 keyboard and mouse. Its daisy-chain connection allows for expanding system control, while the upgradeable firmware and DDC2B support ensure compatibility with high-resolution monitors up to 2048 x 1536 pixels. The automatic scan function with adjustable interval between 1 and 255 seconds facilitates monitoring of multiple units, and the LED indicators, push button, and hotkeys streamline source selection.
Specifications
Ports & interfaces
- Number of computers controlled: 256
- Keyboard port type: USB, PS/2
- Mouse port type: USB, PS/2
- Video port type: VGA
- Console ports: USB A, VGA (D-Sub)
- Console USB ports quantity: 1
- USB connector type: USB Type-A
- DC-in jack: Yes
Performance
- Maximum resolution: 2048 x 1536 pixels
- Scan interval: 1, 255 s
- DDC2B support: Yes
- Hot-Plug support: Yes
- Daisy chain: Yes
- Firmware upgradeable: Yes
Design
- Rack mounting: Yes
- Rack capacity: 1U
- Product colour: Black
- Housing material: Metal
- LED indicators: Yes
- Push button: Yes
- Hot keys: Yes
Display
- Built-in display: No
- On Screen Display (OSD): Yes
Power
- Power source: DC
- Input voltage: 5.3 V
- Power consumption (typical): 5 W
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
- Mac operating systems supported: Yes
- Other operating systems supported: Yes
Sustainability
- Compliance certificates: RoHS
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Width: 437.2 mm
- Depth: 159.9 mm
- Height: 44 mm
- Weight: 2.66 kg
Packaging content
- Cables included: KVM
