Description
The ATEN AT-VC880 is a black video capture device with HDBaseT certification that supports 3D content and protects the signal via HDCP. It reaches a maximum resolution of 1920 x 1080 pixels and works with 1080p video modes and 1920 x 1080 (HD 1080) graphics resolutions. Its 225 MHz bandwidth and 100 Ω impedance allow the signal to be transmitted stably. In terms of connections, it offers one HDMI input, one HDMI output and one audio output with Toslink and RCA connectors, as well as a DC power input socket. The audio system is stereo and its firmware can be updated. It features a built-in power on/off switch and weighs 460 g.
Specifications
Features
- Maximum resolution: 1920 x 1080 pixels
- Audio system: stereo
- Supported video modes: 1080p
- Supported graphics resolutions: 1920 x 1080 (HD 1080)
- Bandwidth: 225 MHz
- On/off switch: Yes
- HDCP: Yes
- 3D: Yes
- Firmware upgradeable: Yes
- Impedance: 100 Ω
- Product colour: Black
- HDBaseT certified: Yes

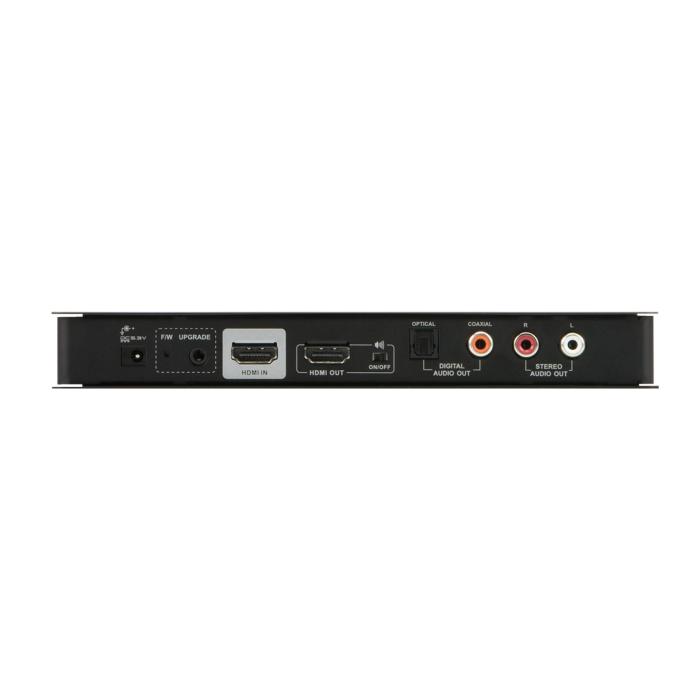

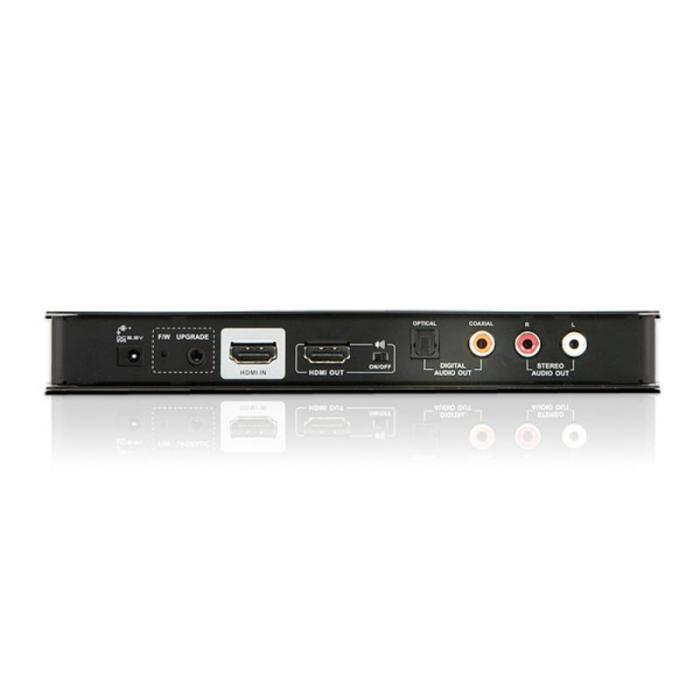

Ports & interfaces
- HDMI in: 1
- Number of HDMI outputs: 1
- Video in: 1 x HDMI Type A Female (Black)
- Video out: 1 x HDMI Type A Female (Black)
- Audio (L/R) out: 1
- Audio output: 1 x HDMI Type A Female (Black); 1 x Toslink (Black); 1 x RCA (Orange); 2 x RCA (Red/White);
- Audio RCA outputs: 3
- DC-in jack: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Dimensions (WxDxH): 200 x 82 x 250 mm
- Weight: 460 g
Packaging content
- AC adapter included: Yes
- Manual: Yes
