Description

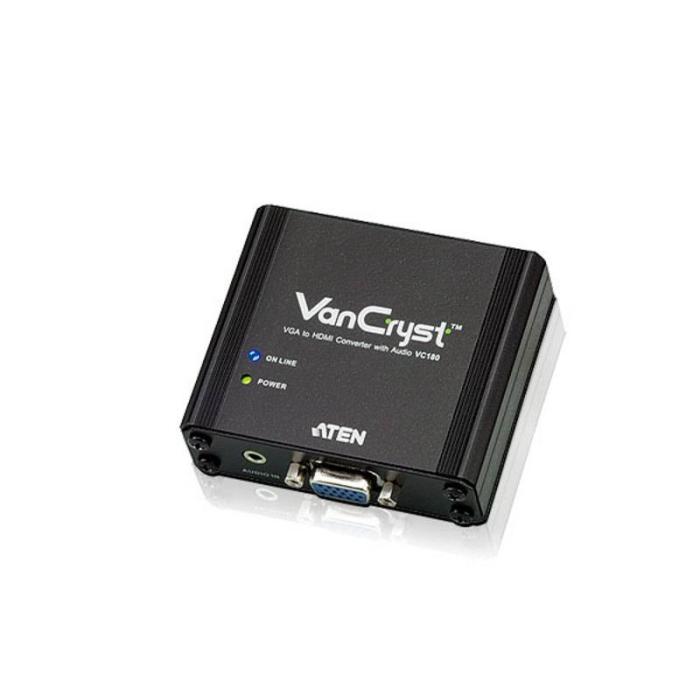

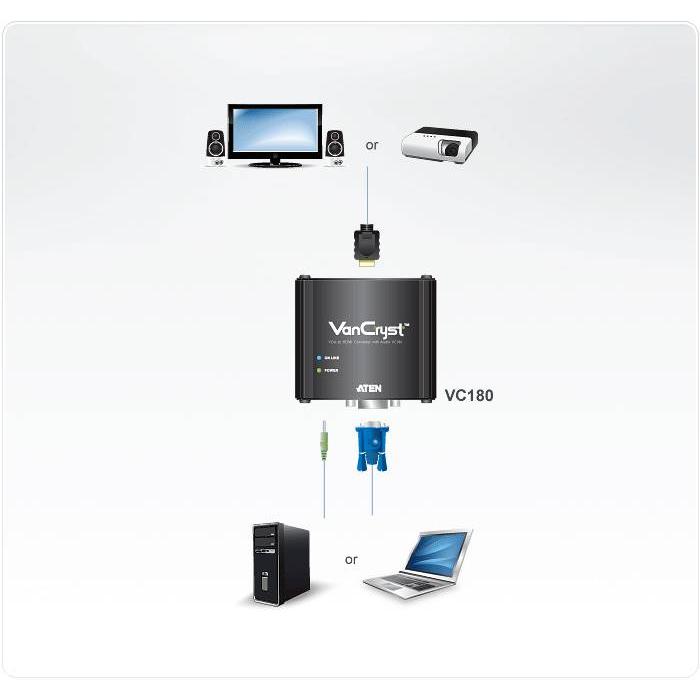

ATEN AT-VC180 video signal converter in a black metal housing that lets you take a VGA source to an HDMI display, with support for 1080p video modes and a maximum resolution of 1920 x 1080 pixels. It features a blue HDB-15 female video input and a black HDMI type A female output, plus a 3.5 mm audio connector. It operates with an input voltage of 5.3 V and a power consumption of 3.2 W, functioning in a temperature range of 0 to 50 °C and a relative humidity of 0 to 80%. Its compact dimensions of 79 x 78.1 x 24.4 mm and a weight of 150 g make it easy to install near your equipment, ideal for upgrading an old monitor or projector without losing signal quality.
Specifications
Features
- Product colour: Black
- Housing material: Metal
Video
- Maximum video resolution: 1920 x 1080 pixels
- Supported video modes: 1080p
Ports & interfaces

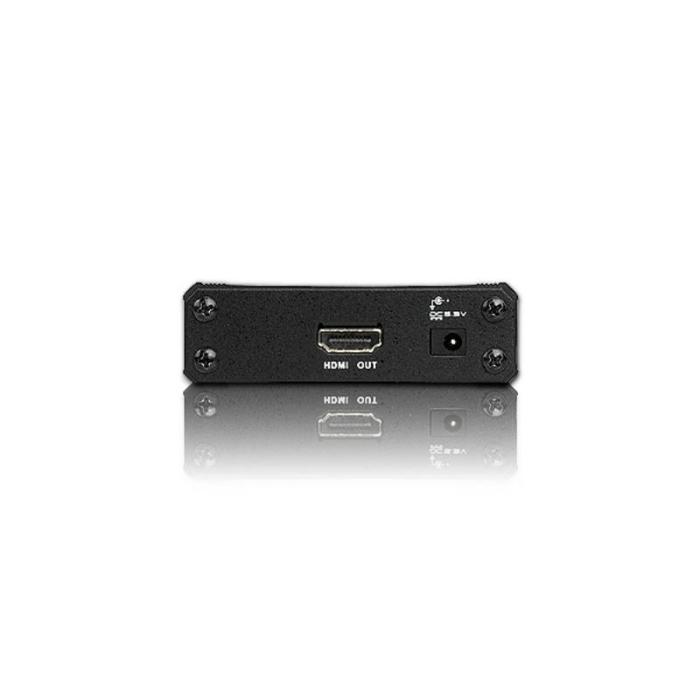

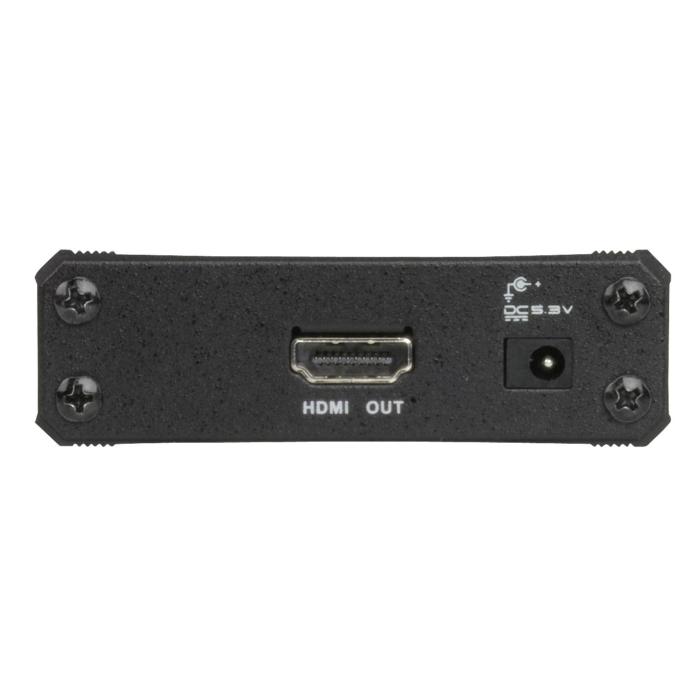

- Video out: 1 x HDMI Type A Female (Black)
- 3.5 mm connector: Yes
- Host interface: VGA (D-Sub)
- Output interface: HDMI

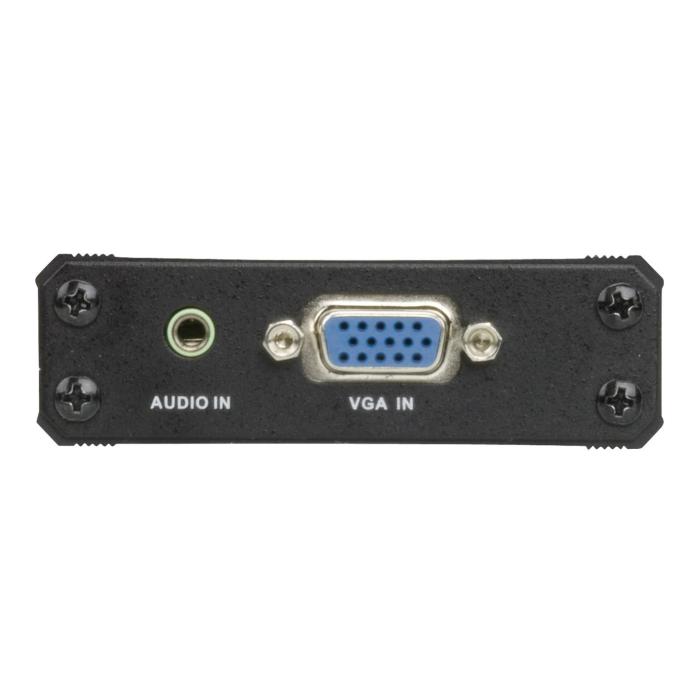

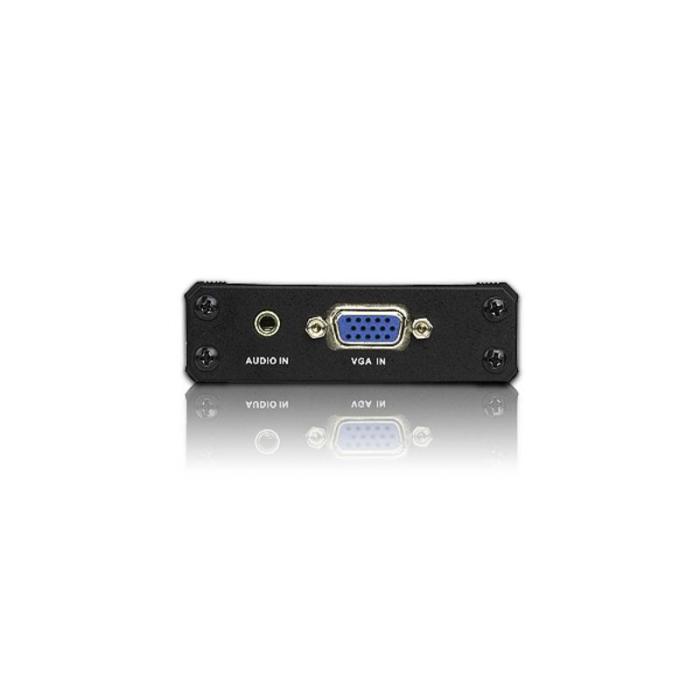

- Video in: 1 x HDB-15 Female (Blue)
Power
- Input voltage: 5.3 V
- Power consumption (typical): 3.2 W
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
Weight & dimensions
- Width: 79 mm
- Depth: 78.1 mm
- Height: 24.4 mm
- Weight: 150 g
Packaging data
- AC adapter included: Yes
- Quick installation guide: Yes
Logistics data
- Harmonized System (HS) code: 85176990
