Description

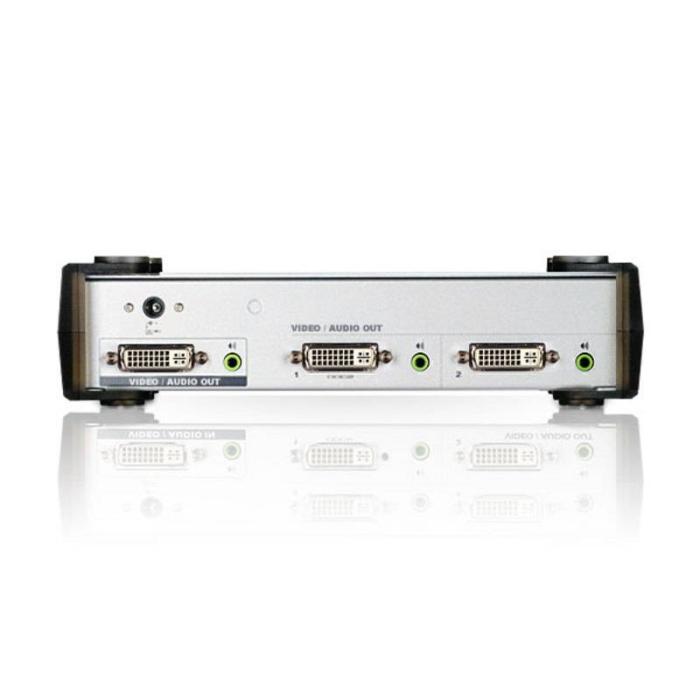

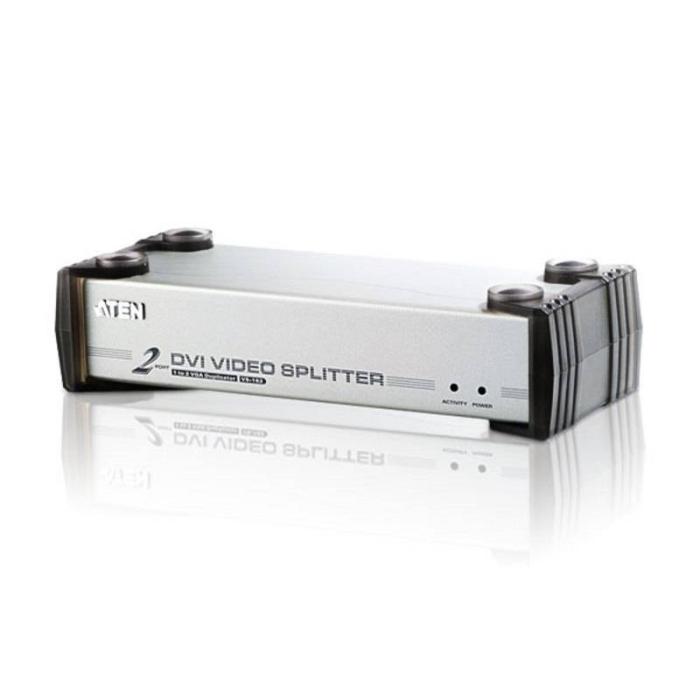

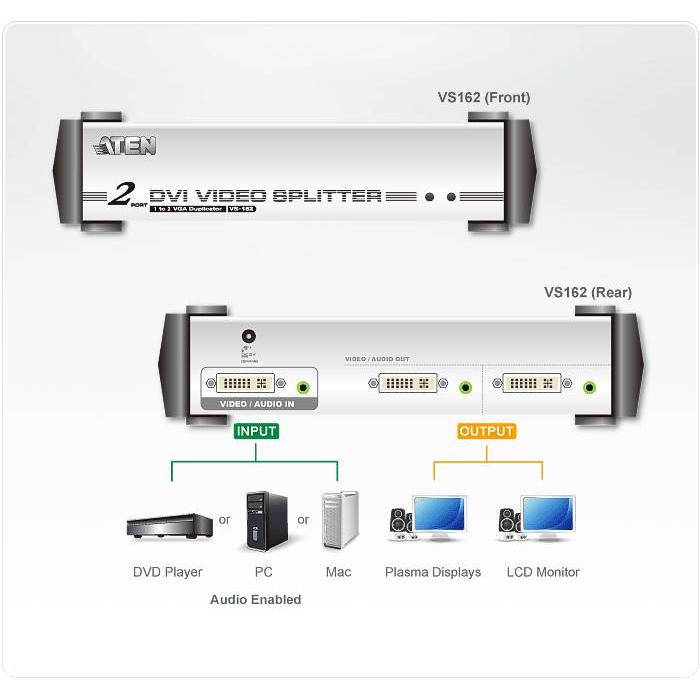

The ATEN 2-port DVI and audio splitter distributes one video and audio signal between two compatible displays. It features two DVI-I video outputs and three audio ports, plus a DC power input for its power supply. It reaches a maximum Full HD resolution of 1920 x 1200 pixels with a bandwidth of 225 MHz. Its metal housing, in black and silver, measures 88 x 55.5 x 210 mm and weighs 725 g. It supports HDCP protection and works with Windows 2000, Windows XP and macOS operating systems. LED indicators show the operating status, and the maximum operating distance is 5 metres. Its power consumption is 2.36 W with an AC input voltage of 5.3 V.
Specifications
Ports & interfaces
- Video port type: DVI
- Video out: 2x DVI-I
- Video ports quantity: 3
- Audio ports quantity: 3
- DC-in jack: Yes
Features
- Product colour: Black, Silver
- Housing material: Metal
- Maximum resolution: 1920 x 1200 pixels
- HD type: Full HD
- Maximum operating distance: 5 m
- Bandwidth: 225 MHz
- HDCP: Yes
- LED indicators: Yes
- Windows operating systems supported: Windows 2000, Windows XP
- Mac operating systems supported: Yes
Power
- AC input voltage: 5.3 V
- Power consumption (typical): 2.36 W
Weight & dimensions
- Width: 88 mm
- Depth: 210 mm
- Height: 55.5 mm
- Weight: 725 g
Packaging data
- Quantity per pack: 1 pc(s)
- Package width: 100 mm
- Package depth: 283 mm
- Package height: 173 mm
- Package weight: 920 g
Packaging content
- Manual: Yes
- AC adapter included: Yes
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -20 - 60 °C
- Operating relative humidity (H-H): 0 - 80%
- Storage relative humidity (H-H): 0 - 80%
Logistics data
- Master (outer) case net weight: 3.62 kg
- Harmonized System (HS) code: 85176990
- Master (outer) case width: 300 mm
- Master (outer) case length: 336 mm
- Master (outer) case height: 194 mm
- Master (outer) case gross weight: 5 kg
- Products per master (outer) case: 5 pc(s)
