Description

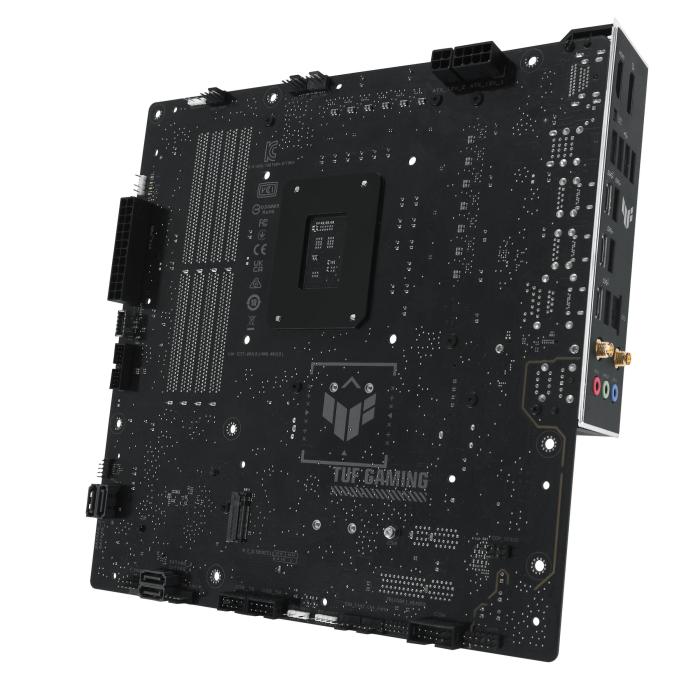

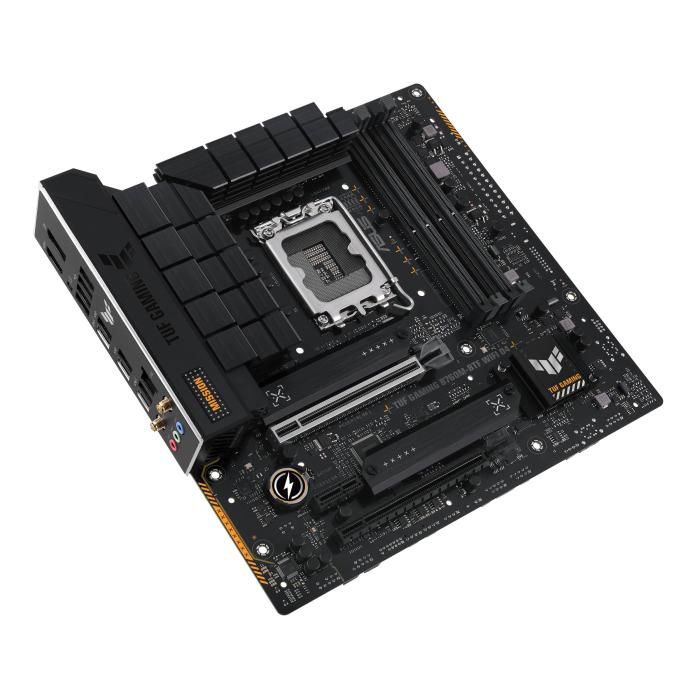

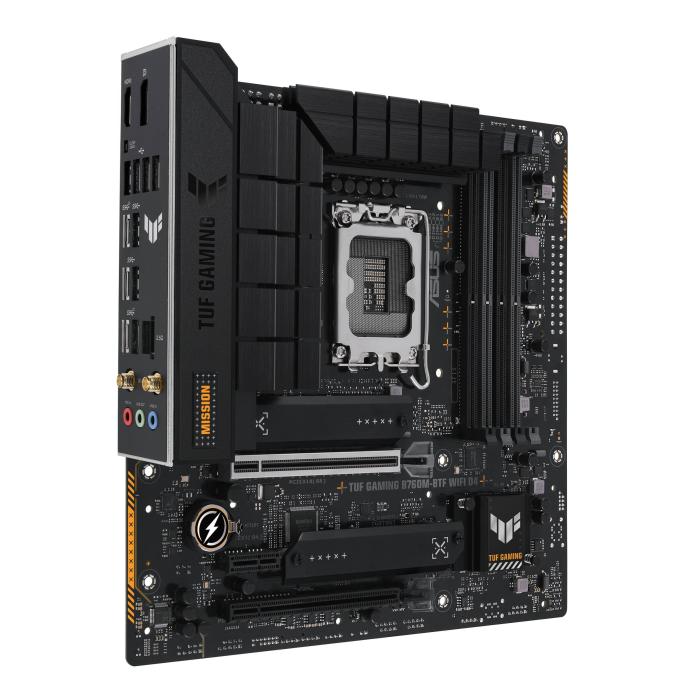

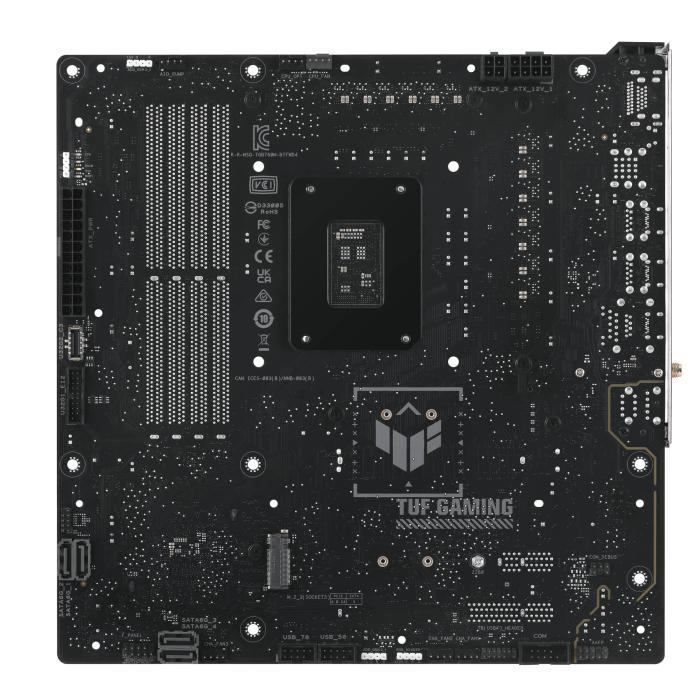

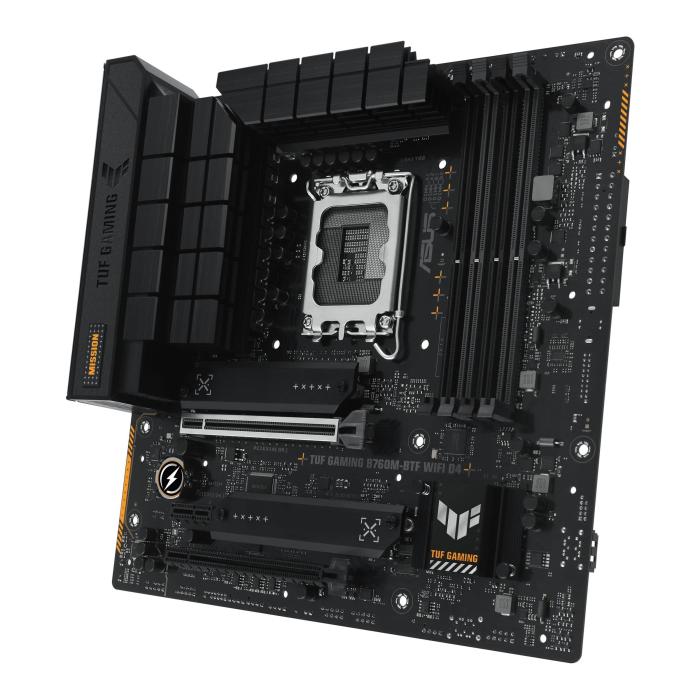

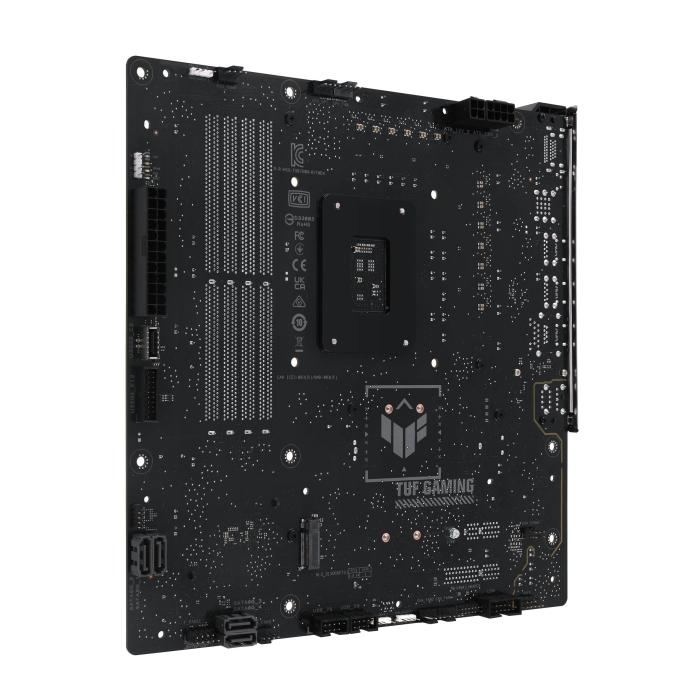

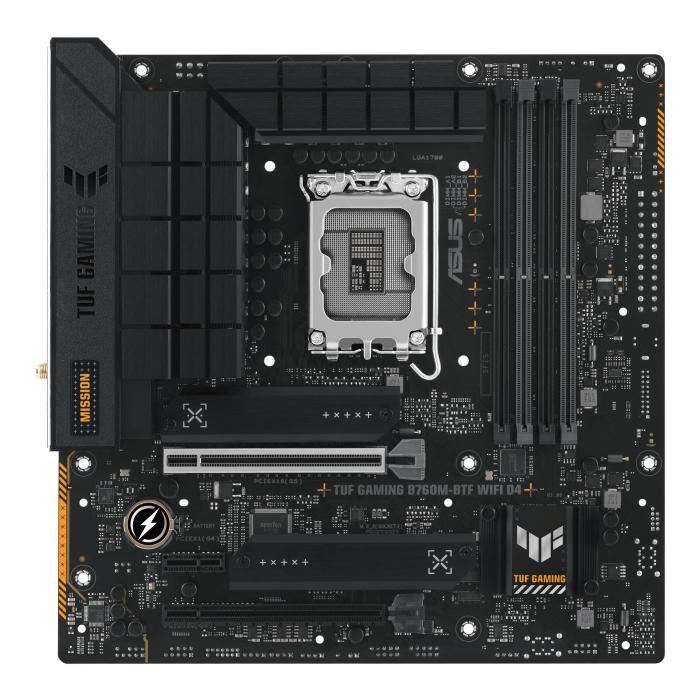

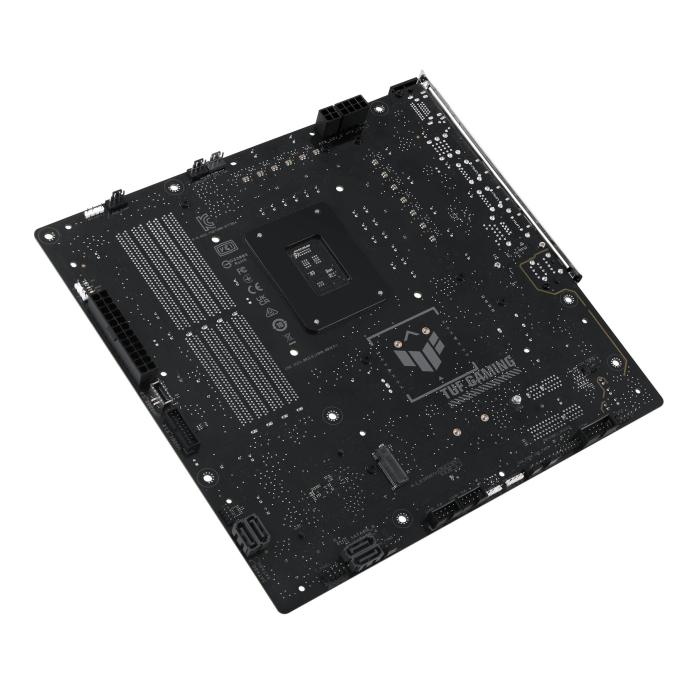

ASUS TUF Gaming B760M-BTF WiFi D4 motherboard with LGA 1700 socket for Intel Core i3, i5, i7, i9, Celeron and Pentium Gold processors, in micro ATX format. This board features four DIMM slots with support for dual-channel DDR4-SDRAM memory, reaching up to 128 GB and a maximum speed of 5333 MHz, with non-ECC and unbuffered memory compatibility. For storage, it offers RAID 0, 1, 5 and 10 support, accommodating up to seven drives between HDD and SSD, with M.2 and SATA III interfaces for up to four hard drives. A model aimed at balanced builds that takes advantage of Intel's B760 technology.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
- Supported processor sockets: LGA 1700
Memory
- Supported memory types: DDR4-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 4000, 4266, 4400, 4600, 4800, 5000, 5066, 5333 MHz
- Supported memory clock speed (max): 5333 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 7
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 3
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- Thunderbolt headers: 1
- 12V power connector: Yes
- RGB LED pin header: Yes

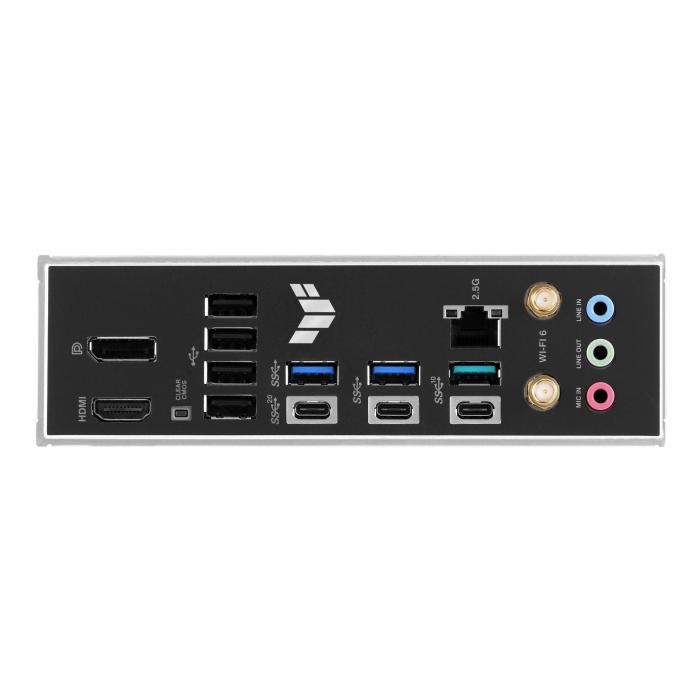

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- HDMI version: 2.1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes

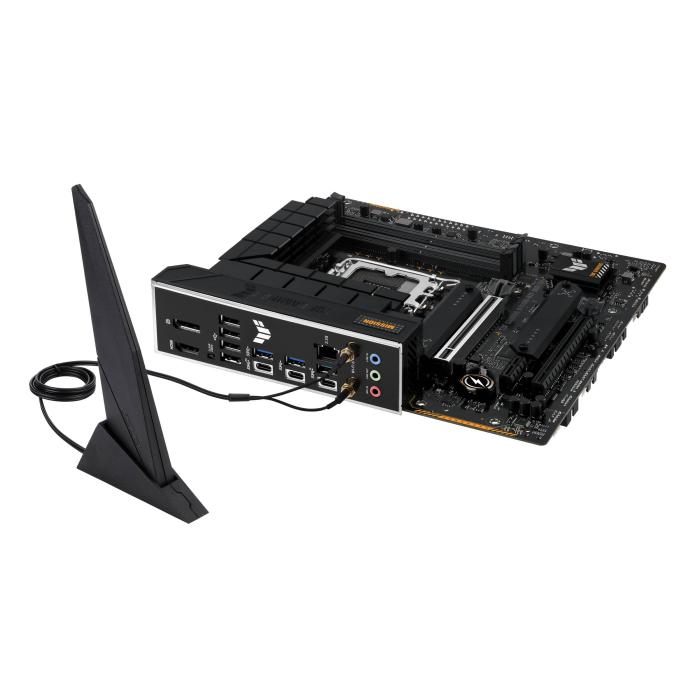

- WiFi-AP antenna jack: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6 (802.11ax)
- Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax)
- Bluetooth: Yes
- Bluetooth version: 5.2
Features
- Motherboard chipset: Intel B760
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10, Windows 11
Expansion slots
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 3
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
- Clear CMOS button: Yes
Packaging data
- Package width: 275 mm
- Package depth: 275 mm
- Package height: 67.5 mm
- Package weight: 1.67 kg
Weight & dimensions
- Width: 244 mm
- Depth: 244 mm

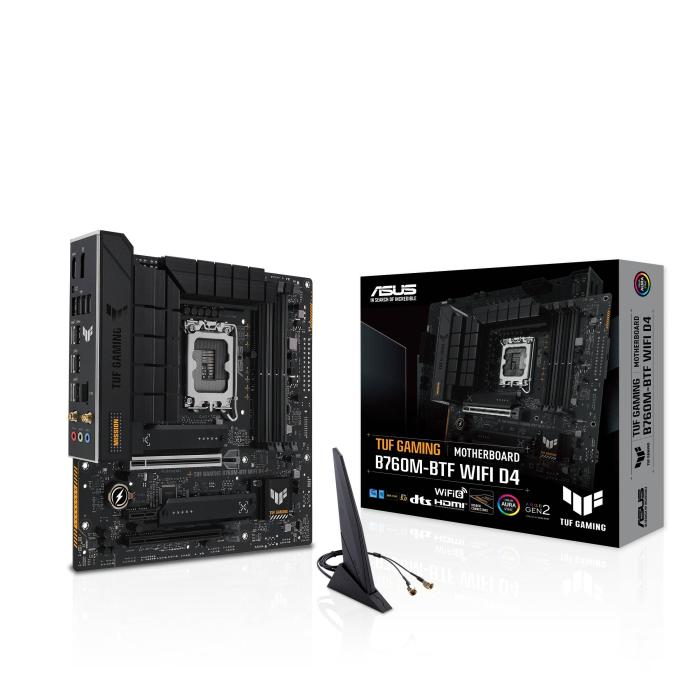

Packaging content
- Cables included: SATA
- User guide: Yes
