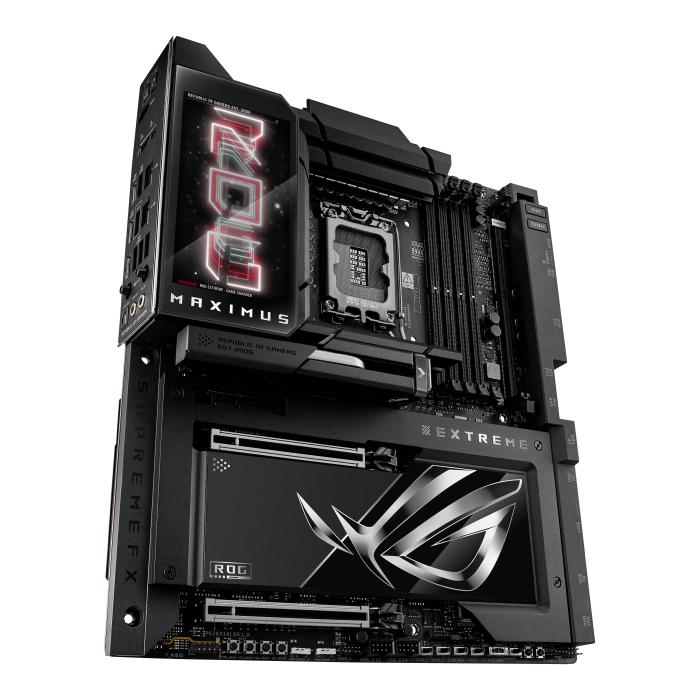

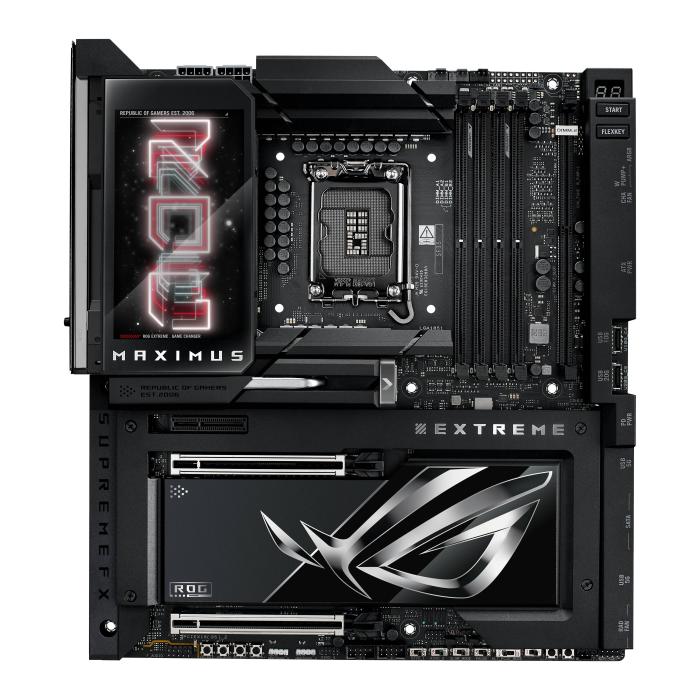

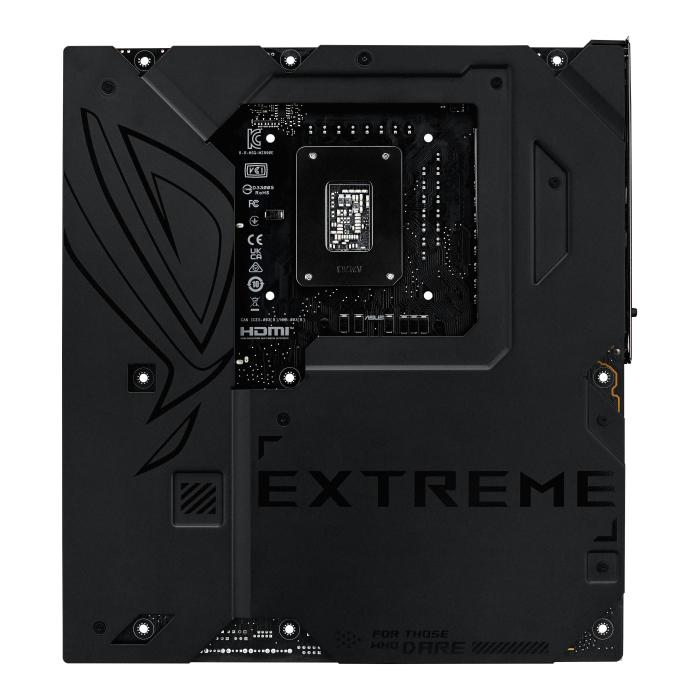

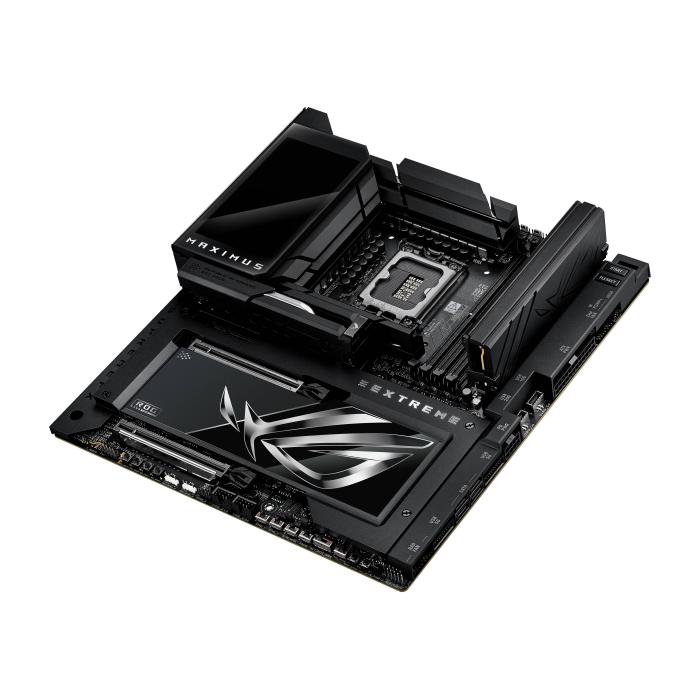

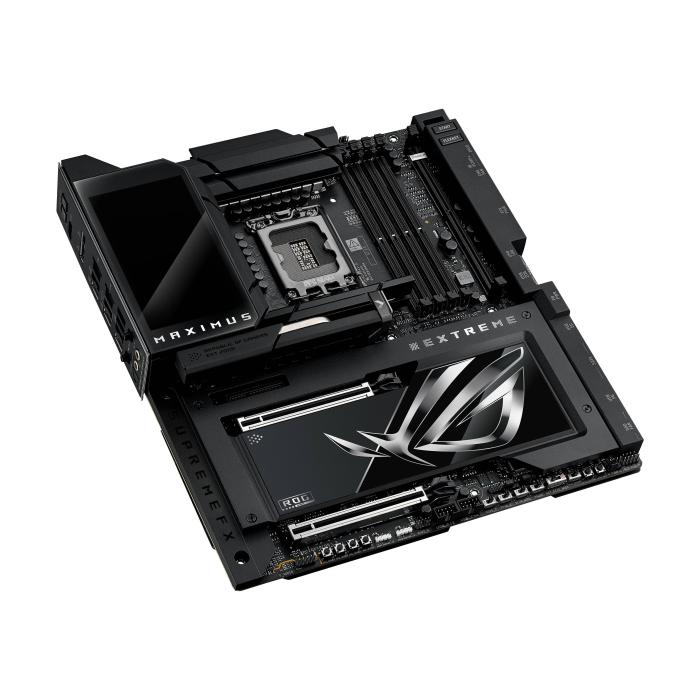

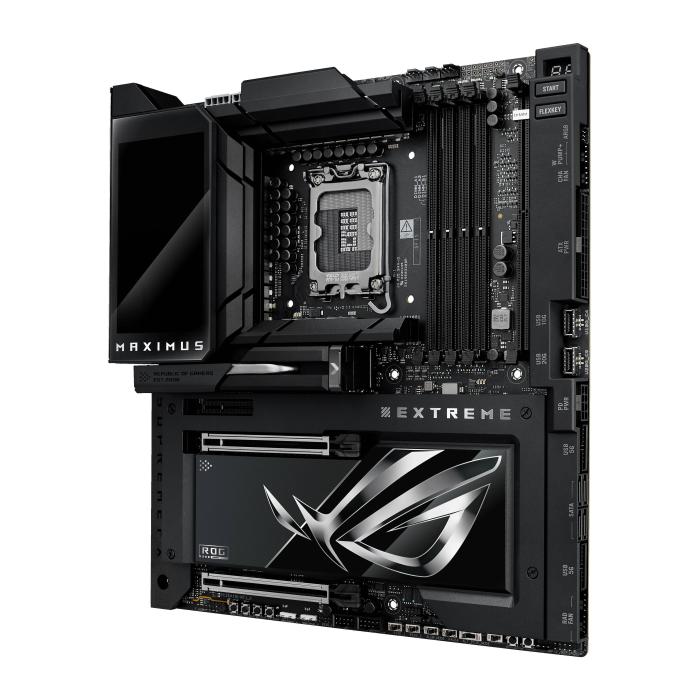

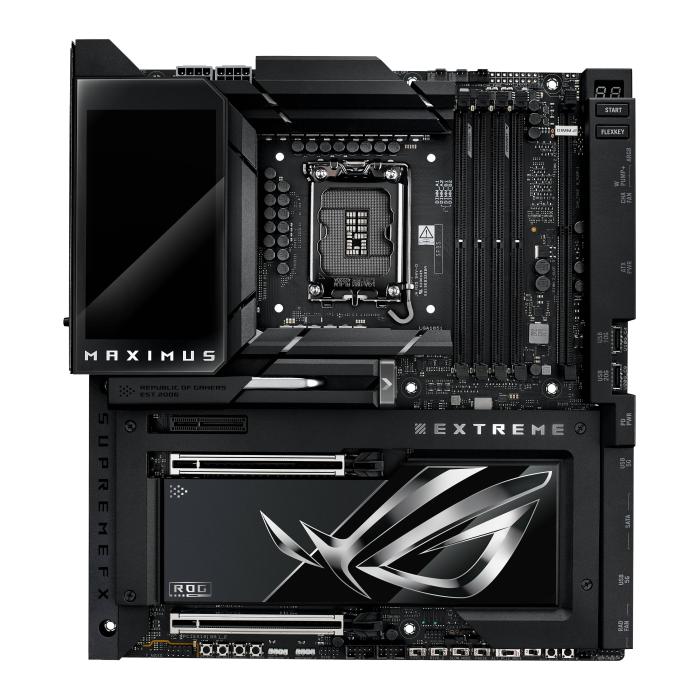

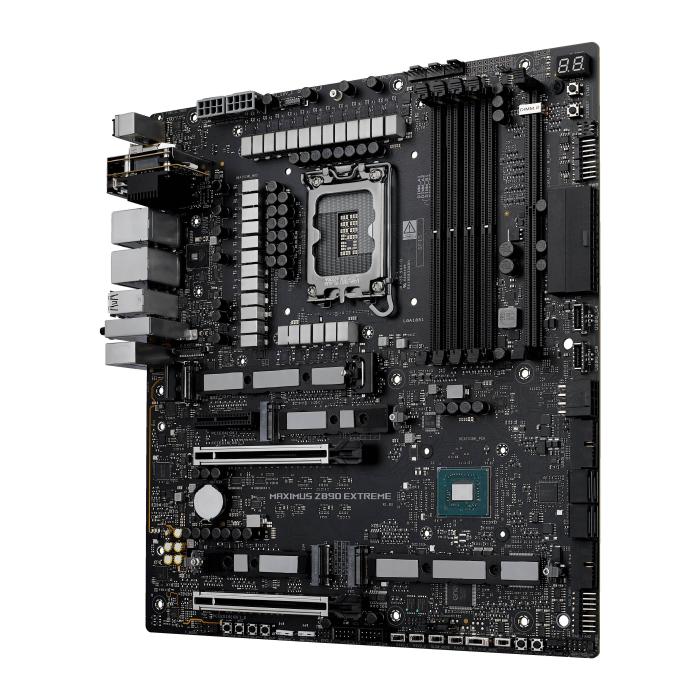

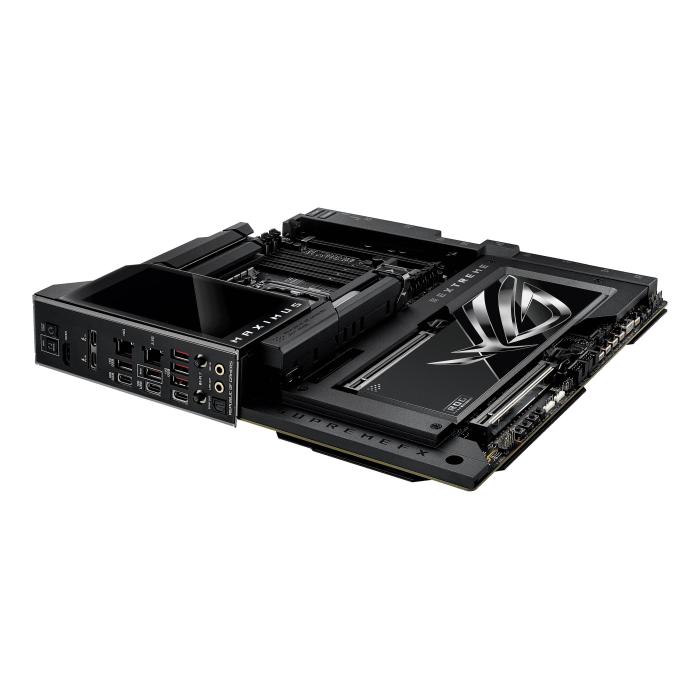

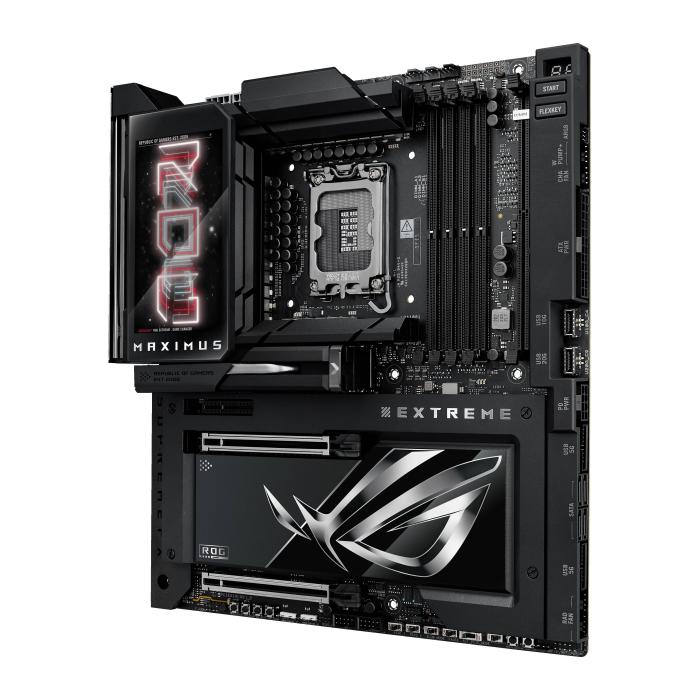

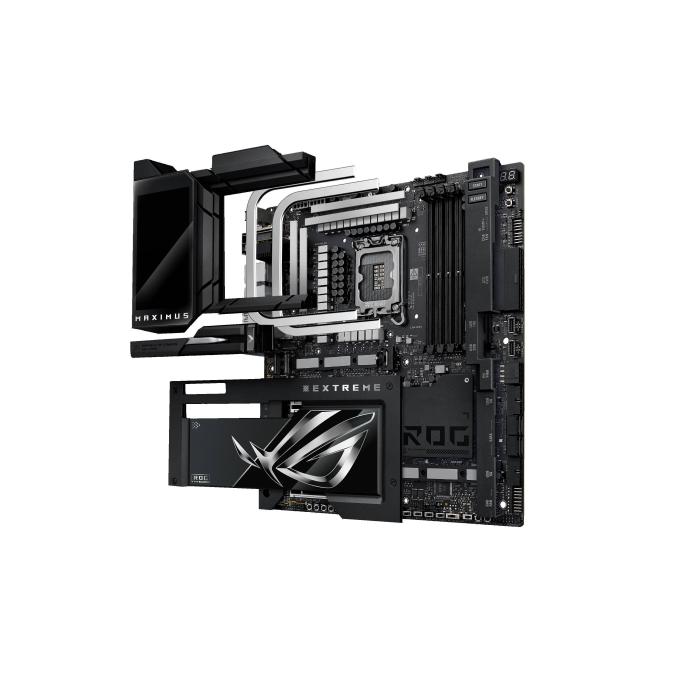

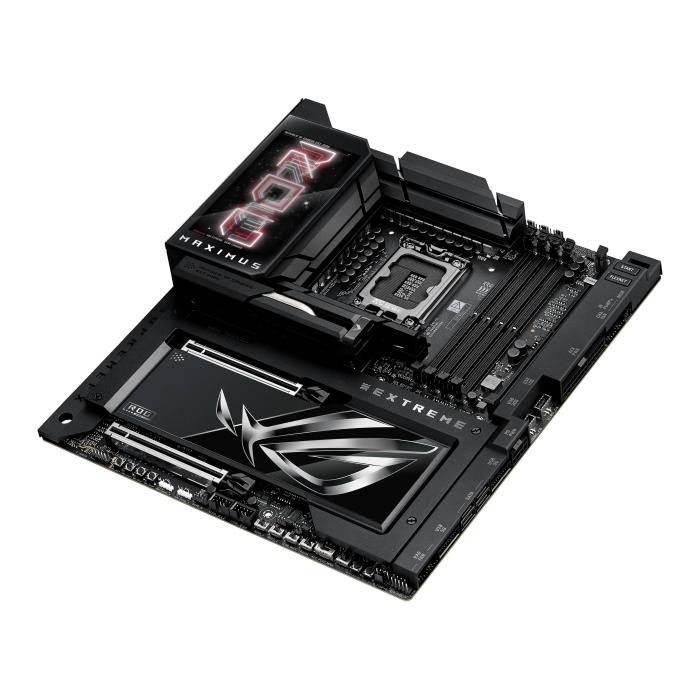

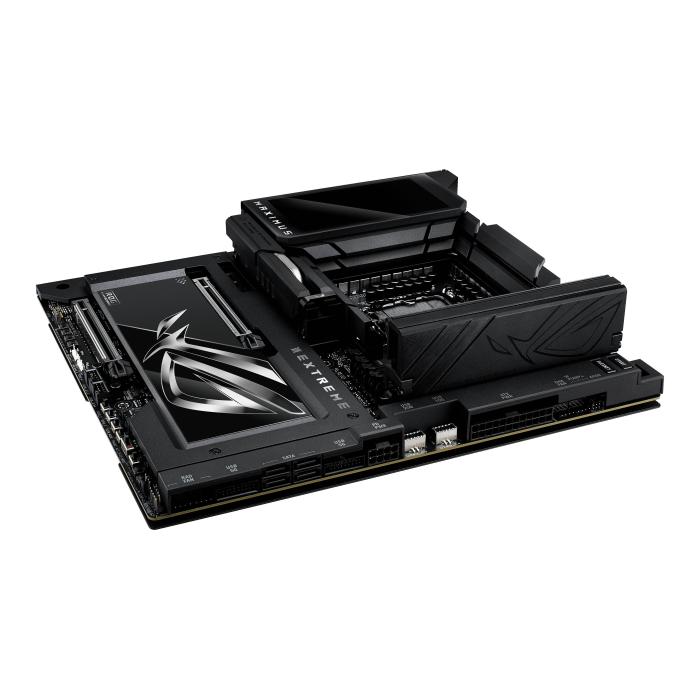

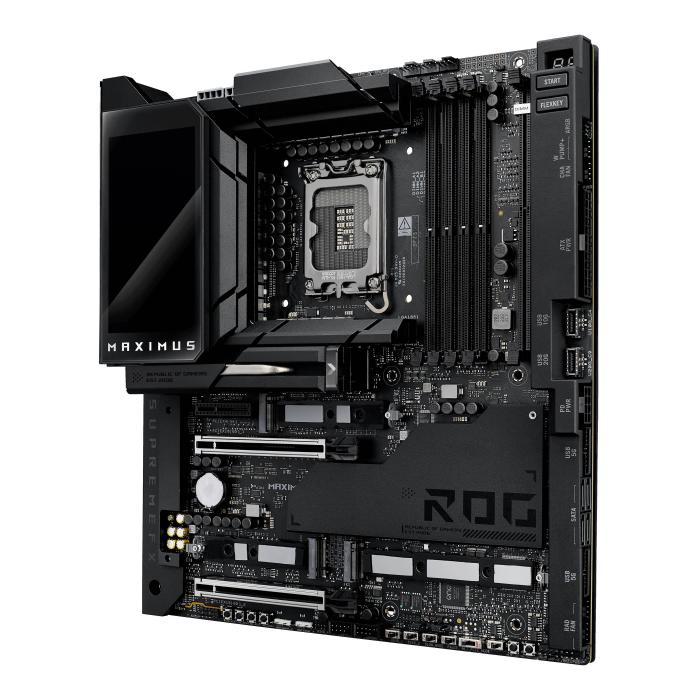

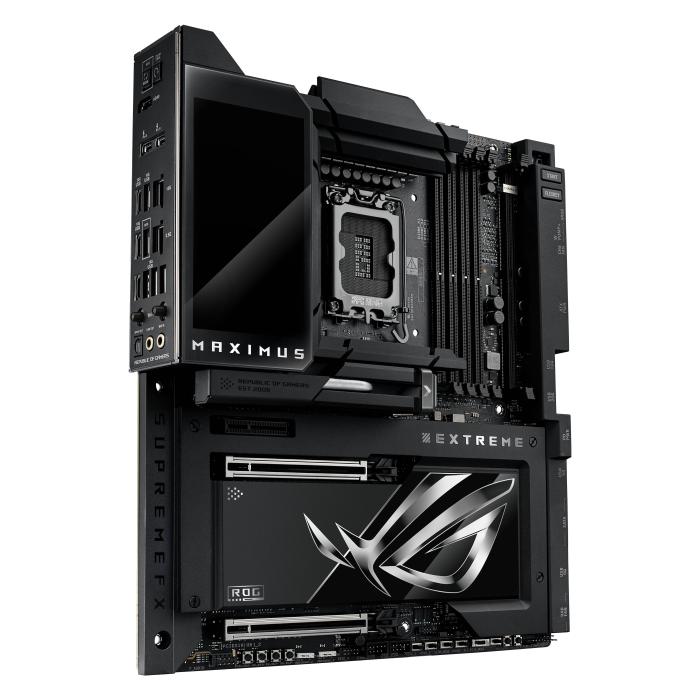

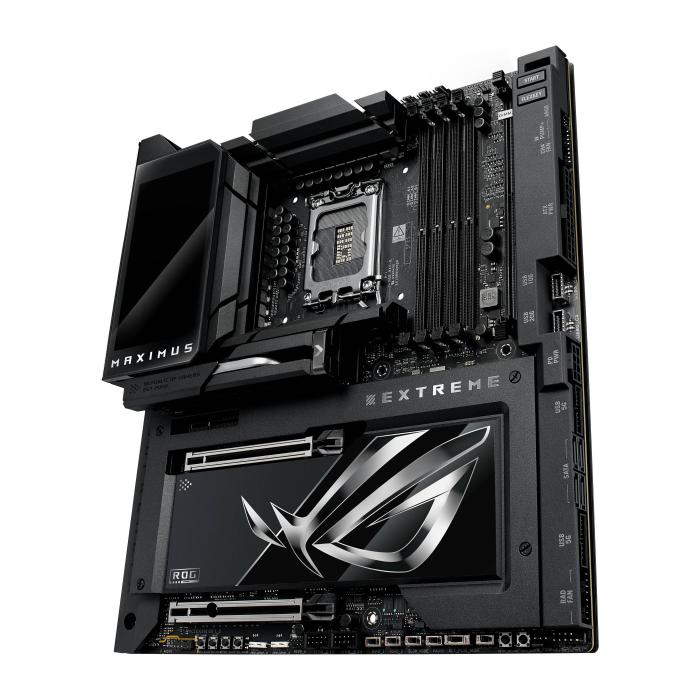

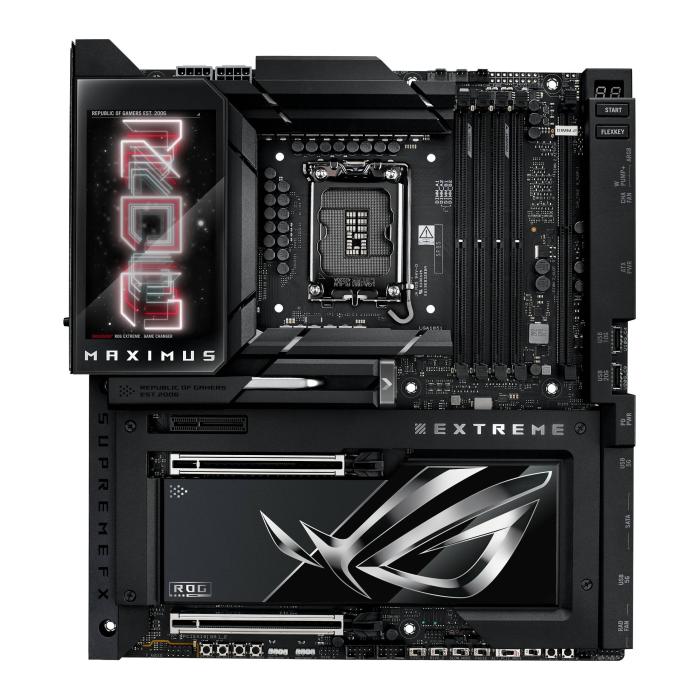

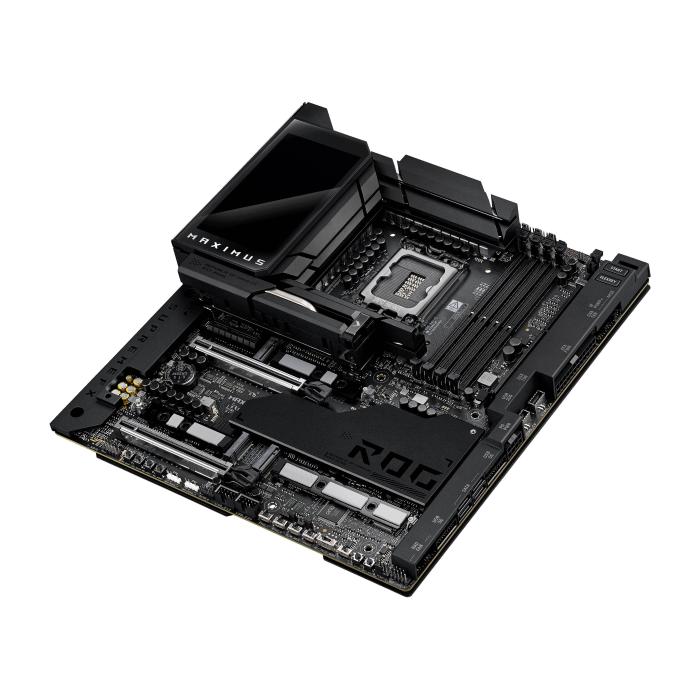

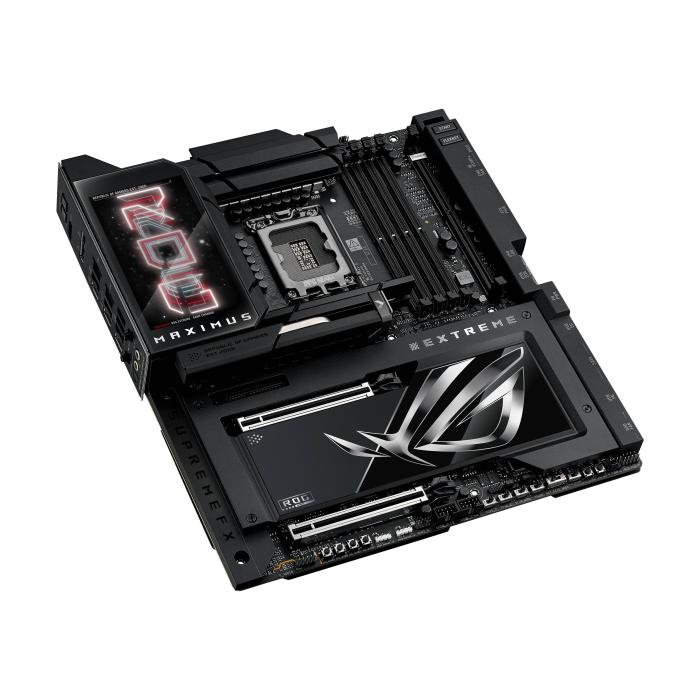

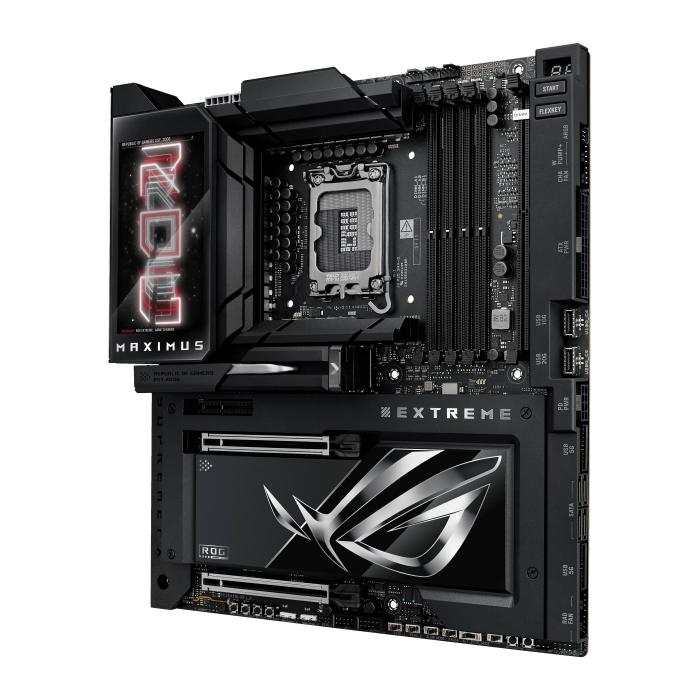

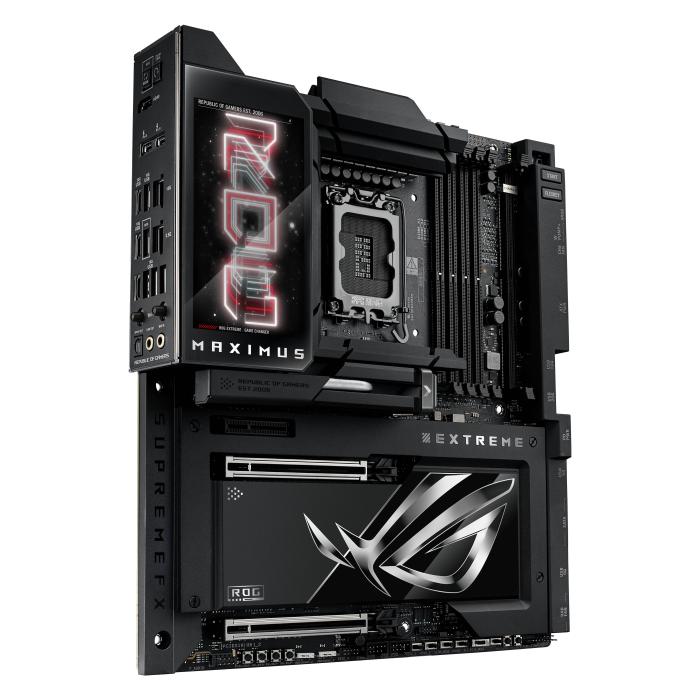

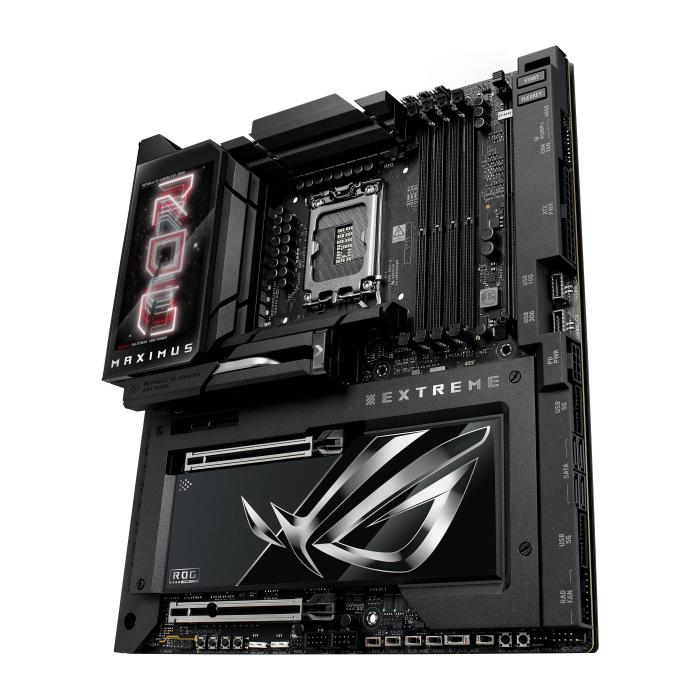

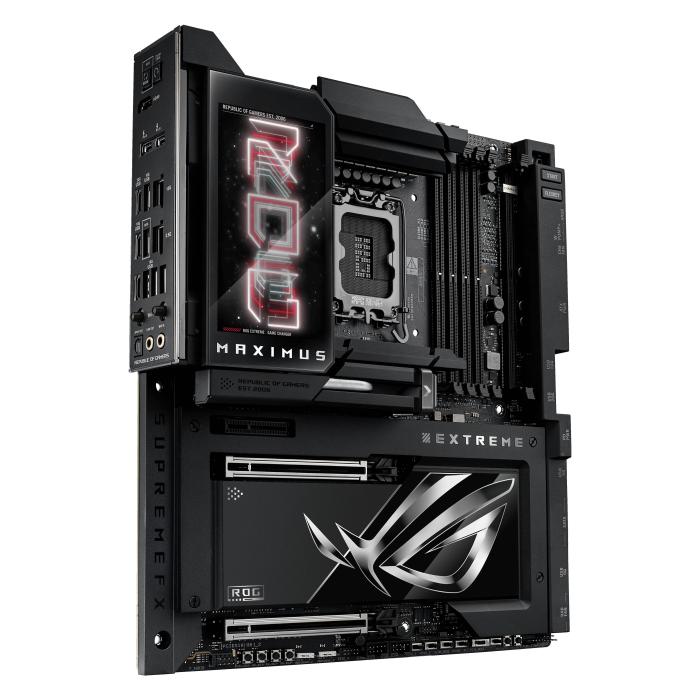

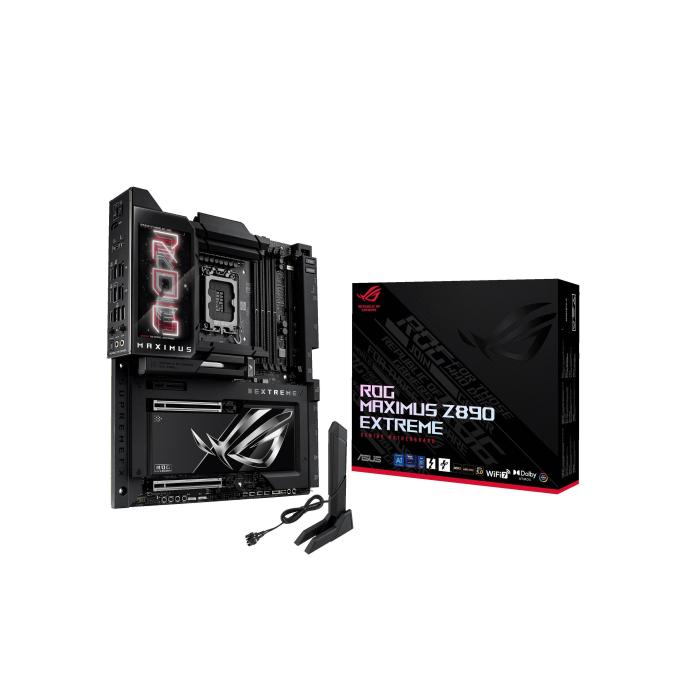

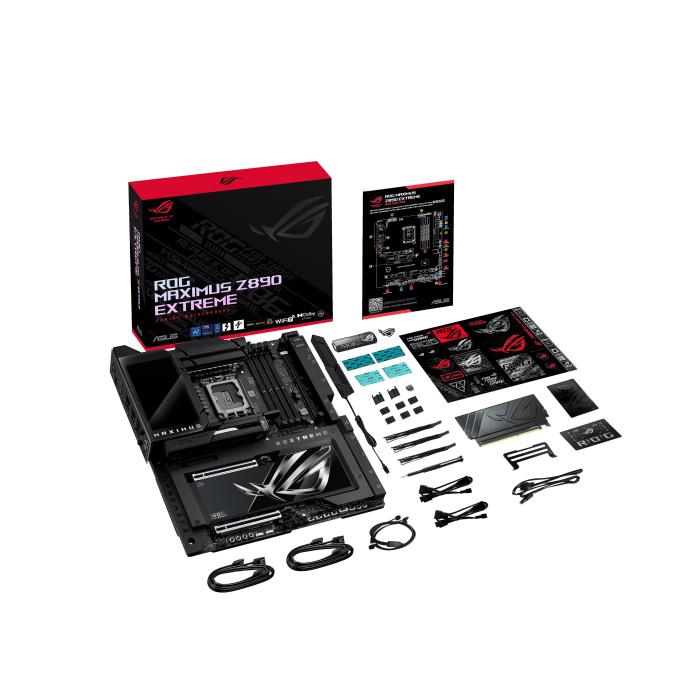

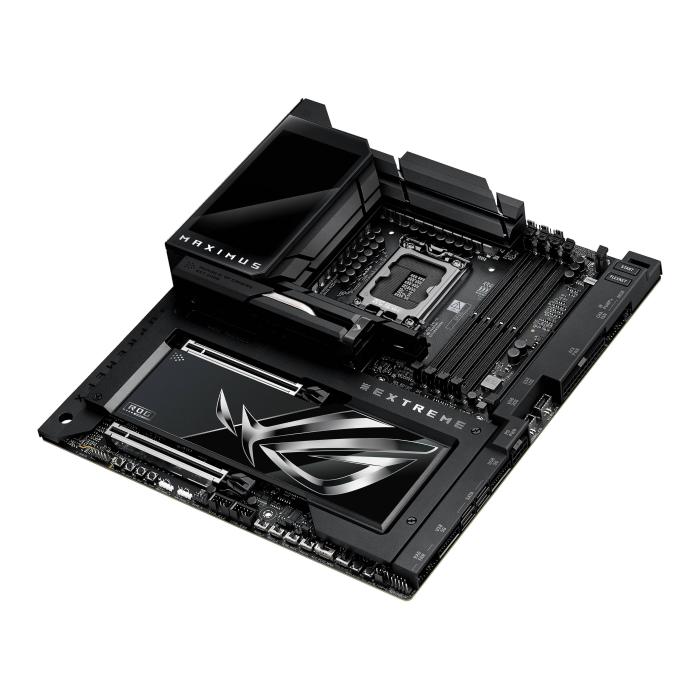

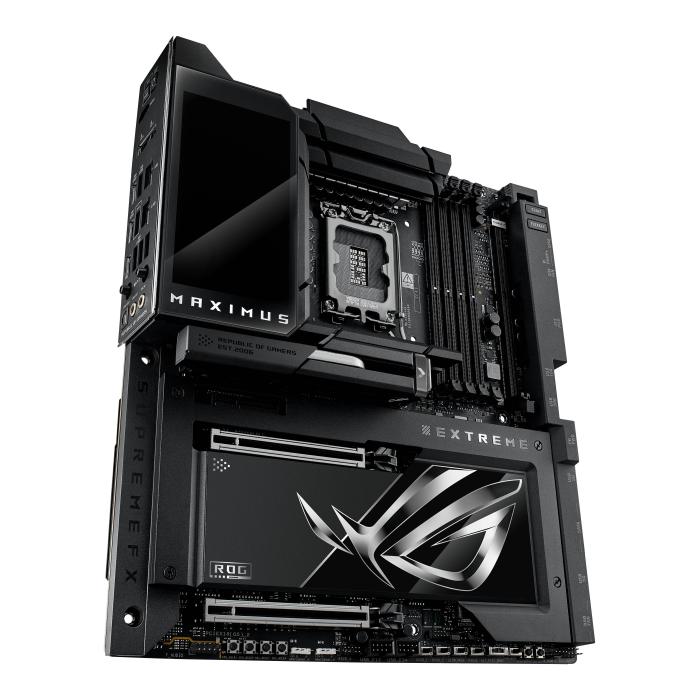

Name: ASUS ROG MAXIMUS Z890 EXTREME Intel Z890 LGA 1851 (Socket V1) Extended ATX
Brand: ASUS
Availability: OutOfStock

ASUS ROG MAXIMUS Z890 EXTREME Intel Z890 LGA 1851 (Socket V1) Extended ATX

Not avaliable

ASUS ROG MAXIMUS Z890 EXTREME Intel Z890 LGA 1851 (Socket V1) Extended ATX. More info

Amount

Brand: ASUS

SKU: 108922 PRC: 560456 EAN: 4711387754153 PN: 90MB1IA0-M0EAY0

Description

Intel Z890, LGA1851, 4 x DIMM slots, max. 192GB, DDR5, 2.5GB/10GB Ethernet, Wi-Fi 7, Bluetooth 5.4, 2 x 256 Mb Flash ROM, UEFI AMI BIOS, E-ATX

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1851 (Socket V1)
Compatible processor series: Intel Core Ultra (Series 2)

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speed (max): 8800 MHz
Maximum internal memory: 192 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 10
RAID support: Yes
RAID levels: 0, 1, 5

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
EPS power connector (8-pin): Yes
12V power connector: Yes
RGB LED pin header: Yes

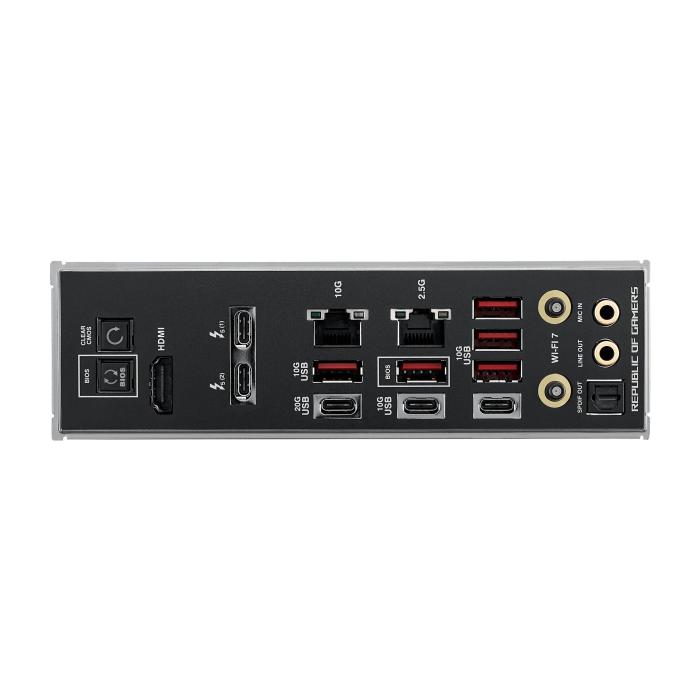

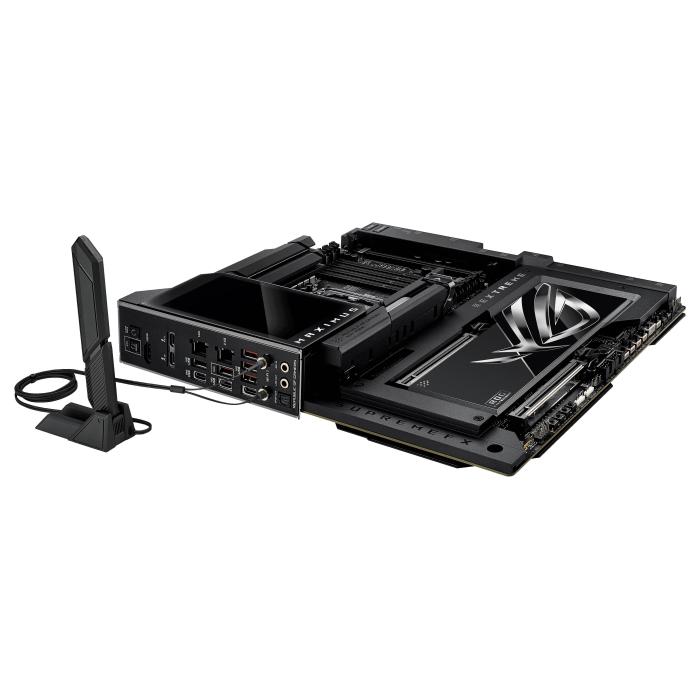

Rear panel I/O ports

USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 5
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
Microphone in: Yes
S/PDIF out port: Yes
Thunderbolt ports quantity: 2

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4

Features

Motherboard chipset: Intel Z890
Audio chip: Realtek ALC4082
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: Extended ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 11

Expansion slots

PCI Express x4 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 6

BIOS

BIOS type: UEFI AMI
BIOS memory size: 512 Mbit
Clear CMOS button: Yes

Packaging data

Package width: 380 mm
Package depth: 320 mm
Package height: 125 mm
Package weight: 5.73 kg

Weight & dimensions

Width: 305 mm
Depth: 277 mm
