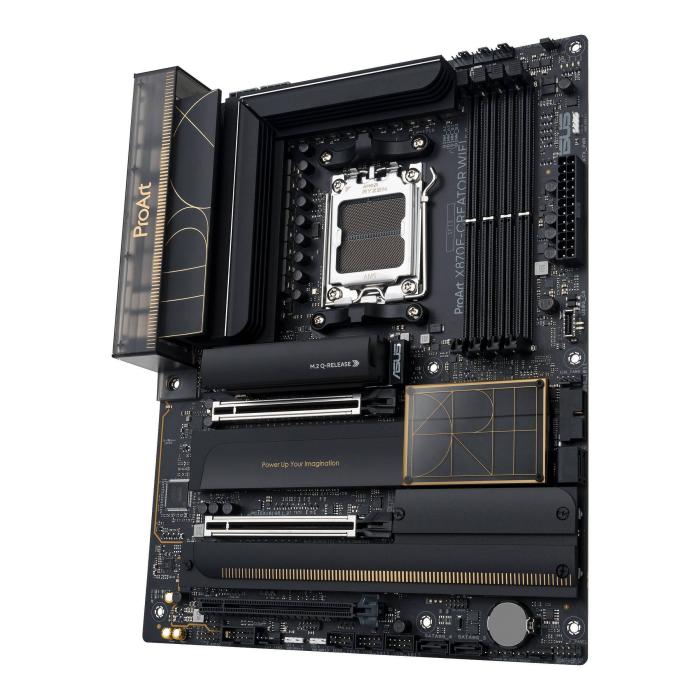

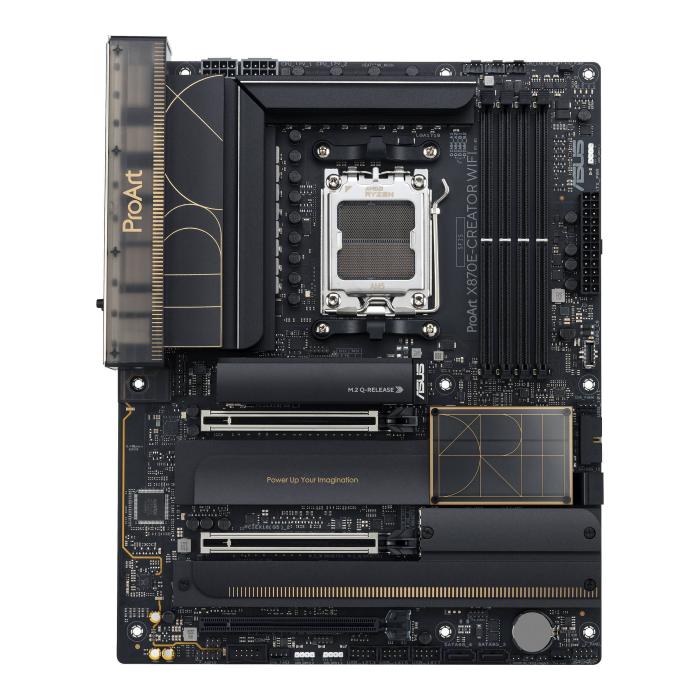

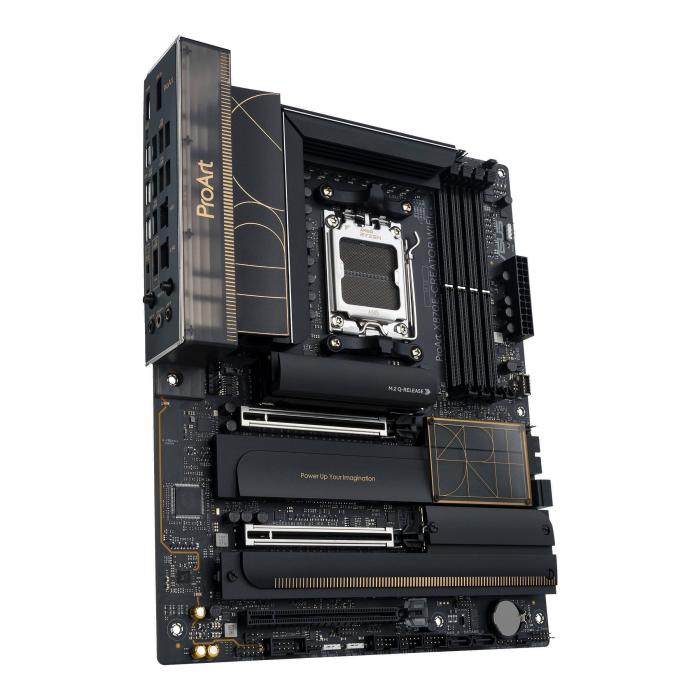

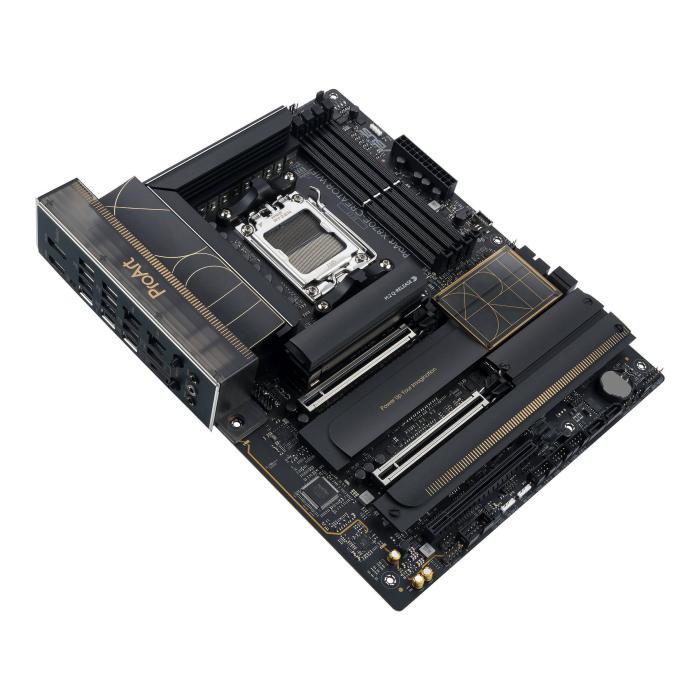

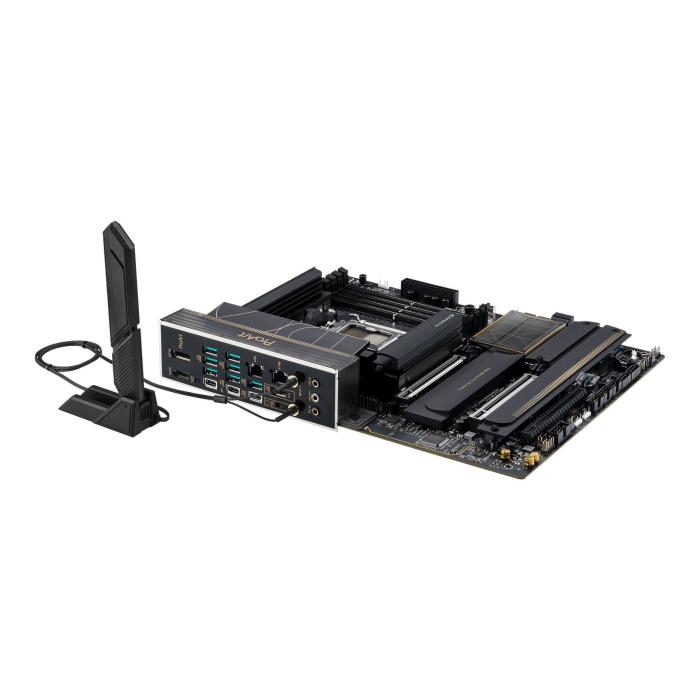

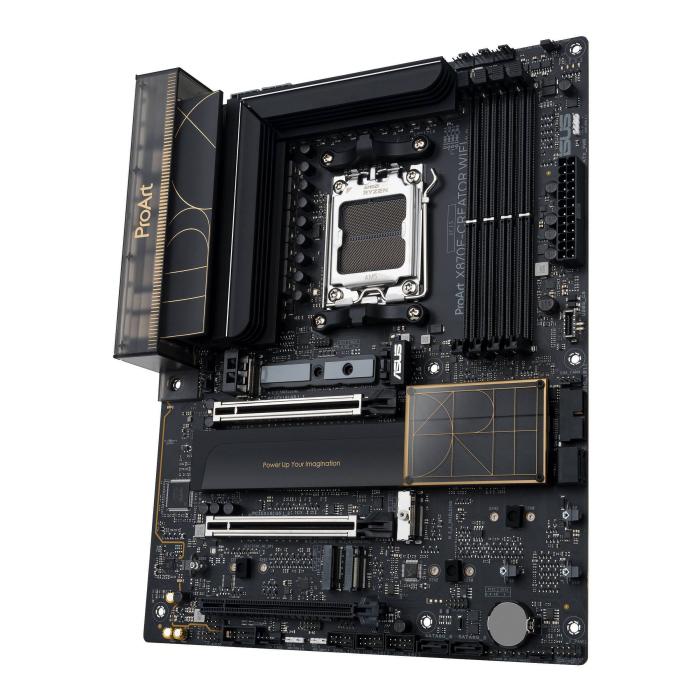

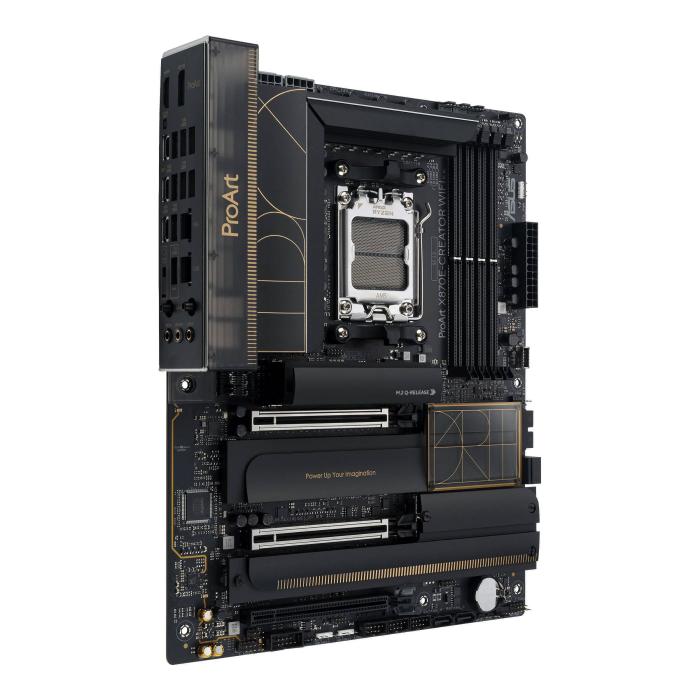

Name: ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX
Brand: ASUS
Availability: OutOfStock

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX

Not avaliable

ASUS ProArt X870E-CREATOR WIFI AMD X870E Socket AM5 ATX. More info

Amount

Brand: ASUS

SKU: 108720 PRC: 550800 EAN: 4711387730775 PN: 90MB1IG0-M0EAY0

Description

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors, AMD X870E

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM5
Supported processor sockets: Socket AM5

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC & Non-ECC
Maximum internal memory: 192 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive interfaces: M.2, SATA III
Number of HDDs supported: 4
Number of storage drives supported: 8
RAID support: Yes
RAID levels: 0, 1, 10, 5
Supported storage drive types: HDD & SSD

Graphics

Parallel processing technology support: Not supported

Internal I/O

USB 2.0 connectors: 3
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 5
Chassis intrusion connector: Yes
Number of COM connectors: 1
12V power connector: Yes

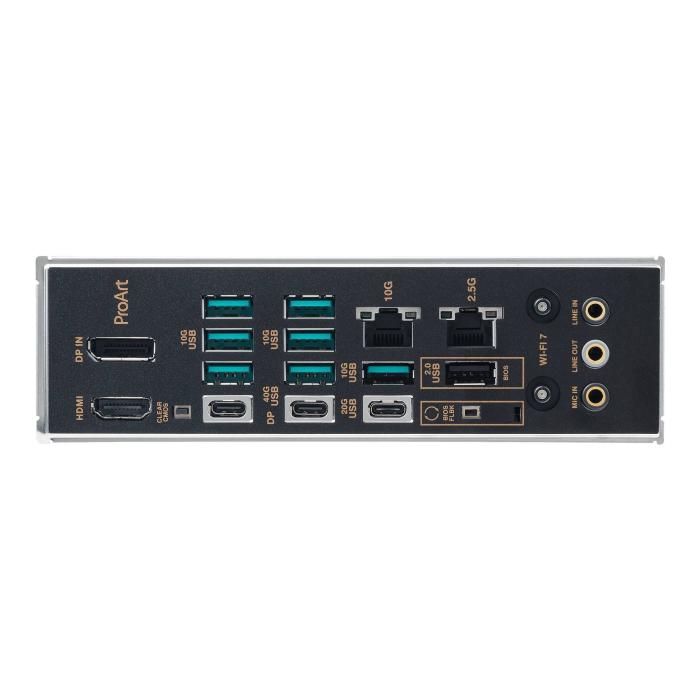

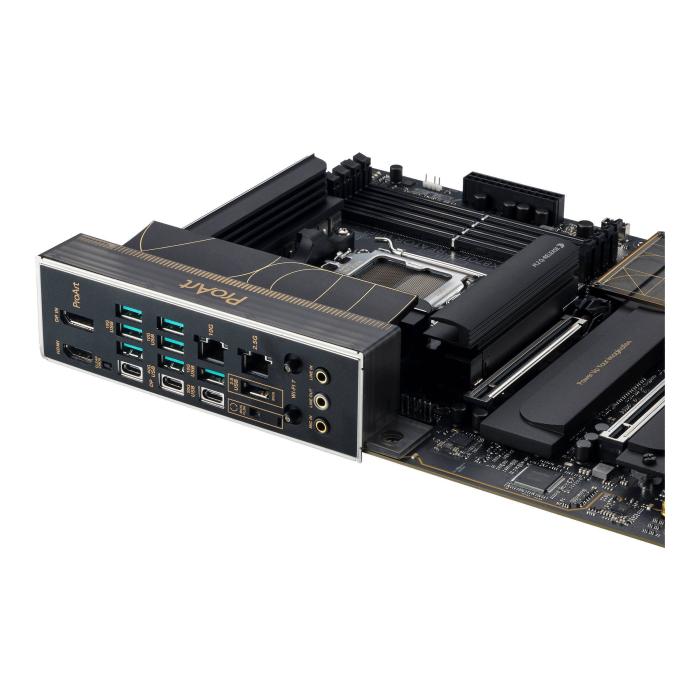

Rear panel I/O ports

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 7
USB 3.2 Gen 2x2 Type-C ports quantity: 1
USB4 Gen 2x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
HDMI ports quantity: 1
DisplayPorts quantity: 1
Microphone in: Yes
WiFi-AP antenna jack: 1

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet, 10 Gigabit Ethernet
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 7 (802.11be)
Wi-Fi standards: Wi-Fi 7 (802.11be)
Bluetooth: Yes
Bluetooth version: 5.4

Features

Motherboard chipset: AMD X870E
Audio chip: Realtek S1220A
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 11

Expansion slots

PCI Express x16 (Gen 4.x) slots: 1
PCI Express x16 (Gen 5.x) slots: 2
Number of M.2 (M) slots: 4

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS button: Yes

Weight & dimensions

Width: 305 mm
Depth: 244 mm

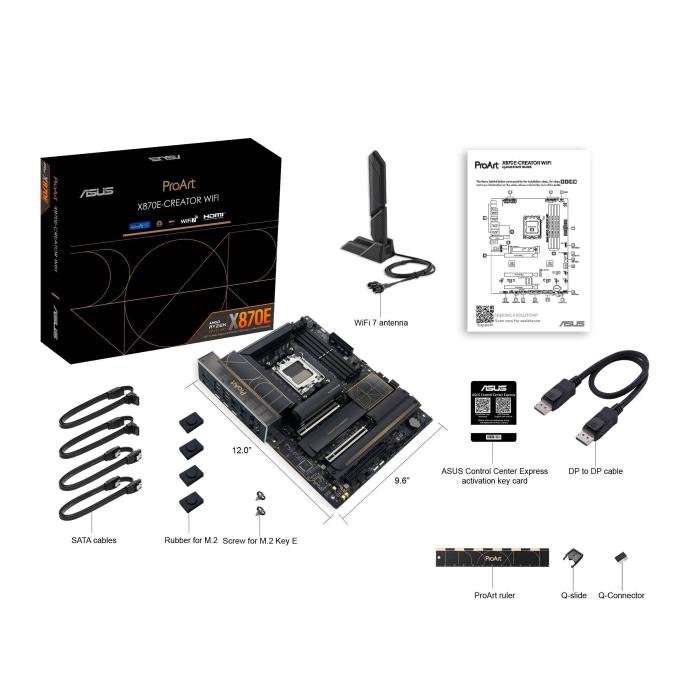

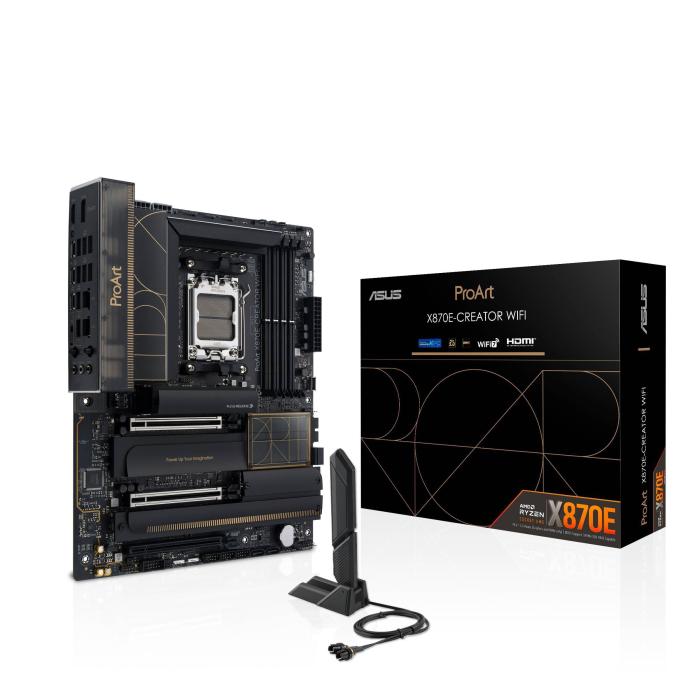

Packaging content

Cables included: DisplayPort, SATA
