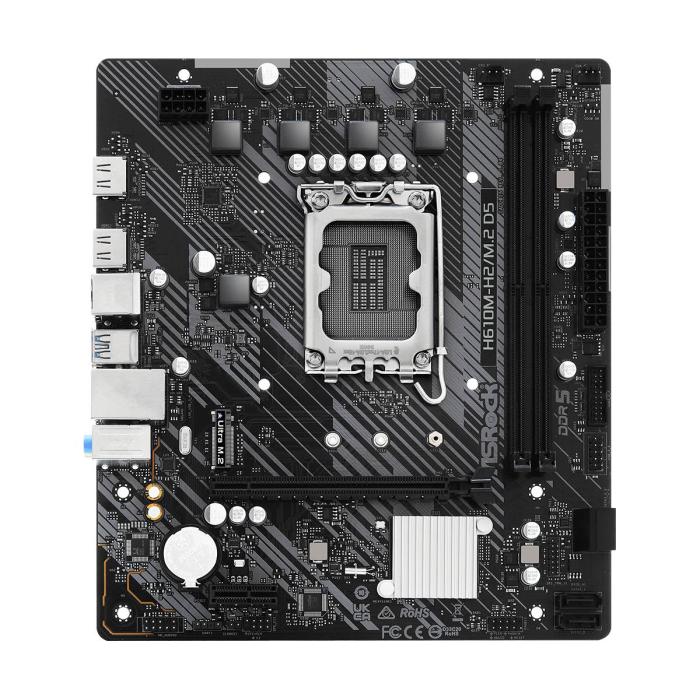

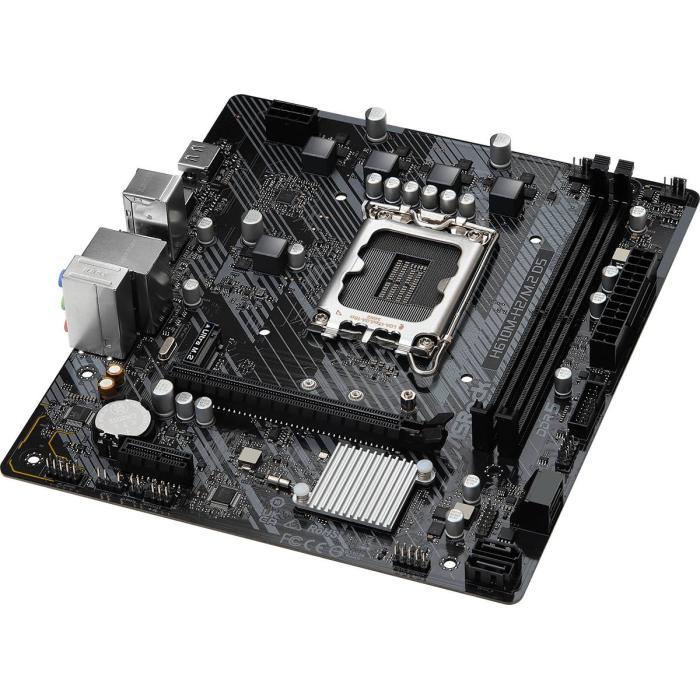

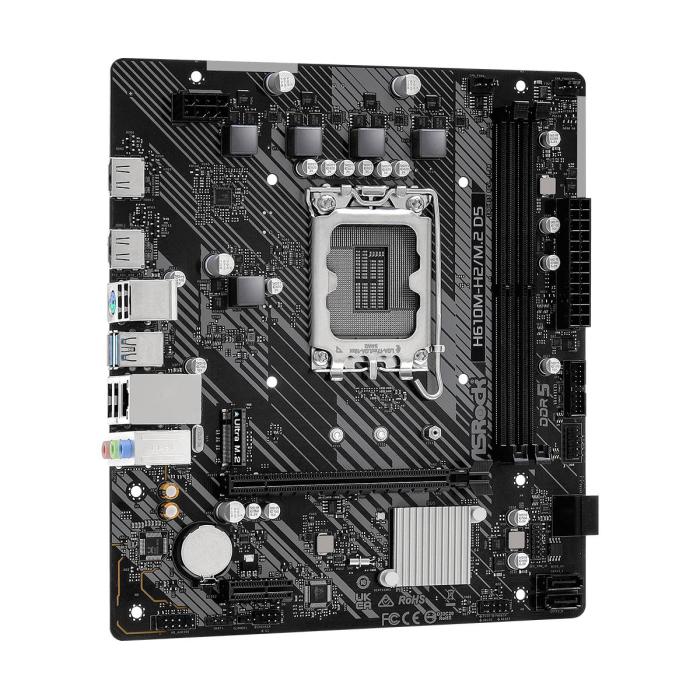

Asrock H610M-H2/M.2 D5 Intel H610 LGA 1700 micro ATX

Not avaliable

More info

Brand: ASROCK
SKU: 112513 PRC: 520024 EAN: 4710483943775 PN: 90-mxbml0-a0uayz

Description

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1700
  • Maximum number of SMP processors: 1

Memory

  • Supported memory types: DDR5-SDRAM
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • Maximum internal memory: 96 GB

Storage controllers

  • Supported storage drive interfaces: M.2, SATA III

Internal I/O

  • USB 2.0 connectors: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • TPM connector: Yes

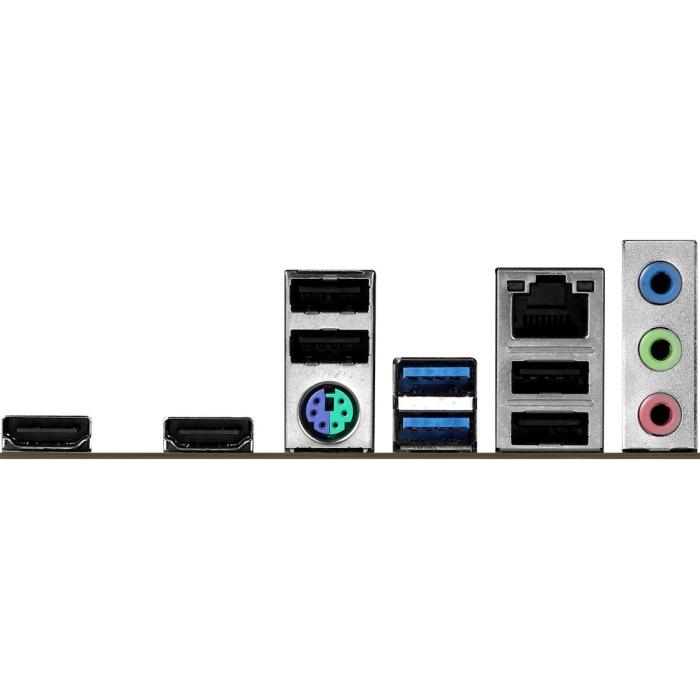

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
  • Ethernet LAN (RJ-45) ports: 1
  • PS/2 ports quantity: 1
  • HDMI ports quantity: 2
  • Line-in: Yes
  • Microphone in: Yes

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • LAN controller: Realtek 8111H
  • Wi-Fi: No

Features

  • Motherboard chipset: Intel H610
  • Audio output channels: 7.1 channels
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel
  • Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

  • PCI Express x1 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit

Weight & dimensions

  • Width: 220 mm
  • Depth: 193 mm
