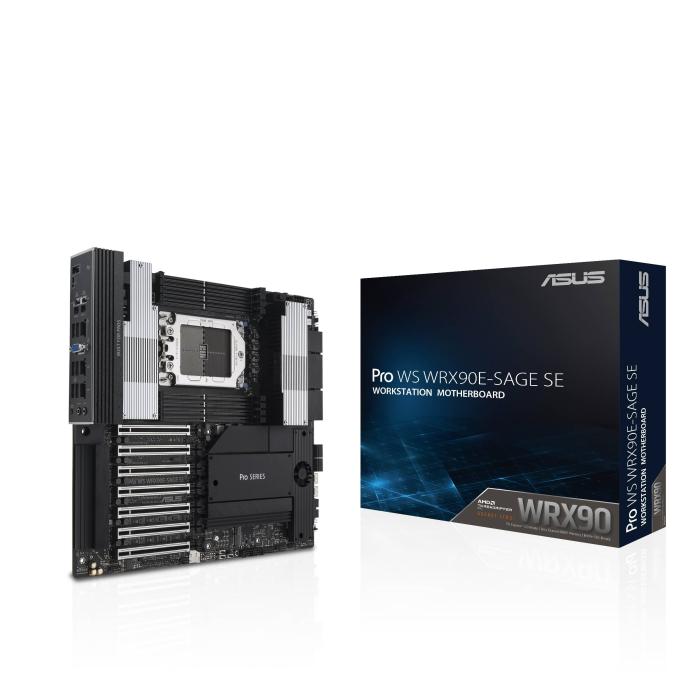

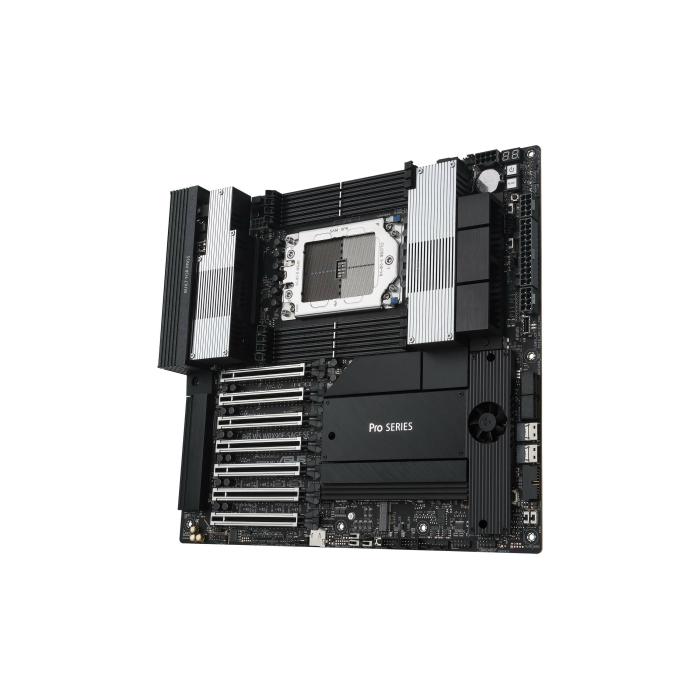

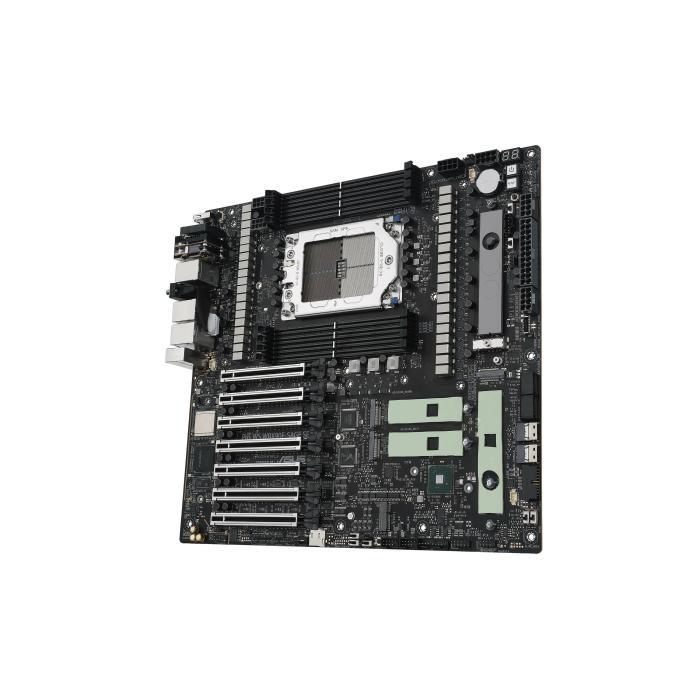

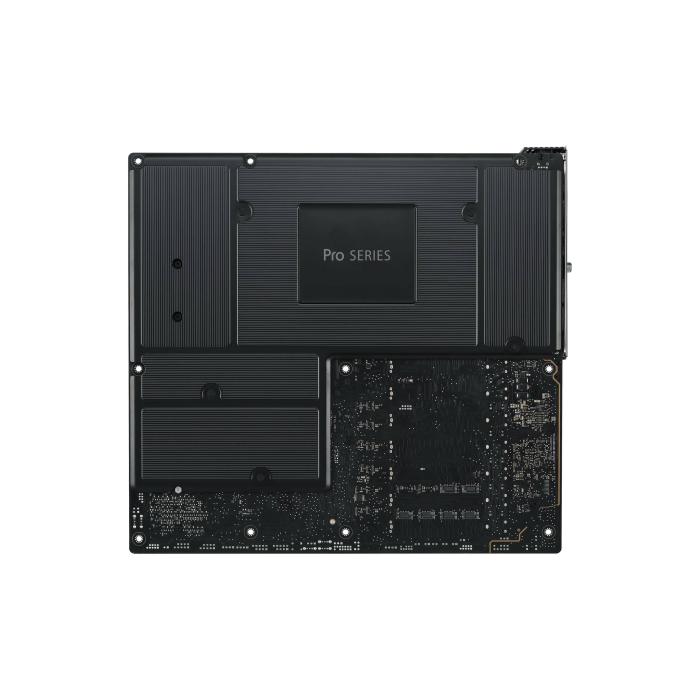

Name: ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB
Brand: ASUS
Availability: OutOfStock

ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB

Not avaliable

ASUS PRO WS WRX90E-SAGE SE AMD WRX90 Socket sTR5 EEB. More info

Amount

Brand: ASUS

SKU: 105767 PRC: 522913 EAN: 4711387441145 PN: 90MB1FW0-M0EAY0

Description

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket sTR5
Compatible processor series: AMD Ryzen Threadripper PRO 7000 WX-Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 8
Memory slots type: DIMM
Memory channels: Octa-channel
ECC сompatibility: ECC

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, SATA III, SlimSAS
Number of HDDs supported: 4
Number of storage drives supported: 10
RAID support: Yes
RAID levels: 0, 1, 5, 10

Graphics

On-board graphics card: No

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2x2 connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 5
Chassis intrusion connector: Yes
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes

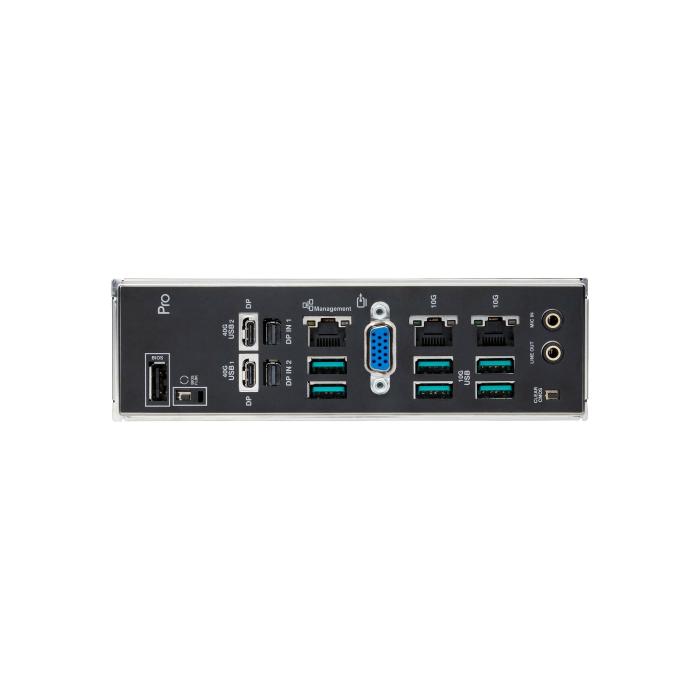

Rear panel I/O ports

USB 2.0 ports quantity: 1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
USB4 Gen 3x2 ports quantity: 2
Ethernet LAN (RJ-45) ports: 2
VGA (D-Sub) ports quantity: 1
USB connector type: USB Type-A, USB Type-C

Network

Ethernet LAN: Yes
Ethernet interface type: 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
Wi-Fi: No

Features

Motherboard chipset: AMD WRX90
Audio chip: Realtek ALC1220P
Product colour: Aluminium, Black
Component for: Workstation
Motherboard form factor: EEB
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 11

Expansion slots

PCI Express x16 (Gen 5.x) slots: 7
Number of M.2 (M) slots: 4

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS button: Yes

Packaging data

Package width: 377 mm
Package depth: 362 mm
Package height: 79 mm
Package weight: 3.62 kg

Weight & dimensions

Width: 305 mm
Depth: 330 mm
Height: 50 mm

Other features

Weight: 3.33 kg
Mini DisplayPorts quantity: 2
