Description

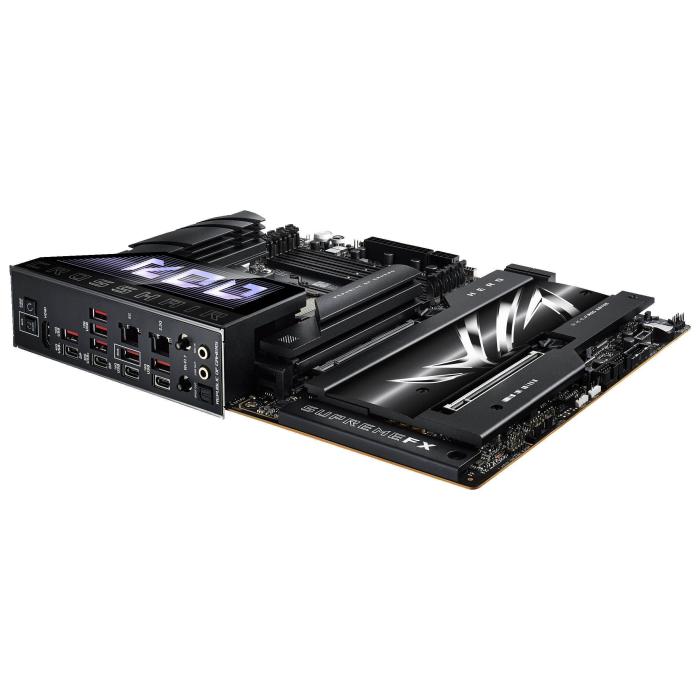

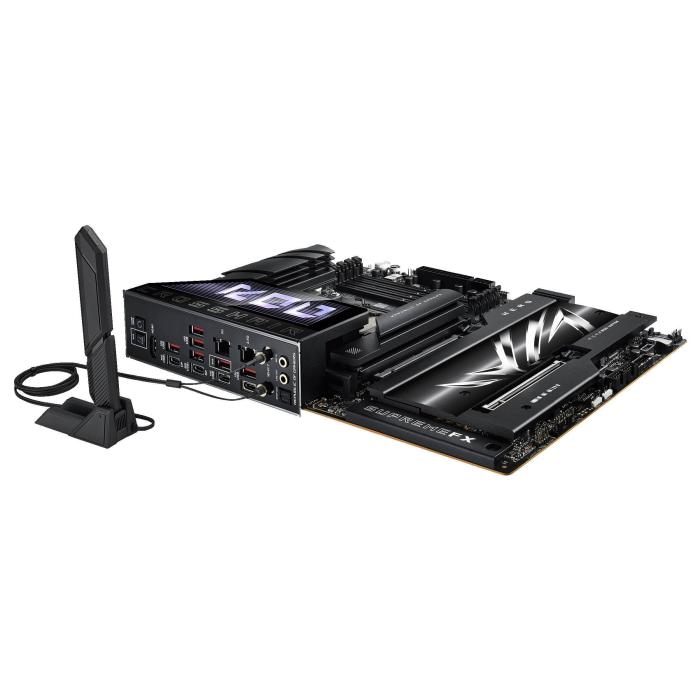

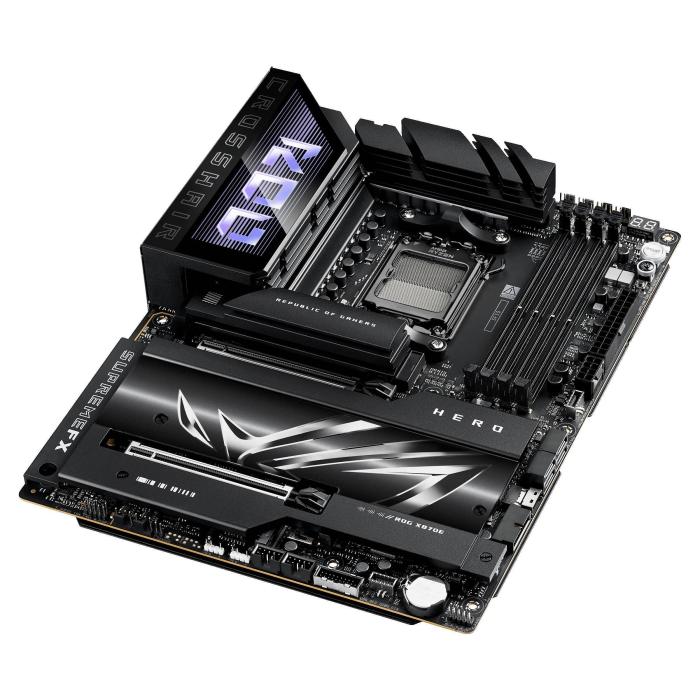

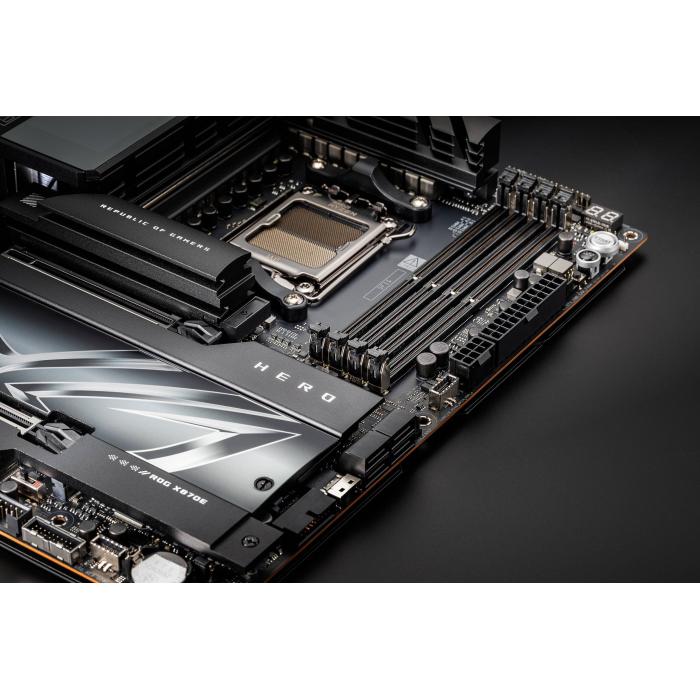

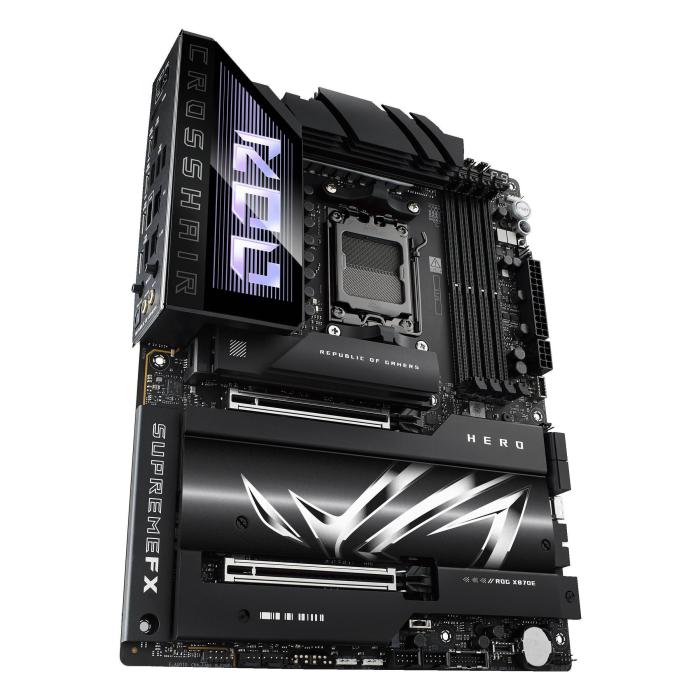

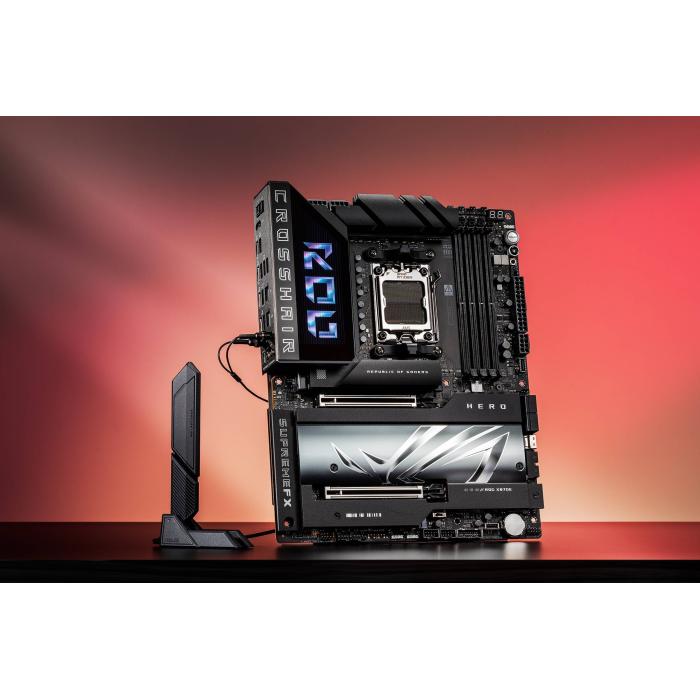

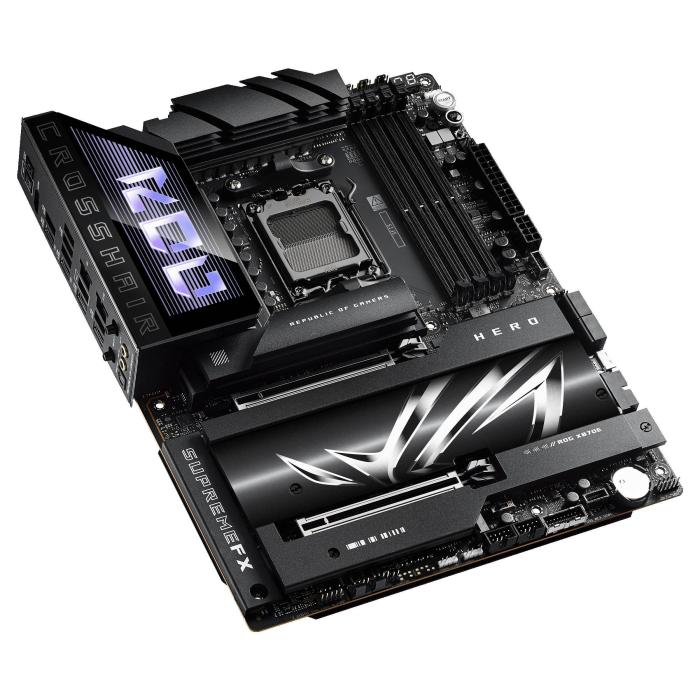

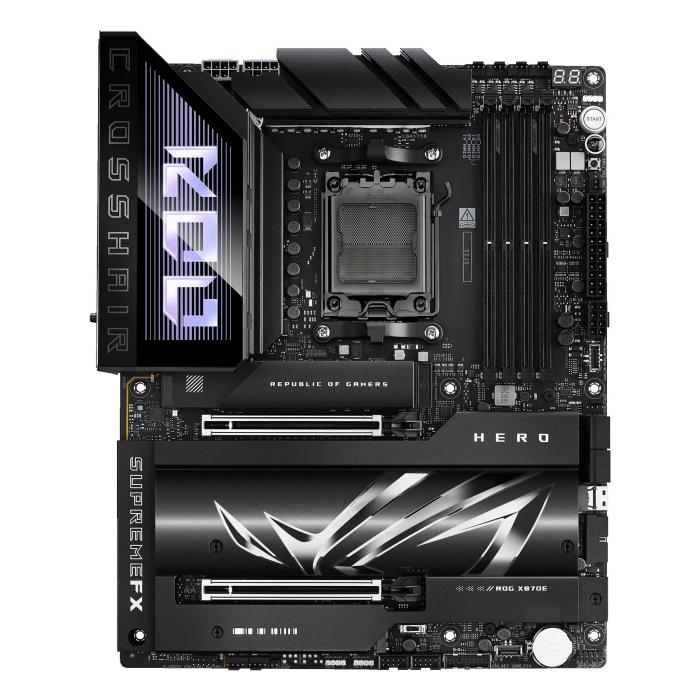

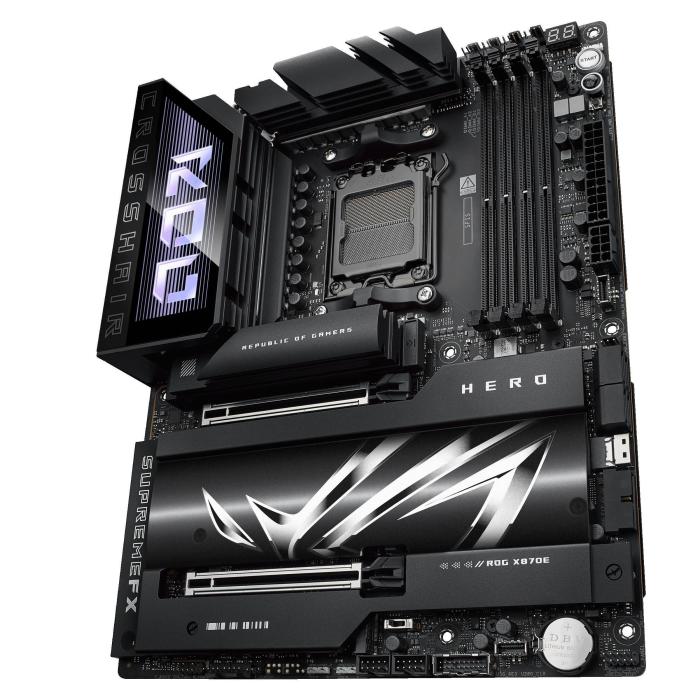

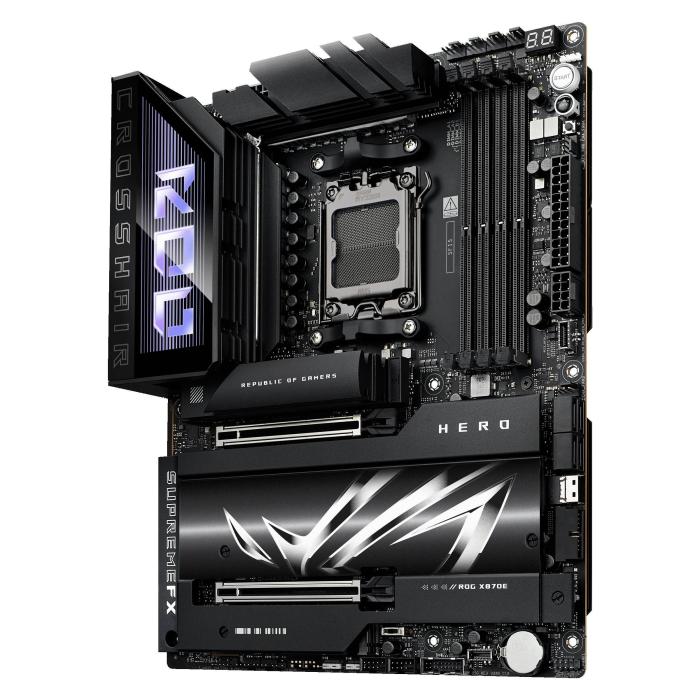

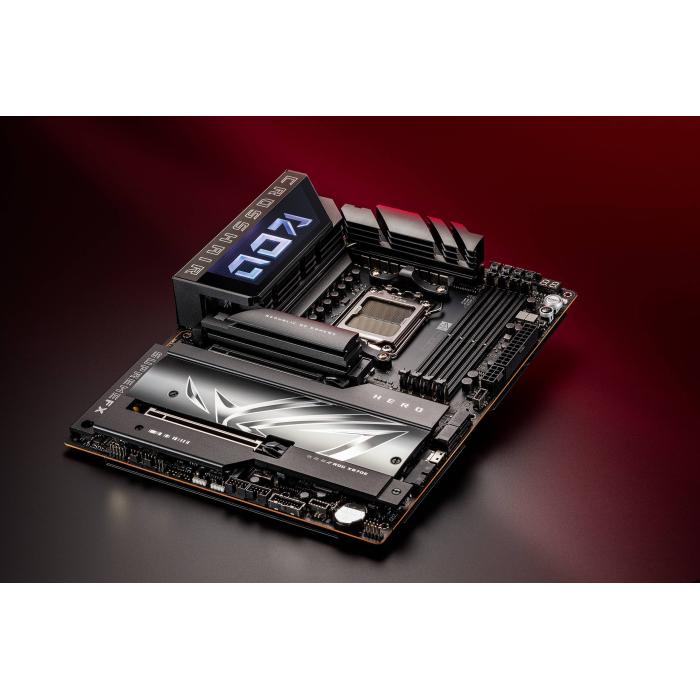

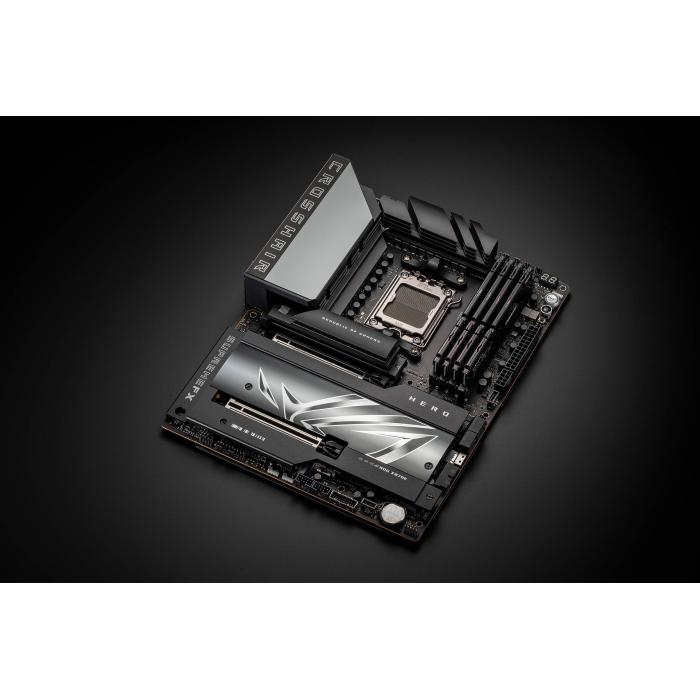

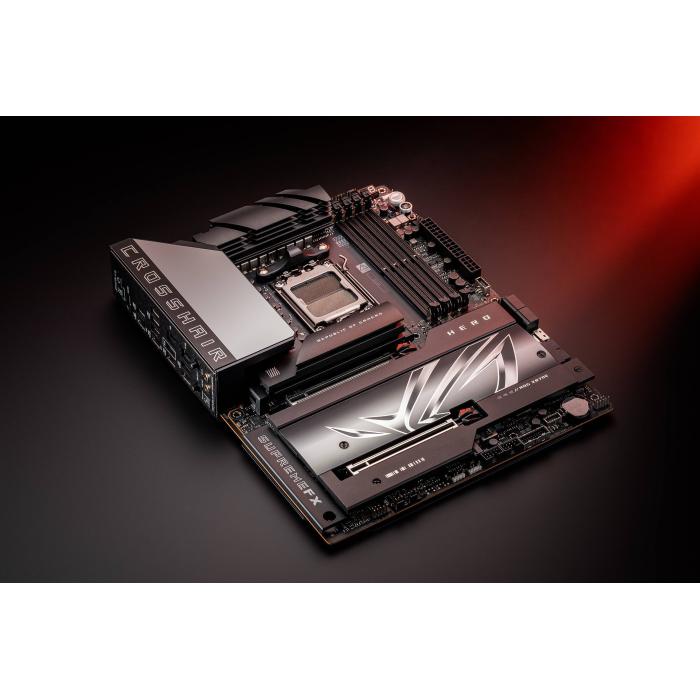

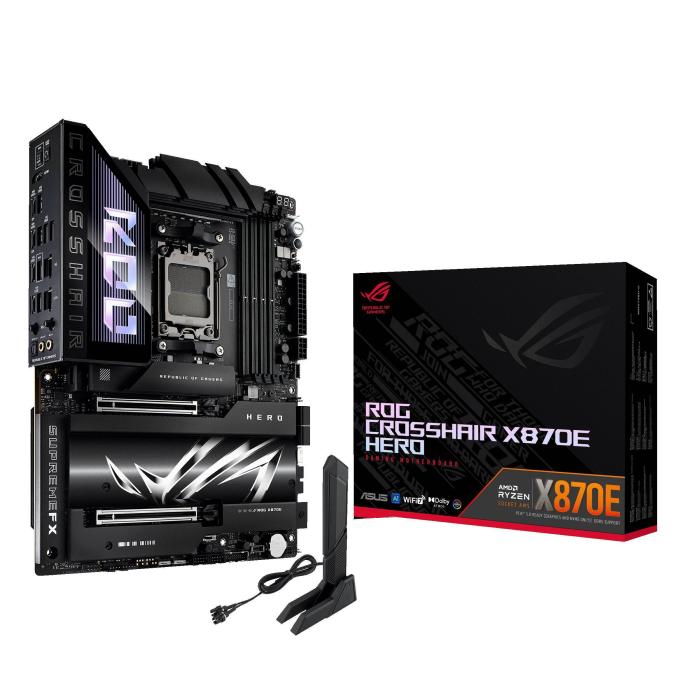

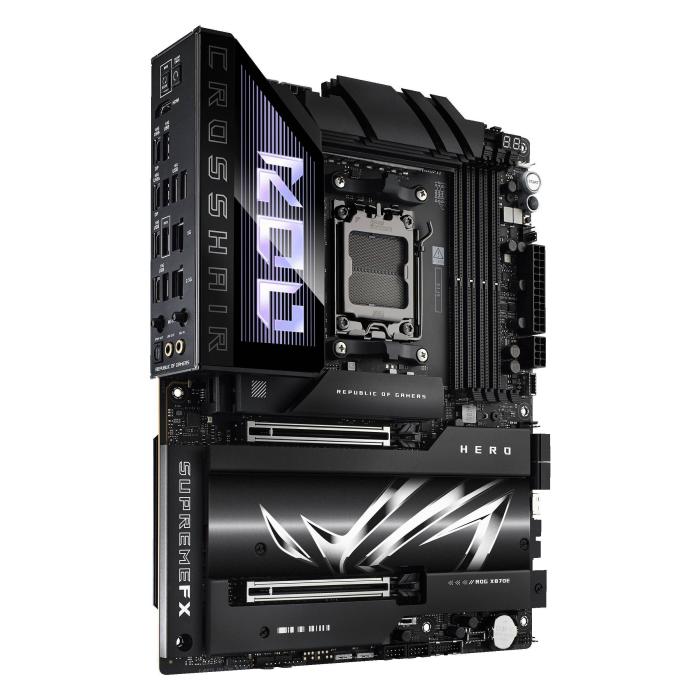

ASUS ROG CROSSHAIR X870E HERO motherboard in ATX format, with an AM5 socket for AMD processors, supporting up to 192 GB of DDR5-SDRAM memory across its four dual-channel DIMM slots, with support for both ECC and non-ECC modules. This board offers compatibility with HDD and SSD drives, including M.2, SATA III and SlimSAS interfaces, and allows RAID 0, 1, 10 and 5 configurations on up to five hard drives or ten storage units in total. It features a front panel audio connector, although it does not include support for parallel processing in graphics. A model aimed at high-performance builds that integrates the main management and expansion tools for your system.
Specifications
Processor
- Processor manufacturer: AMD
- Processor socket: Socket AM5
- Supported processor sockets: Socket AM5
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 192 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III, SlimSAS
- Number of HDDs supported: 5
- Number of storage drives supported: 10
- RAID support: Yes
- RAID levels: 0, 1, 10, 5
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2x2 connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 4
- EPS power connector (8-pin): Yes
- 12V power connector: Yes

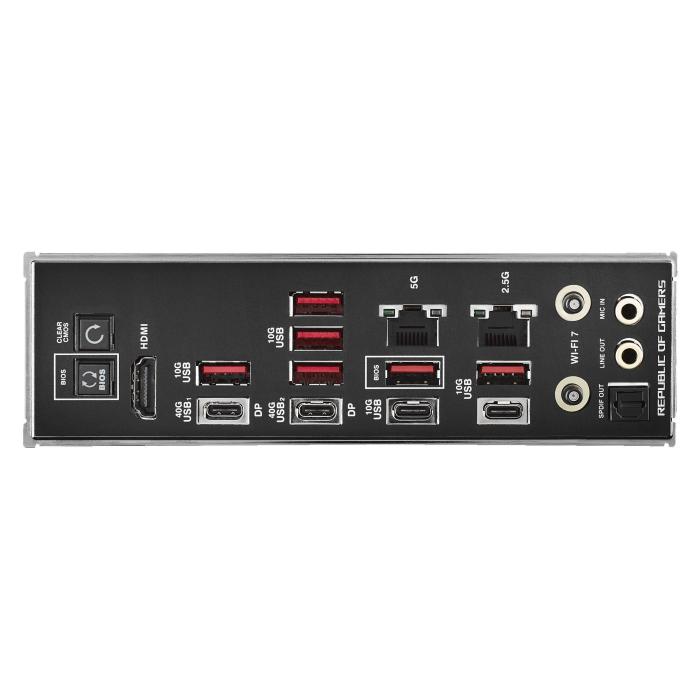

Rear panel I/O ports
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 6
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 2
- USB4 Gen 2x2 ports quantity: 2
- Ethernet LAN (RJ-45) ports: 2
- HDMI ports quantity: 1
- Headphone outputs: 1
- Microphone in: Yes
- S/PDIF out port: Yes
- WiFi-AP antenna jack: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 7 (802.11be)
- Wi-Fi standards: Wi-Fi 7 (802.11be)
- Bluetooth: Yes
- Bluetooth version: 5.4
Features
- Motherboard chipset: AMD X870E
- Audio chip: Realtek ALC4082
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: AMD
- Windows operating systems supported: Windows 11
Expansion slots
- PCI Express x16 (Gen 4.x) slots: 4
- PCI Express x16 (Gen 5.x) slots: 2
- Number of M.2 (M) slots: 5
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
- Clear CMOS button: Yes
Packaging data
- Package width: 370 mm
- Package depth: 312 mm
- Package height: 108 mm
- Package weight: 4.26 kg
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
- Height: 50 mm

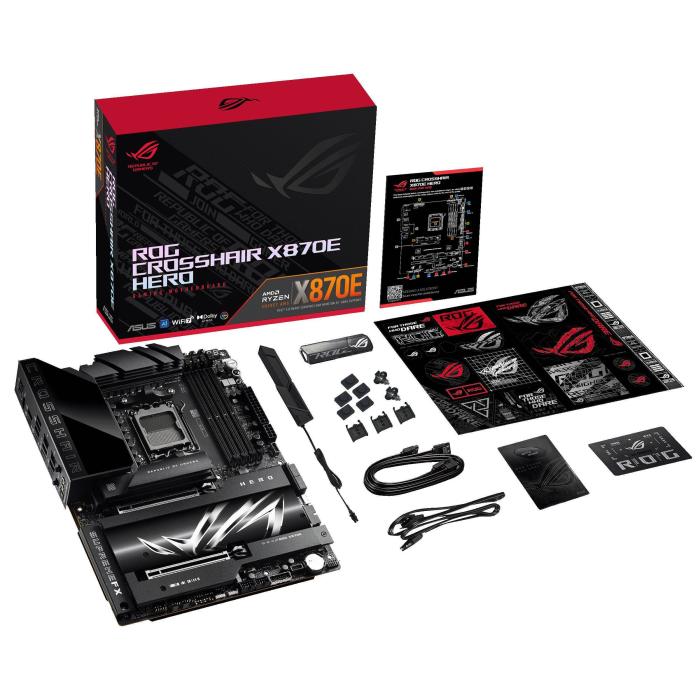

Packaging content
- Cables included: SATA
- Drivers included: Yes
Other features
- Weight: 2.55 kg
