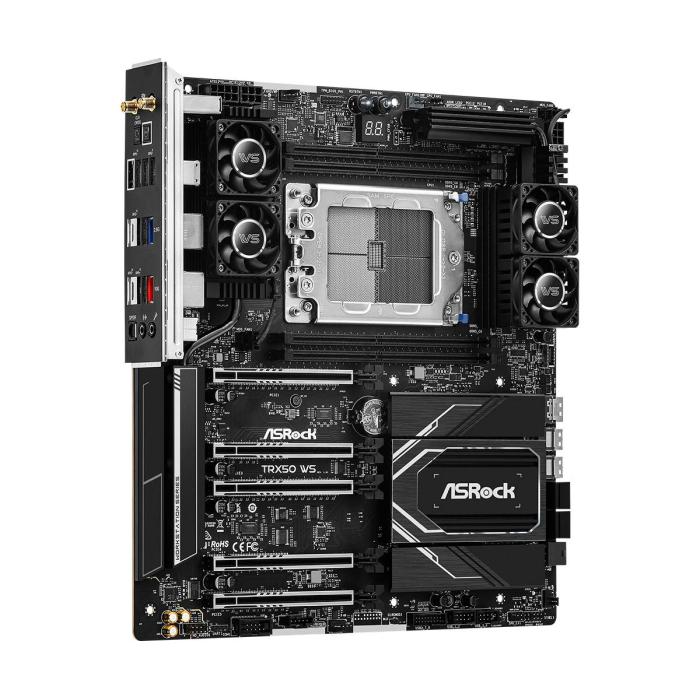

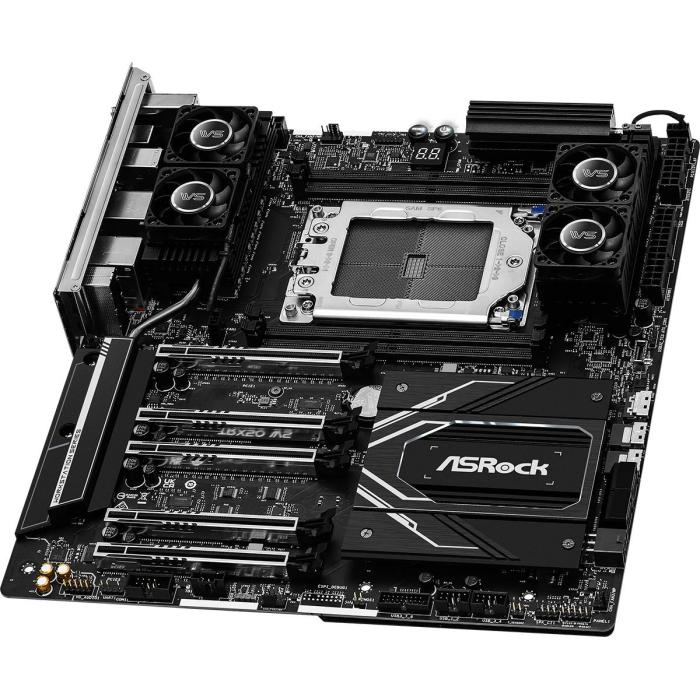

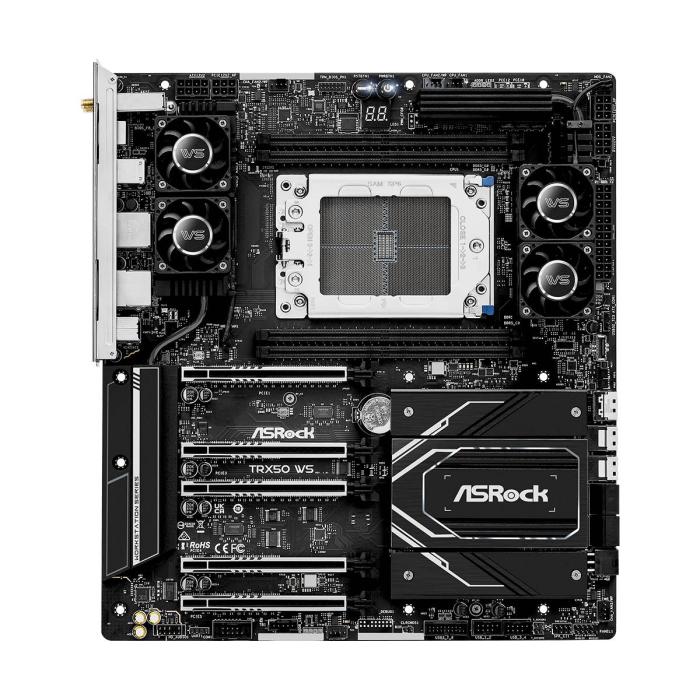

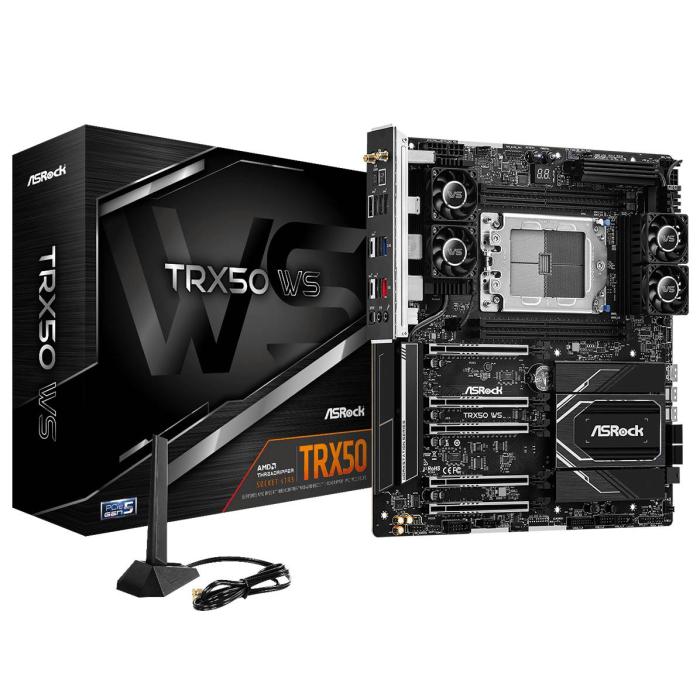

Asrock TRX50 WS AMD TRX50 Socket sTR5 Extended ATX

Product 1 image

Product 2 image

Product 3 image

Product 4 image

Product 5 image

Asrock TRX50 WS AMD TRX50 Socket sTR5 Extended ATX

Not avaliable

Amount

Brand: ASROCK

SKU: 117227 PRC: 524876 EAN: 4710483944529 PN: 90-mxbn40-a0uayz

Description

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket sTR5
Compatible processor series: AMD Ryzen Threadripper 1000 Series

Memory

Supported memory types: DDR5-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Quad-channel
ECC сompatibility: ECC
Supported memory clock speed (max): 7600 MHz
Maximum internal memory: 1 TB

Storage controllers

Supported storage drive interfaces: M.2, PCI Express 4.0, PCI Express 5.0, SATA III
RAID support: Yes
RAID levels: 0, 1, 10

Internal I/O

TPM connector: Yes
Thunderbolt headers: 1
12V power connector: Yes
USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
Number of SATA III connectors: 4
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 3
Chassis intrusion connector: Yes

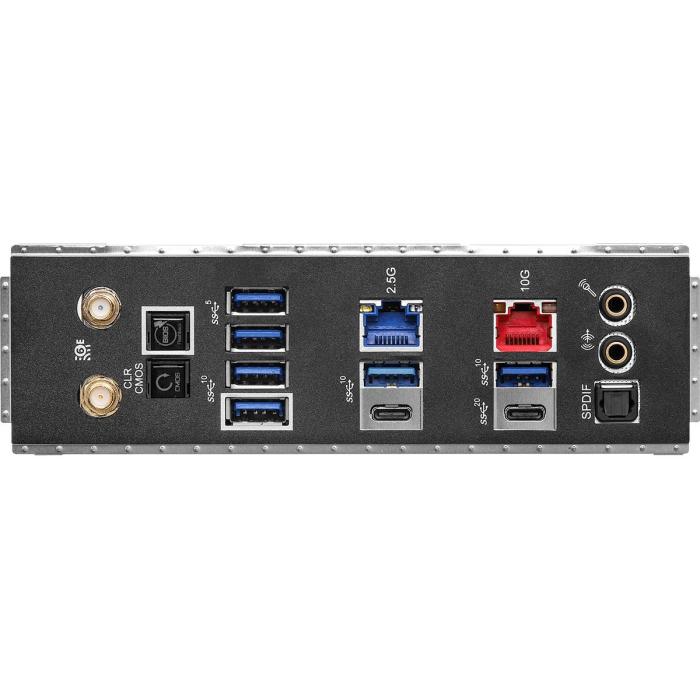

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
USB 3.2 Gen 2x2 Type-C ports quantity: 1
Ethernet LAN (RJ-45) ports: 2
Headphone outputs: 1
Microphone in: Yes
S/PDIF out port: Yes
WiFi-AP antenna jack: 2

Network

Ethernet LAN: Yes
Ethernet interface type: 2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet
LAN controller: Dragon RTL8125BG, Marvell AQtion AQC113C
Wake-on-LAN ready: Yes
Wi-Fi: Yes
Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
Wi-Fi standards: 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
Bluetooth: Yes
Bluetooth version: 5.2

Features

Motherboard chipset: AMD TRX50
Audio chip: Realtek ALC1220
Audio output channels: 7.1 channels
Product colour: Black
Component for: PC
Motherboard form factor: Extended ATX
Motherboard chipset family: AMD
Power source type: ATX
Windows operating systems supported: Windows 11
Certification: FCC, CE

Expansion slots

PCI Express x16 (Gen 4.x) slots: 2
PCI Express x16 (Gen 5.x) slots: 3
Number of M.2 (M) slots: 2

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS button: Yes

Weight & dimensions

Width: 305 mm
Depth: 277 mm

Packaging content

Cables included: SATA
Antenna included: Yes
Screws included: Yes
M.2 standoff included: Yes
Bundled software: Software - ASRock Motherboard Utility (A-Tuning) - ASRock Dragon 2.5G LAN Software - ASRock Polychrome SYNC* UEFI - ASRock Full
