Description

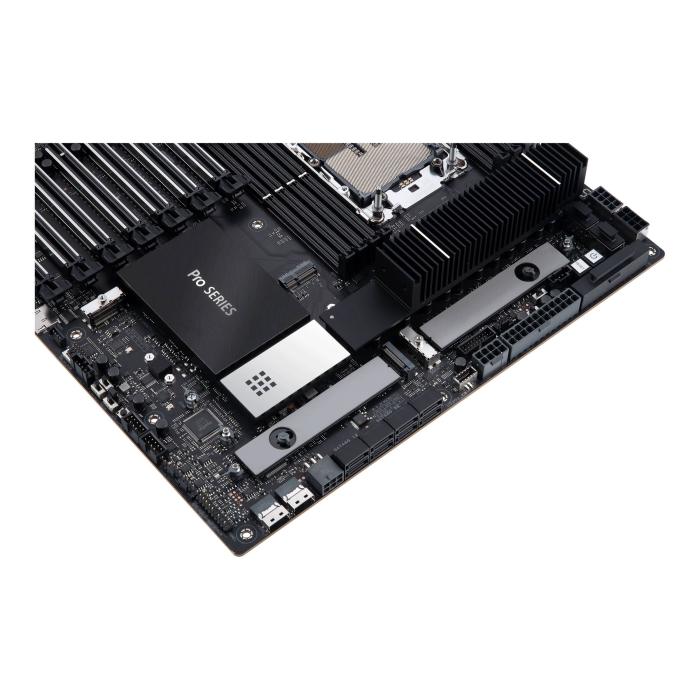

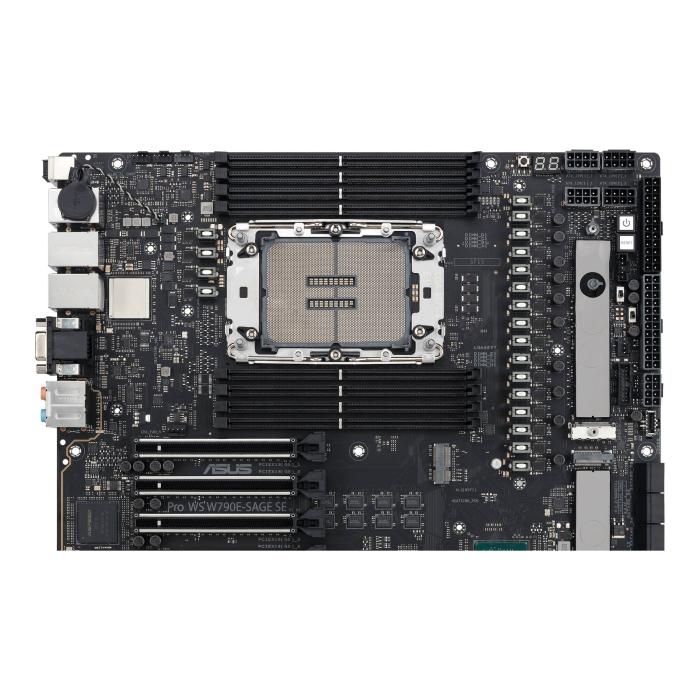

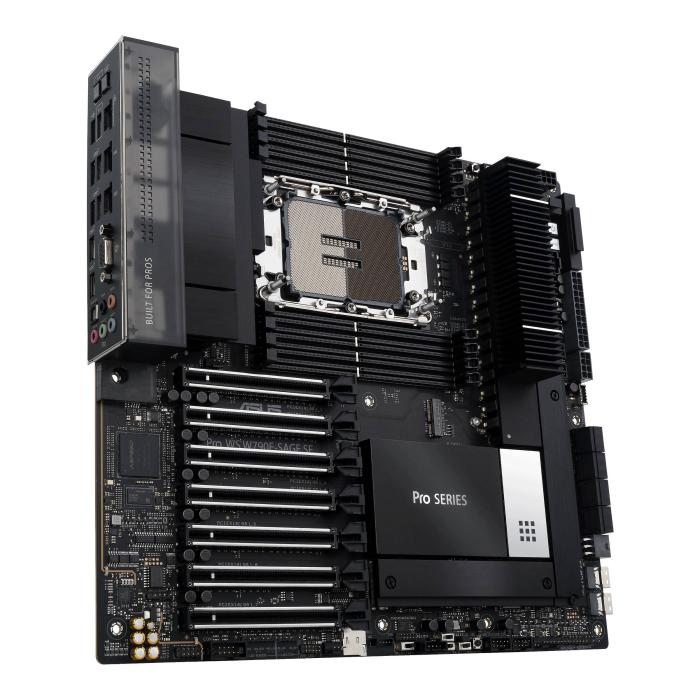

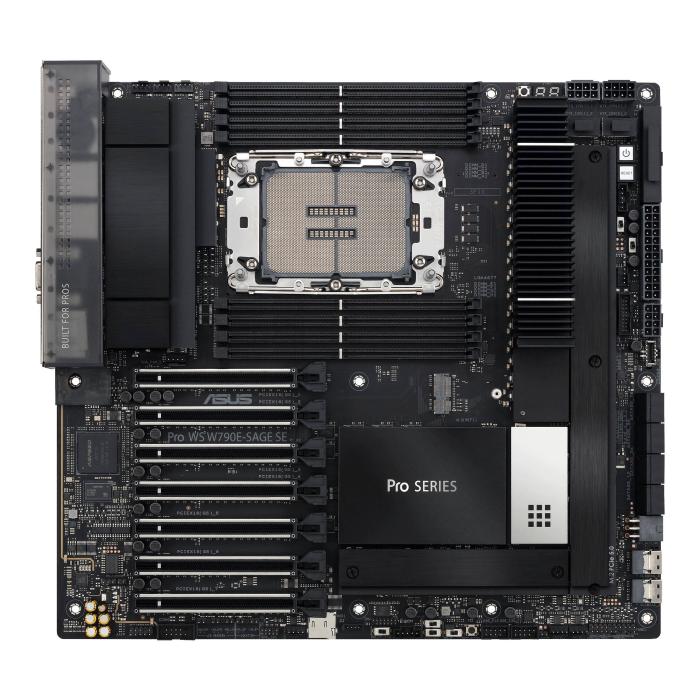

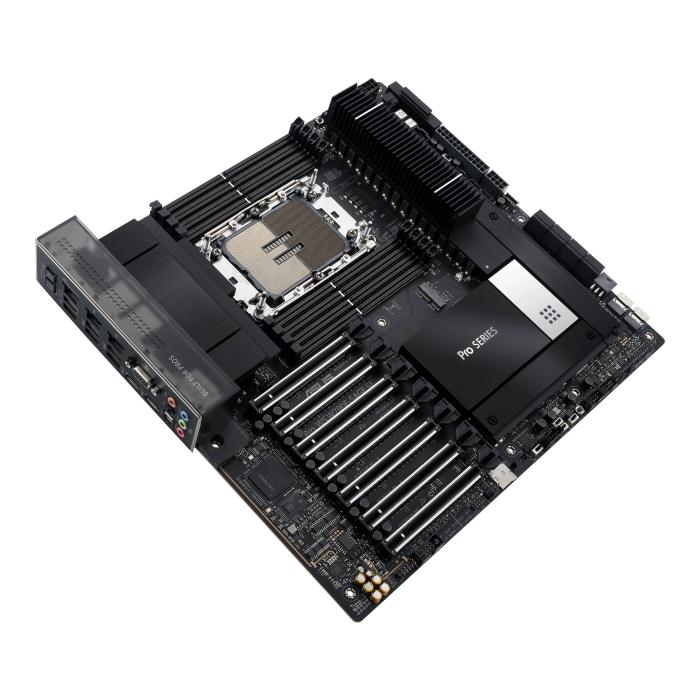

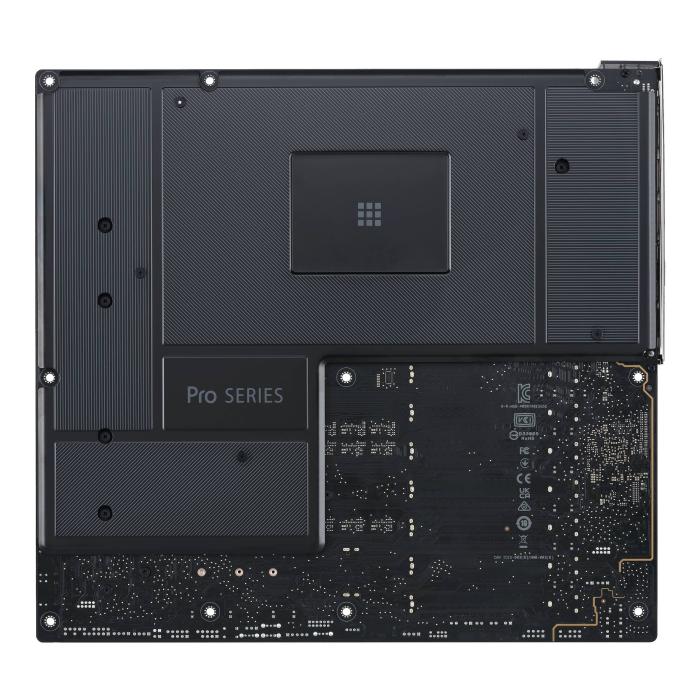

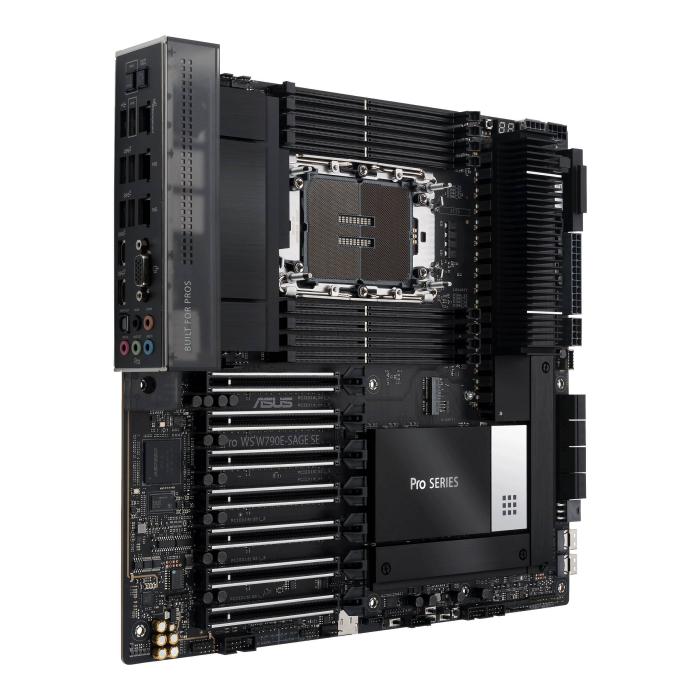

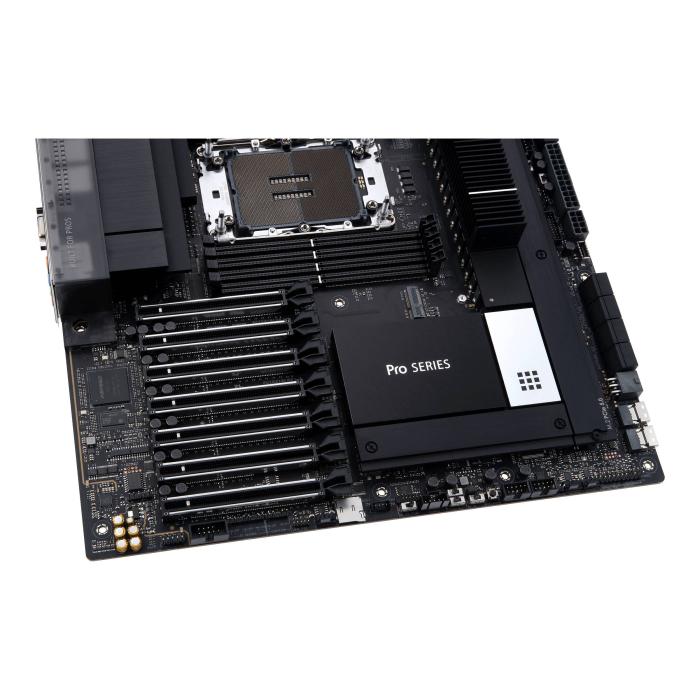

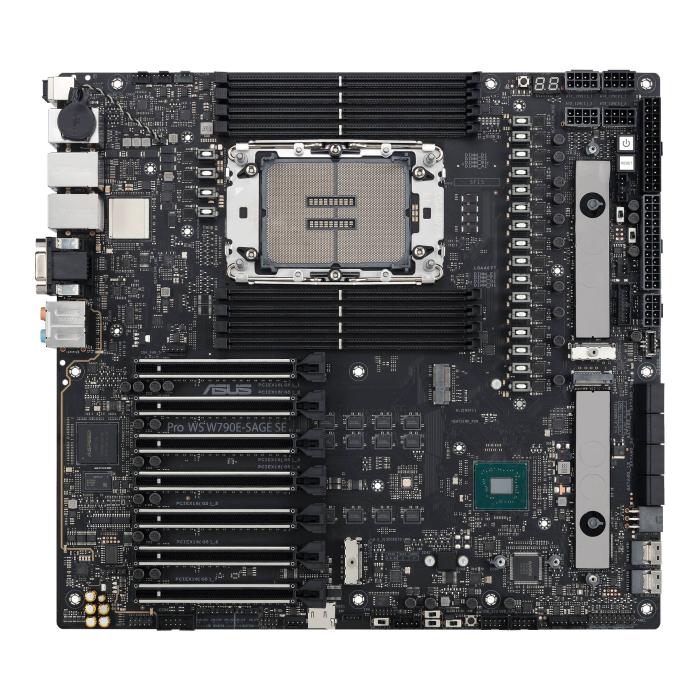

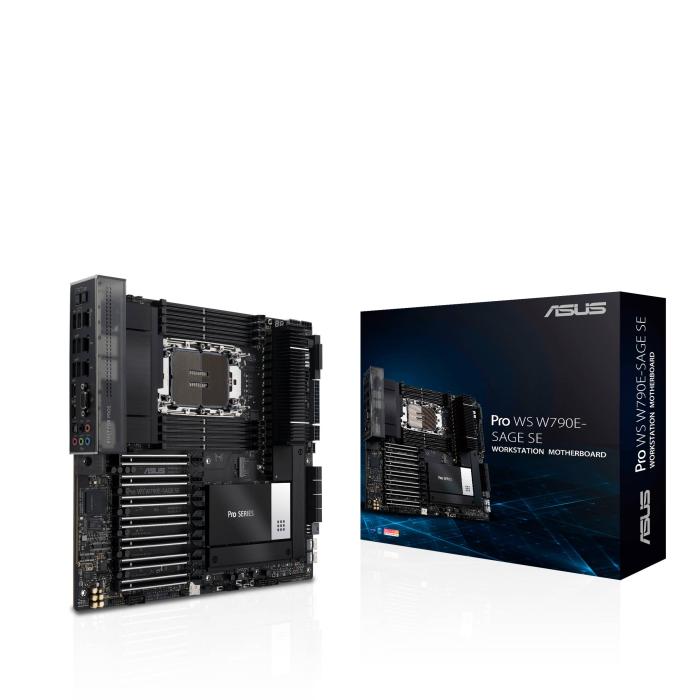

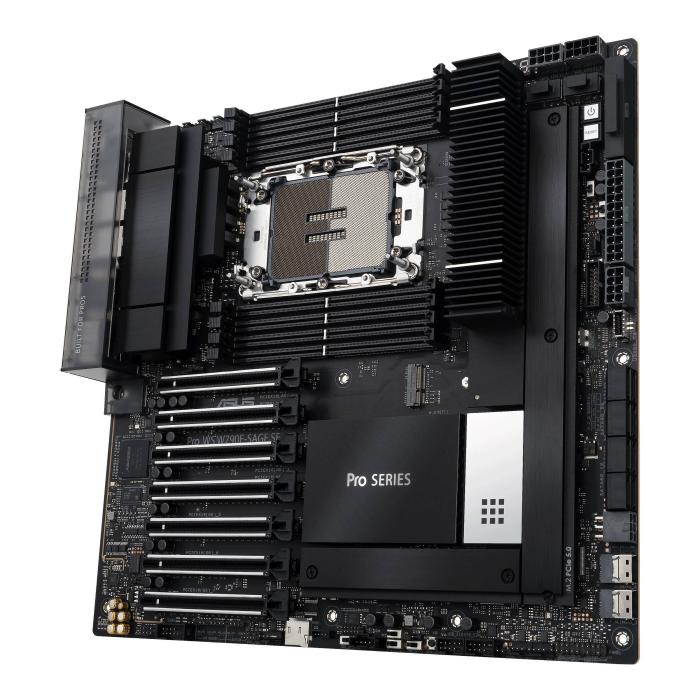

Pro WS W790E-SAGE SE Workstation Mainboard Socket Intel LGA 4677 (EEB Mainboard, PCIe 5.0, DDR5, USB 3.2 Gen 2)
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 4677 (Socket E)
- Compatible processor series: Intel Xeon W
- Intel Xeon series: W-2400, W-3400
- Supported processor sockets: LGA 4677 (Socket E)
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 8
- Memory slots type: DIMM
- Memory channels: Octa-channel
- ECC сompatibility: ECC
- Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600, 5800, 6000, 6200, 6400, 6600, 6800 MHz
- Supported memory clock speed (max): 6800 MHz
- Maximum internal memory: 2.05 TB
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: SlimSAS, M.2, SATA III
- Number of HDDs supported: 10
- Number of storage drives supported: 13
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- Parallel processing technology support: Not supported
- On-board graphics card: No
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 8
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- Power fan connector: Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 5
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- TPM connector: Yes
- 12V power connector: Yes
- Integrated SAS ports: 2

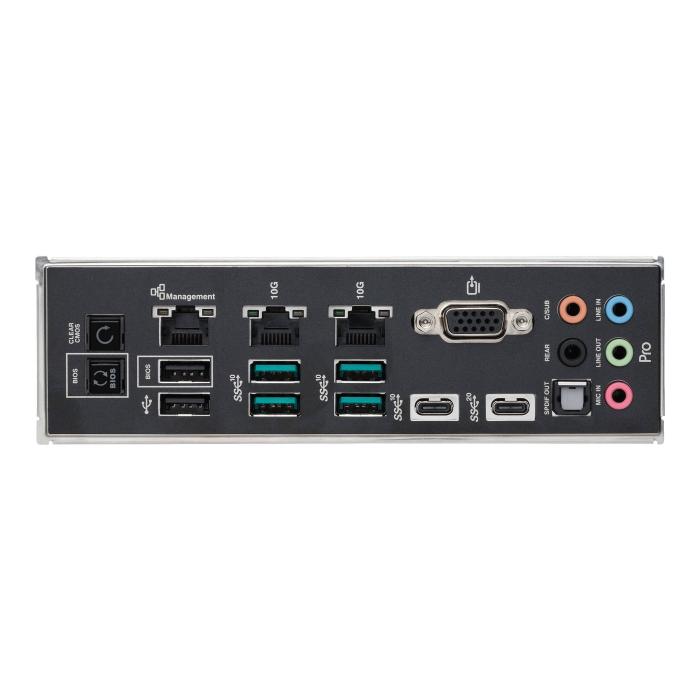

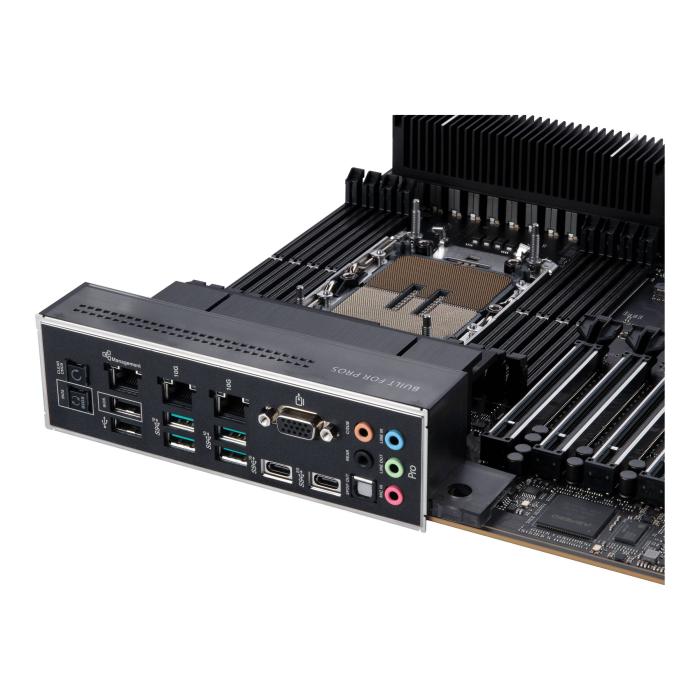

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 3
- VGA (D-Sub) ports quantity: 1
- Headphone outputs: 1
- Line-in: Yes
- Microphone in: Yes
- S/PDIF out port: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: Intel W790
- Audio chip: Realtek S1220A
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: Workstation
- Motherboard form factor: EEB
- Motherboard chipset family: Intel
- Cooling type: Passive
- Power source type: ATX
- Windows operating systems supported: Windows 10, Windows 11
Expansion slots

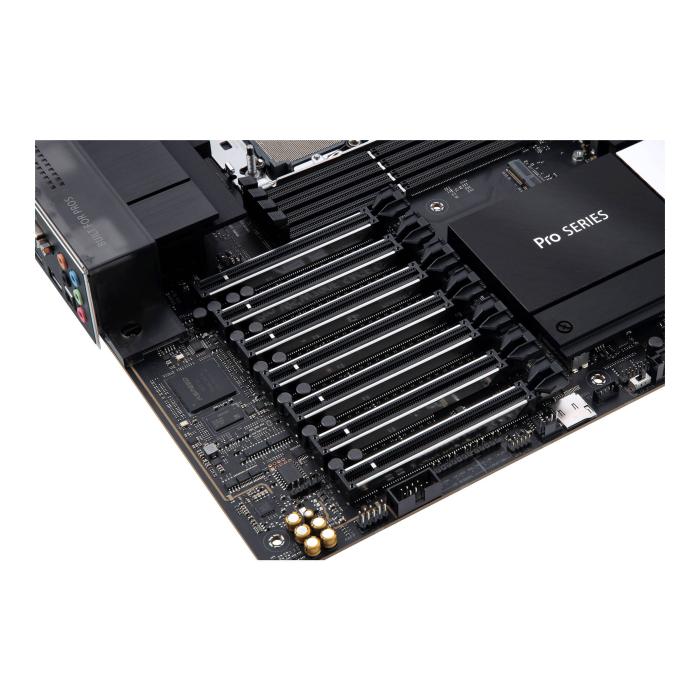

- PCI Express x16 (Gen 5.x) slots: 7
- Number of M.2 (M) slots: 3
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 512 Mbit
- Clear CMOS button: Yes
Packaging data
- Package depth: 362 mm
- Package height: 81 mm
- Package weight: 2.99 kg
- Package width: 379 mm
Weight & dimensions
- Width: 305 mm
- Depth: 330 mm

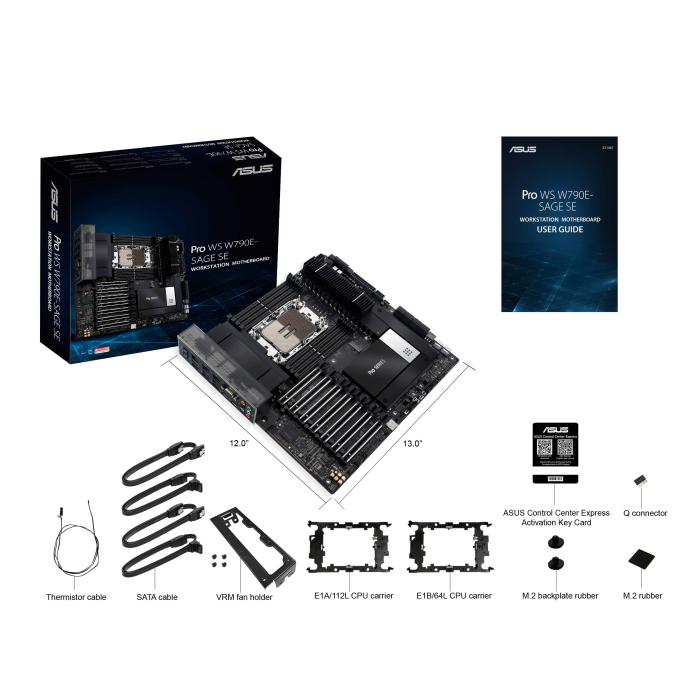

Packaging content
- Cables included: SATA
- User guide: Yes
Other features
- Back-to-BIOS button: Yes
- Number of M.2 (E) slots: 1
