Description

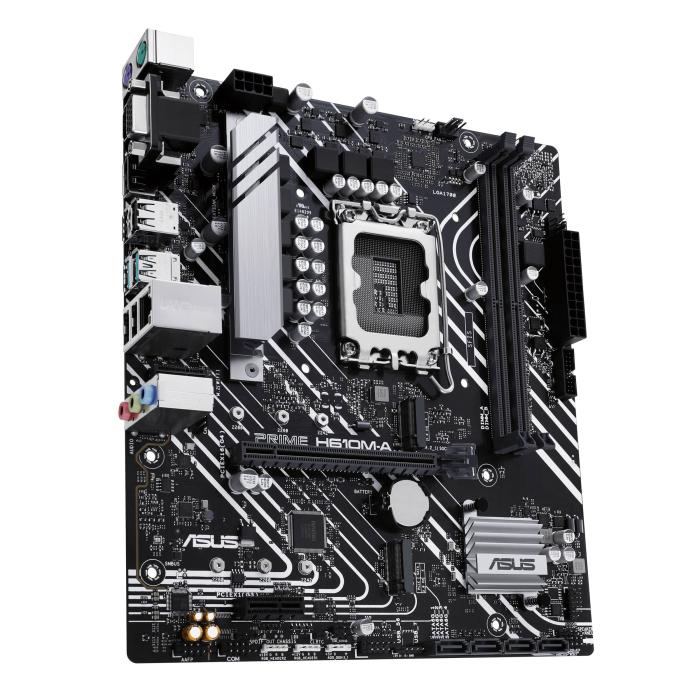

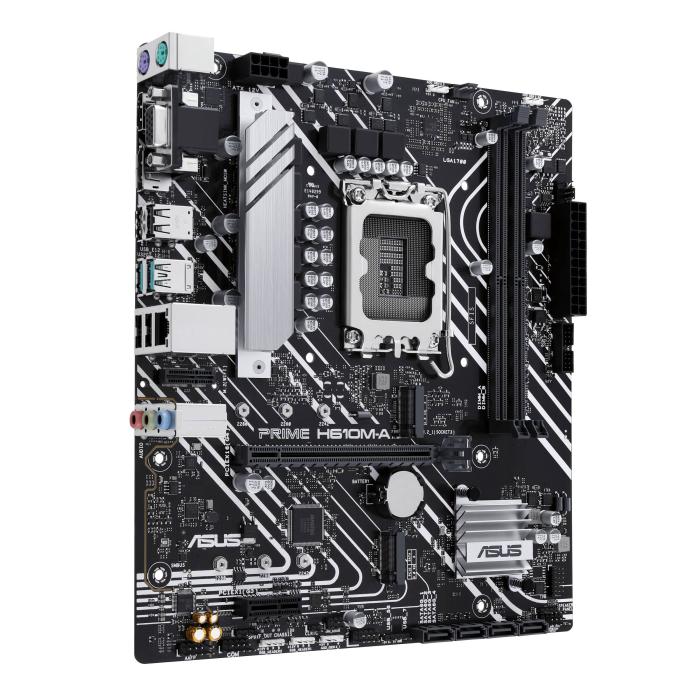

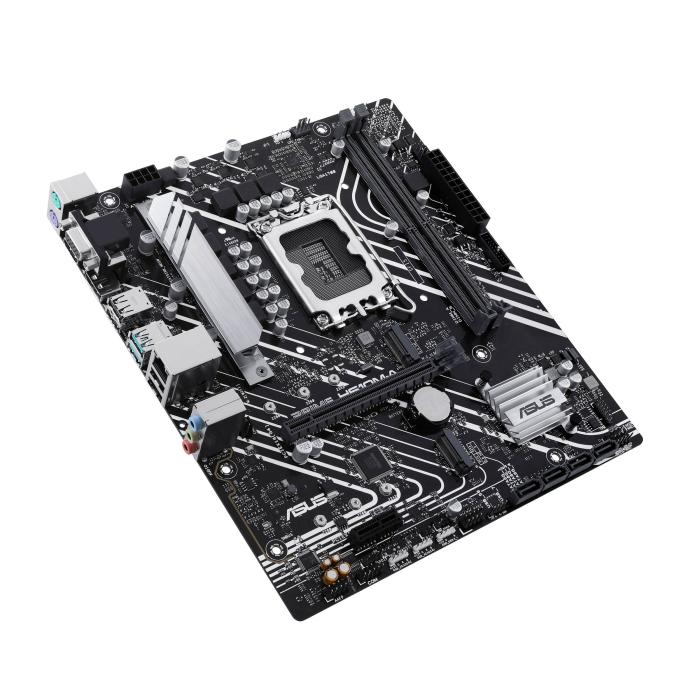

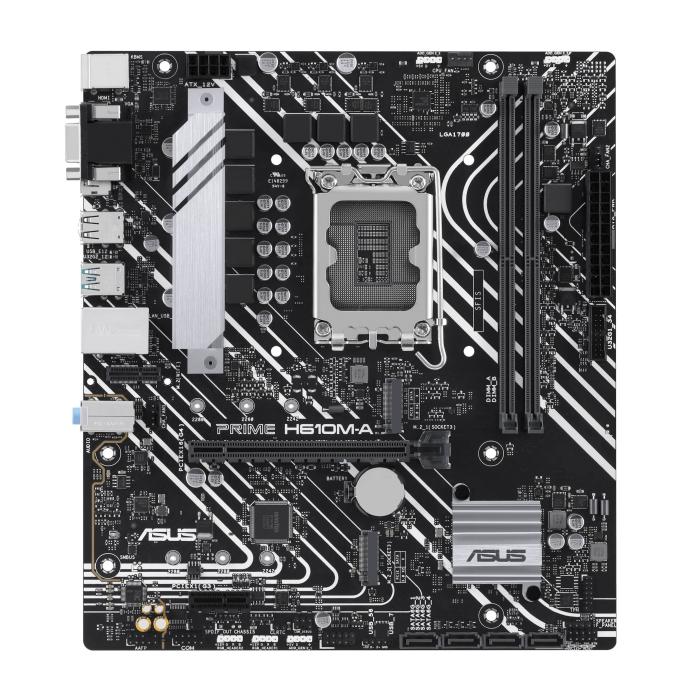

The ASUS PRIME H610M-A-CSM motherboard, in micro ATX format, mounts the LGA 1700 socket and is ready for Intel Core, Pentium Gold and Celeron family processors. This variant features two DIMM slots supporting up to 96 GB of dual-channel DDR5-SDRAM memory, with supported speeds from 4800 to 5600 MHz. For storage, it offers four SATA III connectors and supports M.2 and SATA III interfaces for HDDs and SSDs, with capacity for up to four drives. The 24-pin ATX power connector ensures the main power supply, and the set does not include support for parallel processing in graphics.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® Gold
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speeds: 4800, 5000, 5200, 5400, 5600 MHz
- Maximum internal memory: 96 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- Number of HDDs supported: 4
- Number of storage drives supported: 6
Graphics
- Parallel processing technology support: Not supported
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
- Number of SATA III connectors: 4
- S/PDIF out connector: Yes
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of chassis fan connectors: 2
- EPS power connector (8-pin): Yes
- Number of COM connectors: 1
- TPM connector: Yes
- 12V power connector: Yes

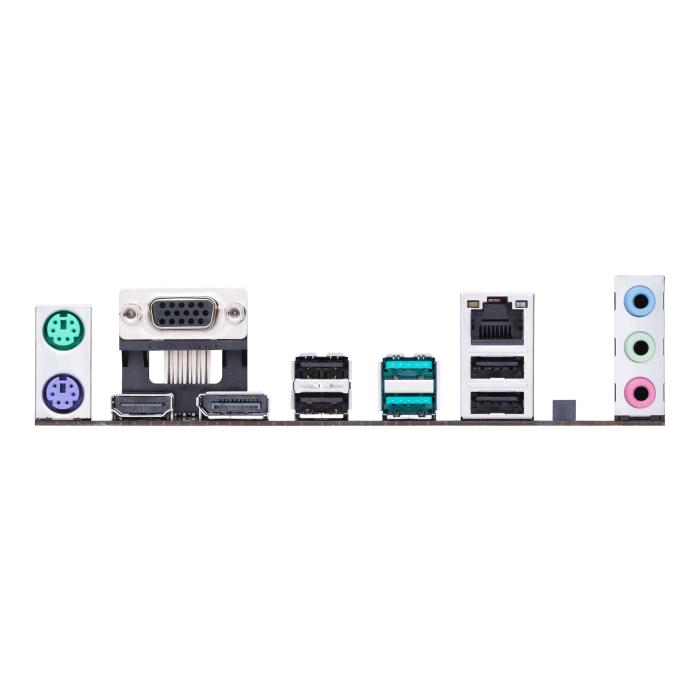

Rear panel I/O ports
- USB 2.0 ports quantity: 4
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 1
- PS/2 ports quantity: 2
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Headphone outputs: 1
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: Fast Ethernet, Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: Intel H610
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 2
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 128 Mbit
Packaging data
- Package width: 270 mm
- Package depth: 263 mm
- Package height: 51.5 mm
- Package weight: 1.07 kg
Weight & dimensions
- Width: 244 mm
- Depth: 216 mm
- Height: 39 mm
Other features
- Weight: 554 g
