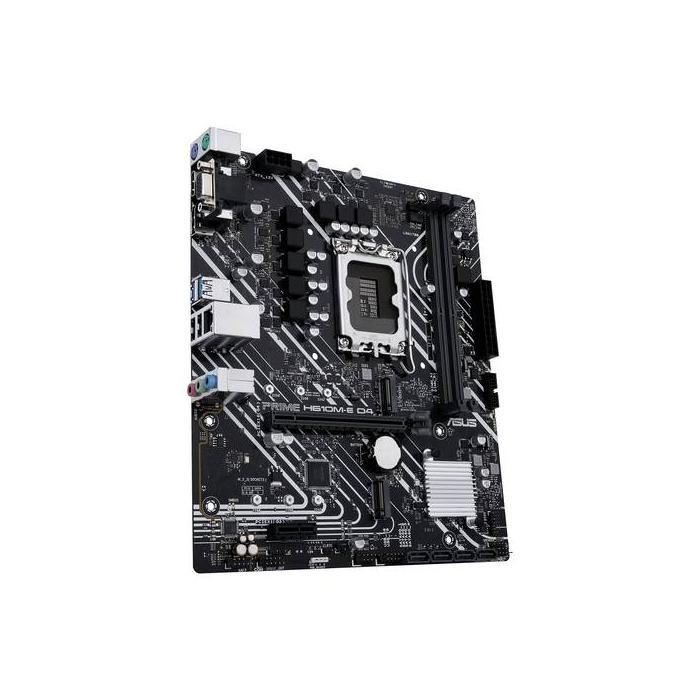

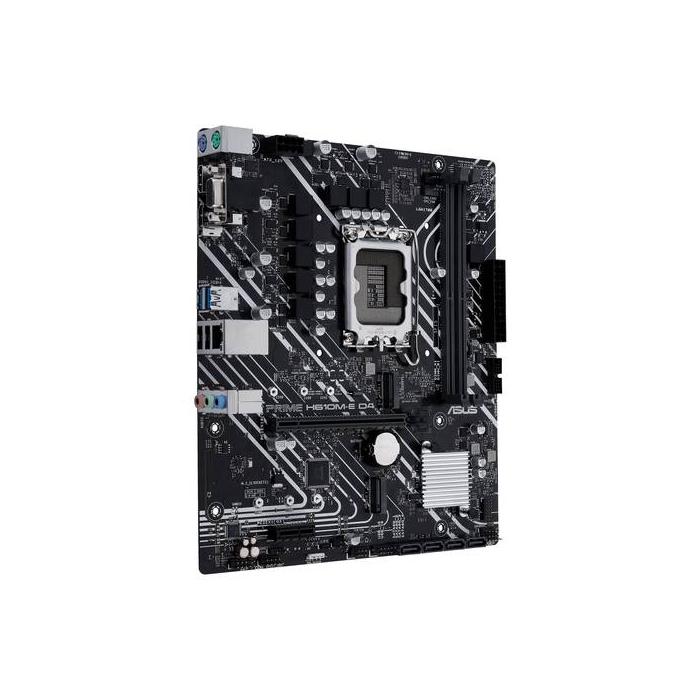

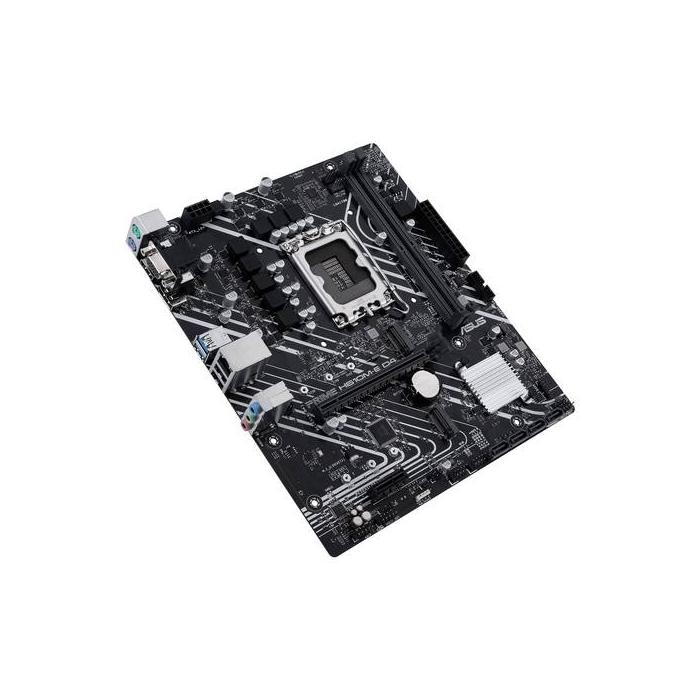

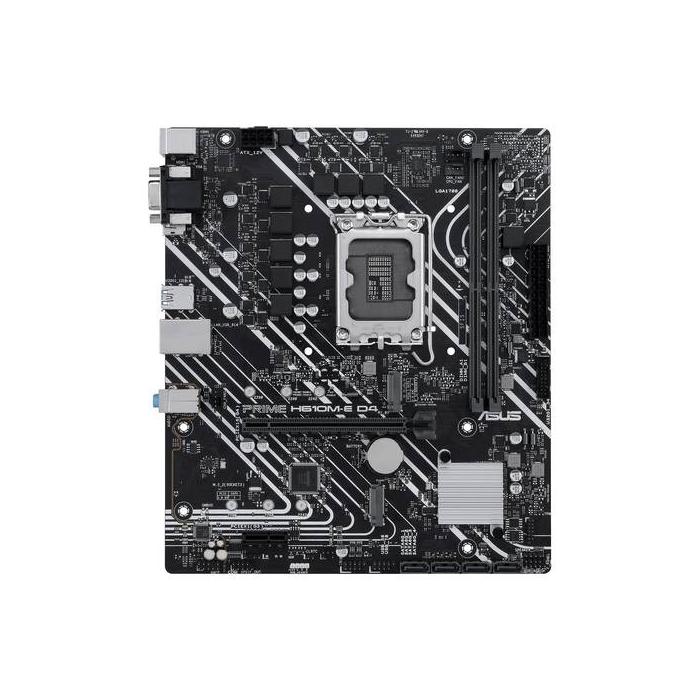

Name: ASUS PRIME H610M-E D4-CSM Intel H610 LGA 1700 micro ATX
Brand: ASUS
Price: 78.08 USD
Availability: InStock

ASUS PRIME H610M-E D4-CSM Intel H610 LGA 1700 micro ATX

$78.08

$78.08 without VAT

ASUS PRIME H610M-E D4-CSM Intel H610 LGA 1700 micro ATX. More info

Amount

Brand: ASUS

SKU: 91256 PRC: 352577 EAN: 4711081514800 PN: 90MB19N0-M0EAYC

Description

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1700
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium®
Maximum number of SMP processors: 1
Supported processor sockets: LGA 1700

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3000, 3200 MHz
Maximum internal memory: 64 GB
Unbuffered memory: Yes

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes

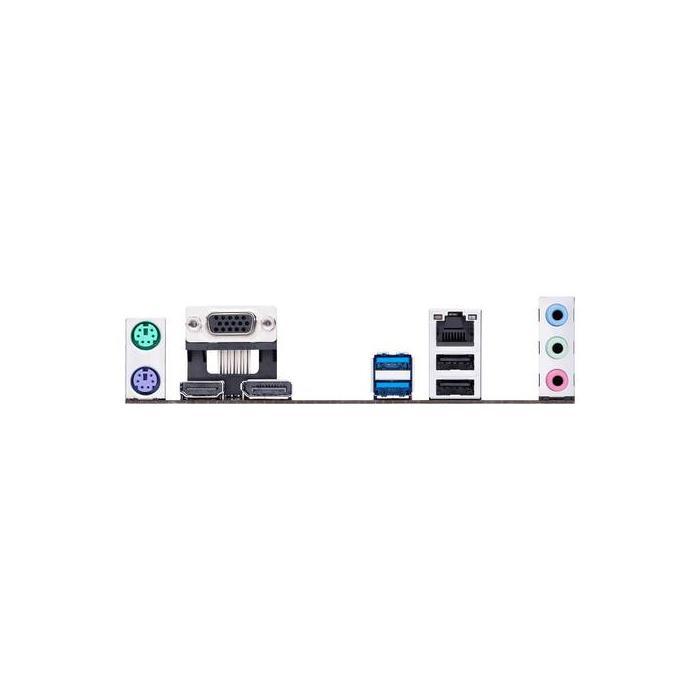

Rear panel I/O ports

USB 2.0 ports quantity: 2
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.1
DisplayPorts quantity: 1
DisplayPort version: 1.4

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
Wake-on-LAN ready: Yes
Wi-Fi: No

Features

Motherboard chipset: Intel H610
Audio output channels: 7.1 channels
Product colour: Multicolour
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64, Windows 11 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 2

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 244 mm
Depth: 211 mm
Height: 221 mm

Packaging content

Cables included: SATA
Drivers included: Yes

Other features

Weight: 382 g
