Name: ASUS PRIME H510M-K Intel H510 LGA 1200 (Socket H5) micro ATX
Brand: ASUS
Price: 103.79 USD
Availability: InStock

ASUS PRIME H510M-K Intel H510 LGA 1200 (Socket H5) micro ATX

$103.79

$103.79 without VAT

ASUS PRIME H510M-K Intel H510 LGA 1200 (Socket H5) micro ATX. More info

Amount

Brand: ASUS

SKU: 114236 PRC: 311967 EAN: 4711081152132 PN: 90MB17N0-M0EAY0

Description

Specifications

Processor

Processor manufacturer: Intel
Processor socket: LGA 1200 (Socket H5)
Compatible processor series: Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel Pentium G
Supported processor sockets: LGA 1200 (Socket H5)

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 2
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: Non-ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 2933, 3200 MHz
Maximum internal memory: 64 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: M.2, PCI Express 3.0, SATA III
Number of storage drives supported: 5

Graphics

Parallel processing technology support: Not supported
Maximum resolution: 3840 x 2160 pixels

Internal I/O

USB 2.0 connectors: 1
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 4
S/PDIF out connector: Yes
Front panel audio connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 1
EPS power connector (8-pin): Yes
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

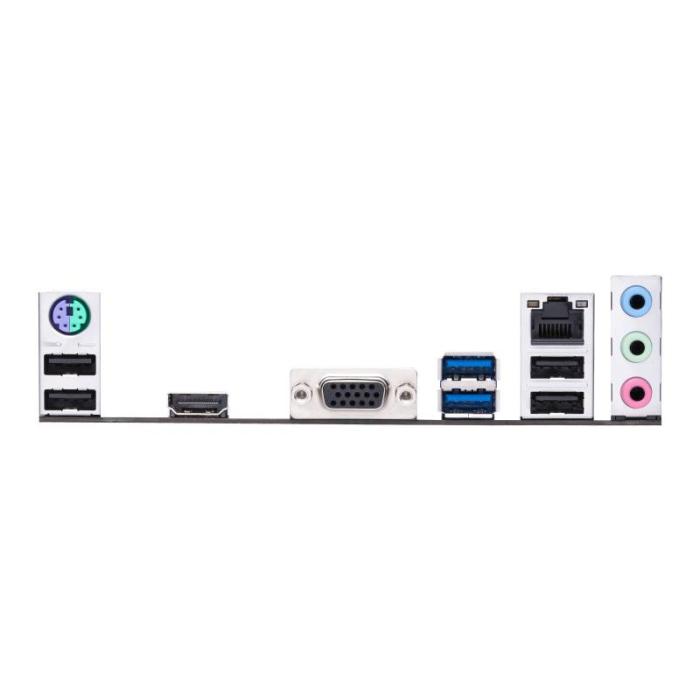

Rear panel I/O ports

USB 2.0 ports quantity: 4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 1.4/2.0
Headphone outputs: 3
Microphone in: Yes
USB connector type: USB Type-A

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Intel® I219-V
Wake-on-LAN ready: Yes
Wi-Fi: No

Features

Motherboard chipset: Intel H510
Audio chip: Realtek ALC887 / Realtek ALC897
Audio output channels: 7.1 channels
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: Intel
Windows operating systems supported: Windows 10 x64

Expansion slots

PCI Express x1 (Gen 3.x) slots: 1
PCI Express x16 (Gen 4.x) slots: 1
Number of M.2 (M) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 128 Mbit
Clear CMOS jumper: Yes

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 226 mm
Depth: 203 mm
Height: 51 mm

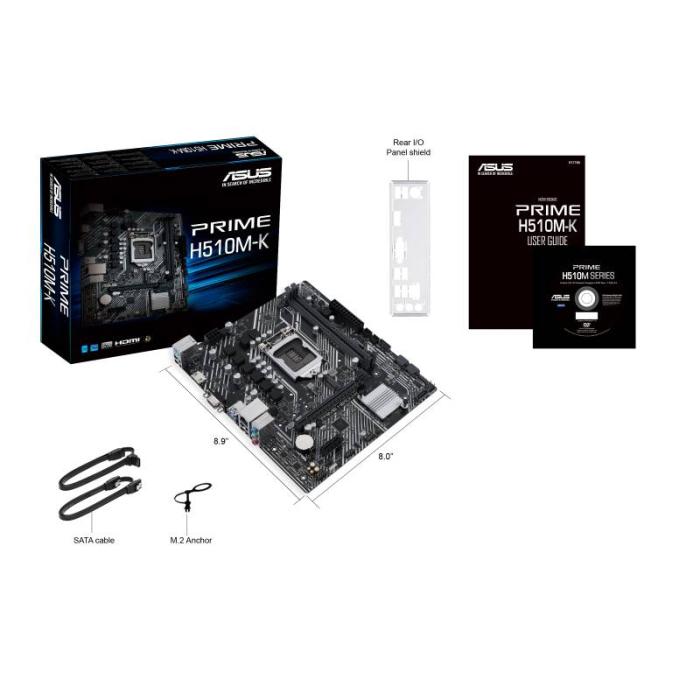

Packaging content

Cables included: SATA
Drivers included: Yes

Other features

Weight: 803 g

ASUS PRIME H510M-K Intel H510 LGA 1200 (Socket H5) micro ATX

Description

Specifications

Processor

Memory

Storage controllers

Graphics

Internal I/O

Rear panel I/O ports

Network

Features

Expansion slots

BIOS

Logistics data

Weight & dimensions

Packaging content

Other features
