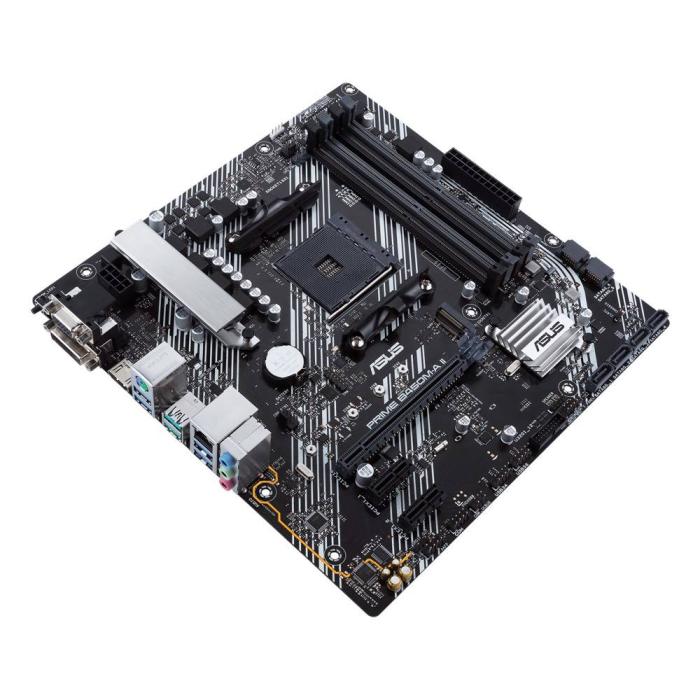

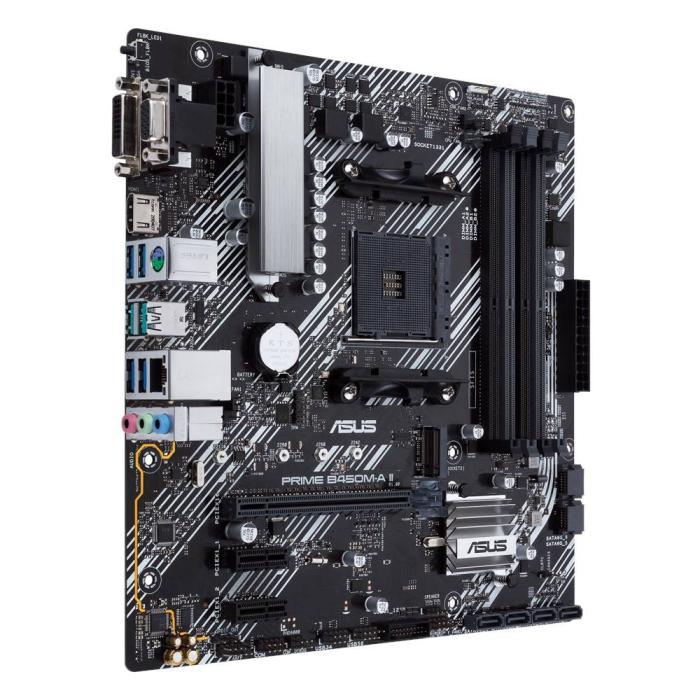

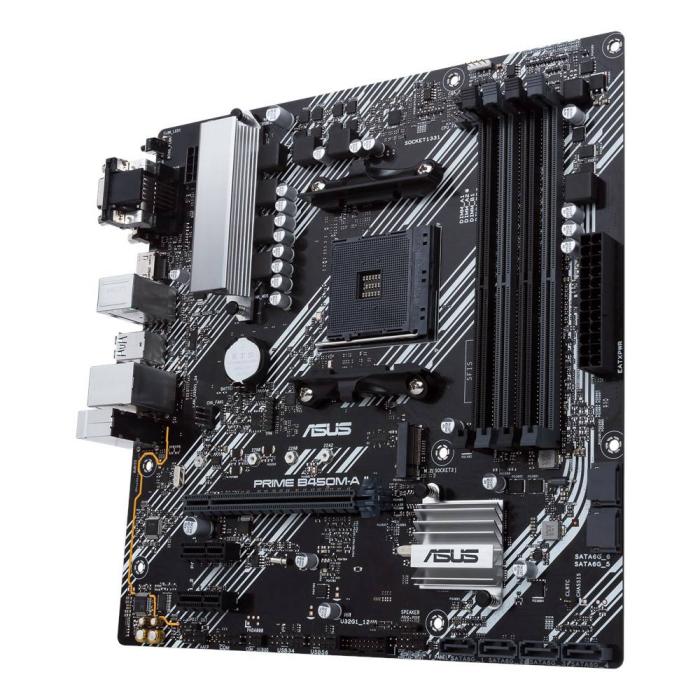

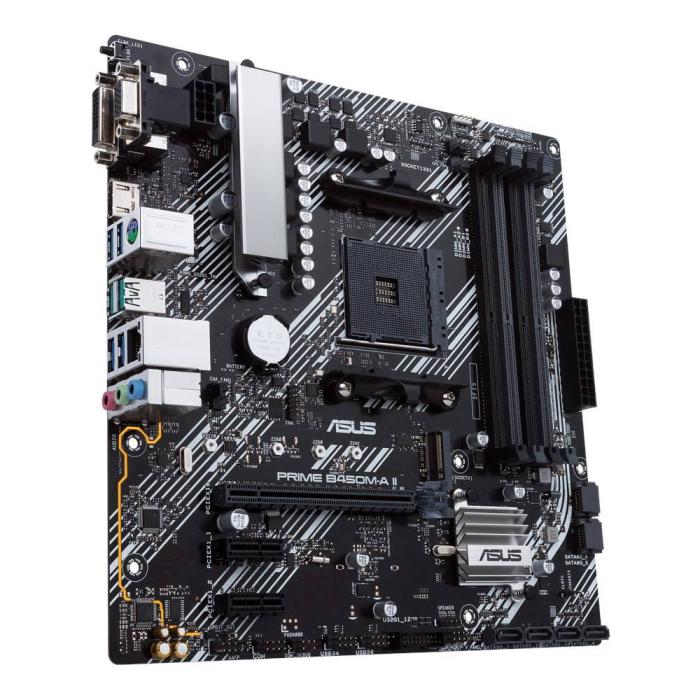

Name: ASUS PRIME B450M-A II AMD B450 Socket AM4 micro ATX
Brand: ASUS
Price: 75.22 USD
Availability: InStock

ASUS PRIME B450M-A II AMD B450 Socket AM4 micro ATX

$75.22

$75.22 without VAT

Amount

Brand: ASUS

SKU: 86320 PRC: 303266 EAN: 4718017924986 PN: 90MB15Z0-M0EAY0

Description

ASUS PRIME B450M-A II, AMD, Socket AM4, AMD Ryzen 3000 Series, Socket AM4, DDR4-SDRAM, 128 GB

Specifications

Processor

Processor manufacturer: AMD
Processor socket: Socket AM4
Compatible processor series: AMD Ryzen 3000 Series
Maximum number of SMP processors: 1
Supported processor sockets: Socket AM4

Memory

Supported memory types: DDR4-SDRAM
Number of memory slots: 4
Memory slots type: DIMM
Memory channels: Dual-channel
ECC сompatibility: ECC
Supported memory clock speeds: 2133, 2400, 2666, 2800, 3000, 3200, 3300, 3400, 3466, 3600, 3733, 3866, 4000, 4400 MHz
Maximum internal memory: 128 GB
Unbuffered memory: Yes

Storage controllers

Supported storage drive types: HDD & SSD
Supported storage drive interfaces: SATA III
RAID support: Yes

Graphics

Parallel processing technology support: Not supported
On-board graphics card: No

Internal I/O

USB 2.0 connectors: 2
USB 3.2 Gen 1 (3.1 Gen 1) connectors: 1
Number of SATA III connectors: 6
S/PDIF out connector: Yes
Audio connector: Yes
Front panel audio connector: Yes
Front panel connector: Yes
ATX Power connector (24-pin): Yes
CPU fan connector: Yes
Number of chassis fan connectors: 2
Number of COM connectors: 1
TPM connector: Yes
12V power connector: Yes
RGB LED pin header: Yes

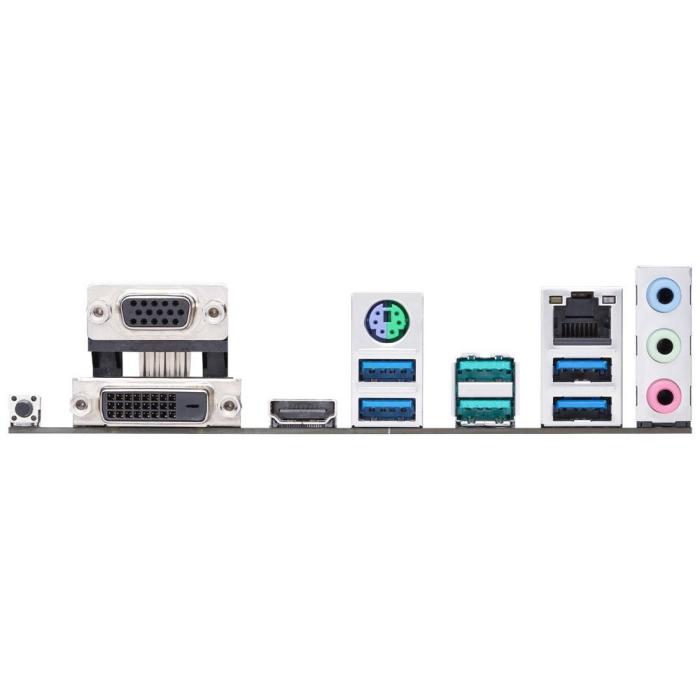

Rear panel I/O ports

USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 4
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 2
Ethernet LAN (RJ-45) ports: 1
PS/2 ports quantity: 1
VGA (D-Sub) ports quantity: 1
HDMI ports quantity: 1
HDMI version: 2.0b
DVI-D ports quantity: 1

Network

Ethernet LAN: Yes
Ethernet interface type: Gigabit Ethernet
LAN controller: Realtek RTL8111H
Wake-on-LAN ready: Yes
Wi-Fi: No
Top Wi-Fi standard: Not available

Features

Motherboard chipset: AMD B450
Audio output channels: 7.1+2 channels
Product colour: Black
Component for: PC
Motherboard form factor: micro ATX
Motherboard chipset family: AMD
Windows operating systems supported: Windows 10 x64, Windows 7 x64

Expansion slots

PCI Express x1 (Gen 2.x) slots: 2
PCI Express x16 (Gen 3.x) slots: 1
PCI slots: 4
Number of M.2 (M) slots: 1

BIOS

BIOS type: UEFI AMI
BIOS memory size: 256 Mbit
Clear CMOS jumper: Yes

Logistics data

Harmonized System (HS) code: 84733020

Weight & dimensions

Width: 244 mm
Depth: 240 mm
Height: 259 mm

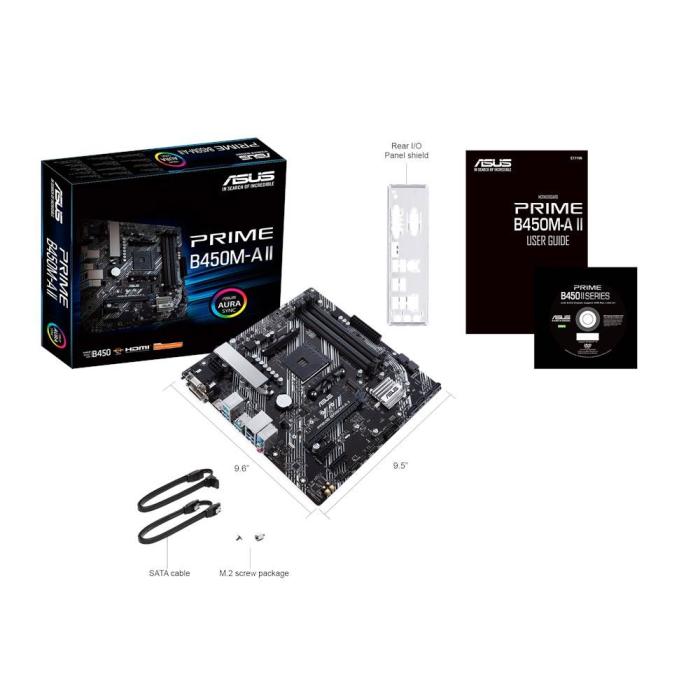

Packaging content

Cables included: SATA
Drivers included: Yes

Other features

Weight: 849 g
