Description
The Asrock Z790 Steel Legend WiFi motherboard, with LGA 1700 socket and ATX form factor, is designed for Intel Core 12th, 13th and 14th generation processors. Its DDR5 memory supports up to 128 GB in dual-channel configuration with four DIMM slots, without ECC support and with unbuffered memory. For storage, it features eight SATA III connectors, support for M.2 drives and RAID 0, 1, 5 and 10 compatibility for HDD and SSD. For internal connectivity, it includes two USB 3.2 Gen 1 connectors and one USB 3.2 Gen 2 connector, along with its robust Steel Legend design with sturdy heatsinks that integrate the WiFi networking solution.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9
- Maximum number of SMP processors: 1
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- USB 3.2 Gen 2 (3.1 Gen 2) connectors: 1
- Number of SATA III connectors: 8
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- TPM connector: Yes
- Thunderbolt headers: 1
- RGB LED pin header: Yes

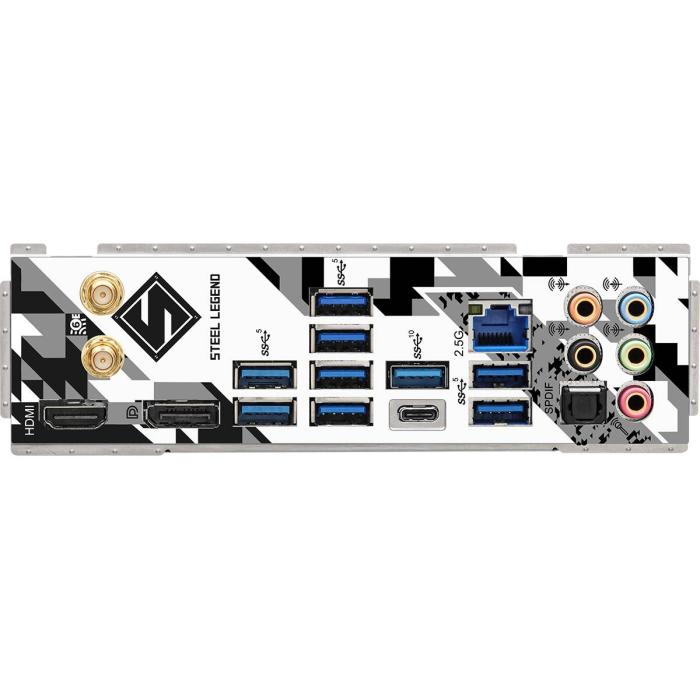

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 8
- USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity: 1
- USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Headphone outputs: 1
- Microphone in: Yes
- S/PDIF out port: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- Wi-Fi: Yes
- Top Wi-Fi standard: Wi-Fi 6E (802.11ax)
- Wi-Fi standards: 802.11a, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6E (802.11ax)
- Bluetooth: Yes
Features
- Motherboard chipset: Intel Z790
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Component for: PC
- Motherboard form factor: ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 10 x64, Windows 11 x64
Expansion slots
- PCI Express x16 (Gen 3.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 5.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Weight & dimensions
- Width: 305 mm
- Depth: 244 mm
