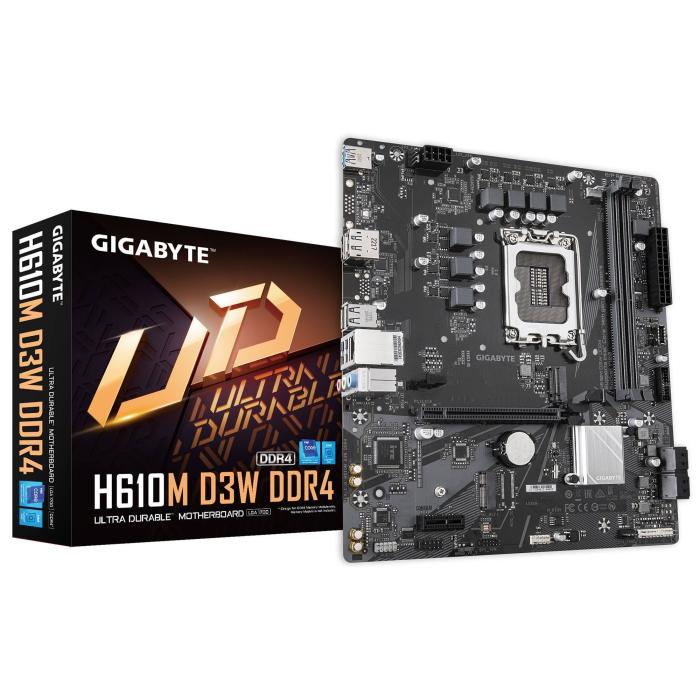

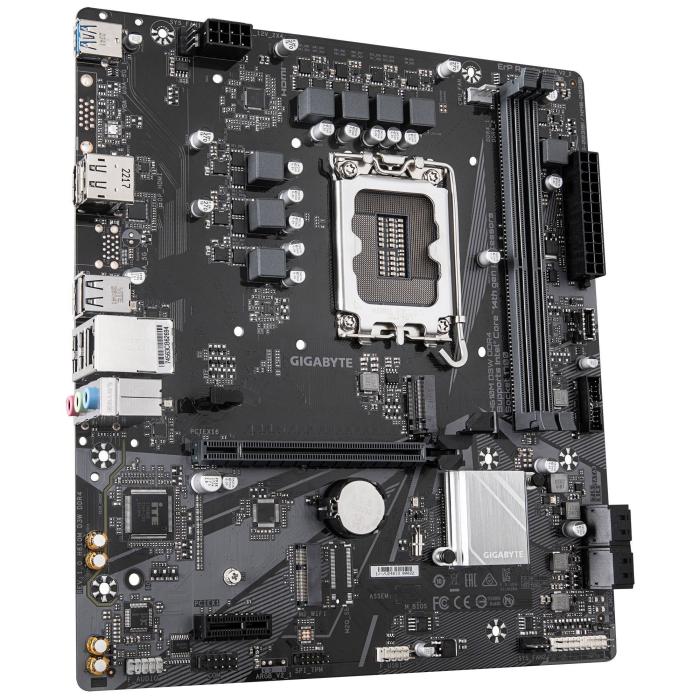

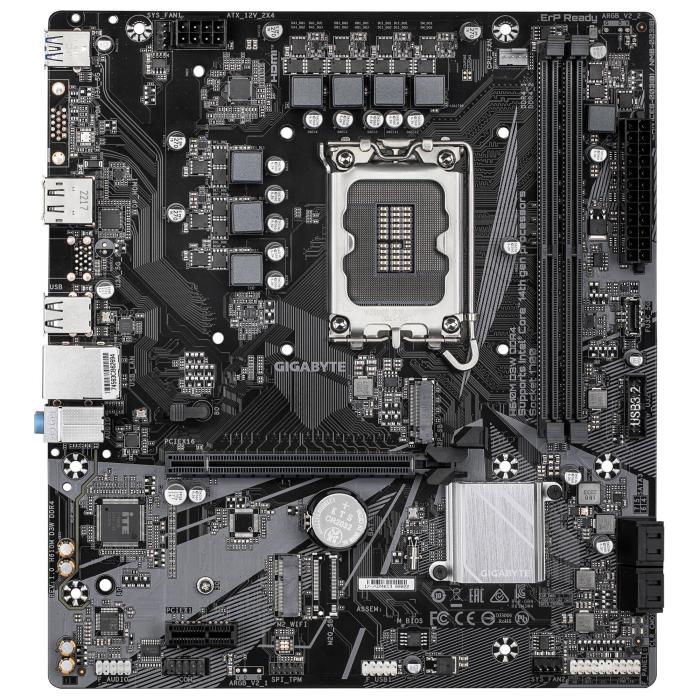

GIGABYTE H610M D3W DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 5+1+1 phases VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1

$70.46
$70.46 without VAT

More info

Brand: GIGABYTE
SKU: 109169 PRC: 578570 EAN: 4719331865245

Description

GIGABYTE H610M D3W DDR4 Motherboard - Supports 14th Gen. Intel Core CPUs, 5+1+1 phases VRM, up to 3200MHz DDR4, 1xPCIe 3.0 M.2, 1GbE LAN, USB 3.2 Gen 1, Intel, LGA 1700, Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel..., LGA 1700, DDR4-SDRAM, 64 GB

Specifications

Processor

  • Processor manufacturer: Intel
  • Processor socket: LGA 1700
  • Compatible processor series: Intel® Celeron®, Intel Core i3 12th Gen, Intel Core i3 13th Gen, Intel Core i3 14th Gen, Intel Core i5 12th Gen, Intel Core i5
  • Supported processor sockets: LGA 1700

Memory

  • Supported memory types: DDR4-SDRAM
  • Number of memory slots: 2
  • Memory slots type: DIMM
  • Memory channels: Dual-channel
  • ECC сompatibility: ECC & Non-ECC
  • Supported memory clock speeds: 2133, 2400, 2666, 2933, 3000, 3200 MHz
  • Supported memory clock speed (max): 3200 MHz
  • Maximum internal memory: 64 GB
  • Unbuffered memory: Yes
  • Maximum internal memory per slot: 32 GB

Storage controllers

  • Supported storage drive types: HDD & SSD
  • Supported storage drive interfaces: M.2, SATA III
  • Number of HDDs supported: 4
  • Number of storage drives supported: 5

Graphics

  • Parallel processing technology support: Not supported
  • DirectX version: 12.0

Internal I/O

  • USB 2.0 connectors: 1
  • USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
  • Number of SATA III connectors: 4
  • Front panel audio connector: Yes
  • Front panel connector: Yes
  • ATX Power connector (24-pin): Yes
  • CPU fan connector: Yes
  • Number of CPU fan connectors: 1
  • Number of chassis fan connectors: 2
  • EPS power connector (8-pin): Yes
  • Number of EPS power connectors (8-pin): 1
  • TPM connector: Yes
  • Serial port headers: 1

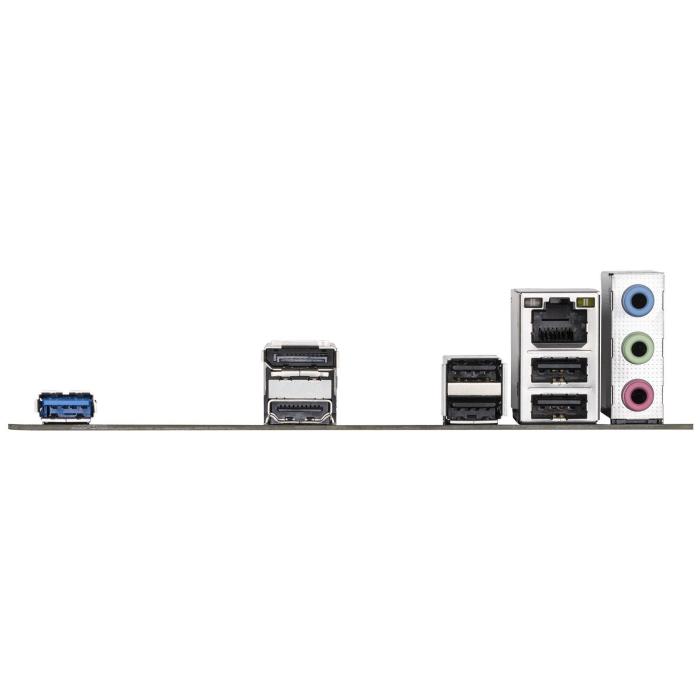

Rear panel I/O ports

  • USB 2.0 ports quantity: 4
  • USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 1
  • Ethernet LAN (RJ-45) ports: 1
  • HDMI ports quantity: 1
  • HDMI version: 2.1
  • DisplayPorts quantity: 1
  • DisplayPort version: 1.2
  • Line-in: Yes
  • Microphone in: Yes

Network

  • Ethernet LAN: Yes
  • Ethernet interface type: Gigabit Ethernet
  • LAN controller: Realtek RTL8111H
  • Wi-Fi: No

Features

  • Motherboard chipset: Intel H610
  • Audio chip: Realtek ALC897
  • Audio output channels: 7.1 channels
  • Product colour: Grey
  • PC health monitoring: Fan, Temperature, Voltage, Water cooling
  • Component for: PC
  • Motherboard form factor: micro ATX
  • Motherboard chipset family: Intel
  • Power source type: ATX
  • Windows operating systems supported: Windows 10, Windows 11

Expansion slots

  • PCI Express x1 (Gen 3.x) slots: 1
  • PCI Express x16 (Gen 4.x) slots: 1
  • Number of M.2 (M) slots: 1
  • 1st M.2 largest key size: 2280
  • 1st M.2 highest PCI Express generation: 3.0

BIOS

  • BIOS type: UEFI AMI
  • BIOS memory size: 128 Mbit
  • ACPI version: 5.0
  • Clear CMOS jumper: Yes
  • Desktop Management Interface (DMI) version: 2.7
  • System management BIOS (SMBIOS) version: 2.7

Logistics data

  • Country of origin: China
  • Products per shipping (inner) case: 1 pc(s)

Battery

  • Battery weight: 3 g
  • Lithium weight per battery: 0.07 g
  • Number of battery cells: 1
  • Battery technology: Lithium-Manganese Dioxide (LiMnO2)
  • Battery type: CR2032

Packaging data

  • Package width: 265 mm
  • Package depth: 265 mm
  • Package height: 54 mm
  • Package weight: 800 g

Weight & dimensions

  • Width: 244 mm
  • Depth: 220 mm
  • Height: 35 mm

Packaging content

  • Batteries included: Yes
  • Screws included: Yes
  • Bundled software: Norton® Internet Security (OEM version) LAN bandwidth management software

Other features

  • Weight: 770 g

Technical details

  • Warranty period: 3 year(s)
