Description

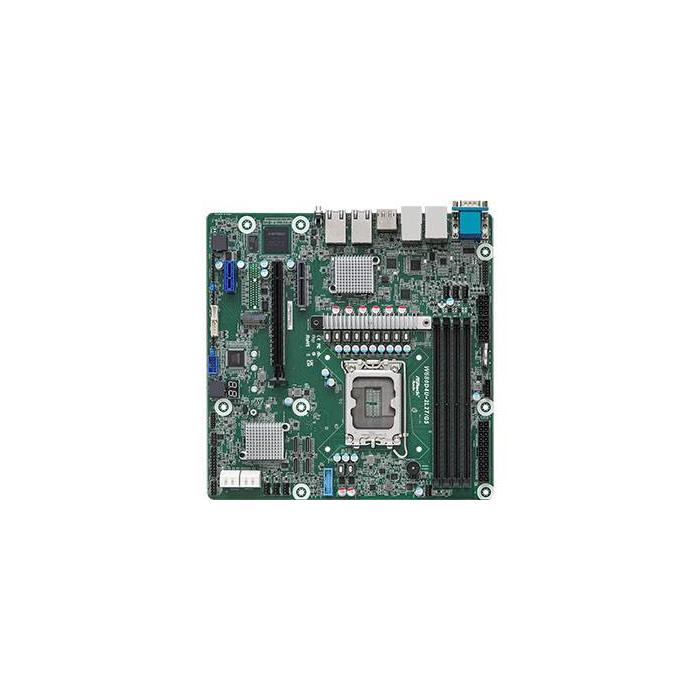

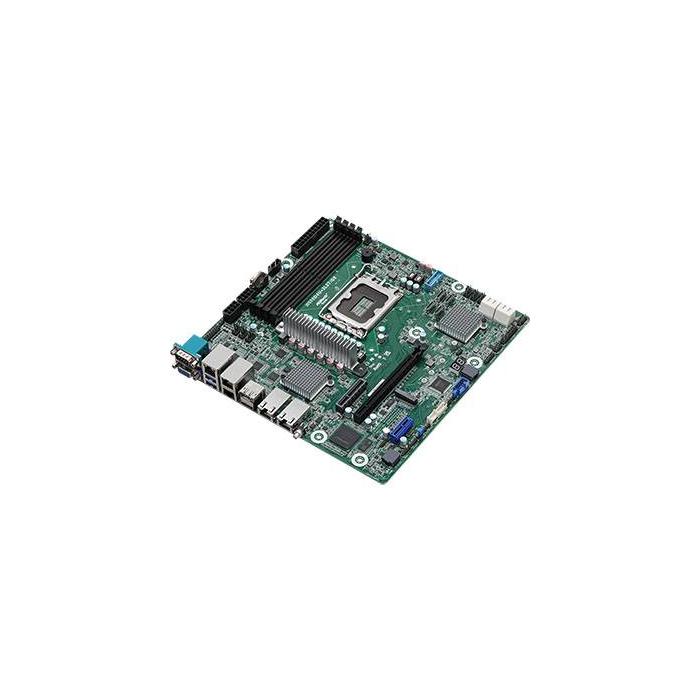

The Asrock W680D4U-2L2T/G5 motherboard, in micro ATX format for Intel's LGA 1700 socket, integrates four DIMM slots that support up to 32 GB of DDR5-SDRAM memory with support for ECC and non-ECC modules at a voltage of 1.1 V. It features two internal USB 2.0 connectors and another two USB 3.2 Gen 1, plus a TPM connector, header for RGB LED strips, 24-pin ATX connector and a 12 V power connector for the processor. It manages storage via SATA interfaces and offers compatibility with RAID configurations at levels 0, 1, 5 and 10, and includes a CPU fan connector and support for cooling management.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1700
- Compatible processor series: Intel Core i9 13th Gen, Intel Core i9 12th Gen, Intel Core i7 13th Gen, Intel Core i7 12th Gen, Intel Core i5 13th Gen, Intel Co
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 4
- Memory slots type: DIMM
- Memory voltage: 1.1 V
- ECC сompatibility: ECC & Non-ECC
- Maximum internal memory: 32 GB
Storage controllers
- Supported storage drive interfaces: SATA
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- TPM connector: Yes
- 12V power connector: Yes
- RGB LED pin header: Yes

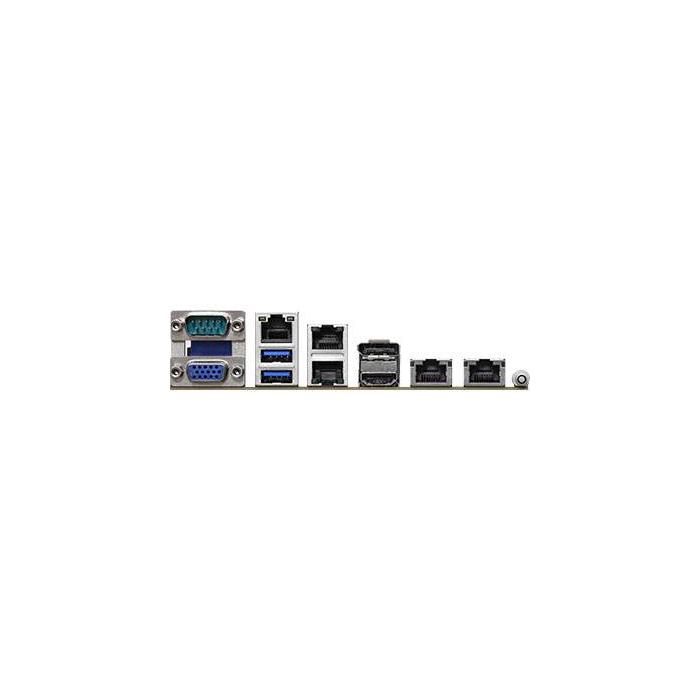

Rear panel I/O ports
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 2
- Ethernet LAN (RJ-45) ports: 4
- IPMI LAN (RJ-45) port: Yes
- VGA (D-Sub) ports quantity: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- Serial ports quantity: 1
Network
- Ethernet LAN: Yes
- Ethernet interface type: 10 Gigabit Ethernet, Gigabit Ethernet
- Wi-Fi: No
Features
- Motherboard chipset: Intel W680
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
BIOS
- BIOS type: AMI
- BIOS memory size: 256 Mbit
- ACPI version: 6.4
- System management BIOS (SMBIOS) version: 2.8
Operational conditions
- Storage temperature (T-T): -40 - 70 °C
- Operating temperature (T-T): 10 - 35 °C
- Storage relative humidity (H-H): 20 - 90%
Weight & dimensions
- Width: 243.8 mm
- Depth: 243.8 mm
