Description

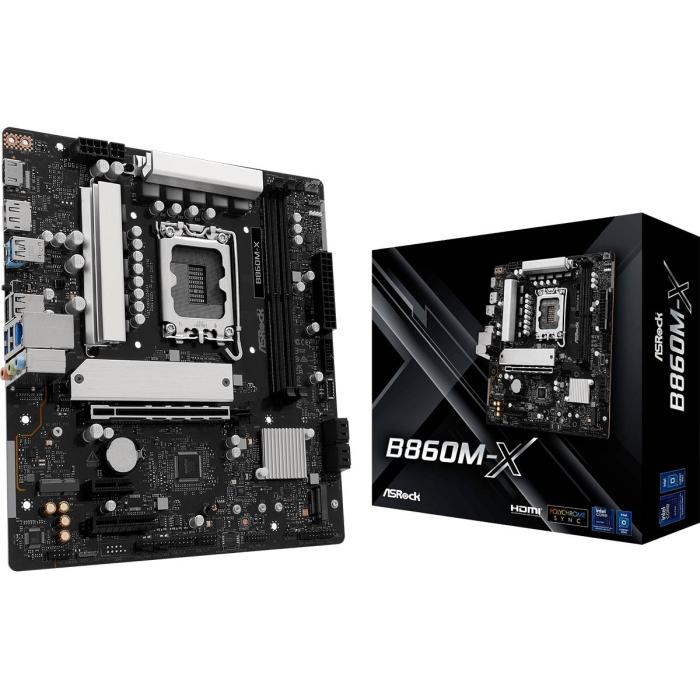

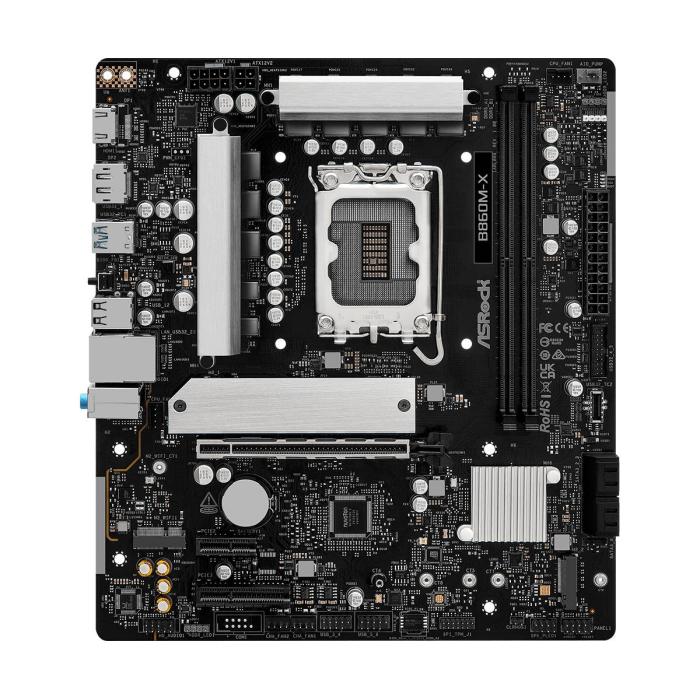

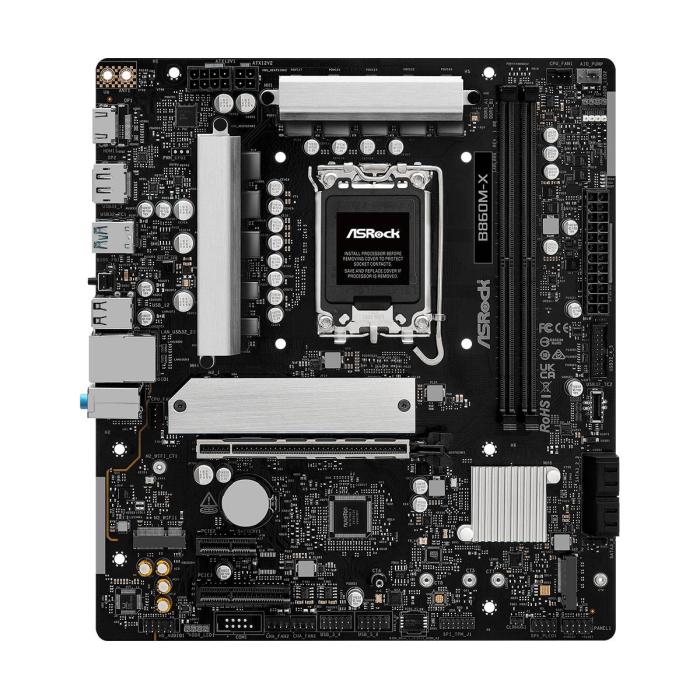

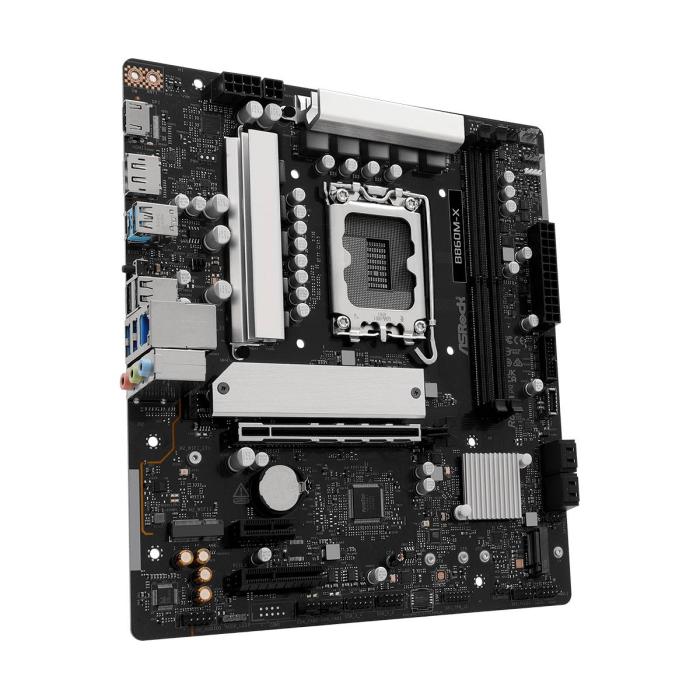

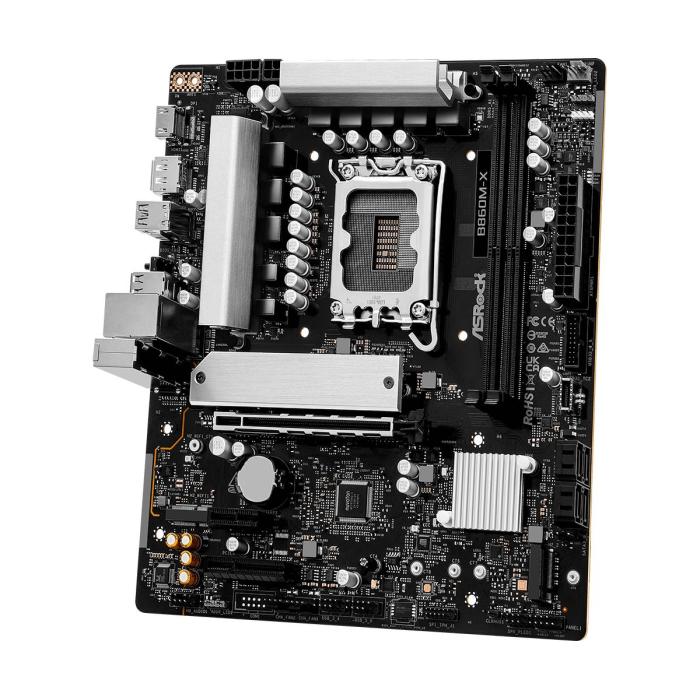

ASROCK B860M-X micro ATX motherboard with LGA 1851 (Socket V1) socket, designed for Intel Core Ultra (Series 2) processors. Supports up to 128 GB of DDR5-SDRAM memory across two DIMM slots, with maximum speeds of 9066 MHz and dual-channel support. Includes storage options for HDD and SSD drives via M.2 and SATA III interfaces, with RAID compatibility (levels 0, 1, 5 and 10) and an 8-pin EPS power connection for the processor. Features integrated graphics and a front-panel audio connector, making it a balanced choice for compact builds without the need for a dedicated graphics card.
Specifications
Processor
- Processor manufacturer: Intel
- Processor socket: LGA 1851 (Socket V1)
- Compatible processor series: Intel Core Ultra (Series 2)
Memory
- Supported memory types: DDR5-SDRAM
- Number of memory slots: 2
- Memory slots type: DIMM
- Memory channels: Dual-channel
- ECC сompatibility: Non-ECC
- Supported memory clock speed (max): 9066 MHz
- Maximum internal memory: 128 GB
- Unbuffered memory: Yes
Storage controllers
- Supported storage drive types: HDD & SSD
- Supported storage drive interfaces: M.2, SATA III
- RAID support: Yes
- RAID levels: 0, 1, 5, 10
Graphics
- On-board graphics card: Yes
Internal I/O
- USB 2.0 connectors: 2
- USB 3.2 Gen 1 (3.1 Gen 1) connectors: 2
- Number of SATA III connectors: 4
- Front panel audio connector: Yes
- ATX Power connector (24-pin): Yes
- CPU fan connector: Yes
- Number of CPU fan connectors: 2
- Number of chassis fan connectors: 2
- Peripheral (Molex) power connectors (4-pin): 1
- EPS power connector (8-pin): Yes
- Number of EPS power connectors (8-pin): 1
- TPM connector: Yes
- RGB LED pin header: Yes

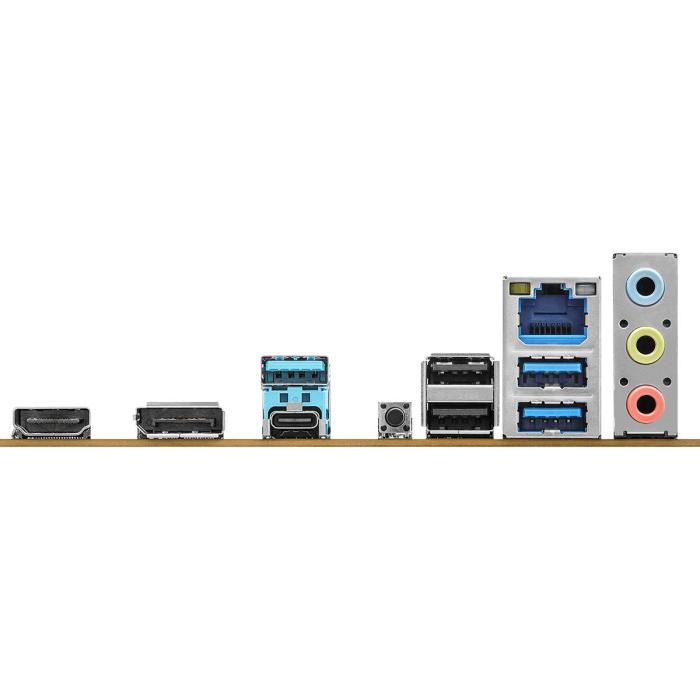

Rear panel I/O ports
- USB 2.0 ports quantity: 2
- USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity: 3
- USB 3.2 Gen 2x2 Type-C ports quantity: 1
- Ethernet LAN (RJ-45) ports: 1
- HDMI ports quantity: 1
- DisplayPorts quantity: 1
- DisplayPort version: 1.4
- Line-in: Yes
- Microphone in: Yes
Network
- Ethernet LAN: Yes
- Ethernet interface type: 2.5 Gigabit Ethernet
- LAN controller: Dragon RTL8125BG
- Wi-Fi: No
Features
- Motherboard chipset: Intel B860
- Audio chip: Realtek ALC897
- Audio output channels: 7.1 channels
- Product colour: Black
- Component for: PC
- Motherboard form factor: micro ATX
- Motherboard chipset family: Intel
- Windows operating systems supported: Windows 11 x64
Expansion slots
- PCI Express x1 (Gen 4.x) slots: 1
- PCI Express x4 (Gen 4.x) slots: 1
- PCI Express x16 (Gen 4.x) slots: 1
- Number of M.2 (M) slots: 1
BIOS
- BIOS type: UEFI AMI
- BIOS memory size: 256 Mbit
Weight & dimensions
- Width: 244 mm
- Depth: 218 mm
Packaging content
- Cables included: SATA
