Description

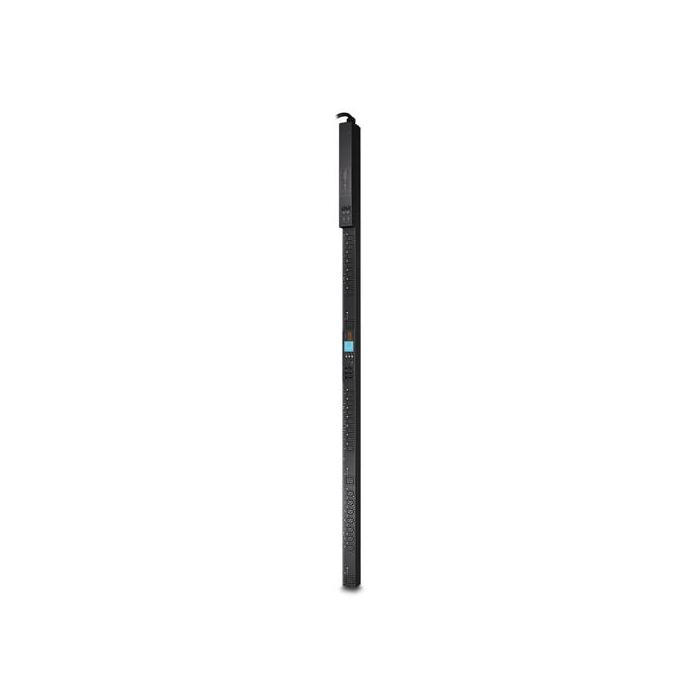

The APC Switched Rack PDU power distribution unit, in black, organises the power supply of a rack with its 24 AC outlets and one IEC309 connector. It is designed for vertical mounting with 0U rack capacity, so it makes use of the side space of the cabinet without taking up front units. It is a single-phase model that works with a nominal input and output voltage of 230 V, supports a maximum current of 32 A and reaches a load capacity of 7680 VA with a maximum power of 7680 W. The outlets combine C13 and C19 couplers, so you can power both standard equipment and higher-consumption devices. Its metered-by-outlet and switched regulated management allows you to control the outlet with on, off, restart and lock actions, as well as monitor current, power and voltage. It includes a 3 m cable to reach the socket comfortably, weighs 8.23 kg and measures 56 x 1829 x 51 mm (width x height x depth).
Specifications
Design
- PDU types: Metered, Metered-by-outlet, Switched
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black
Ports & interfaces
- AC outlets quantity: 24 AC outlet(s)
- Power plug: IEC309
- AC outlet types: C13 coupler, C19 coupler
Features
- Cable length: 3 m
Management features
- Monitoring: Current, Power, Voltage
- Outlet control: Lock-out, Recycle, Turn off, Turn on
Power
- Nominal input voltage: 230 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Nominal output voltage: 230 V
- Load capacity: 7680 VA
- Maximum input current per phase: 32 A
- Maximum total current draw per phase: 32 A
- Power protection features: Overload
- Maximum power: 7680 W
Certificates
- Compliance certificates: RoHS
- Certification: EN 55022 Class A, EN 55024, EN 61000-3-2, EN 61000-3-3, VDE
Operational conditions
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Weight & dimensions
- Width: 56 mm
- Depth: 51 mm
- Height: 1829 mm
- Weight: 8.23 kg
Packaging data
- Package weight: 10.5 kg
- Package width: 162 mm
- Package depth: 118 mm
- Package height: 2038 mm
Logistics data
- Total carbon footprint (kg of CO2e): 8595.81
