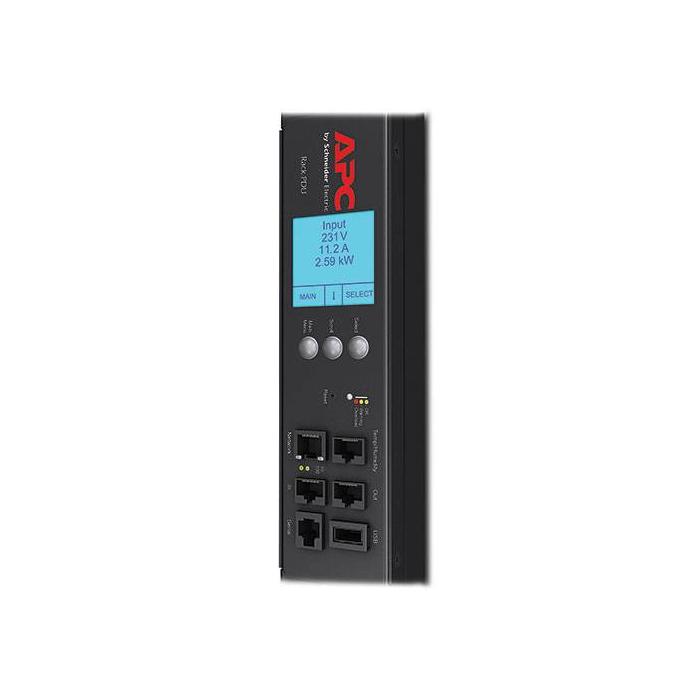

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 16A, 230V, (21) C13 & (3) C19

1,792.00 €
1,480.99 € without VAT

More info

Brand: APC
SKU: 79377 PRC: 164003 EAN: 731304299516 PN: AP8659EU3

Description

APC Rack PDU 2G, Metered by Outlet with Switching, ZeroU, 16A, 230V, (21) C13 u0026 (3) C19, Metered, Metered-by-outlet, Switched, 0U, Vertical, Black, 24 AC outlet(s), C13 coupler, C19 coupler

Specifications

Design

  • PDU types: Metered, Metered-by-outlet, Switched
  • Rack capacity: 0U
  • Mounting: Vertical
  • Product colour: Black

Ports & interfaces

  • AC outlets quantity: 24 AC outlet(s)
  • Power plug: IEC309
  • AC outlet types: C13 coupler, C19 coupler

Features

  • Cable length: 3 m

Management features

  • Monitoring: Current, Power, Voltage
  • Outlet control: Lock-out, Recycle, Turn off, Turn on

Power

  • Nominal input voltage: 200-230 V
  • AC input frequency: 50 - 60 Hz
  • Nominal output voltage: 230 V
  • Load capacity: 3680 VA
  • Maximum input current per phase: 16 A
  • Maximum total current draw per phase: 16 A
  • Maximum power: 3680 W

Certificates

  • Compliance certificates: RoHS
  • Certification: EN 55022 A, EN 55024, EN 61000-3-2, EN 61000-3-3, FCC 15 A, ICES-003, PSE, UL, VCCI Class A, VDE

Operational conditions

  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 15000 m

Weight & dimensions

  • Width: 56 mm
  • Depth: 51 mm
  • Height: 1829 mm
  • Weight: 6.77 kg

Packaging data

  • Package weight: 9.05 kg
  • Package width: 162 mm
  • Package depth: 117 mm
  • Package height: 2038 mm

Logistics data

  • Total carbon footprint (kg of CO2e): 7441.92
