Description

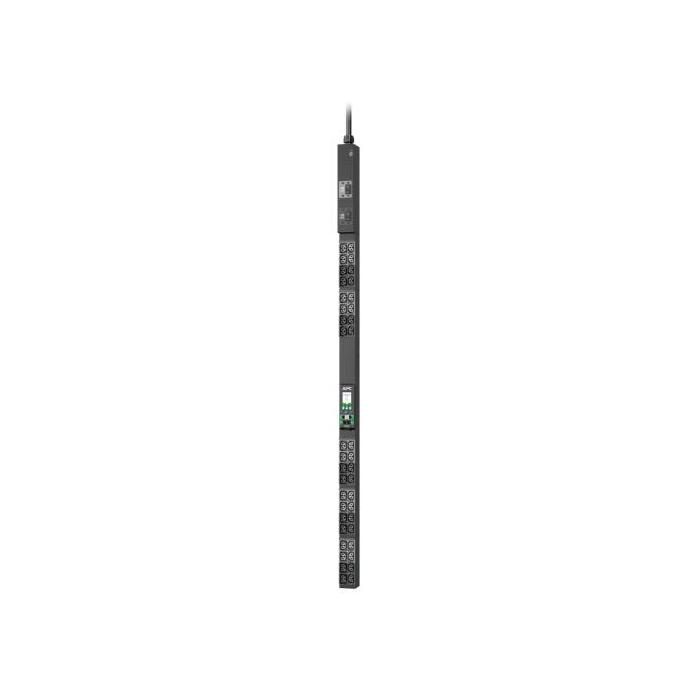

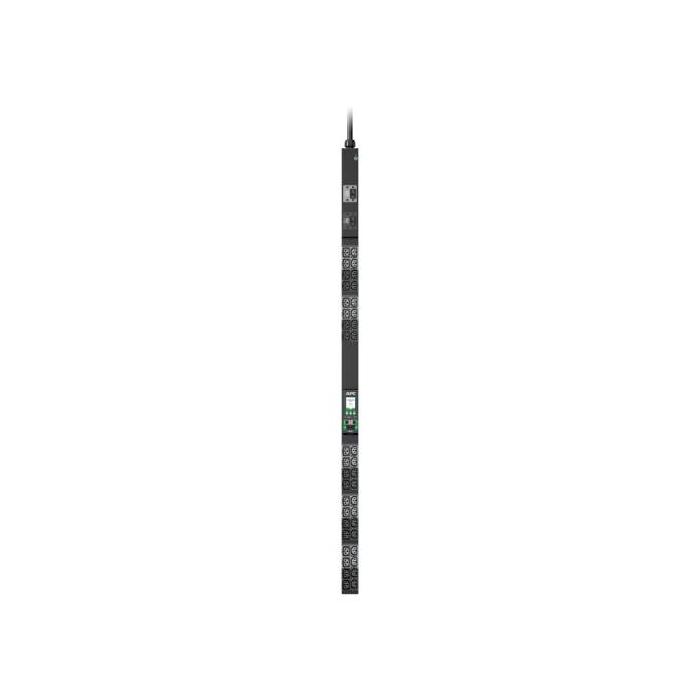

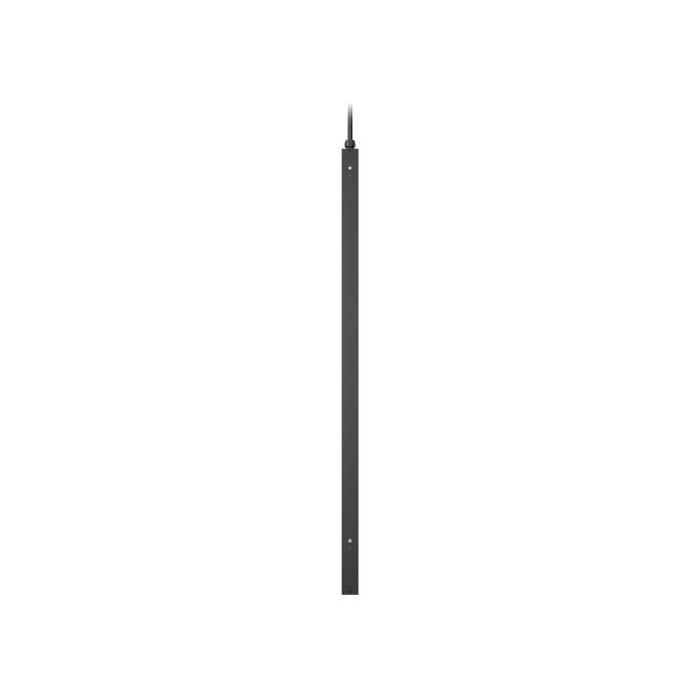

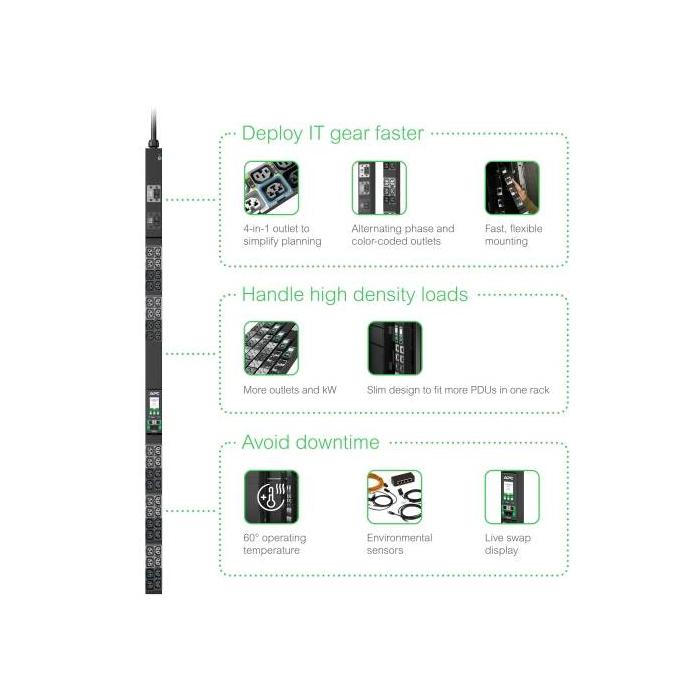

The APC NetShelter Rack PDU Advanced power distribution unit, in black, organises the power supply of a rack with 48 AC outlets distributed among C13, C15, C19 and C21 couplers. Its three-phase, vertical design with 0U capacity allows it to be installed on the side of the cabinet without taking up useful rack or frame mounting space. It features an LCD display for checking power status, an integrated on/off switch and daisy chaining to link several units. Regulated, Metered-by-outlet and switched management relies on two RJ-45 Ethernet LAN ports and one USB port, with password protection and colour-coded outlet strips. The input connector is IEC 60309 and the cable measures 1.8 m. Its dimensions are 56 x 1490 x 75 mm (width x height x depth) and its weight is 7.7 kg. It has CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA and UL 62368-1 approval.
Specifications
Design
- On/off switch: Yes
- Regulatory Approvals: CE, CSA C22.2 No 62368-1, EN 62368-1, FCC part 15 subpart B, UKCA, UL 62368-1
- PDU types: Metered, Metered-by-outlet, Switched
- Type: Three-phase
- Form factor: Rackmount
- Rack capacity: 0U
- Mounting: Vertical
- Product colour: Black

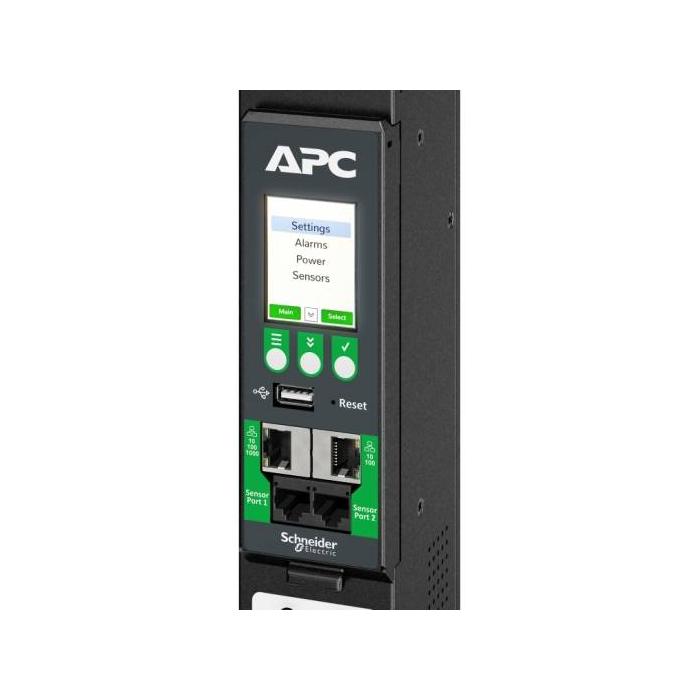

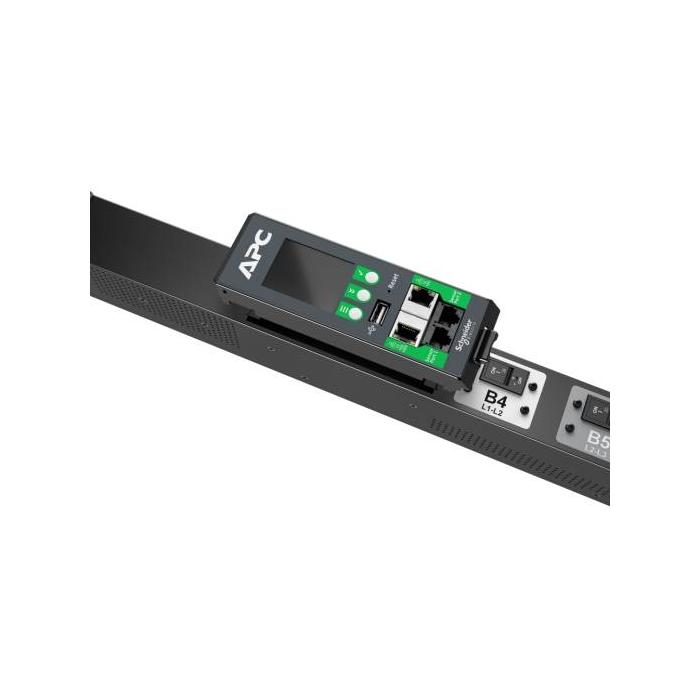

- Display: LCD
Ports & interfaces
- AC outlets quantity: 48 AC outlet(s)

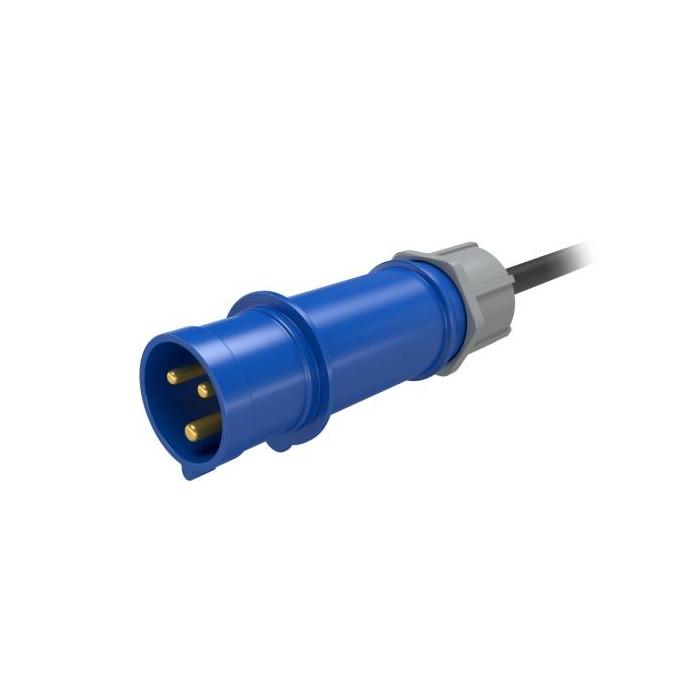

- Power plug: IEC 60309

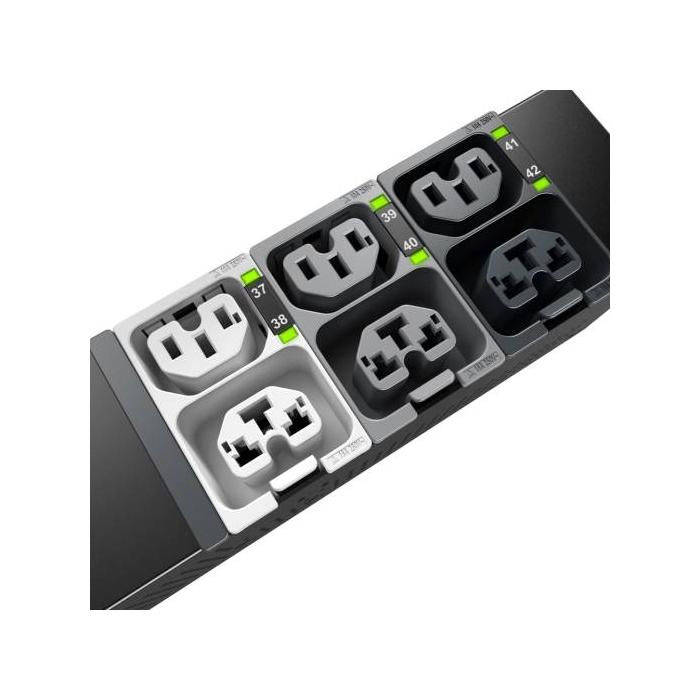

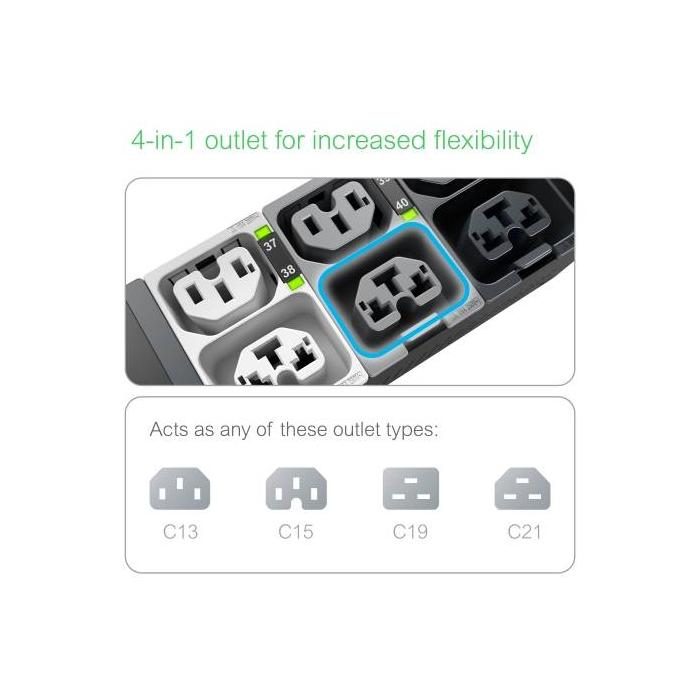

- AC outlet types: C13 coupler, C15 coupler, C19 coupler, C21 coupler
- Ethernet LAN (RJ-45) ports: 2
- USB ports quantity: 1
Features
- Daisy chain: Yes
- Reset button: Yes
- LED indicators: Activity, Network, Power

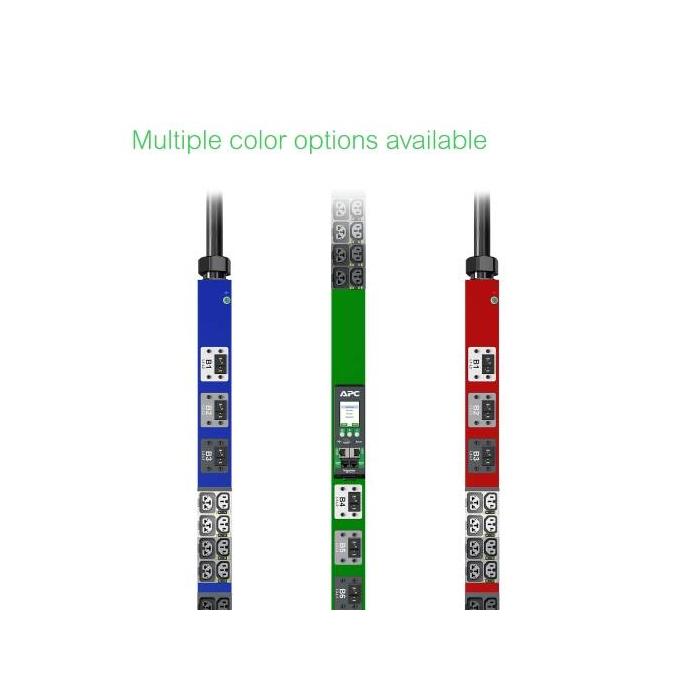

- Colour-coded outlets: Yes
- Cable length: 1.8 m
- Security algorithms: 128-bit AES, 192-bit AES, 256-bit AES, DES, MD5, SNMP, SNMPv2, SNMPv3
- Password protection: Yes
- Compatible products: Compatible with most NetShelter SX enclosures and third-party racks
Management features
- Monitoring: Current, Humidity, Power, Temperature, Voltage
- Outlet control: Lock-out, Recycle, Turn off, Turn on
- Firmware upgradeable: Yes
- Firmware upgradeable via: Network, USB
Power
- Nominal input voltage: 400 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 16 A
- Nominal output voltage: 230 V
- Output voltage: 230 V
- Load capacity: 11500 VA
- Number of phases: 3
- Maximum total current draw per phase: 16 A
- Power protection features: Overload
- Maximum power: 11500 W
- Surge protection: Yes
Certificates
- Compliance certificates: RoHS
Operational conditions
- Operating temperature (T-T): 23 - 140 °F
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3048 m
- Non-operating altitude: 0 - 15240 m
Weight & dimensions
- Width: 56 mm
- Depth: 75 mm
- Height: 1490 mm
- Weight: 7.7 kg
Packaging data
- Package weight: 9.7 kg
- Package width: 208 mm
- Package depth: 116 mm
- Package height: 1720 mm
Logistics data
- Total carbon footprint (kg of CO2e): 12176.66
