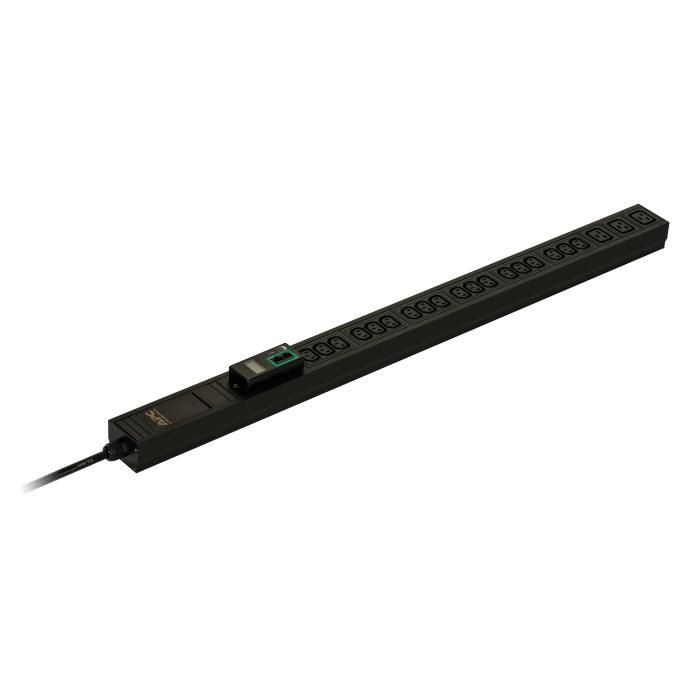

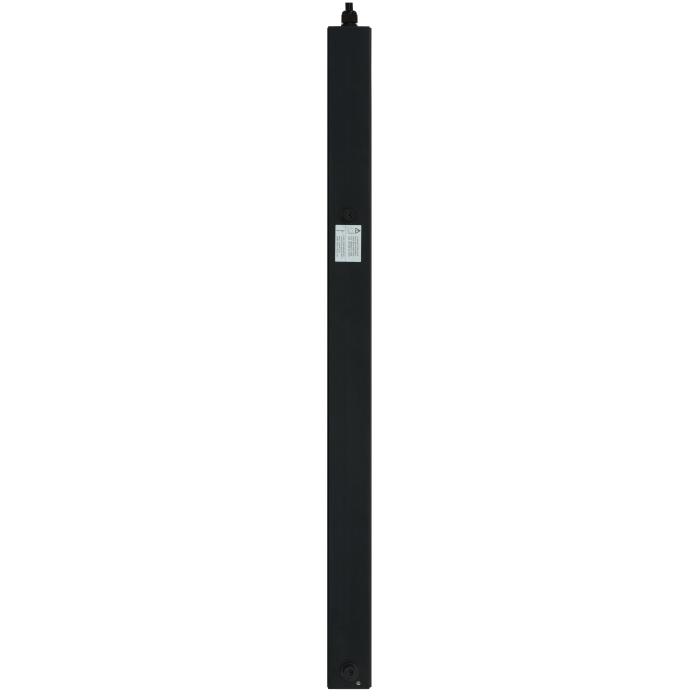

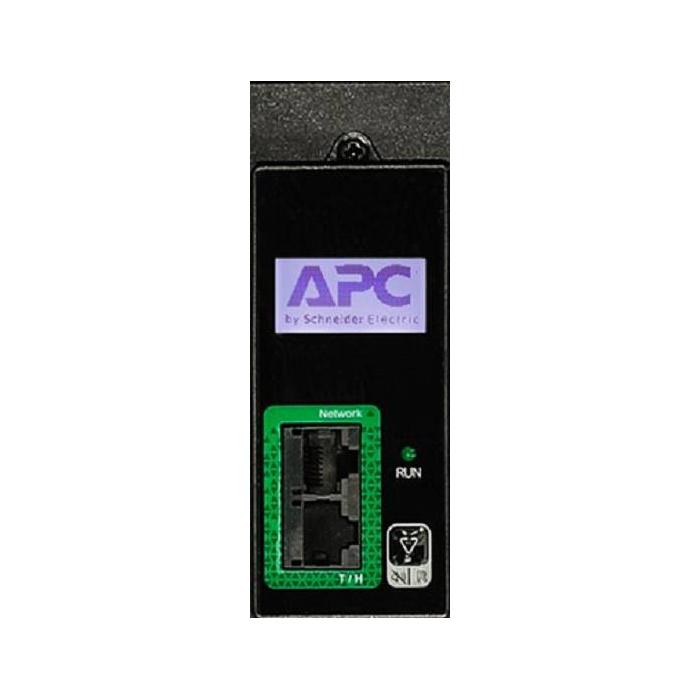

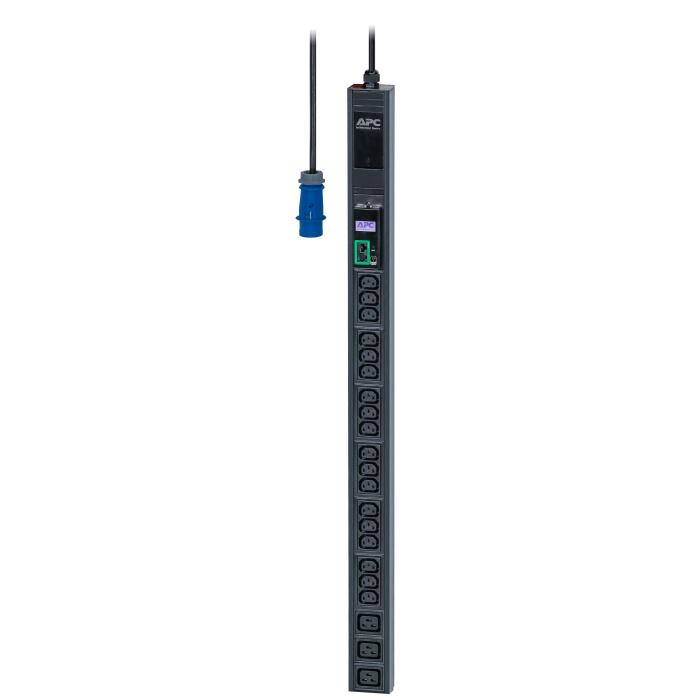

APC Easy Rack PDU, Metered, 0U, 1 Phase, 3.7kW, 230V, 16A, 18 x C13 and 3 x C19 outlets, IEC60309 2P+E inlet

$583.69
$583.69 without VAT

APC Easy Rack PDU, Metered, 0U, 1 Phase, 3.7kW, 230V, 16A, 18 x C13 and 3 x C19 outlets, IEC60309 2P+E inlet.   More info

Brand: APC
SKU: 86297 PRC: 303099 EAN: 731304405085 PN: EPDU1116M

Description

Specifications

Design

  • PDU types: Metered
  • Type: Single-phase
  • Rack capacity: 0U
  • Mounting: Vertical
  • Housing material: Aluminium
  • Product colour: Black
  • Display: LCD
  • On/off switch: No

Ports & interfaces

  • AC outlets quantity: 21 AC outlet(s)
  • Power plug: IEC 60309
  • AC outlet types: C13 coupler, C19 coupler

Features

  • Daisy chain: No
  • LED indicators: Yes
  • Cable length: 3 m

Management features

  • Monitoring: Current, Power, Voltage
  • Firmware upgradeable: Yes

Power

  • Nominal input voltage: 200/208/230 V
  • AC input frequency: 50 - 60 Hz
  • Maximum current: 16 A
  • Nominal output voltage: 230 V
  • Load capacity: 3680 VA
  • Maximum input current per phase: 16 A
  • Maximum power: 3680 W

Certificates

  • Compliance certificates: RoHS
  • Certification: CE, TUV

Operational conditions

  • Operating temperature (T-T): -5 - 45 °C
  • Storage temperature (T-T): -25 - 65 °C
  • Operating relative humidity (H-H): 5 - 95%
  • Storage relative humidity (H-H): 5 - 95%
  • Operating altitude: 0 - 3000 m
  • Non-operating altitude: 0 - 15000 m

Weight & dimensions

  • Width: 62 mm
  • Depth: 44 mm
  • Height: 902 mm
  • Weight: 2.5 kg

Packaging content

  • Manual: Yes

Packaging data

  • Package weight: 3 kg
  • Package width: 160 mm
  • Package depth: 110 mm
  • Package height: 1320 mm

Logistics data

  • Total carbon footprint (kg of CO2e): 18942.6
