Description

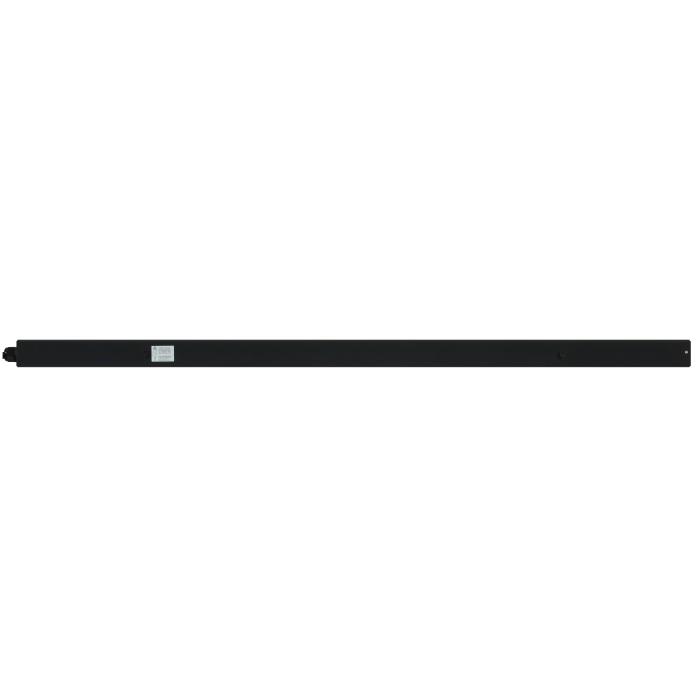

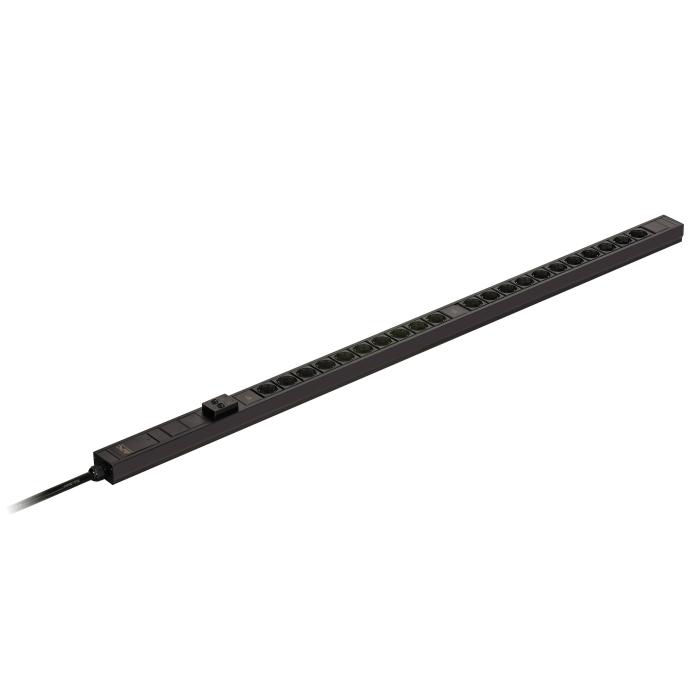

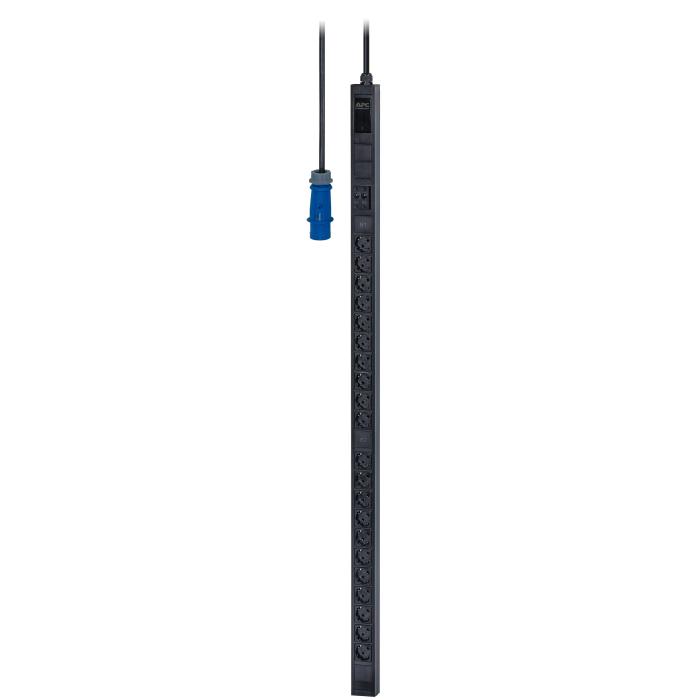

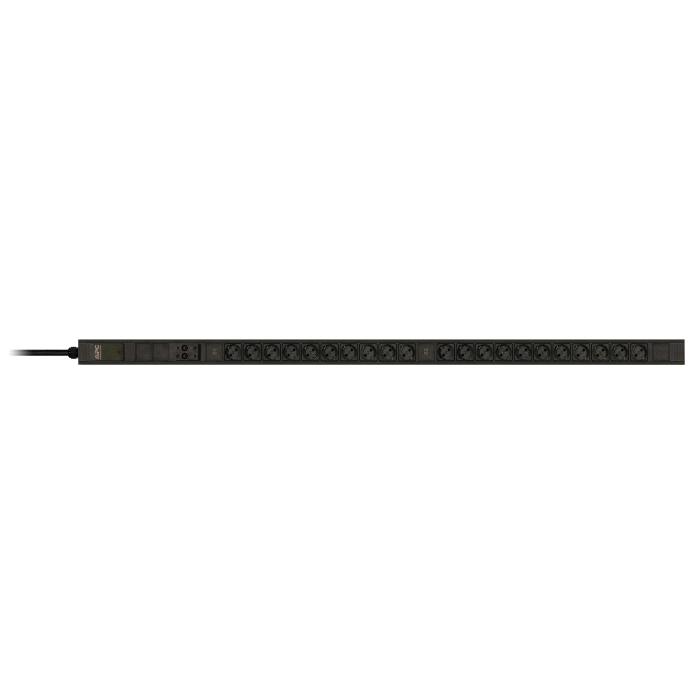

Black APC EPDU1132B-SCH power distribution unit, designed to power equipment in 0U racks with vertical mounting. Its single-phase, basic design distributes current from an IEC 60309 connector to 21 type F AC outlets. It operates with an input frequency of 50 - 60 Hz and a nominal input voltage of 200/208/230 V, delivering 230 V at the output. It supports a maximum current of 32 A, also per phase, with a load capacity of 7360 VA and a maximum power of 7360 W. The housing is made of aluminium and the assembly measures 62 x 1506 x 44 mm (width x height x depth), with a weight of 4.3 kg. It has CE and TUV certification.
Specifications
Design
- PDU types: Basic
- Type: Single-phase
- Rack capacity: 0U
- Mounting: Vertical
- Housing material: Aluminium
- Product colour: Black
- On/off switch: No
Ports & interfaces
- AC outlets quantity: 21 AC outlet(s)
- Power plug: IEC 60309
- AC outlet types: Type F
Power
- Nominal input voltage: 200/208/230 V
- AC input frequency: 50 - 60 Hz
- Maximum current: 32 A
- Nominal output voltage: 230 V
- Load capacity: 7360 VA
- Maximum input current per phase: 32 A
- Maximum power: 7360 W
Certificates
- Certification: CE, TUV
Operational conditions
- Operating temperature (T-T): -5 - 45 °C
- Storage temperature (T-T): -25 - 65 °C
- Operating relative humidity (H-H): 5 - 95%
- Storage relative humidity (H-H): 5 - 95%
- Operating altitude: 0 - 3000 m
- Non-operating altitude: 0 - 15000 m
Weight & dimensions
- Width: 62 mm
- Depth: 44 mm
- Height: 1506 mm
- Weight: 4.3 kg
Packaging content
- Manual: Yes
Packaging data
- Package weight: 5.5 kg
- Package width: 160 mm
- Package depth: 110 mm
- Package height: 1660 mm
Logistics data
- Total carbon footprint (kg of CO2e): 107.96
