Description

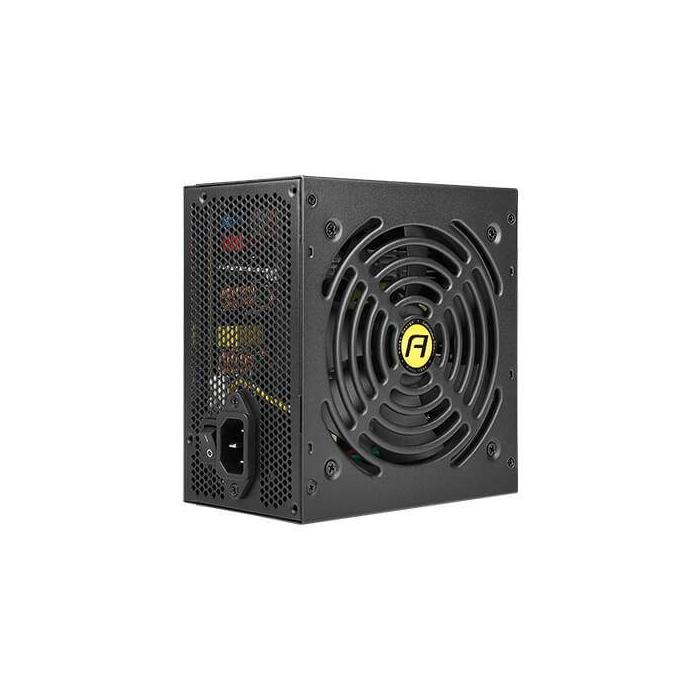

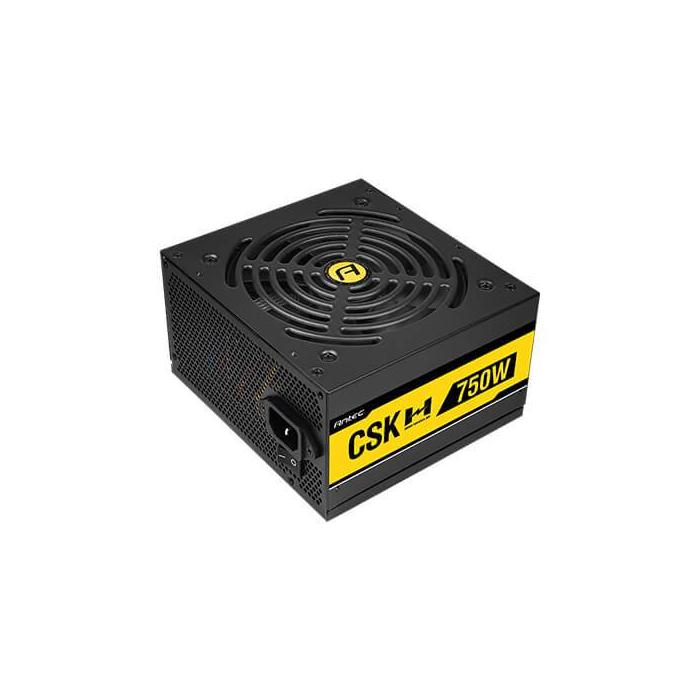

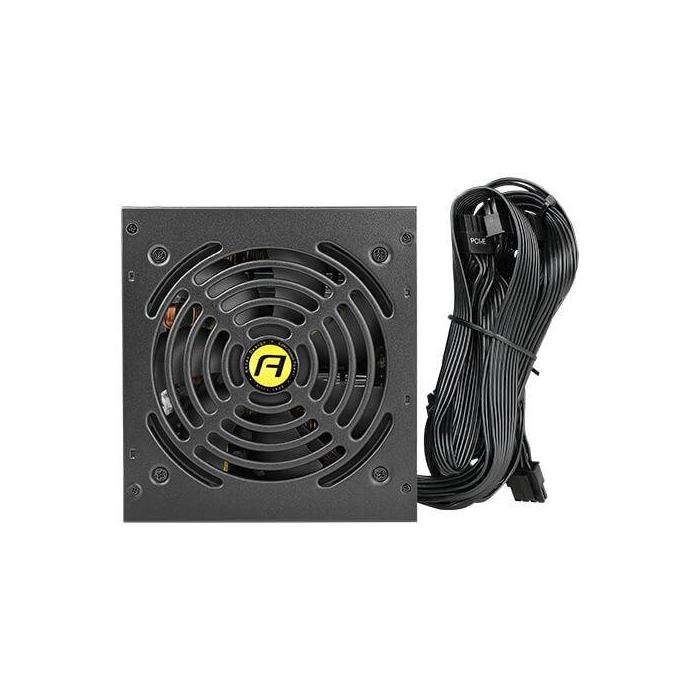

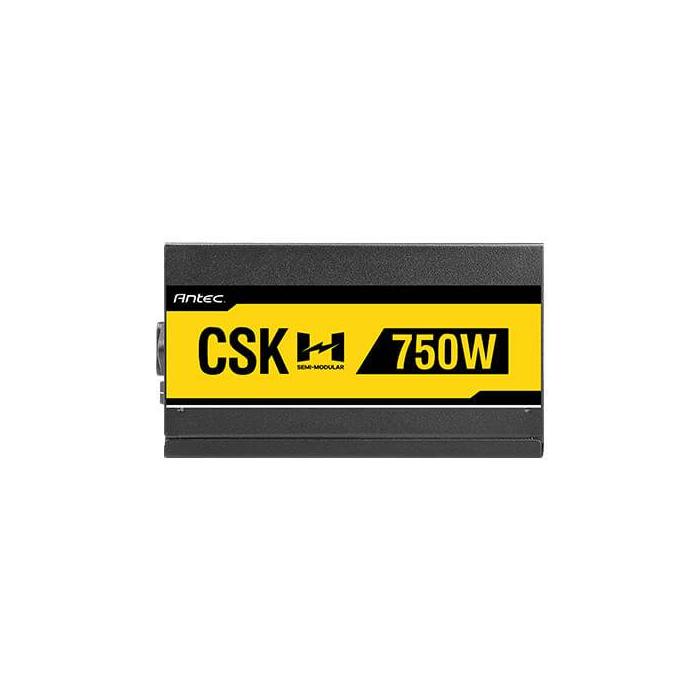

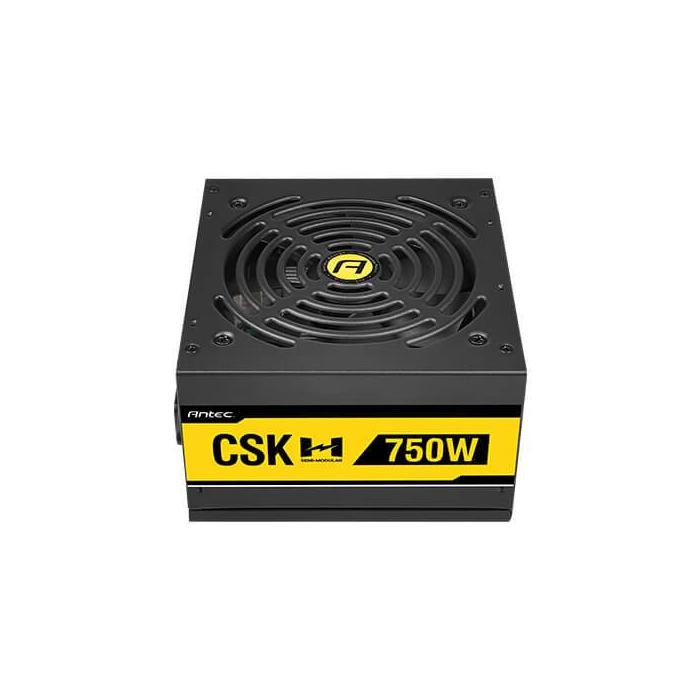

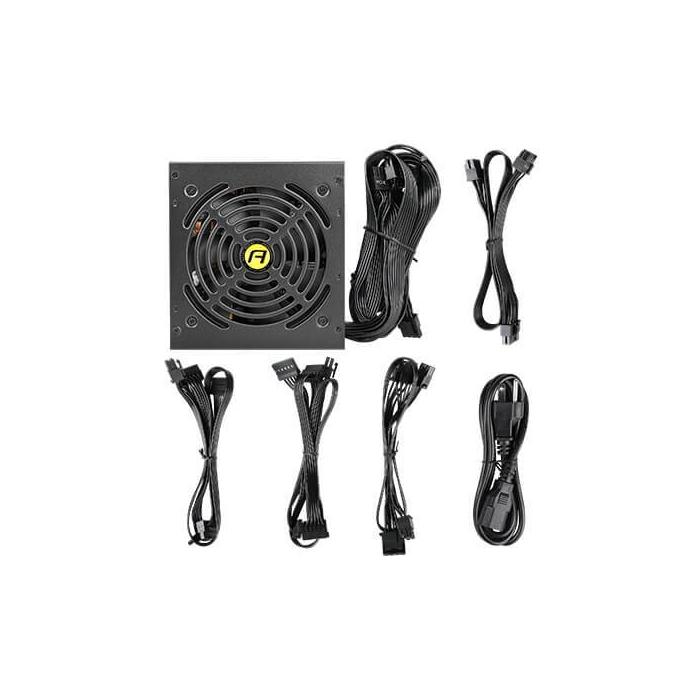

Antec Cuprum Strike CSK750H is an ATX power supply unit with 750 W in black, designed for desktop systems requiring stable and efficient power delivery. It delivers 88% efficiency with active power factor correction (active PFC) and an input voltage of 100-240 V, adapting to different mains supplies without issue. It features a 20+4 pin ATX power connector and a 4+4 pin EPS connector, covering both modern motherboards and CPUs requiring additional power. With a maximum output current of 58 A on the +12 V rail and a combined power of 696 W on that same rail, this unit supports demanding configurations, while the 3.3 V and 5 V rails offer 120 W combined each for the rest of the components.
Specifications
Power
- Total power: 750 W

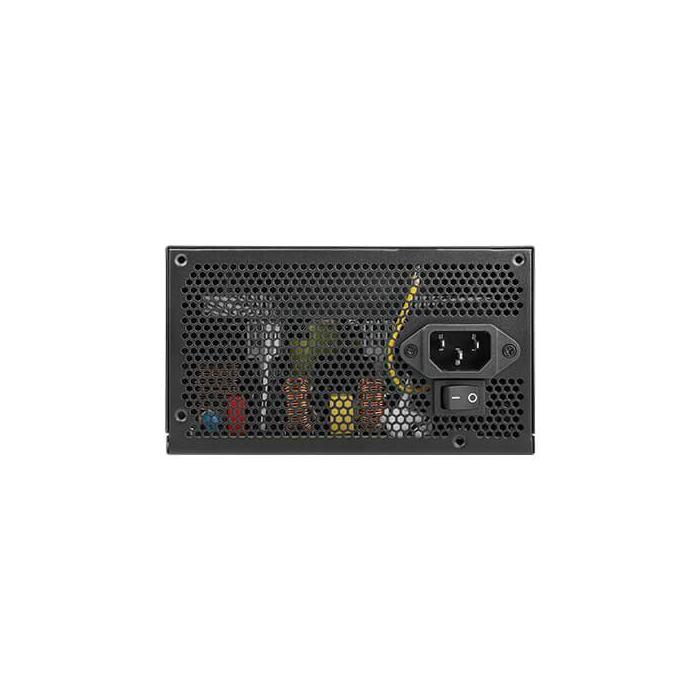

- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 10 - 5 A
- Power Factor Correction (PFC) type: Active
- Combined power (+3.3V): 120 W
- Combined power (+12V): 696 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 15 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 58 A
- Max output current (+5V): 20 A
- Max output current (-12V): 0.3 A
- Max output current (+5Vsb): 3 A
- Efficiency: 88%
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 55 cm
- Number of SATA power connectors: 8
- SATA power cable length: 500, 650, 800, 950 mm
- Peripheral (Molex) power connectors (4-pin): 3
- Peripheral (Molex) power cable length: 500, 650, 800 mm
- EPS power connector (4+4 pin): Yes
- PCI Express power connectors (6+2 pin): 4
- PCI Express power cable length: 65 cm
- CPU power cable length: 80 cm
- ATX power connector (20+4 pin): Yes
- PCI Express connector: Yes

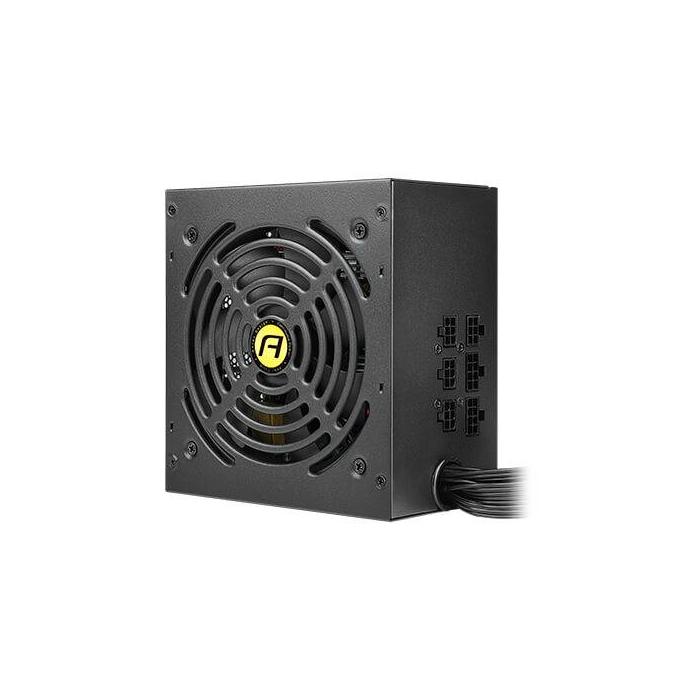

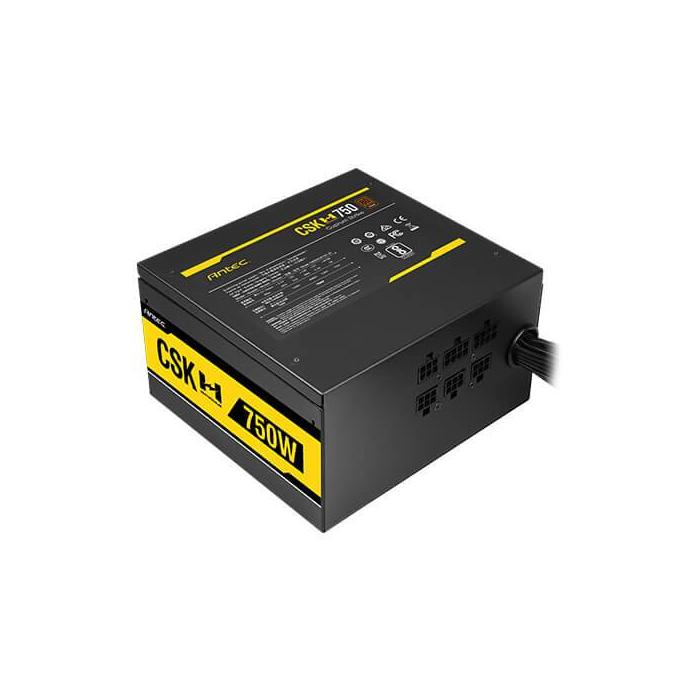

- Cabling type: Semi-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
- Power supply unit (PSU) form factor: ATX
- ATX version: 2.31
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- On/off switch: Yes
Operational conditions
- Operating temperature (T-T): 0 - 40 °C
Certificates
- Certification: cTUVus / TUV / CB / RCM / CE / CCC / FCC / KC
Weight & dimensions
- Width: 150 mm
- Depth: 140 mm
- Height: 86 mm
- Weight: 1.77 kg
Packaging data
- Package weight: 2.19 kg
Logistics data
- Harmonized System (HS) code: 84733020
