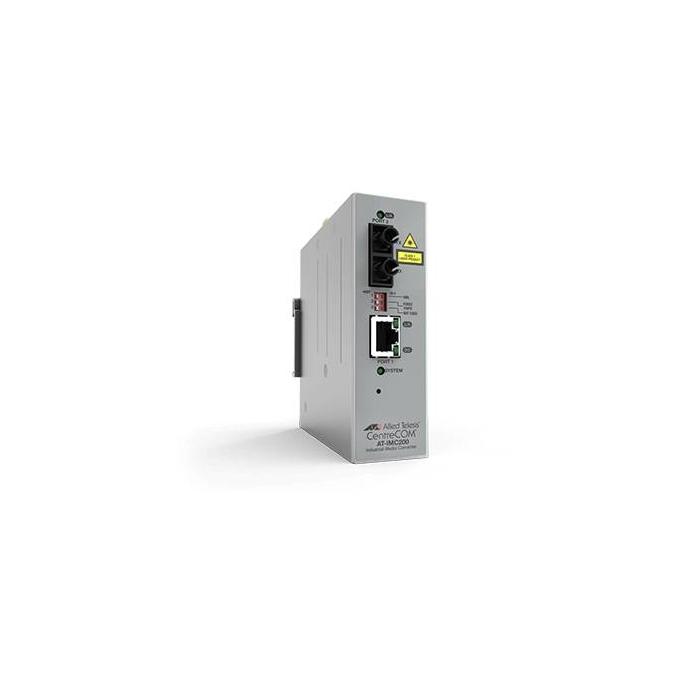

Name: Allied Telesis AT-IMC2000T/SC-980 network media converter 1000 Mbit/s 850 nm Multi-mode Grey
Brand: ALLIED TELESIS
Availability: OutOfStock

Allied Telesis AT-IMC2000T/SC-980 network media converter 1000 Mbit/s 850 nm Multi-mode Grey

Not avaliable

Allied Telesis AT-IMC2000T/SC-980 network media converter 1000 Mbit/s 850 nm Multi-mode Grey. More info

Amount

Brand: ALLIED TELESIS

SKU: 83262 PRC: 268180 EAN: 767035210544 PN: 990-005560-980

Description

Specifications

Performance

Maximum transfer distance: 550 m
Wavelength: 850 nm
Fiber mode structure: Multi-mode
Tx power (min): -9.5 dBmW
Tx power (max): -4 dBmW
Rx power (min): -17 dBmW
Rx power (max): -3 dBmW

Features

Internal: No
LED indicators: Yes
Product colour: Grey
International Protection (IP) code: IP30

Ports & interfaces

Connectivity technology: Wired
Ethernet LAN (RJ-45) ports: 1
Fiber ports quantity: 1
Fiber optic connector: SC

Weight & dimensions

Width: 111 mm
Depth: 96 mm
Height: 35 mm
Weight: 748 g

Operational conditions

Operating temperature (T-T): -40 - 75 °C
Storage temperature (T-T): -40 - 85 °C
Operating relative humidity (H-H): 5 - 95%
Operating altitude: 0 - 3048 m

Certificates

Compliance certificates: RoHS
Safety: UL 62368-1, EN 62368-1, UL 60950-1 (UL), CAN/CSA C22.2 No. 60950-1 (cUL), EN 60950-1 (TUV)
Certification: TAA FCC A, EN55024, EN55032, EN55035, VCCI A
