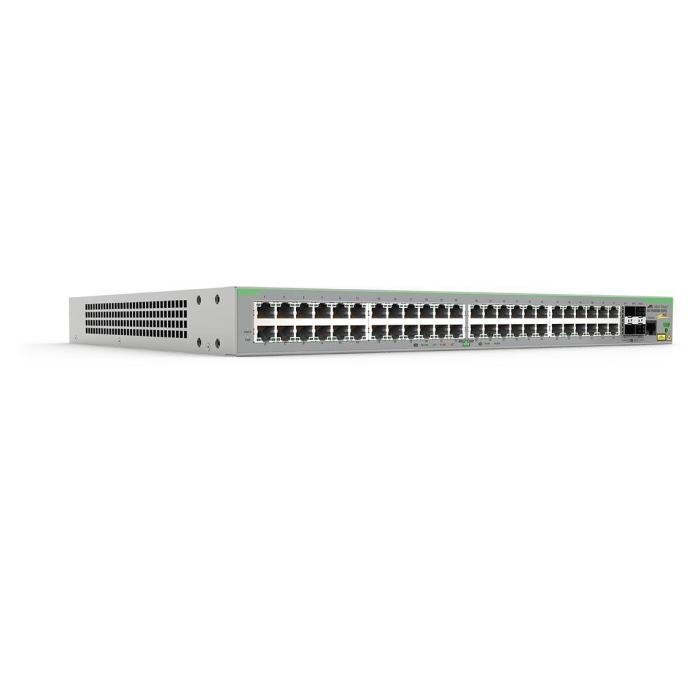

Name: Allied Telesis AT-FS980M/52PS-50 Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey
Brand: ALLIED TELESIS
Price: 1794.86 USD
Availability: InStock

Allied Telesis AT-FS980M/52PS-50 Managed L3 Fast Ethernet (10/100) Power over Ethernet (PoE) Grey

$1,794.86

$1,794.86 without VAT

Allied Telesis AT-FS980M/52PS-50, Managed, L3, Fast Ethernet (10/100), Full duplex, Power over Ethernet (PoE). More info

Amount

Brand: ALLIED TELESIS

SKU: 77999 PRC: 144721 EAN: 767035209074 PN: AT-FS980M/52PS-50

Description

48 x 10/100T POE+ ports and 4 x 100/1000X SFP (2 for Stacking), Fixed AC power supply, EU Power Cord

Specifications

Management features

Switch type: Managed
Switch layer: L3
Quality of Service (QoS) support: Yes
Web-based management: Yes
MIB support: Yes
Traffic classification: Yes

Ports & interfaces

Basic switching RJ-45 Ethernet ports quantity: 48
Basic switching RJ-45 Ethernet ports type: Fast Ethernet (10/100)
SFP module slots quantity: 4
Copper ethernet cabling technology: 10BASE-T,100BASE-TX

Networking

Networking standards: IEEE 802.1AX,IEEE 802.1D,IEEE 802.1Q,IEEE 802.1ad,IEEE 802.1s,IEEE 802.1v,IEEE 802.1w,IEEE 802.2,IEEE 802.3,IEEE 802.3ab,IEEE 80
Full duplex: Yes
10G support: No
IP routing: Yes
DHCP client: Yes
Port mirroring: Yes
Link aggregation: Yes
Spanning tree protocol: Yes
Active link detection: Yes

Data transmission

Switching capacity: 17.6 Gbit/s
Throughput: 13.09 Mpps
MAC address table: 16000 entries
Number of queues: 8
Number of static routes: 16
Jumbo frames support: Yes
Jumbo frames: 10000

Virtual LAN features

VLAN support: Yes
Private VLAN: Yes
Port-based VLAN: Yes

Multicast features

Multicast support: Yes

Optical fiber

Fiber ethernet cabling technology: 100BASE-X,1000BASE-X

Security

Static port security: Yes
Authentication: MAC-based authentication, Port-based authentication
IGMP snooping: Yes
SSH/SSL support: Yes
BPDU filtering/protection: Yes
Loop protection: Yes
Access Control List (ACL): Yes
Security algorithms: SNMP,SSH

Protocols

Supported network protocols: HTTPS, HTTP

Design

Stackable: Yes
Colour of product: Grey
Safety: UL 60950-1 Ed2, C22.2 NO.60950-1, EN 60950-1 Ed2, IEC60950-1 Ed.2, EN60950-1 Ed2.
Certification: FCC part15 B, EN55022 Class A, CISPR22:2006, VCCI Class A, C-Tick, EN 55024 CE, cULus, TUV
