Allied Telesis AT-SP10LRA/I network transceiver module Fiber optic 10000 Mbit/s SFP+
More info
Brand: ALLIED TELESIS
969.22 €
801.01 €
without VAT
incl. 21 % VAT
Stock available: 50 units.
Get it
on the
October 19
/
October 20
SKU:
89286
PRC:
335923
EAN:
767035217857
PN:
AT-SP10LRA/I
Description

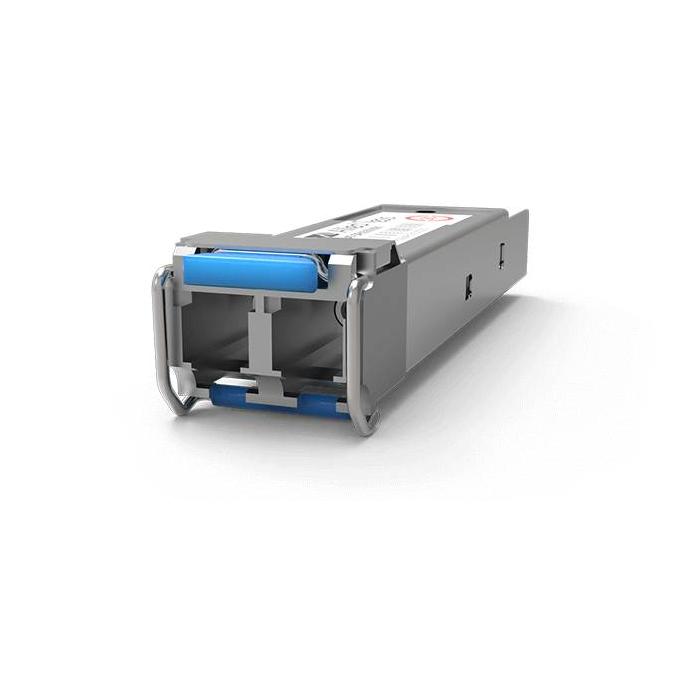

The Allied Telesis AT-SP10LRA/I network transceiver module is a silver-coloured network device with an SFP+ interface and fibre optic transceiver. It reaches a maximum data transfer rate of 10000 Mbit/s and a maximum transfer distance of 10000 m, making it suitable for long-distance single-mode fibre links. It incorporates an LC fibre optic connector and its link budget is 6 dB. It operates at wavelengths of 1310 nm in both reception and transmission, with a Tx power ranging from -8 to 1 dBmW. It features DDM digital diagnostic monitoring, which allows the link status to be monitored. Its housing is metal and it supports plug and play, as well as hot swapping. It is certified in accordance with RoHS.
Specifications
Performance
- SFP transceiver type: Fiber optic
- Maximum data transfer rate: 10000 Mbit/s
- Interface type: SFP+
- Single-mode fiber (SMF) supported: Yes
- Fiber optic connector: LC
- Maximum transfer distance: 10000 m
- Tx wavelength (max): 1310 nm
- Rx wavelength (max): 1310 nm
- Tx power (min): -8 dBmW
- Tx power (max): 1 dBmW
- Link budget: 6 dB
- Digital Diagnostics Monitoring (DDM): Yes
Features
- Product colour: Silver
- Housing material: Metal
- Plug and Play: Yes
- Hot-swap: Yes
Certificates
- Compliance certificates: RoHS
Sustainability
- Sustainability compliance: Yes
Operational conditions
- Operating temperature (T-T): -40 - 85 °C
- Storage temperature (T-T): -40 - 85 °C
- Operating relative humidity (H-H): 0 - 85%
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Harmonized System (HS) code: 85369010
