Description

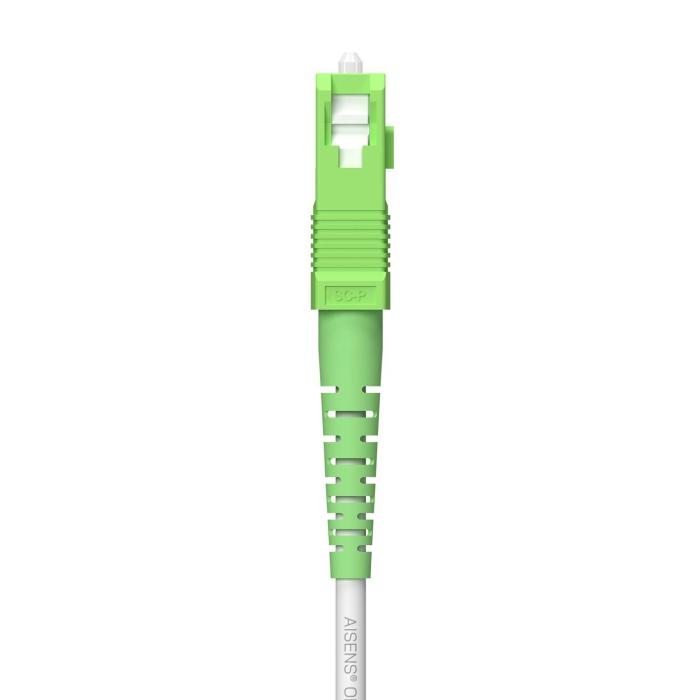

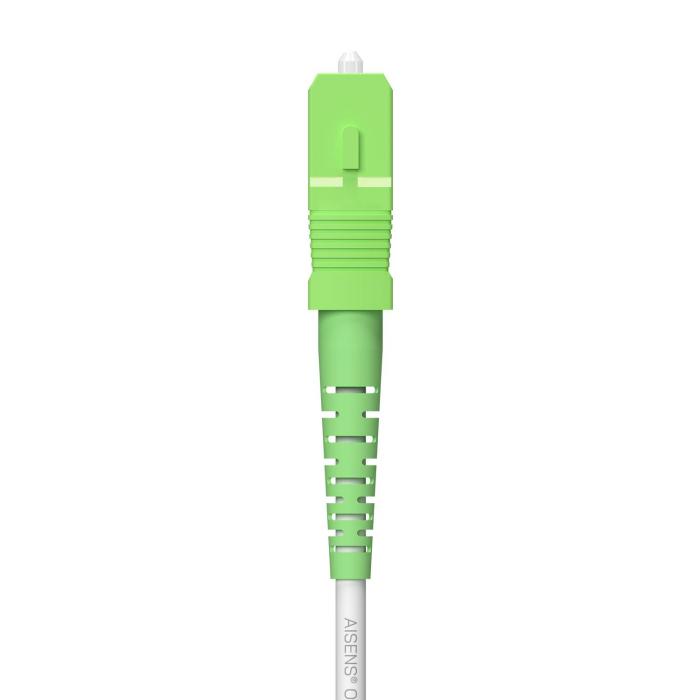

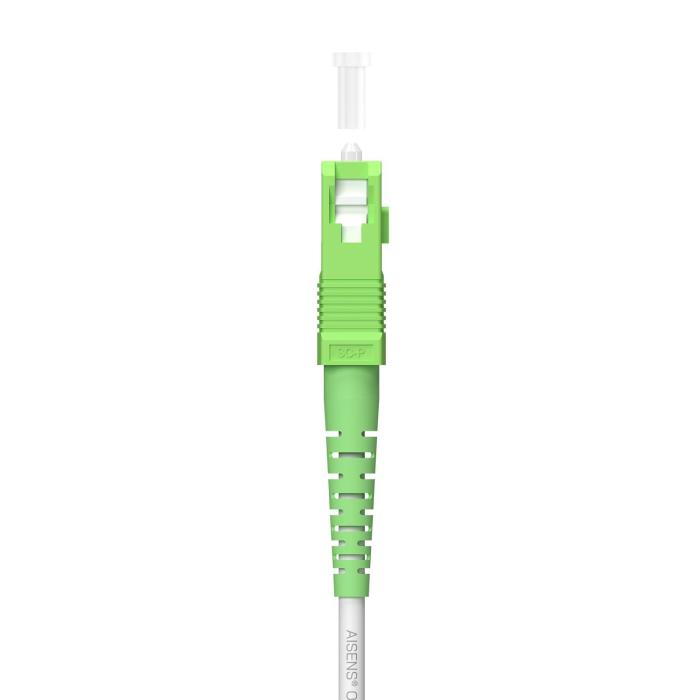

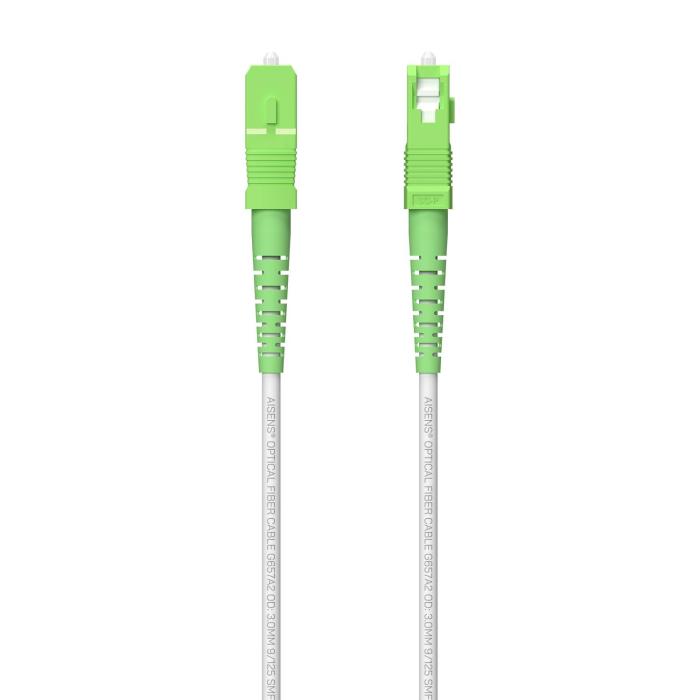

AISENS single-mode fibre optic patch cable in white, designed for network connections requiring a 100 m cable run. It features G.657.A2 single-mode fibre, with a 9 µm core and 125 µm cladding, allowing suitable signal guidance in fibre installations. Its SC/APC connectors, both male with APC polishing, offer an insertion loss of 0.3 dB and a return loss of 50 dB, values that reflect efficient coupling at the ends of the patch cable. It supports wavelengths of 1310, 1490 and 1550 nm and is compatible with 100 Gigabit Ethernet interfaces, making it suitable for high-capacity deployments. The Kevlar jacket protects the fibre against mechanical stress during installation, and its CPR Dca certification and halogen-free construction contribute to safe behaviour in the event of fire.
Specifications
Features
- Cable length: 100 m
- Fibre optic type: G.657.A2
- Connector 1: SC
- Connector 2: SC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector polish type: APC
- Product colour: White
- Core diameter: 9 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Single-mode
- Wavelengths supported: 1310,1490,1550 nm
- Ethernet interface type: 100 Gigabit Ethernet
- Insertion loss: 0.3 dB
- Return loss: 50 dB
- Jacket material: Kevlar
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: RoHS
- Certification: CPR Dca
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
Weight & dimensions
- Cable diameter: 3 mm
- Bending radius: 7.5 mm
Packaging data
- Package width: 240 mm
- Package depth: 50 mm
- Package height: 240 mm
- Package volume: 2880 cm³
- Package weight: 667 g
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Master (outer) case width: 410 mm
- Master (outer) case length: 350 mm
- Master (outer) case height: 300 mm
- Master (outer) case gross weight: 10 kg
- Master (outer) case volume: 43050 cm³
- Products per master (outer) case: 15 pc(s)
