Description

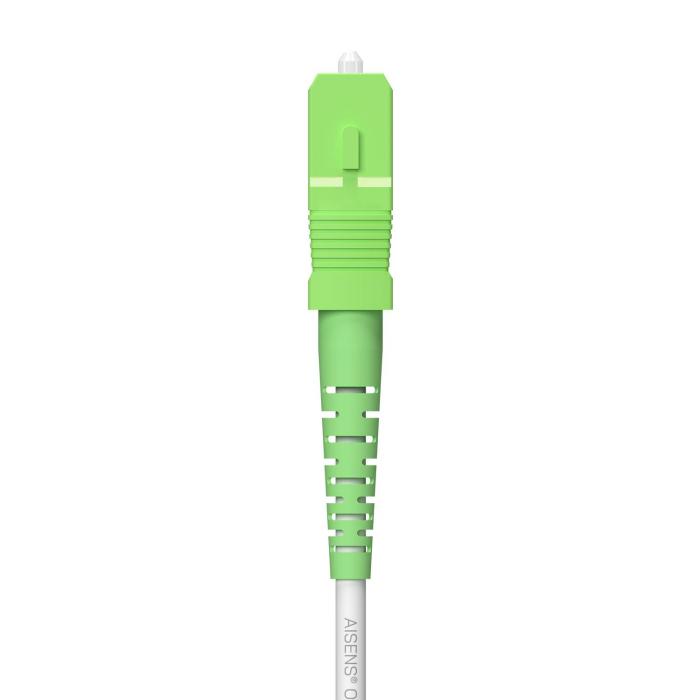

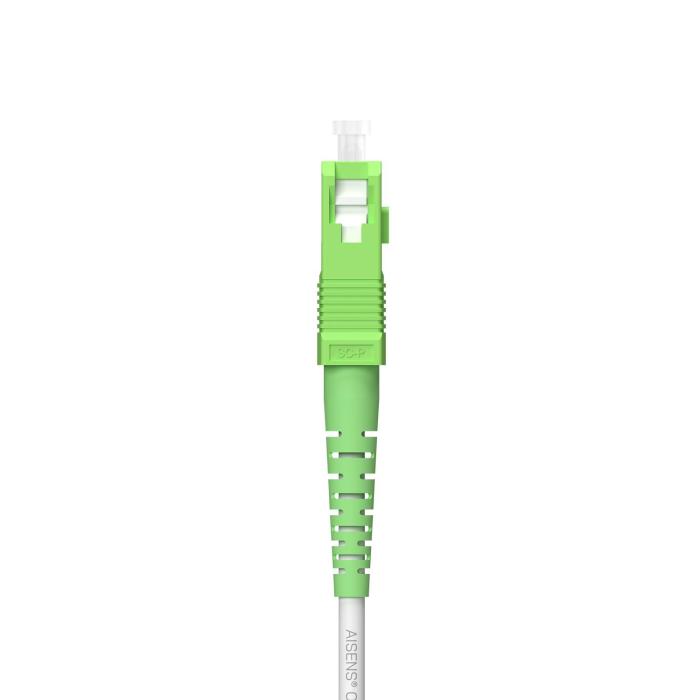

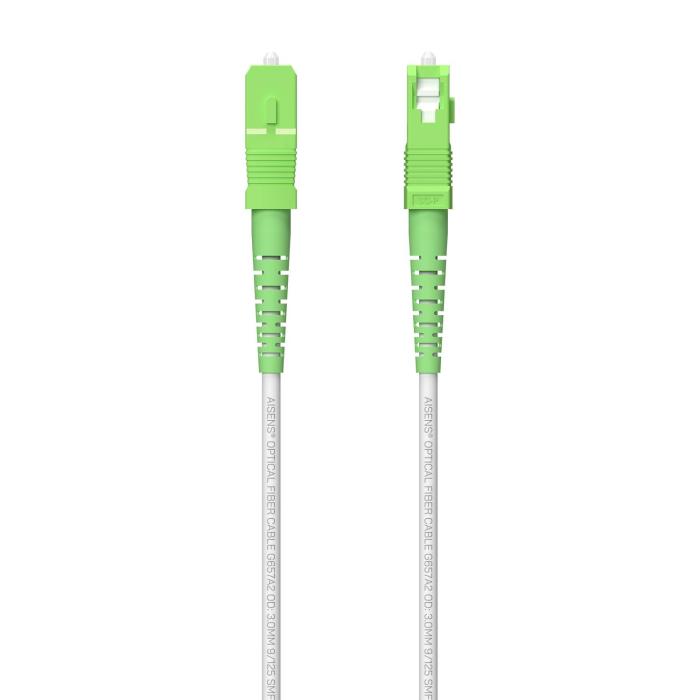

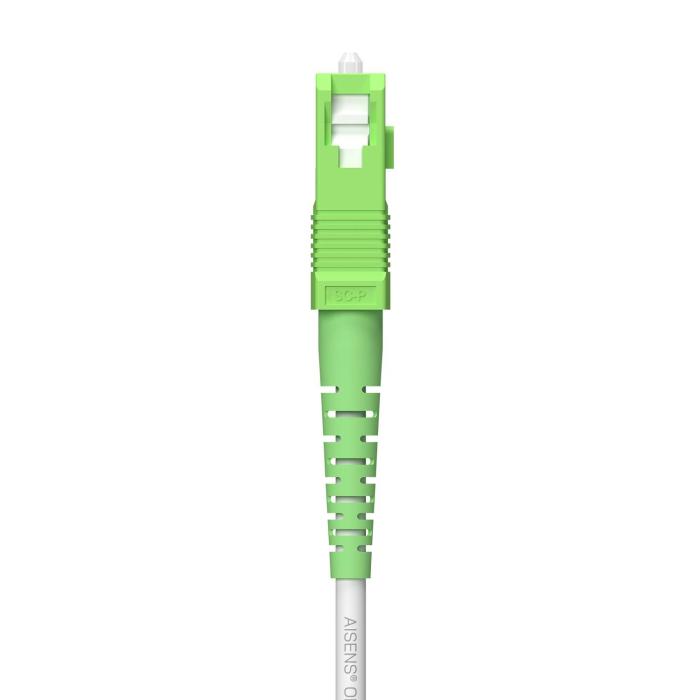

The white AISENS fibre optic patch cord is designed for laying long-distance single-mode installations with male SC/APC connectors at both ends. Its G.657.A2 single-mode fibre with a 9 µm core and 125 µm cladding supports wavelengths of 1310, 1490 and 1550 nm, making it compatible with 100 Gigabit Ethernet links. The APC polishing of the connectors reduces reflections, with an insertion loss of 0.3 dB and a return loss of 50 dB. The Kevlar jacket provides mechanical strength to the fibre, while the halogen-free sheath contributes to safety in the event of fire. It has CPR Dca certification, suitable for installation in regulated spaces. It comes as a 150 m cable, a length intended for connections and extensive runs inside cabinets and conduits.
Specifications
Features
- Cable length: 150 m
- Fibre optic type: G.657.A2
- Connector 1: SC
- Connector 2: SC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector polish type: APC
- Product colour: White
- Core diameter: 9 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Single-mode
- Wavelengths supported: 1310,1490,1550 nm
- Ethernet interface type: 100 Gigabit Ethernet
- Insertion loss: 0.3 dB
- Return loss: 50 dB
- Jacket material: Kevlar
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: RoHS
- Certification: CPR Dca
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
Weight & dimensions
- Cable diameter: 3 mm
- Bending radius: 7.5 mm
Packaging data
- Package width: 293 mm
- Package depth: 50 mm
- Package height: 293 mm
- Package volume: 4292.45 cm³
- Package weight: 1 kg
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Master (outer) case width: 410 mm
- Master (outer) case length: 350 mm
- Master (outer) case height: 300 mm
- Master (outer) case gross weight: 10 kg
- Master (outer) case volume: 43050 cm³
- Products per master (outer) case: 10 pc(s)
