Description

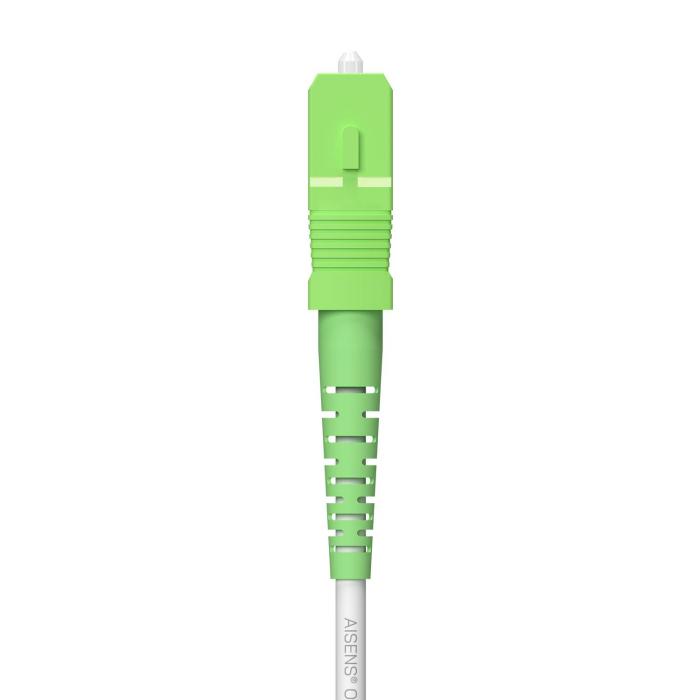

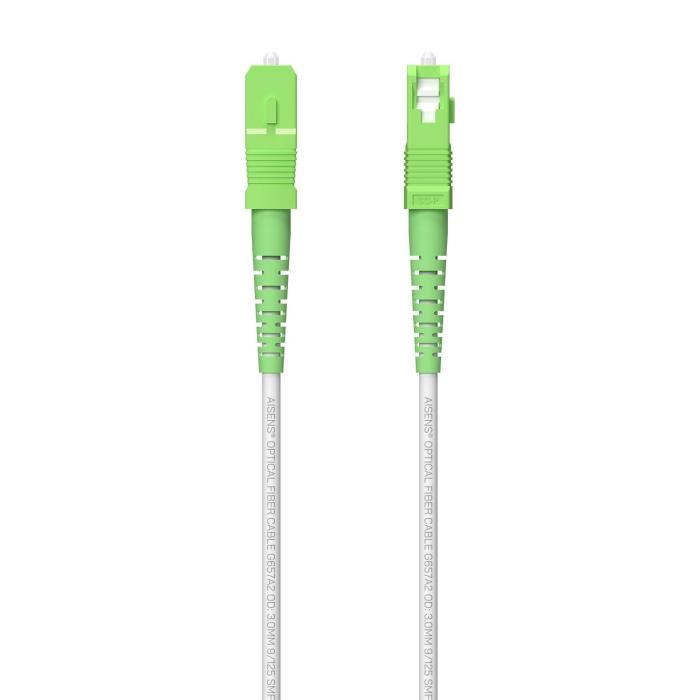

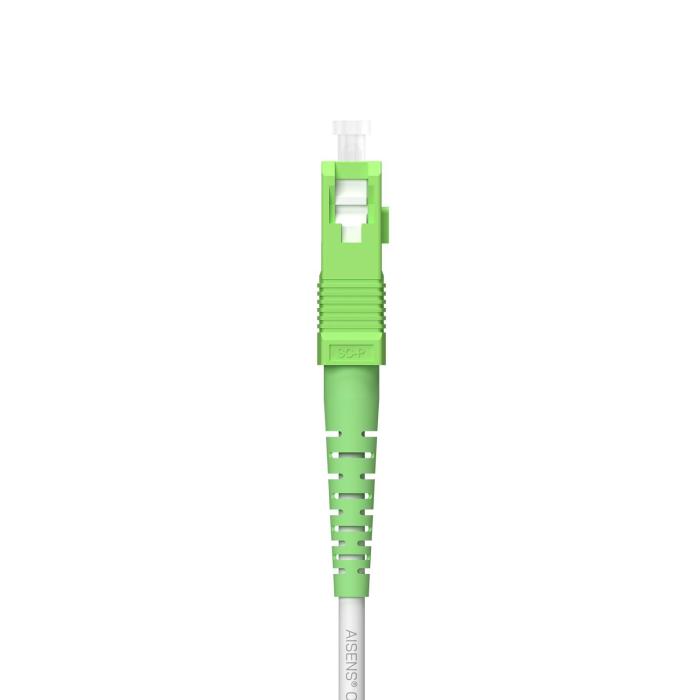

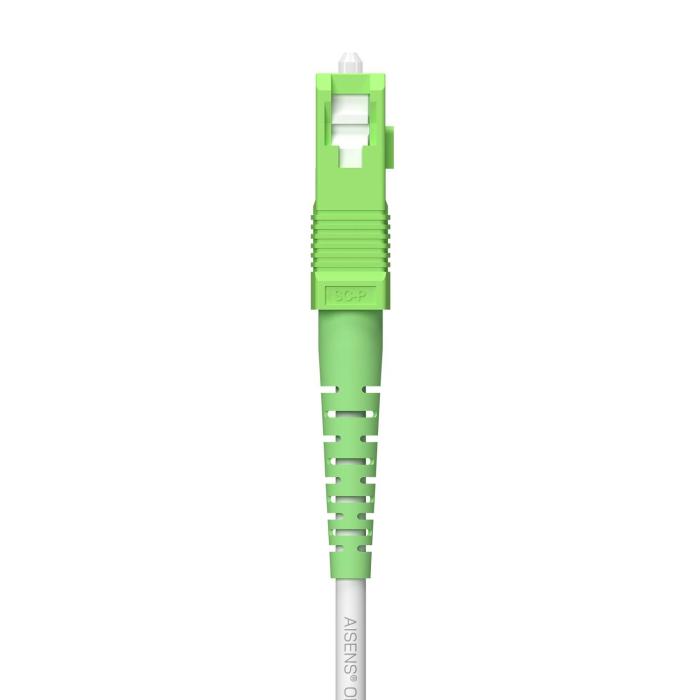

The AISENS fibre optic patch cable is a white single-mode cable that connects equipment via SC/APC terminations at both ends. Its single-mode construction, with a core diameter of 9 µm and a cladding diameter of 125 µm, is designed for signal transport in fibre networks. The Kevlar jacket protects the cable and reinforces its mechanical resistance in demanding installations. As it is G.657.A2 fibre, it supports wavelengths of 1310, 1490 and 1550 nm. The APC polishing of the connectors contributes to an insertion loss of 0.3 dB and a return loss of 50 dB, values suitable for high-capacity links such as those of 100 Gigabit Ethernet. This 200 m cable is halogen-free and has CPR Dca certification, making it suitable for installation in structured cabling infrastructures.
Specifications
Features
- Cable length: 200 m
- Fibre optic type: G.657.A2
- Connector 1: SC
- Connector 2: SC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector polish type: APC
- Product colour: White
- Core diameter: 9 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Single-mode
- Wavelengths supported: 1310,1490,1550 nm
- Ethernet interface type: 100 Gigabit Ethernet
- Insertion loss: 0.3 dB
- Return loss: 50 dB
- Jacket material: Kevlar
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: RoHS
- Certification: CPR Dca
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
Weight & dimensions
- Cable diameter: 3 mm
- Bending radius: 7.5 mm
Packaging data
- Package width: 415 mm
- Package depth: 50 mm
- Package height: 415 mm
- Package volume: 8611.25 cm³
- Package weight: 2 kg
Packaging content
- Quantity per pack: 1 pc(s)
Logistics data
- Master (outer) case width: 410 mm
- Master (outer) case length: 350 mm
- Master (outer) case height: 300 mm
- Master (outer) case gross weight: 10 kg
- Master (outer) case volume: 43050 cm³
- Products per master (outer) case: 5 pc(s)
