Description

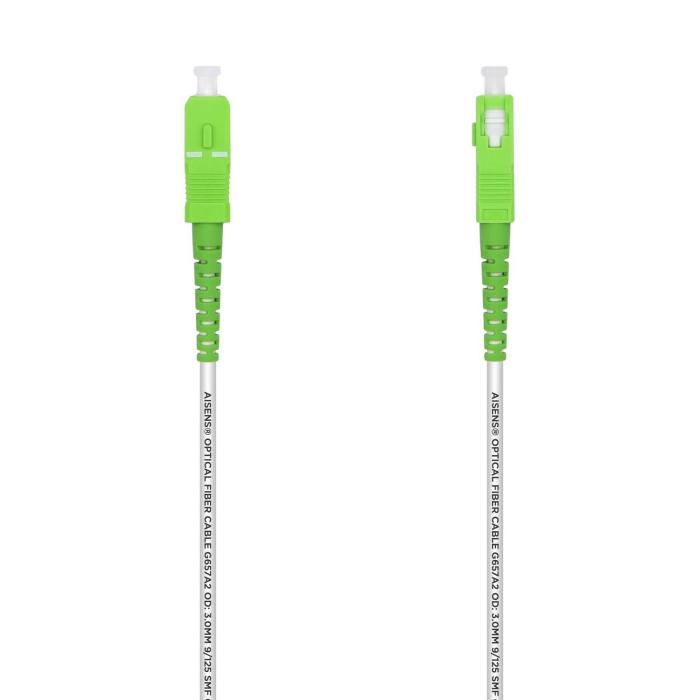

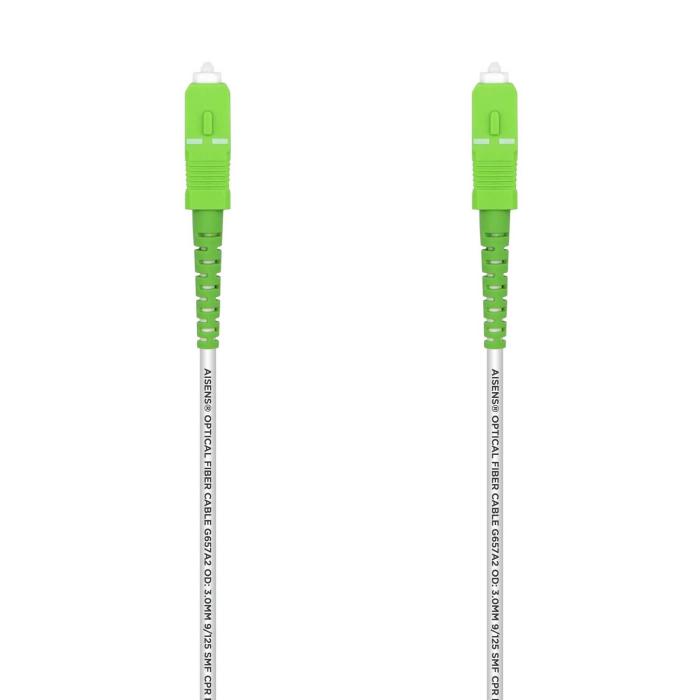

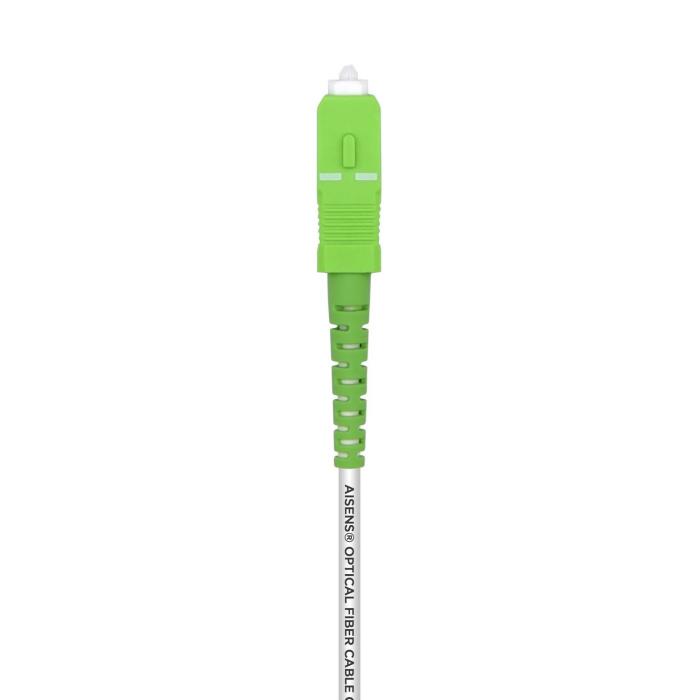

The AISENS single-mode fibre optic patch lead is a 20 m white cable, designed to connect equipment with SC/APC connectors in network installations. Its G.657.A2 fibre, with a 9 µm core and a 125 µm cladding, supports wavelengths of 1310 and 1550 nm, making it compatible with Gigabit Ethernet, 10 Gigabit Ethernet, 40 Gigabit Ethernet and 100 Gigabit Ethernet links. The SC/APC connector is polished at both ends with an APC finish, which helps maintain the signal over long runs. As for optical performance, it presents an insertion loss of 0.3 dB and a return loss of 50 dB, values that reflect stable transmission behaviour. The jacket combines Kevlar and halogen-free material (LSZH) and holds CPR Dca certification, a relevant detail when cabling runs through spaces with fire reaction requirements.
Specifications
Features
- Cable length: 20 m
- Fibre optic type: G.657.A2
- Connector 1: SC
- Connector 2: SC
- Connector 1 gender: Male
- Connector 2 gender: Male
- Connector polish type: APC
- Product colour: White
- Core diameter: 9 µm
- Cladding diameter: 125 µm
- Fiber mode structure: Single-mode
- Wavelengths supported: 1310,1550 nm
- Ethernet interface type: 10 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet, Gigabit Ethernet
- Insertion loss: 0.3 dB
- Return loss: 50 dB
- Jacket material: Kevlar, Low smoke zero halogen (LSZH)
Sustainability
- Doesn't contain: Halogen
Certificates
- Compliance certificates: RoHS
- Certification: CPR Dca
Operational conditions
- Operating temperature (T-T): -20 - 70 °C
Weight & dimensions
- Cable diameter: 3 mm
- Bending radius: 7.5 mm
Packaging data
- Package width: 240 mm
- Package depth: 230 mm
- Package height: 20 mm
- Package volume: 1104 cm³
- Package weight: 157 g
Packaging content
- Quantity per pack: 1 pc(s)
Other features
- Attenuation (max): 0.4 dB/km
Logistics data
- Master (outer) case width: 350 mm
- Master (outer) case length: 410 mm
- Master (outer) case height: 300 mm
- Master (outer) case gross weight: 11 kg
- Master (outer) case volume: 43050 cm³
- Products per master (outer) case: 70 pc(s)
