Description

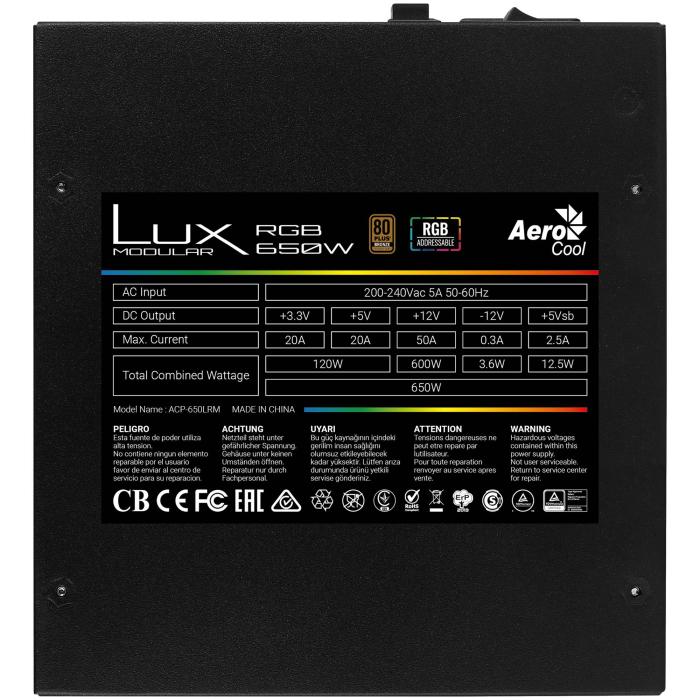

Modular 650 W power supply in black, with 80Plus Bronze certification and 88% efficiency. It features power control with an AC input voltage of 220 to 240 V and a frequency of 50 to 60 Hz, with an input current of 5 A. It distributes its power with 600 W on the +12 V rail, 120 W on both +3.3 V and +5 V, 12.5 W on +5 Vsb and 3.6 W on -12 V. Its maximum output currents reach 50 A on +12 V, 20 A on +3.3 V, 20 A on +5 V, 2.5 A on +5 Vsb and 0.3 A on +12 V4. As for connectors, it includes a 20+4 pin ATX motherboard power connector, five SATA connectors and three PATA connectors.
Specifications
Power
- Total power: 650 W
- AC input voltage: 220 - 240 V
- AC input frequency: 50 - 60 Hz
- Input current: 5 A
- Combined power (+3.3V): 120 W
- Combined power (+12V): 600 W
- Combined power (+5V): 120 W
- Combined power (-12V): 3.6 W
- Combined power (+5Vsb): 12.5 W
- Max output current (+3.3V): 20 A
- Max output current (+12V): 50 A
- Max output current (+12V4): 0.3 A
- Max output current (+5V): 20 A
- Max output current (+5Vsb): 2.5 A
- Efficiency: 88%
Ports & interfaces
- Motherboard power connector: 20+4 pin ATX
- Motherboard power cable length: 50 cm
- Number of SATA power connectors: 5
- Number of PATA power connectors: 3
- SATA power cable length: 500, 550 mm
- PCI Express power connectors (6+2 pin): 2
- CPU power connector (4+4 pin): Yes
- CPU power cable length: 55 cm
- ATX power connector (20+4 pin): Yes
- PCI Express connector: Yes
- Cabling type: Semi-Modular
Performance
- 80 PLUS certification: 80 PLUS Bronze
- Purpose: PC
Design
- Product colour: Black
- Cooling type: Active
- Fan diameter: 12 cm
- Number of fans: 1 fan(s)
- Fan speed: 0 - 800 RPM
- Illumination: Yes
- On/off switch: Yes
Packaging content
- Cables included: AC
Packaging data
- Manual: Yes
- Package width: 230 mm
- Package depth: 195 mm
- Package height: 95 mm
- Package type: Box
Logistics data
- Master (outer) case width: 250 mm
- Master (outer) case length: 495 mm
- Master (outer) case height: 215 mm
- Products per master (outer) case: 5 pc(s)
Other features
- Frequency tolerance: 94%
- Cable ties included: Yes
- Illumination colour: Blue, Green, Red
