Description

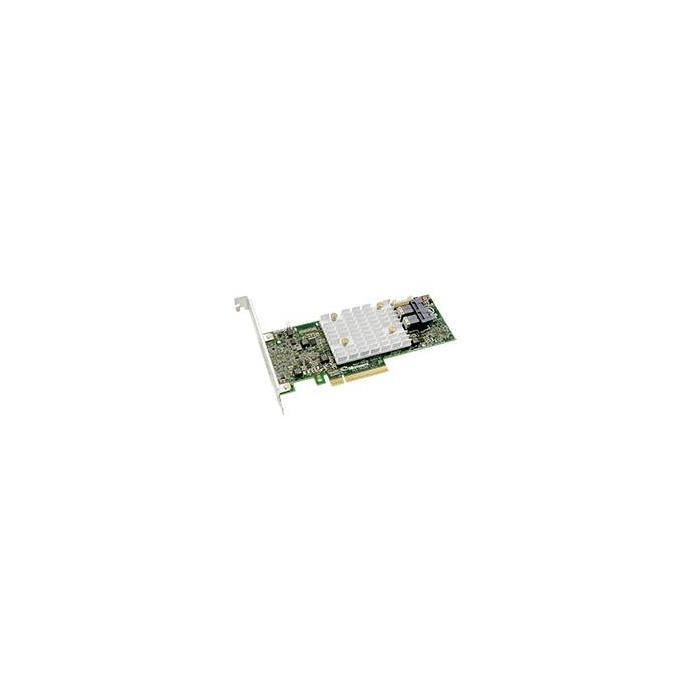

Adaptec SmartRAID 3154-8i RAID controller with PCI Express x8 3.0 host interface and 12 Gbit/s transfer speed, designed for servers integrating SAS drives via its two internal HD mini-SAS ports. It offers support for RAID levels 0, 1, 5, 6, 10, 50 and 60, along with RAID level migration, SSD support and S.M.A.R.T. monitoring for reliable drive health tracking. It incorporates 4096 MB of internal DDR4 memory at 2100 MHz, with a mean time between failures of 1380000 hours. It supports Linux and Windows operating systems, operates in a temperature range of 0 to 55 °C and carries CE, FCC, UL, C-tick, VCCI, KCC and CNS certifications. Its 64 mm height facilitates integration into standard server chassis.
Specifications
Ports & interfaces
- Supported storage drive interfaces: SAS
- Host interface: PCI Express x8
- PCI Express slots version: 3.0
- Internal mini-SAS HD ports: 2
Performance
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- RAID Level Migration: Yes
- Data transfer rate: 12 Gbit/s
- SSD support: Yes
- Internal memory: 4096 MB
- Internal memory type: DDR4
- Memory clock speed: 2100 MHz
- S.M.A.R.T. support: Yes
- Mean time between failures (MTBF): 1380000 h
- Certification: CE, FCC, UL, C-tick, VCCI, KCC, CNS
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
Weight & dimensions
- Width: 167 mm
- Height: 64 mm
Logistics data
- Harmonized System (HS) code: 84733080
Other features
- PCI Card form factor: Half-height (low-profile)
- Hot-Plug support: Yes
