Description

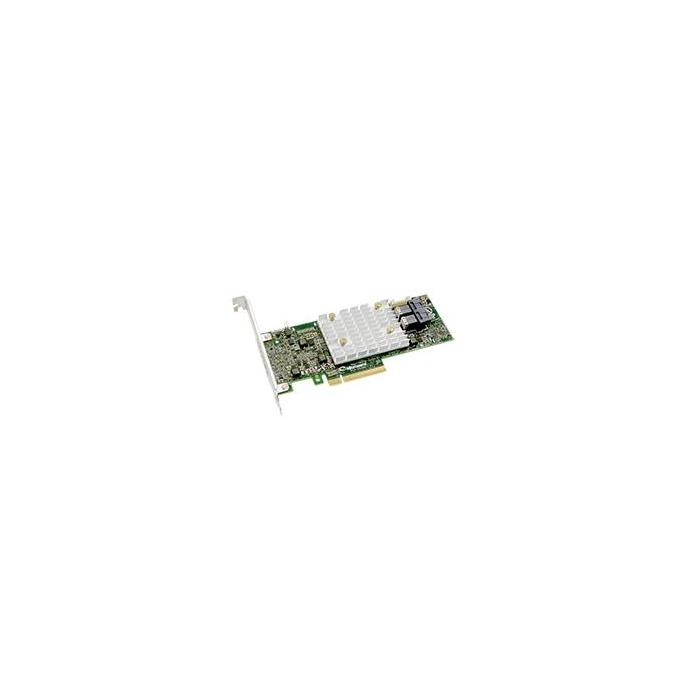

Adaptec SmartRAID 3102-8i RAID controller for servers, with PCI Express x8 3.0 host interface and two internal HD mini-SAS ports supporting SAS drives at a transfer speed of 12 Gbit/s. This card offers support for RAID levels 0, 1, 5, 6, 10, 50 and 60, as well as RAID level migration, SSD support and S.M.A.R.T. monitoring for advanced management of your drives. It integrates 2048 MB of DDR4 memory at 2100 MHz, ensuring agile processing of operations, with a mean time between failures of 1,370,000 hours and a height of 64 mm. Its design is certified under CE, FCC, UL, C-tick, VCCI, KCC and CNS standards, and it works with Linux and Windows operating systems in an operating temperature range of 0 to 55 °C.
Specifications
Ports & interfaces
- Supported storage drive interfaces: SAS
- Host interface: PCI Express x8
- PCI Express slots version: 3.0
- Internal mini-SAS HD ports: 2
Performance
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- RAID Level Migration: Yes
- Data transfer rate: 12 Gbit/s
- SSD support: Yes
- Internal memory: 2048 MB
- Internal memory type: DDR4
- Memory clock speed: 2100 MHz
- S.M.A.R.T. support: Yes
- Mean time between failures (MTBF): 1370000 h
- Certification: CE, FCC, UL, C-tick, VCCI, KCC, CNS
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
Weight & dimensions
- Width: 167 mm
- Height: 64 mm
Logistics data
- Harmonized System (HS) code: 84733080
Other features
- PCI Card form factor: Half-height (low-profile)
- Hot-Plug support: Yes
