Description

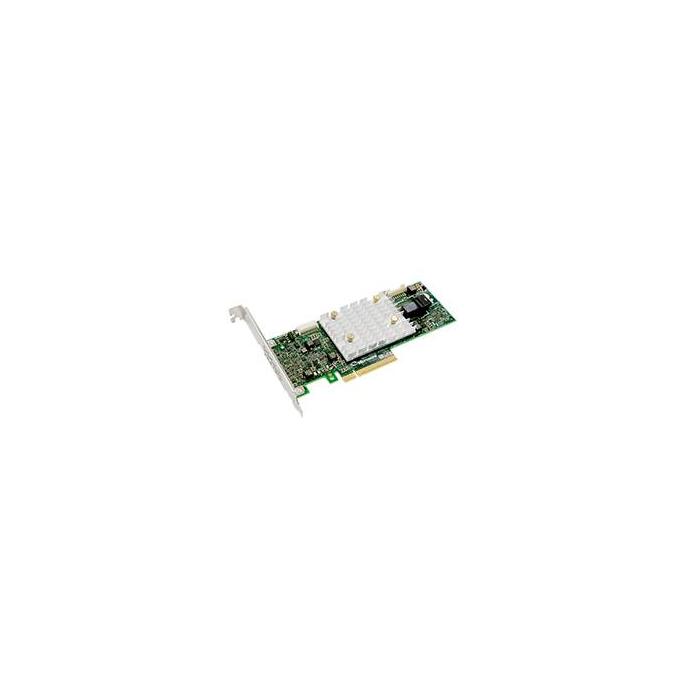

Adaptec SmartRAID 3101-4i RAID controller with PCI Express x8 3.0 interface for servers, offering a data transfer speed of 12 Gbit/s. Includes an internal HD mini-SAS port compatible with SAS drives, and supports RAID levels 0, 1, 5, 6, 10, 50 and 60 along with online level migration. Features 1024 MB of DDR4 memory at 2100 MHz, compatible with SSDs and S.M.A.R.T. monitoring, with a mean time between failures of 1,370,000 hours. Works on Windows and Linux operating systems, and operates in a temperature range of 0 to 55 °C.
Specifications
Ports & interfaces
- Supported storage drive interfaces: SAS
- Host interface: PCI Express x8
- PCI Express slots version: 3.0
- Internal mini-SAS HD ports: 1
Performance
- RAID levels: 0, 1, 5, 6, 10, 50, 60
- RAID Level Migration: Yes
- Data transfer rate: 12 Gbit/s
- SSD support: Yes
- Internal memory: 1024 MB
- Internal memory type: DDR4
- Memory clock speed: 2100 MHz
- S.M.A.R.T. support: Yes
- Mean time between failures (MTBF): 1370000 h
- Certification: CE, FCC, UL, C-tick, VCCI, KCC, CNS
System requirements
- Windows operating systems supported: Yes
- Linux operating systems supported: Yes
Operational conditions
- Operating temperature (T-T): 0 - 55 °C
Weight & dimensions
- Width: 167 mm
- Height: 64 mm
Logistics data
- Harmonized System (HS) code: 84733080
Other features
- PCI Card form factor: Half-height (low-profile)
- Hot-Plug support: Yes
