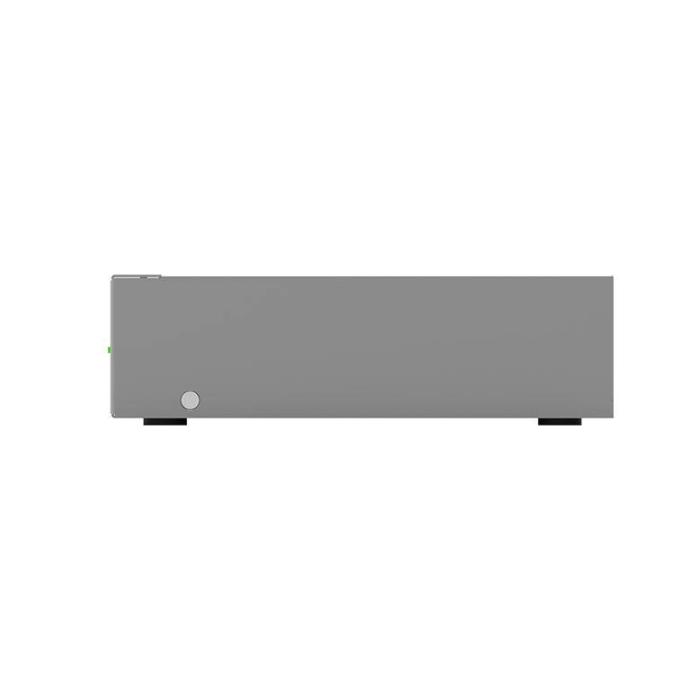

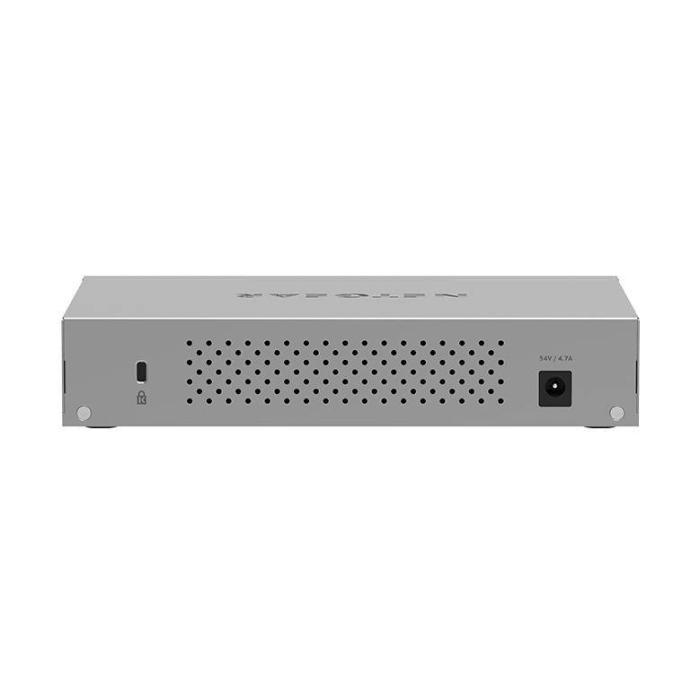

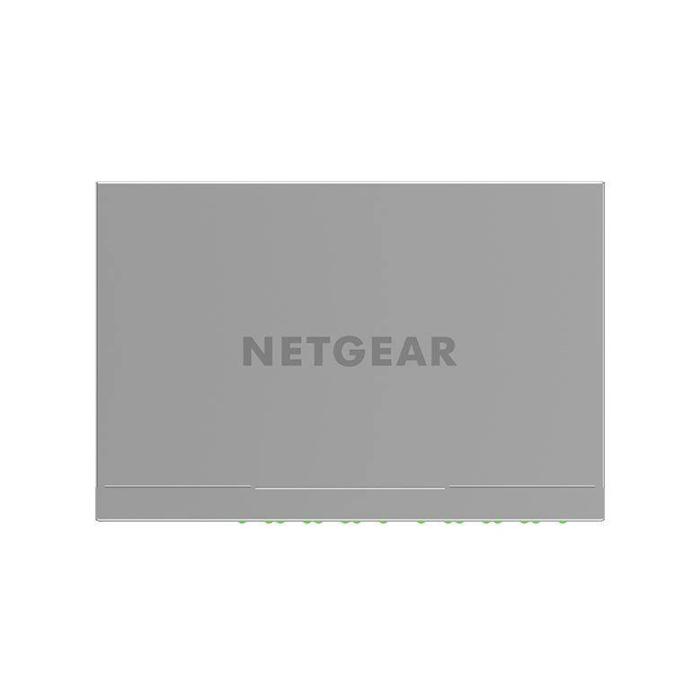

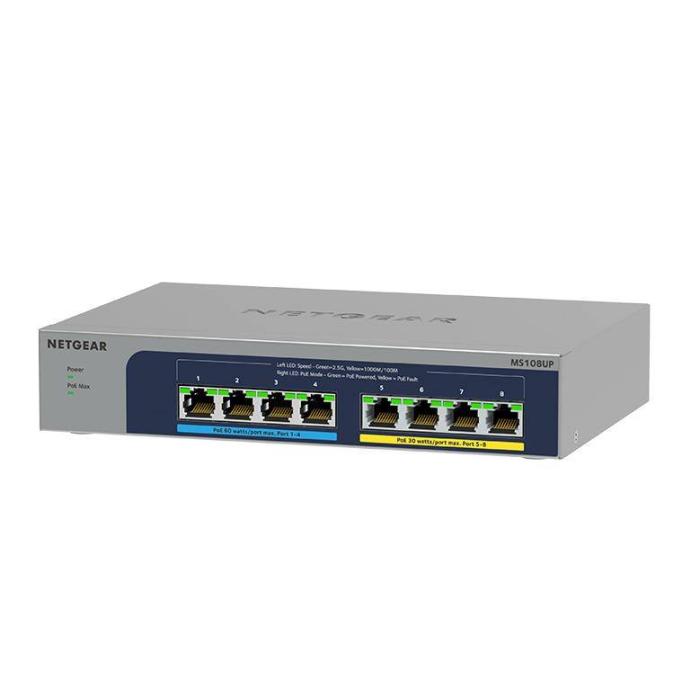

NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE)

Not avaliable

NETGEAR MS108UP Unmanaged 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE).   More info

Brand: NETGEAR
SKU: 100007 PRC: 437071 EAN: 606449156874 PN: MS108UP-100EUS

Description

Specifications

Management features

  • Switch type: Unmanaged
  • Quality of Service (QoS) support: Yes

Ports & interfaces

  • Basic switching RJ-45 Ethernet ports quantity: 8
  • Basic switching RJ-45 Ethernet ports type: 2.5G Ethernet (100/1000/2500)
  • 2.5G Ethernet (copper) ports quantity: 8

Network

  • Networking standards: IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3az, IEEE 802.3bt, IEEE 802.3u, IEEE 802.3x
  • 10G support: No
  • Full duplex: Yes
  • Half duplex: Yes
  • Auto MDI/MDI-X: Yes
  • Head-of-line (HOL) blocking: Yes
  • Ethernet LAN data rates: 100,1000,2500 Mbit/s
  • Auto-sensing: Yes
  • VLAN support: Yes
  • Number of VLANs: 64

Data transmission

  • Switching capacity: 40 Gbit/s
  • MAC address table: 16000 entries
  • Latency (1 Gbps): 3.593 µs
  • Jumbo frames support: Yes
  • Jumbo frames: 12000
  • Packet forwarding rate (1 Gbps): 1488000 pps
  • Packet buffer memory: 1.5 MB

Design

  • Rack mounting: No
  • Housing material: Metal
  • LED indicators: Activity, Link, PoE, Power
  • Wall mountable: Yes
  • Number of fans: 0 fan(s)
  • Electromagnetic compatibility: CE, FCC part 15 Class B, ISED, VCCI, KC, CCC, BSMI, RCM

Performance

  • Fanless: Yes
  • Mean time between failures (MTBF): 373643.7 h

Power

  • Power source: DC
  • Power supply included: Yes
  • DC input voltage: 54 V
  • Input current: 4.7 A

Power over Ethernet (PoE)

  • Power over Ethernet (PoE): Yes
  • Power over Ethernet plus (PoE+) ports quantity: 8
  • Total Power over Ethernet (PoE) budget: 230 W

Operational conditions

  • Operating temperature (T-T): 0 - 40 °C
  • Storage temperature (T-T): -20 - 70 °C
  • Operating relative humidity (H-H): 0 - 90%
  • Operating altitude: 0 - 3000 m
  • Heat dissipation: 923.49 BTU/h

Weight & dimensions

  • Width: 210 mm
  • Depth: 140 mm
  • Height: 40 mm
  • Weight: 900 g

Certificates

  • Certification: CB, CSA, CCC, BSMI, RCM

Logistics data

  • Harmonized System (HS) code: 85176990
