Description

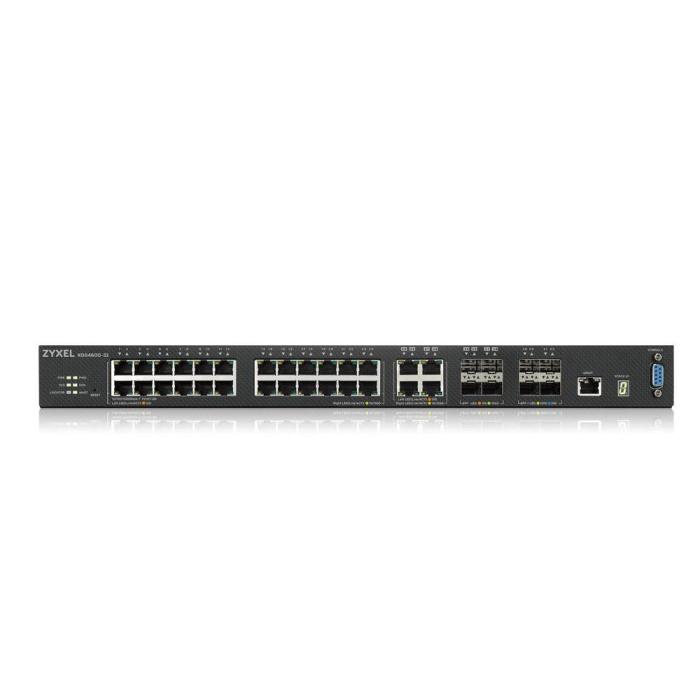

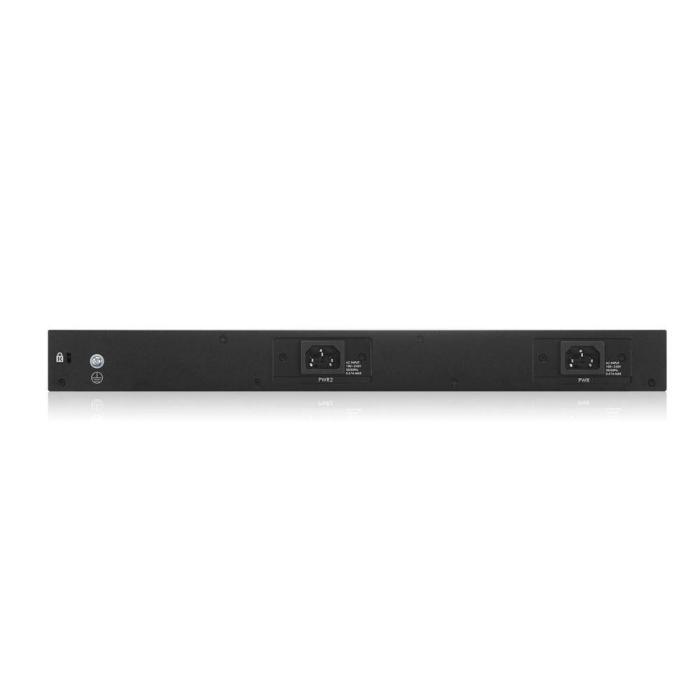

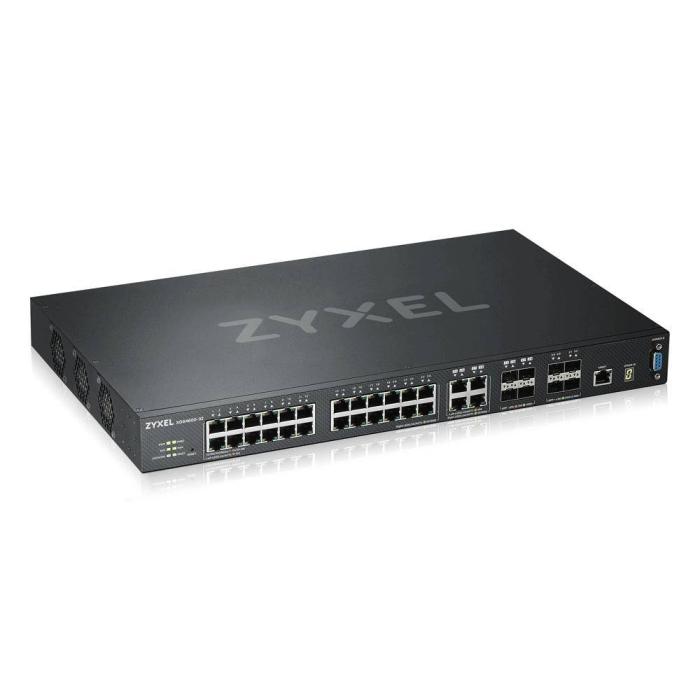

The Zyxel XGS4600-32 managed switch, in black, is a Layer 3 device with 24 Gigabit Ethernet RJ-45 ports (10/100/1000) and 4 SFP+ slots for 10G support, plus 4 additional combo SFP ports. It incorporates advanced management functions such as QoS, MIB support, tagged VLANs, flow control, link aggregation and spanning tree protocol, with routing capacity of up to 12,000 entries. It includes an RS-232 console port and allows IP routing at network level, as well as supporting 10BASE-T, 100BASE-TX and 1000BASE-T copper cables, making it an option oriented towards environments requiring traffic control and segmentation.
Specifications
Management features
- Switch type: Managed
- Switch layer: L3
- Quality of Service (QoS) support: Yes
- MIB support: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 4
- SFP+ module slots quantity: 4
- Console port: RS-232
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ad, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3
- 10G support: Yes
- Copper ethernet cabling technology: 10BASE-T, 100BASE-TX, 1000BASE-T
- IP routing: Yes
- Routing entries: 12000
- Flow control support: Yes
- Link aggregation: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: Tagged VLAN
Data transmission
- Switching capacity: 136 Gbit/s
- Throughput: 101.1 Mpps
- MAC address table: 32000 entries
- Number of IP interfaces: 256
- Packet buffer memory: 4 MB
Security
- IGMP snooping: Yes
- Security algorithms: SSH, SSH-2, SSL/TLS
- Authentication: Port-based authentication
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Black
- Safety: ANSI/UL 60950-1, CSA 60950-1, EN 60950-1, IEC 60950-1
Performance
- Internal memory: 1000 MB
- Flash memory: 64 MB
- Noise level: 59.8 dB
- Mean time between failures (MTBF): 860610.82 h
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 47 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 95%
- Heat dissipation: 160.27 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 270 mm
- Height: 44 mm
- Weight: 3.96 kg
Packaging content
- Rack mount kit: Yes
Packaging data
- Package width: 616 mm
- Package depth: 335 mm
- Package height: 107 mm
- Package weight: 5.69 kg
Certificates
- Certification: FCC Part 15 (Class A) CE EMC (Class A)
Logistics data
- Harmonized System (HS) code: 85176990
