Description

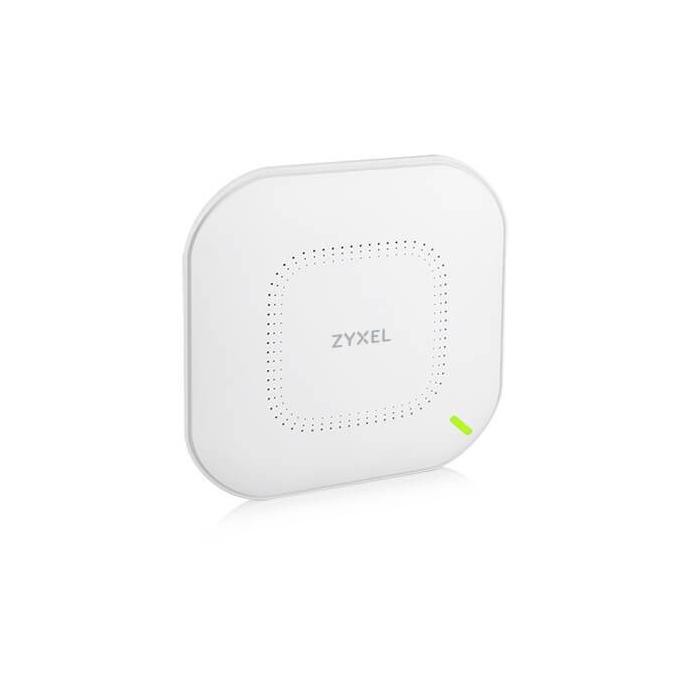

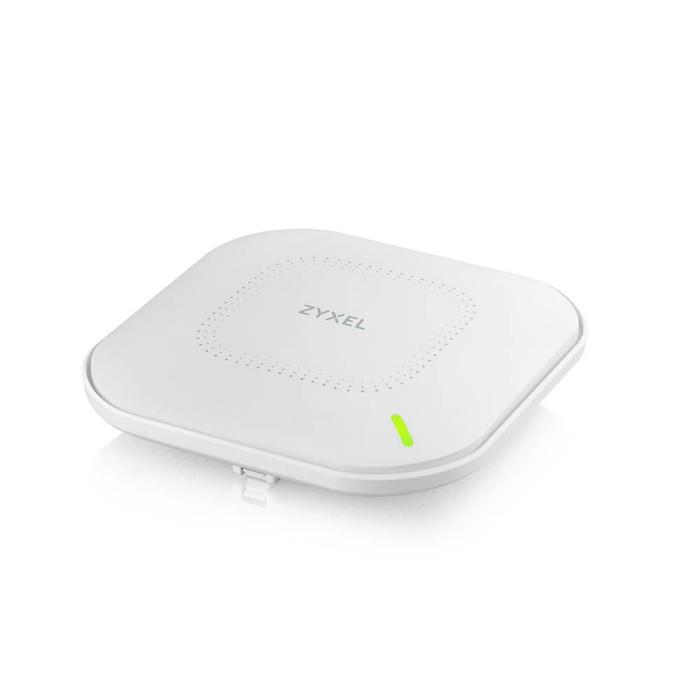

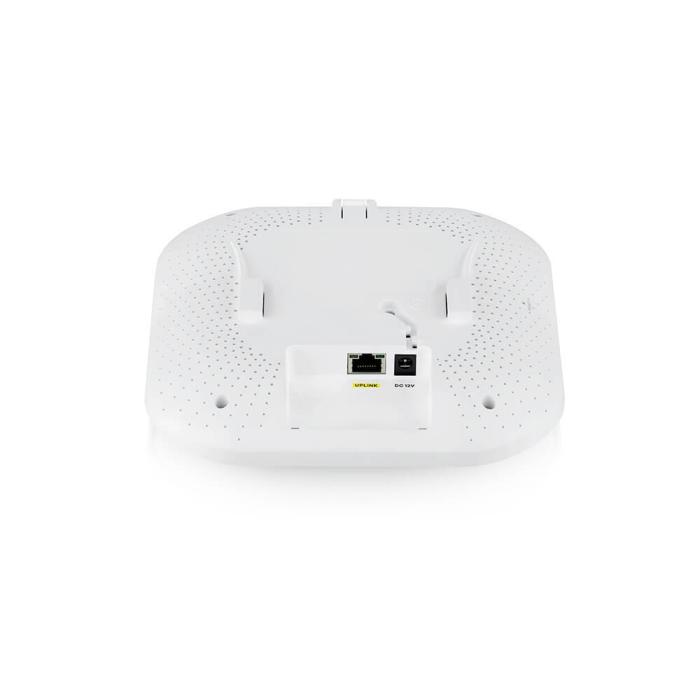

Zyxel WAX510D access point in white, powered via PoE with data reaching a maximum range of 1775 Mbit/s. This model supports dual-band simultaneous operation, with speeds of up to 575 Mbit/s on 2.4 GHz and 1200 Mbit/s on 5 GHz, and is compatible with IEEE 802.11a, ac, ax, b, g, and n standards. It incorporates Multi User MIMO technology and VLAN support, along with WPA, WPA-Enterprise, and WPA-PSK security algorithms. Its management is carried out through a web interface, and it is designed for ceiling or wall mounting, with an energy consumption of 17 W and an input voltage of 12 V.
Specifications
Features
- 2.4 GHz: Yes
- 5 GHz: Yes
- Maximum data transfer rate: 1775 Mbit/s
- Maximum data transfer rate (2.4 GHz): 575 Mbit/s
- Maximum data transfer rate (5 GHz): 1200 Mbit/s
- Networking standards: IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n
- MIMO: Yes
- MIMO type: Multi User MIMO
- Wi-Fi Multimedia (WMM)/(WME): Yes
- VLAN support: Yes
Security
- Security algorithms: WPA, WPA-Enterprise, WPA-PSK
Management features
- Web-based management: Yes
Power
- Power over Ethernet (PoE): Yes
- AC input voltage: 12 V
- Input current: 1.5 A
- Power consumption (typical): 17 W
Design
- Placement: Ceiling, Wall
- Product colour: White
Antenna
- Antenna type: Internal
- Antennas quantity: 2
- Antenna gain level (max): 6 dBi
Certificates
- Certification: FCC Part 15B EN 301 489-1 EN 301 489-17 EN55022 EN55024 EN61000-3-2/-3 EN60601-1-2 BSMI CNS13438
Weight & dimensions
- Width: 180 mm
- Depth: 180 mm
- Height: 39 mm
- Weight: 453 g
Packaging data
- Package width: 229 mm
- Package depth: 215 mm
- Package height: 64 mm
- Package weight: 770 g
Operational conditions
- Operating relative humidity (H-H): 10 - 90%
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -30 - 70 °C
- Storage relative humidity (H-H): 10 - 95%
Logistics data
- Harmonized System (HS) code: 85176990
