Description

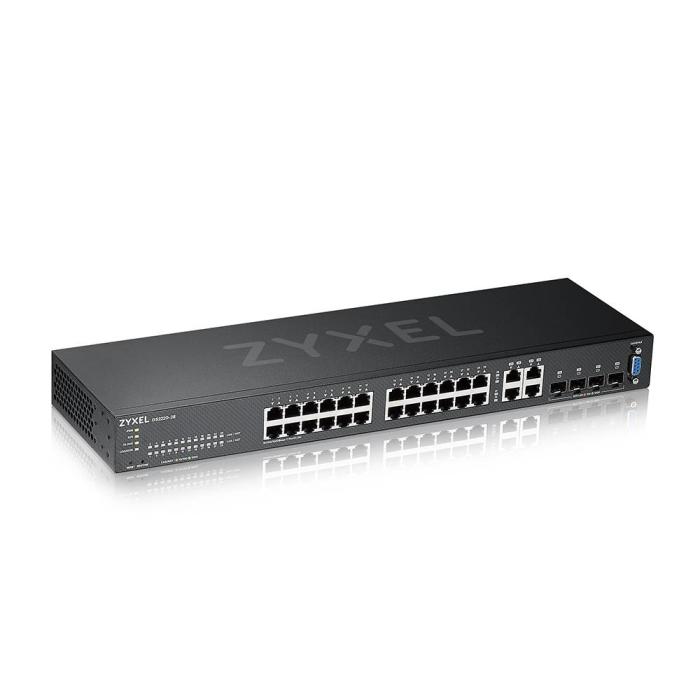

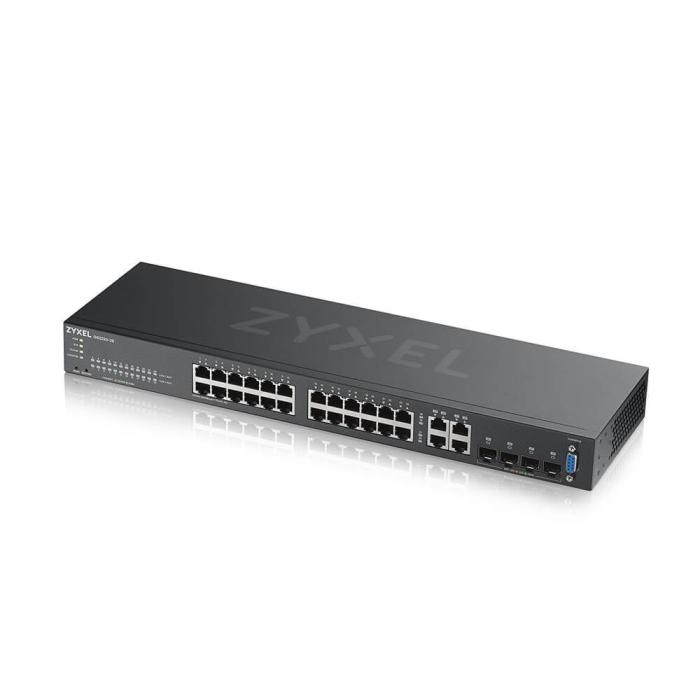

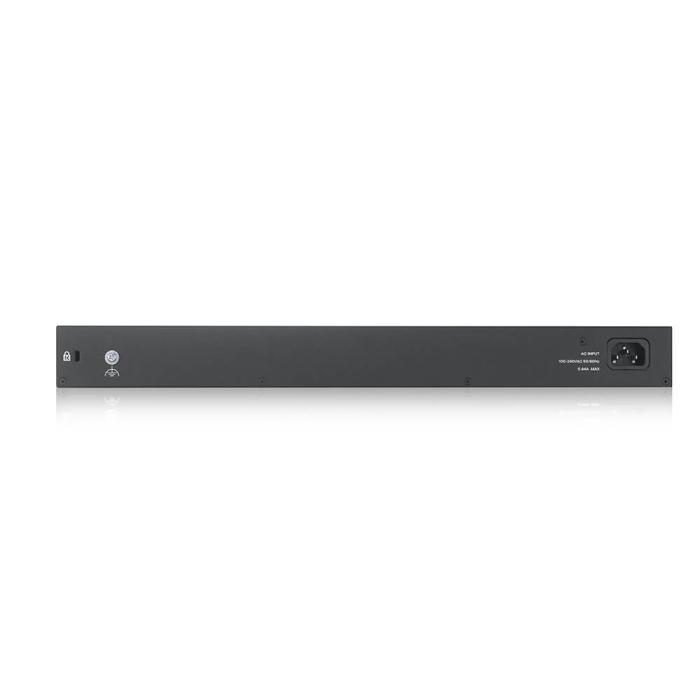

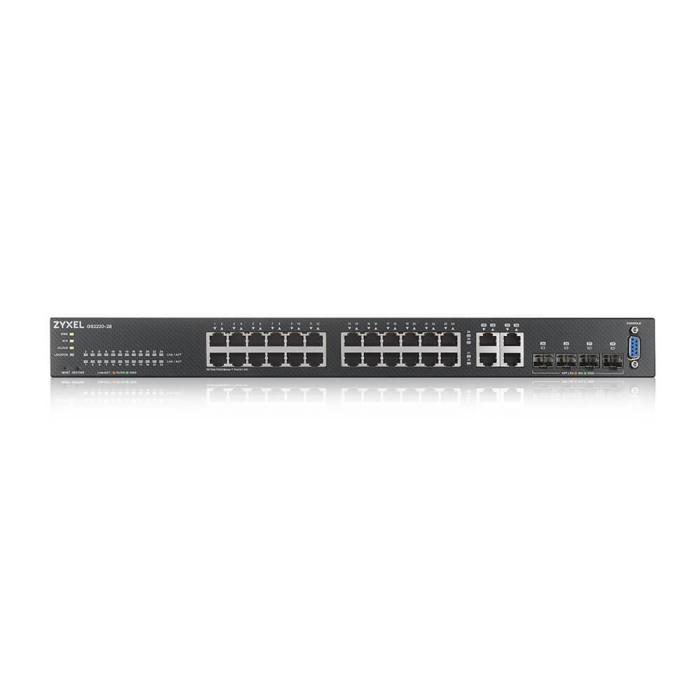

The Zyxel GS2220-28 is a managed Layer L2 switch with 24 Gigabit Ethernet (10/100/1000) RJ-45 ports and 4 combo SFP ports, presented in black. It incorporates management functions such as web-based configuration, system event logging and parameter adjustment via CLI. It offers quality of service (QoS) and VLAN support, with virtual LAN options such as Port-based VLAN, Private VLAN, Protocol-based VLAN and Voice VLAN. It manages traffic through flow control, rate limiting and storm transmission control, as well as link aggregation and spanning tree protocol. Its copper Ethernet cabling covers 10BASE-TX and 1000BASE-T. The device measures 441 x 44 x 131 mm (width x height x depth) and weighs 2.2 kg.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
- Configuring Location Settings (CLI): Yes
- System event log: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Combo SFP ports quantity: 4
Network
- Networking standards: IEEE 802.1D, IEEE 802.1Q, IEEE 802.1ab, IEEE 802.1p, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3ad, IEEE 802
- 10G support: No
- Copper ethernet cabling technology: 10BASE-TX, 1000BASE-T
- Flow control support: Yes
- Link aggregation: Yes
- Broadcast storm control: Yes
- Rate limiting: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
- Virtual LAN features: Port-based VLAN, Private VLAN, Protocol-based VLAN, Voice VLAN
Data transmission
- Switching capacity: 56 Gbit/s
- Forwarding rate: 42 Mpps
- MAC address table: 16000 entries
- Packet buffer memory: 1.5 MB
Security
- DHCP features: DHCP client, DHCP relay, DHCP snooping, DHCPv6 client, DHCPv6 relay
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: SNMP, SNMPv2, SNMPv3, SSH-2, SSL/TLS
- MAC address filtering: Yes
- Authentication: Guest VLAN, MAC-based authentication
- Authentication type: IEEE 802.1x, RADIUS
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Black
Performance
- Internal memory: 256 MB
- Flash memory: 32 MB
- Noise level: 0 dB
- Firmware upgradeable: Yes
- Fanless: Yes
- Mean time between failures (MTBF): 989157 h
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (max): 22.5 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 95%
- Storage relative humidity (H-H): 10 - 95%
- Heat dissipation: 76.725 BTU/h
Weight & dimensions
- Width: 441 mm
- Depth: 131 mm
- Height: 44 mm
- Weight: 2.2 kg
Packaging content
- Cables included: AC
Packaging data
- Package width: 558 mm
- Package depth: 214 mm
- Package height: 79 mm
- Package weight: 2.91 kg
Certificates
- Certification: LVD, BSMI FCC 15 A, CE EMC A, BSMI ENC RoHS A
Logistics data
- Harmonized System (HS) code: 85176990
