Description

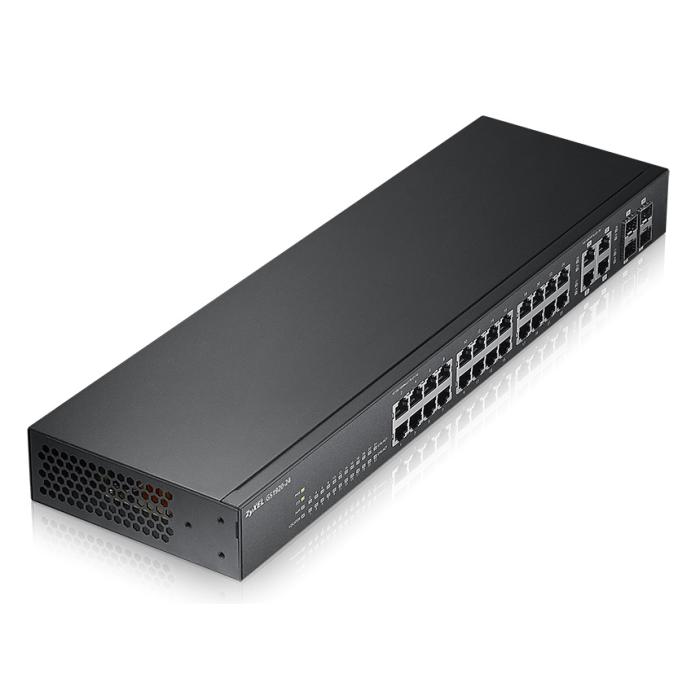

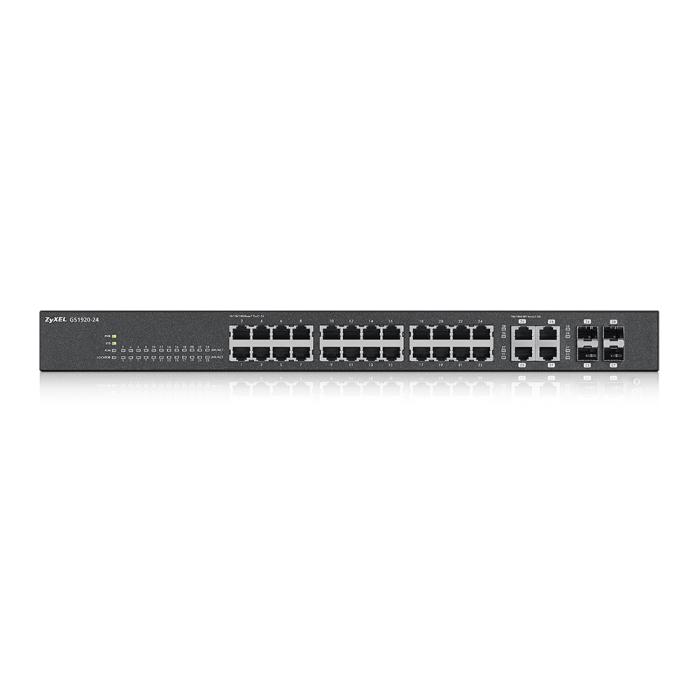

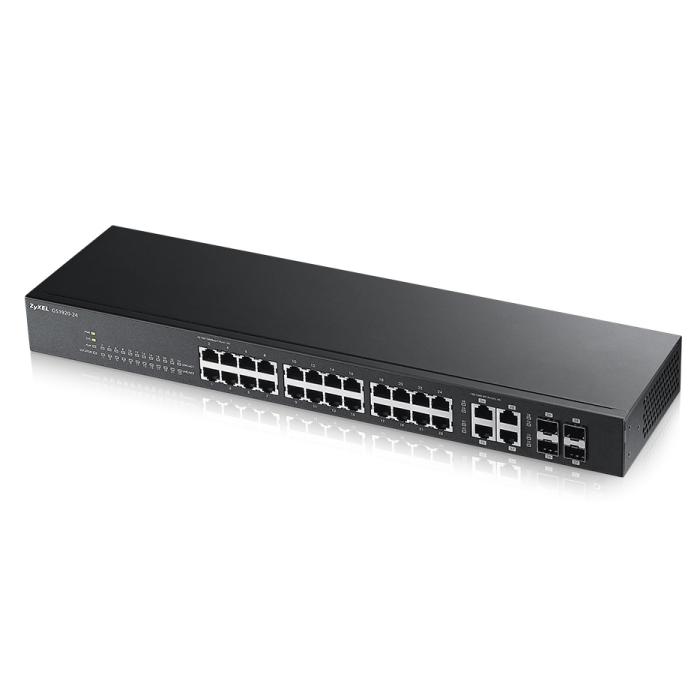

The Zyxel GS1920-24 managed switch is an L2 device with 24 Gigabit Ethernet (10/100/1000) ports, designed to organise business networks with demanding traffic. It incorporates four combo SFP ports and web-based management, as well as support for QoS, VLAN and spanning tree protocol. Its switching capacity reaches 56 Gbit/s and throughput is 41.67 Mpps, with a MAC address table of 16000 entries and Jumbo Frame support. The console port is RJ-45 and power is supplied via a DC input jack. It offers auto MDI/MDI-X and 10G support, which facilitates the integration of high-speed links into the infrastructure. Weighing 2.26 kg and measuring 440 x 44.5 x 131 mm (width x height x depth), it is designed for rack mounting. Its black colour fits into communications cabinet installations.
Specifications
Management features
- Switch type: Managed
- Switch layer: L2
- Quality of Service (QoS) support: Yes
- Web-based management: Yes
Ports & interfaces
- Basic switching RJ-45 Ethernet ports quantity: 24
- Basic switching RJ-45 Ethernet ports type: Gigabit Ethernet (10/100/1000)
- Gigabit Ethernet (copper) ports quantity: 4
- Combo SFP ports quantity: 4
- Console port: RJ-45
- Power connector: DC-in jack
Network
- Networking standards: IEEE 802.1D, IEEE 802.1p, IEEE 802.1Q, IEEE 802.1s, IEEE 802.1w, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3
- 10G support: Yes
- Auto MDI/MDI-X: Yes
- Spanning tree protocol: Yes
- VLAN support: Yes
Data transmission
- Switching capacity: 56 Gbit/s
- Throughput: 41.67 Mpps
- MAC address table: 16000 entries
- Jumbo frames support: Yes
Security
- DHCP features: DHCP client
- Access Control List (ACL): Yes
- IGMP snooping: Yes
- Security algorithms: SSH, SSL/TLS
Multicast features
- Multicast support: Yes
Design
- Rack mounting: Yes
- Product colour: Black
- LED indicators: Yes
- Safety: LVD, BSMI
Performance
- Mean time between failures (MTBF): 432673 h
Power
- AC input voltage: 100 - 240 V
- AC input frequency: 50 - 60 Hz
- Power consumption (typical): 27.2 W
Power over Ethernet (PoE)
- Power over Ethernet (PoE): No
Operational conditions
- Operating temperature (T-T): 0 - 50 °C
- Storage temperature (T-T): -40 - 70 °C
- Operating relative humidity (H-H): 10 - 90%
- Storage relative humidity (H-H): 10 - 95%
- Heat dissipation: 92.75 BTU/h
Weight & dimensions
- Width: 440 mm
- Depth: 131 mm
- Height: 44.5 mm
- Weight: 2.26 kg
Packaging data
- Package width: 561 mm
- Package depth: 220 mm
- Package height: 82 mm
- Package weight: 3.26 kg
Certificates
- Certification: FCC Part 15, CE EMC, BSMI ENC, RoHS
